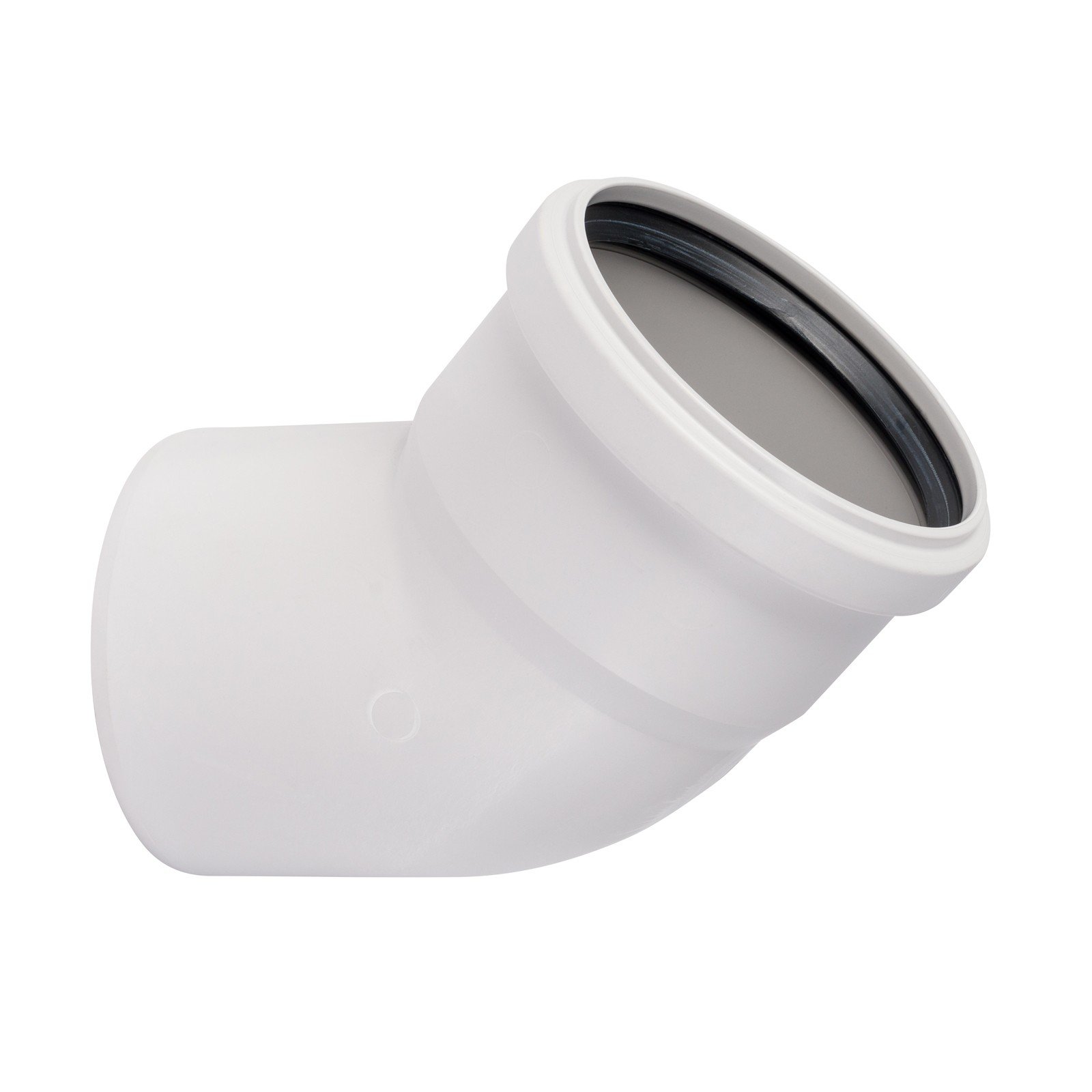

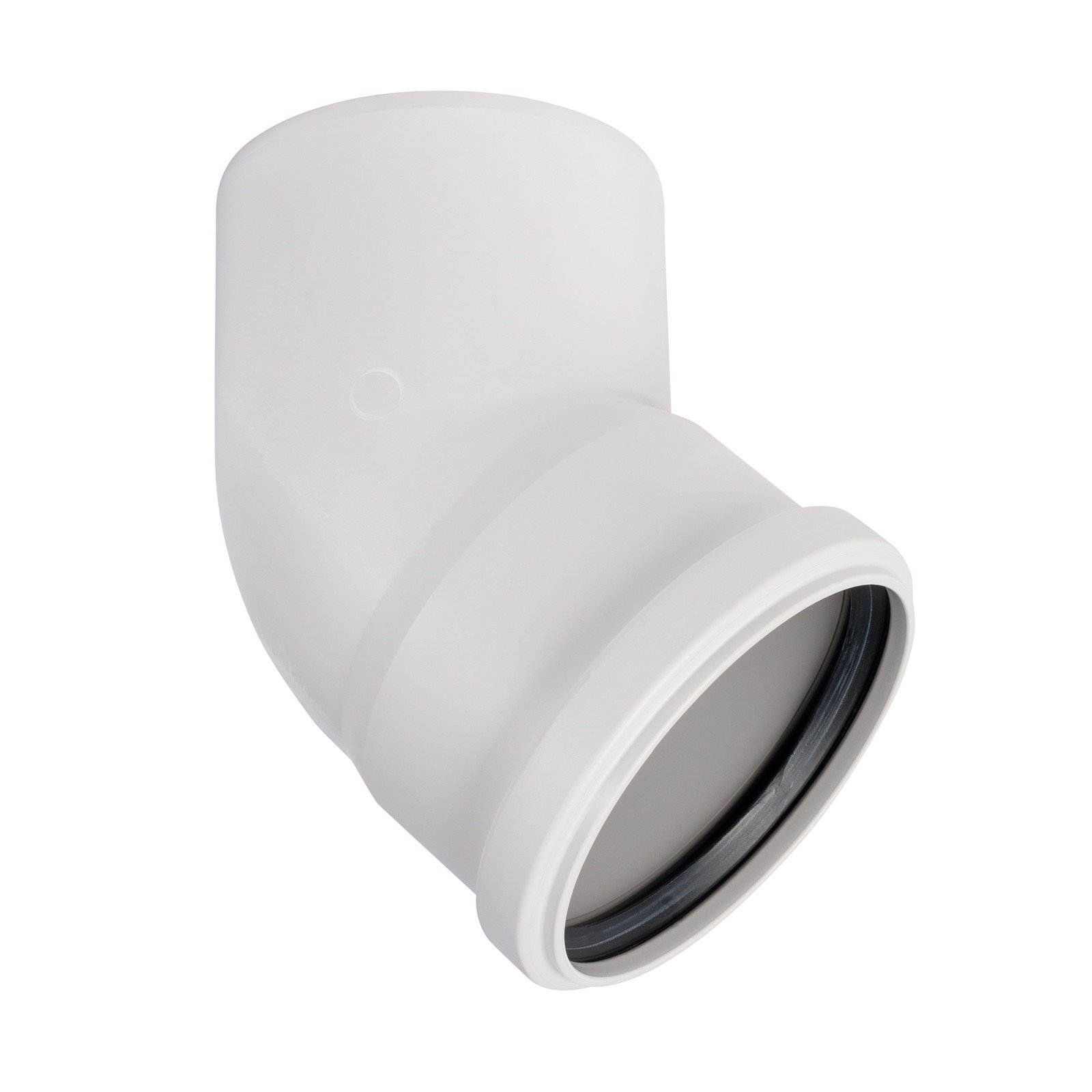

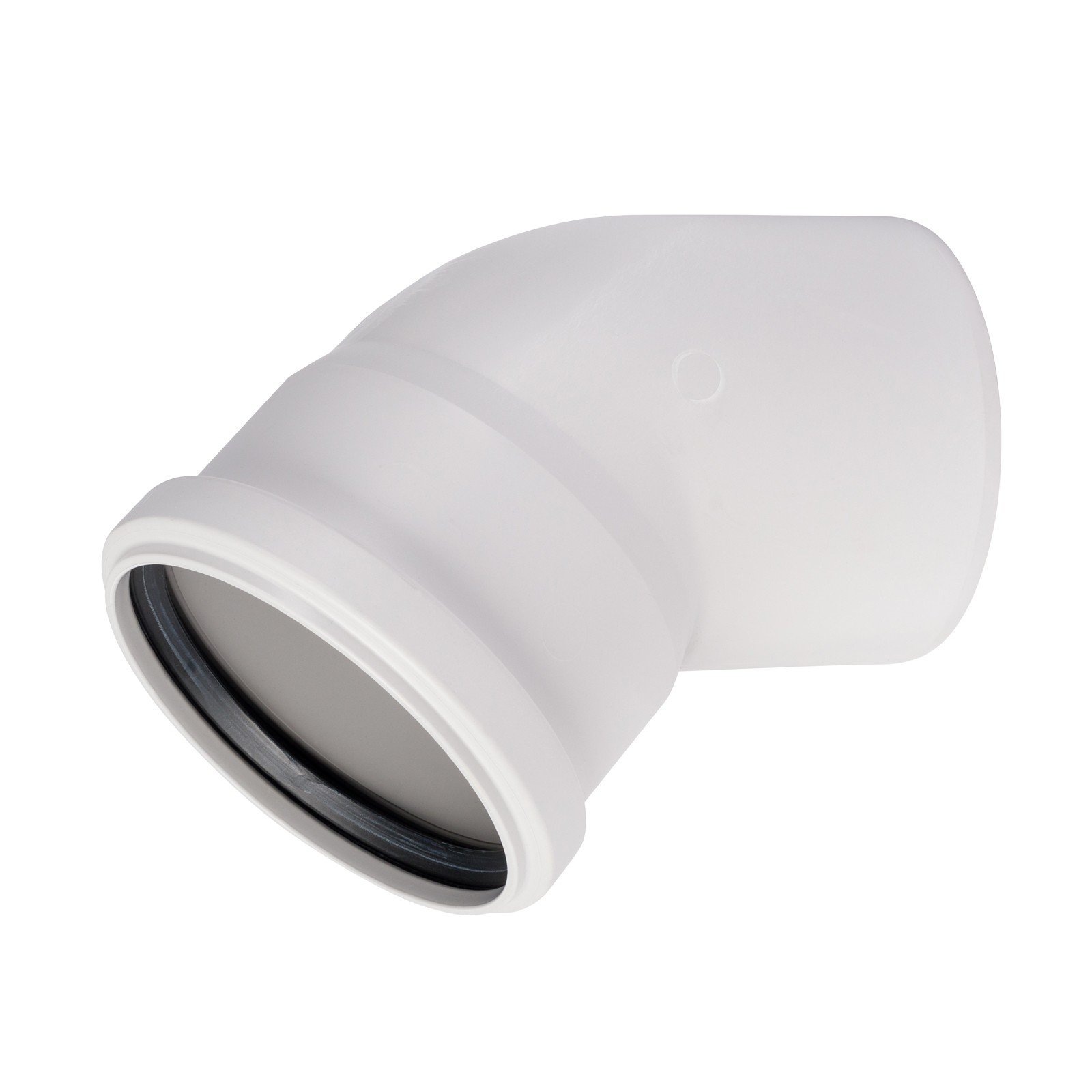

Skolan Arch SKB 45 ° DN 100 335120

• The sound protection tube system Skolan is a Heißwasserbeständiges system, that is suitable for all drains according to DIN EN 12056 and DIN 1986 – 100.
• Skolan is long lasting, corrosion resistant and resistant to aggressive sewage. Due to the smooth surface no Inkrustationen.
• The unique silent system Skolan is a high-quality product from Mineralverstärktem polypropylene.
• Its extremely Schalldämmenden properties and therefore ideal requirements for the trend-setting use in all areas of the Hochbaus.
• East Village 335120 Skolan dB sheet angled pipe sheet pipe DN110/45 ° angle Schalldämmendes wastewater pipe outlet pipe

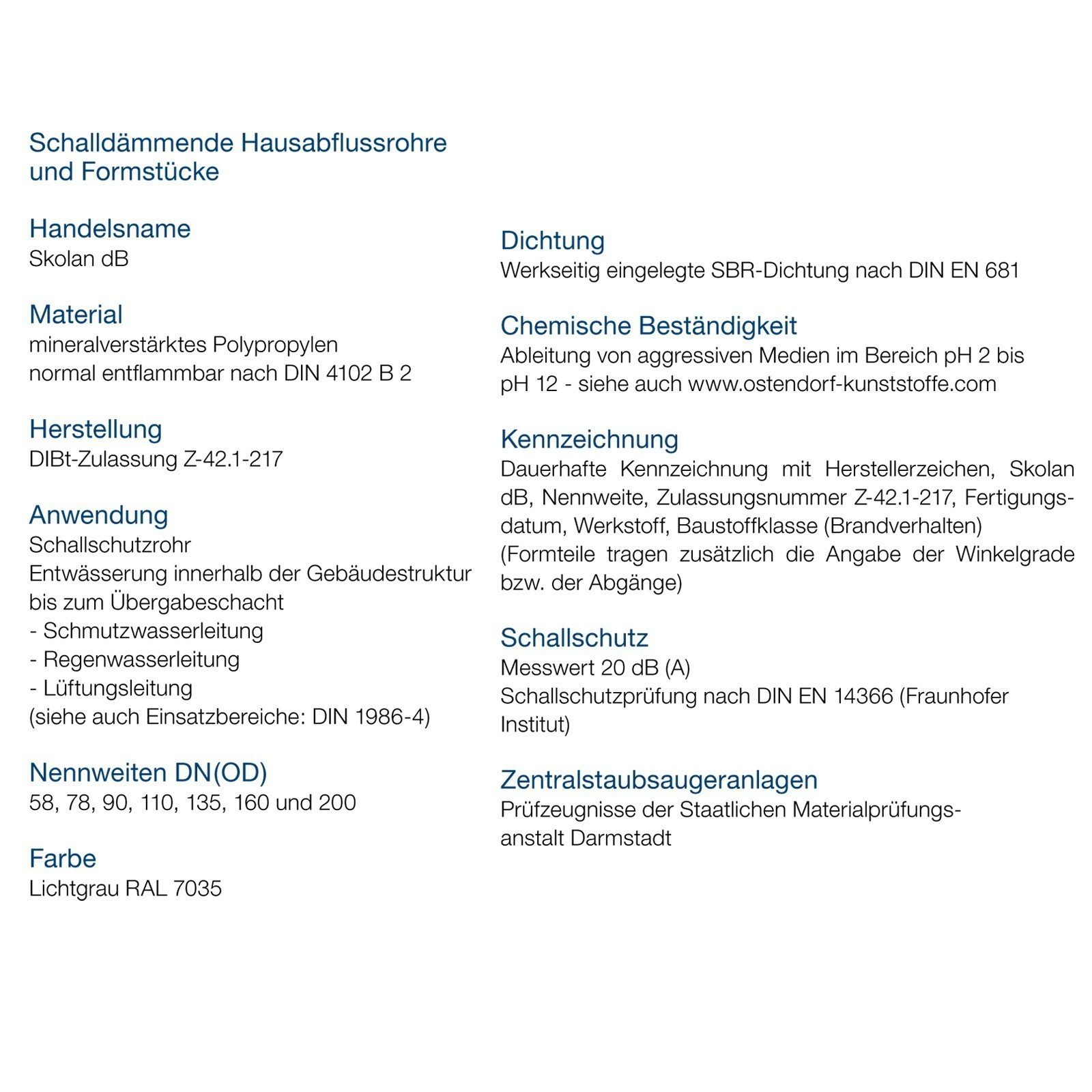

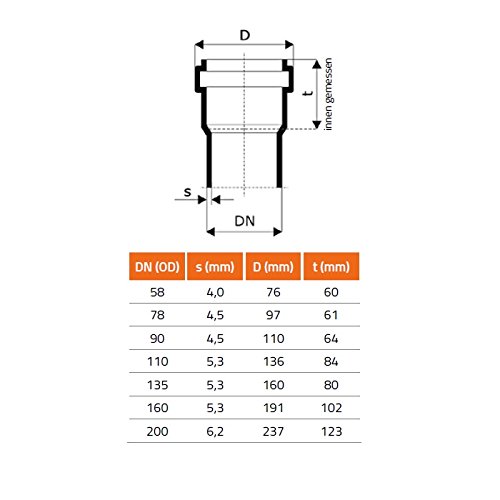

Skolan dB is a high quality plastic pipe system made from Mineralverstärktem polypropylene. This material gives sound insulation pipe system its extremely Schalldämmenden properties and create additional storage space making it ideal requirements for the trend-setting use in all sectors of Hochbaus (a and Amil Ienwohn houses, industrial buildings, hospitals, as well as hotel installations etc.) Complete system with tubes from DN/OD 58 to DN/OD – 200 as well as a large shape piece. New in from of East Skolan dB the quiet tube is virtually silent. Reduce the Skolan dB is a thick-walled noise insulation system the SIRT For Both Air and body noise. Heavy gauge waste water plumbing systems such as Skolan dB have been proven in the field. The laying at Skolan dB with standard clamps to a sound insulation of 20dB (a). The Skolan dB has been during the Fraunhofer institute for building physics to noise protection in accordance with DIN EN 14366. Installation dimensions (L x W x H): The Skolan tube DN110 up has an inner diameter of 99.4 and an external diameter of 110 mm. Product Details: Skolan dB bow SKB Material: Made of Mineralverstärktem polypropylene Fire protection: Normal Antflammbar according to DIN 4102 B 2 Colour: Light grey RAL 7035 Seal: Factory inlaid SBR sealing washer in accordance with DIN EN 681 Manufacture: DIBt approval Z/42.1/217 Sound: Mass = 20dB (a) (noise protection tested according to DIN EN 14366) Wall Thickness: 5.3 mm Diameter: DN110 Pipe angle: 45 ° Box Contents: Skolan sheet DN110/45 ° Schallgedämmtes waste water tube
