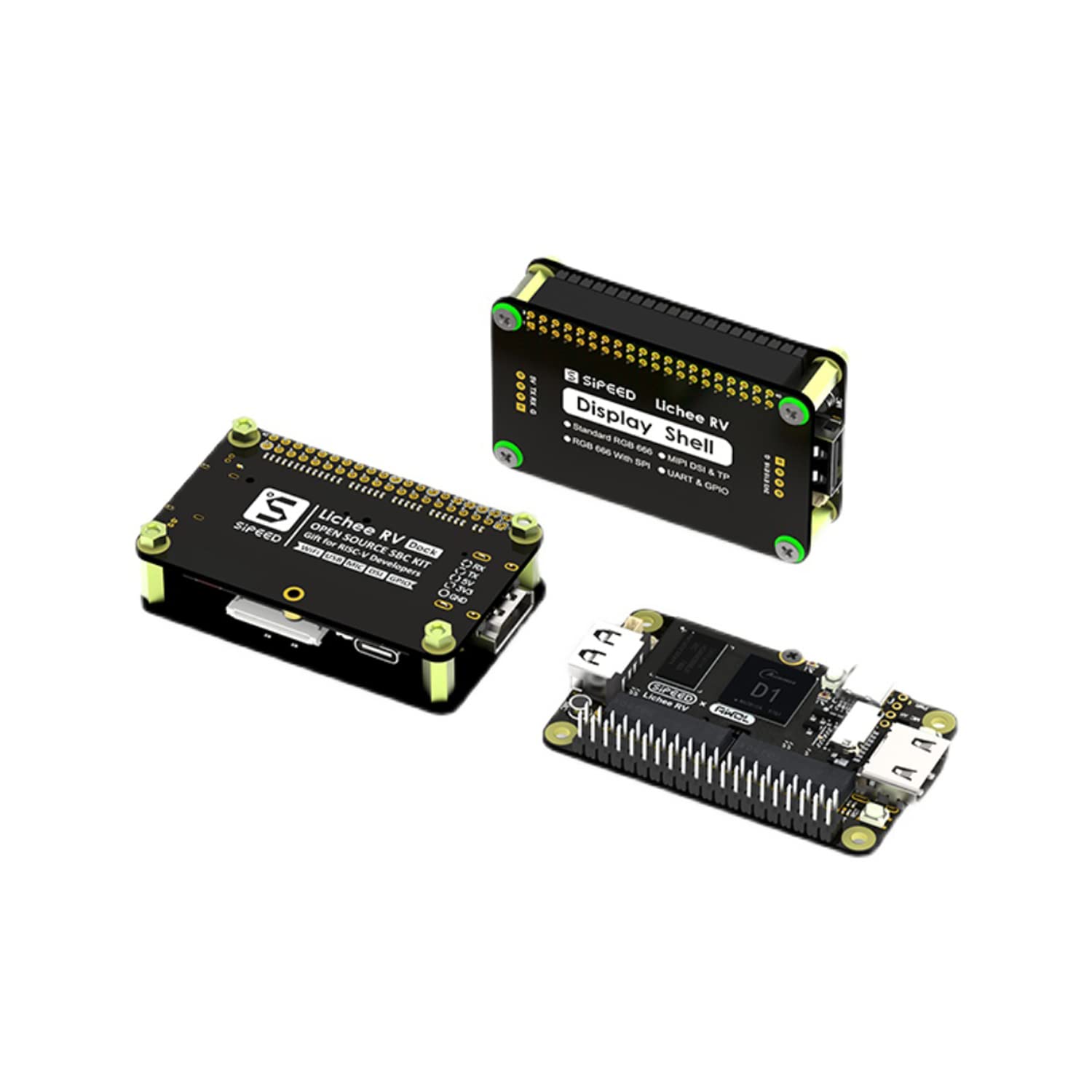

Sipeed RV Dock Pro Allwinner D1 Development Board RISC-V Linux Single Board Computer Starter Kit with 16 Bit 1GB DDR3 RAM Onboard WiFi Bluetooth Module Support Tina Linux Debian YoC (RTOS)

• [RISC-V Linux] RISC-V Linux Development Board Suite with high functional integration, small size and affordable price. It not only supports HDMI output, but also a variety of screen displays with the screen adapter board (MIPI, RGB and MCU interfaces).
• Rich peripherals: It also has extensive peripherals, including a host USB-A interface, a 2.4G Wi-Fi + BT module, an analogue microphone and a speaker jack, etc.
• [Opensource and Freedrom] Plug and play capable. After receiving the kit, users can use the kit to connect monitors and USB devices to quickly develop various interesting and practical Linux applications, which significantly accelerates the research and development work of developers.
• Multiple video output interfaces: Users can also take advantage of the multiple display interfaces, wireless functions and GPIO of the development board together with the built-in microphone and speakers to quickly realise different ideas.
• [Wide application scenarios] RV Linux development; small screen player; sound source positioning; IoT controller.
• [Wiki] Pls feel free to contact us to get the Datasheet or any questions of this module after you purchased it. How to contact us? Click "WayPonDEV " and ask a question.

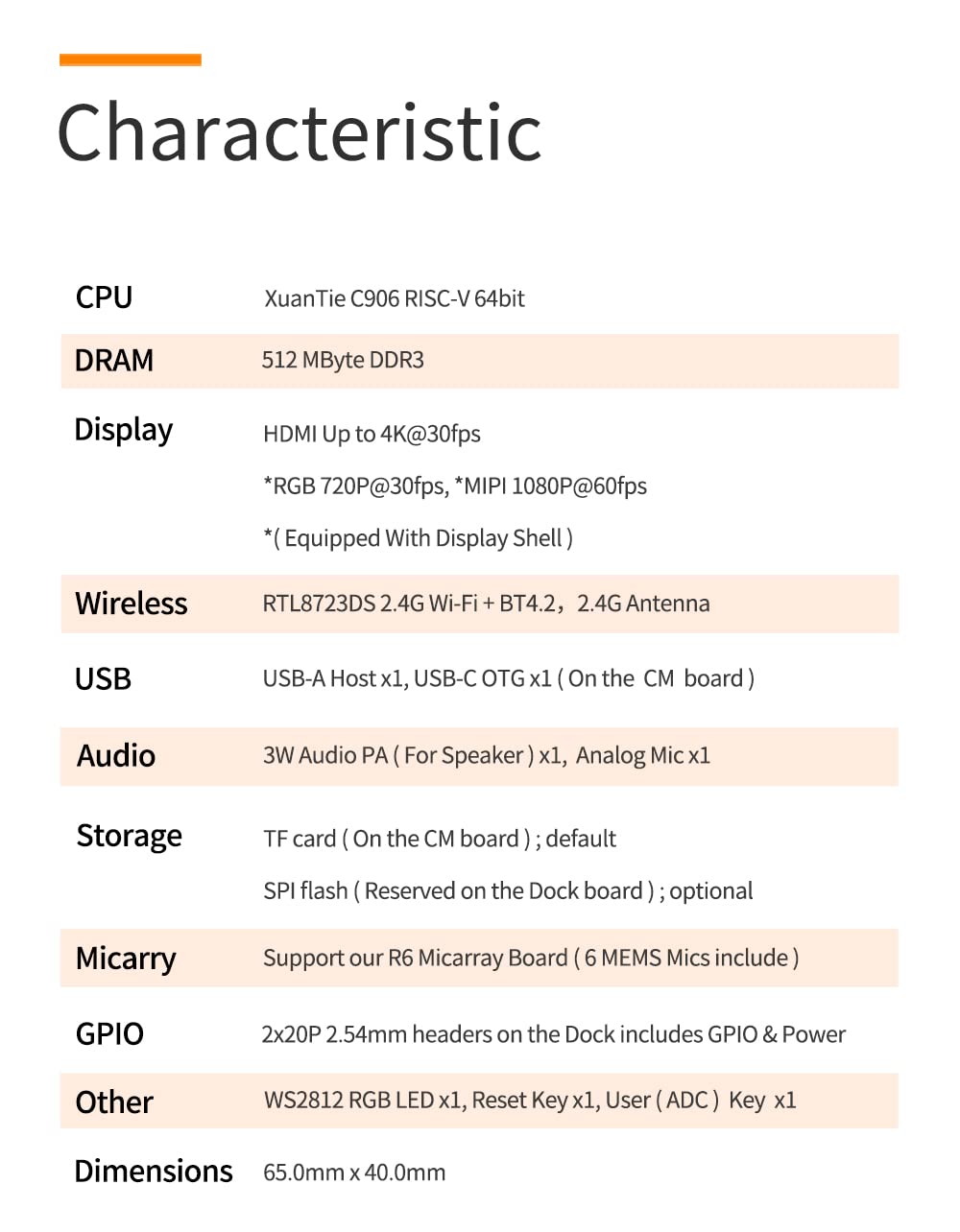

-Specification- SoC: Allwinner D1. RAM: 1GB DDR3 RAM. Display output interface: Onboard a display output connector RGB screen signal and MIPI screen signal are connected to 2x20p pin pad(Users can use our screen adapter board to drive the screen of RGB interface orMIPI interface) Network connections: Onboard 2.4G WiFi + BT module, SMT antenna, IPEX connector USB: Onboard a USB-A female connector Audio: On board speaker driver and its connector; On-board electret microphone circuit. Storage: A SOP8 pad is reserved to connect SPI interface. Components are not weldedby default Expansion connector: Onboard 30P FPC connector, which can be directly connected to our Mic ArrayR6 GPIO expansion: GPIO is led out through 2x20p 2.54mm pad for user use LED: Onboard a WS2812 RGB LED; On board a power indicator light. Button: Onboard a RST button; Onboard a user button. System: Tina Linux (based on OpenWRT 14.07), Debian; YoC (RTOS). -Package content. 1 x Sipeed RV Dock Allwinner D1 1GB Single Board Computer - Technical support. Please click "WayPonDEV" and ask a question or monica#smartfire.cn (f------>@) skype: monica_9122. Please leave the message in our forum by forum.youyeetoo.com/.
