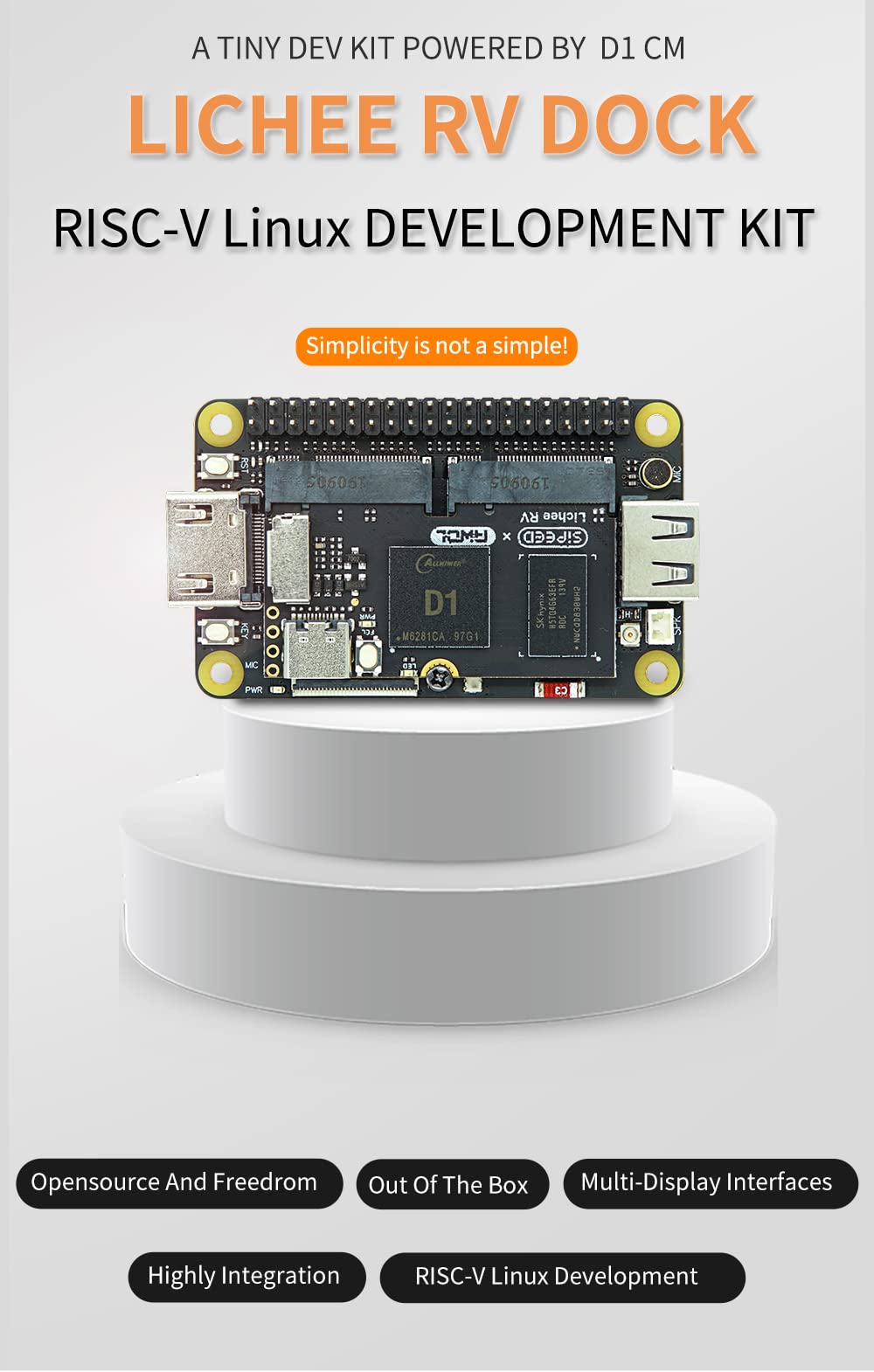

Sipeed RV Dock Allwinner D1 Soc Development Board RISC-V Linux Starter Kit with 16 Bit 512 MB DDR3 RAM Onboard WiFi Bluetooth Module Support RV Linux Dual M.2 NGFF B-Key 4.2H

• RISC-V Linux: RISC-V Linux development board suite with high functional integration, small size and affordable price. It not only supports HDMI output, but also supports a variety of screen displays (MIPI, RGB and MCU interfaces) with the screen adapter board.
• [Multiple video output interfaces] Users can also take advantage of the multiple display interfaces, wireless functions and GPIO of the development board together with the built-in microphone and speakers to quickly realize different ideas.
• International products have separate terms, are sold from abroad and may differ from local products, including fit, age ratings, and language of product, labeling or instructions.

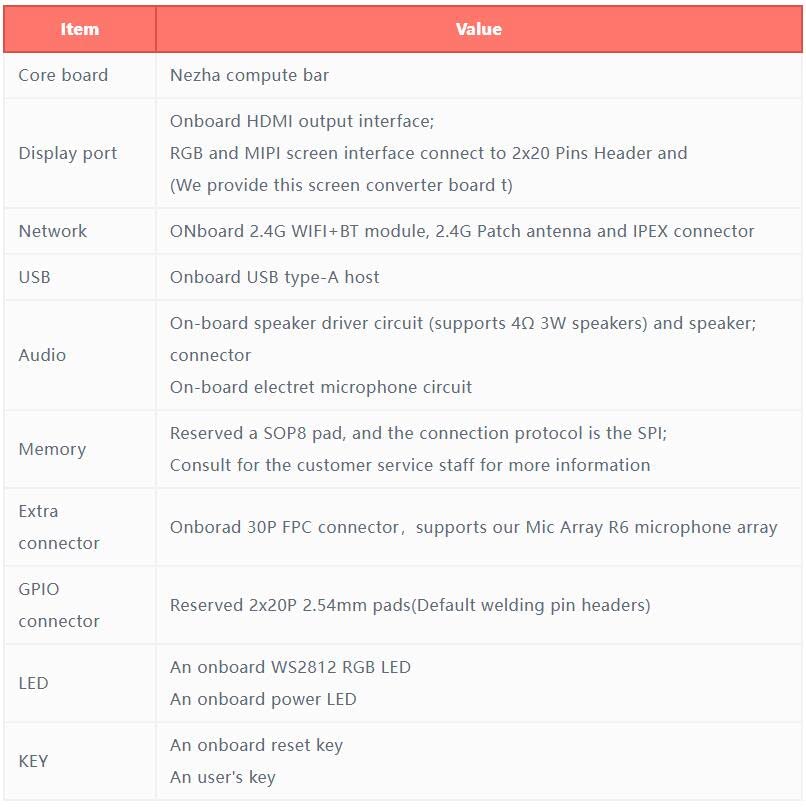

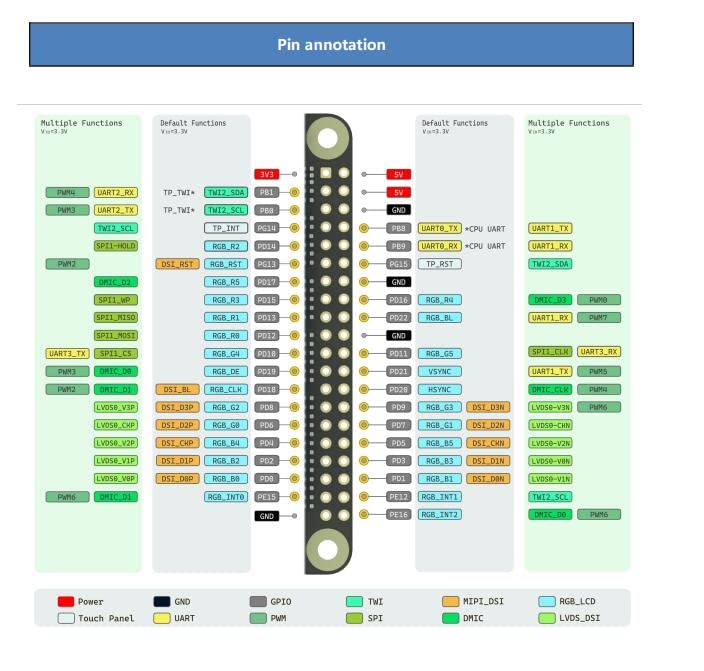

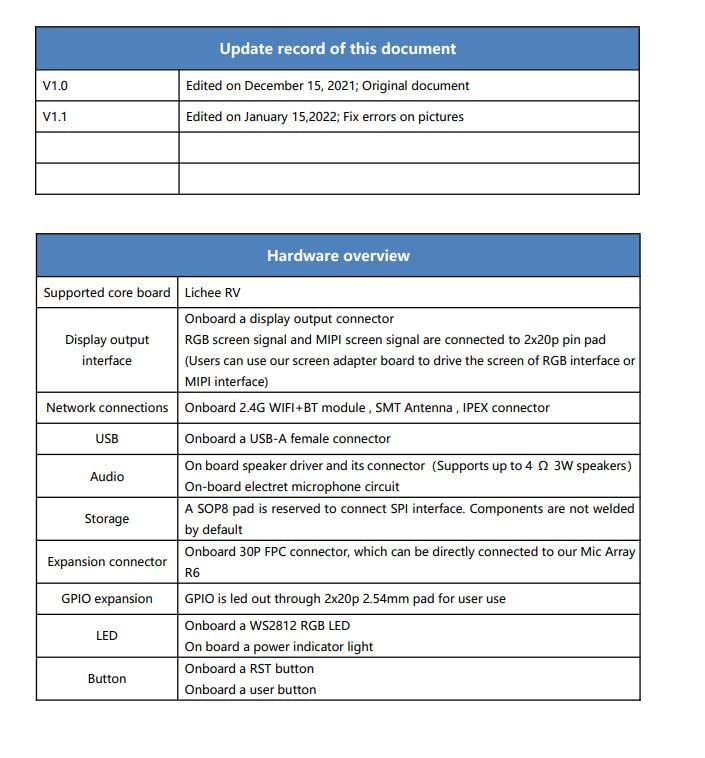

-Specification- Display output interface: Onboard a display output connector RGB screen signal and MIPI screen signal are connected to 2x20p pin pad(Users can use our screen adapter board to drive the screen of RGB interface orMIPI interface) Network connections: Onboard 2.4G WiFi + BT module, SMT antenna, IPEX connector USB: Onboard a USB-A female connector Audio: On board speaker driver and its connector; On-board electret microphone circuit. Storage: A SOP8 pad is reserved to connect SPI interface. Components are not weldedby default Expansion connector: Onboard 30P FPC connector, which can be directly connected to our Mic ArrayR6 GPIO expansion: GPIO is led out through 2x20p 2.54mm pad for user use LED: Onboard a WS2812 RGB LED; On board a power indicator light. Button: Onboard a RST button; Onboard a user button. System: Tina Linux (based on OpenWRT 14.07), Debian; YoC (RTOS). -Package content. 1 x Sipeed RV Dock Allwinner D1 512MB Single Board Computer - Technical support. Please click "WayPonDEV" and ask a question or monica#smartfire.cn (f------>@) skype: monica_9122. Please leave the message in our forum by forum.youyeetoo.com/.
