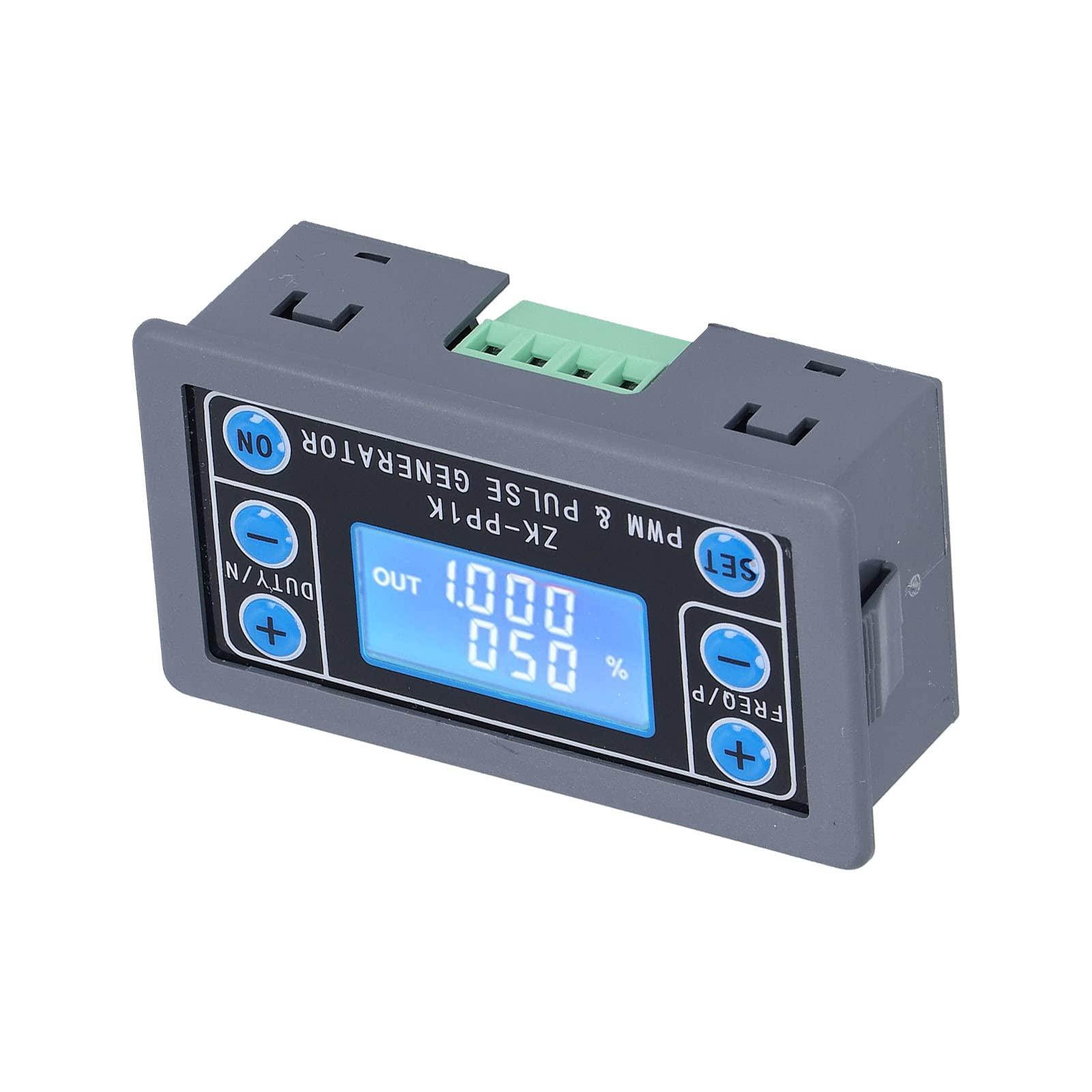

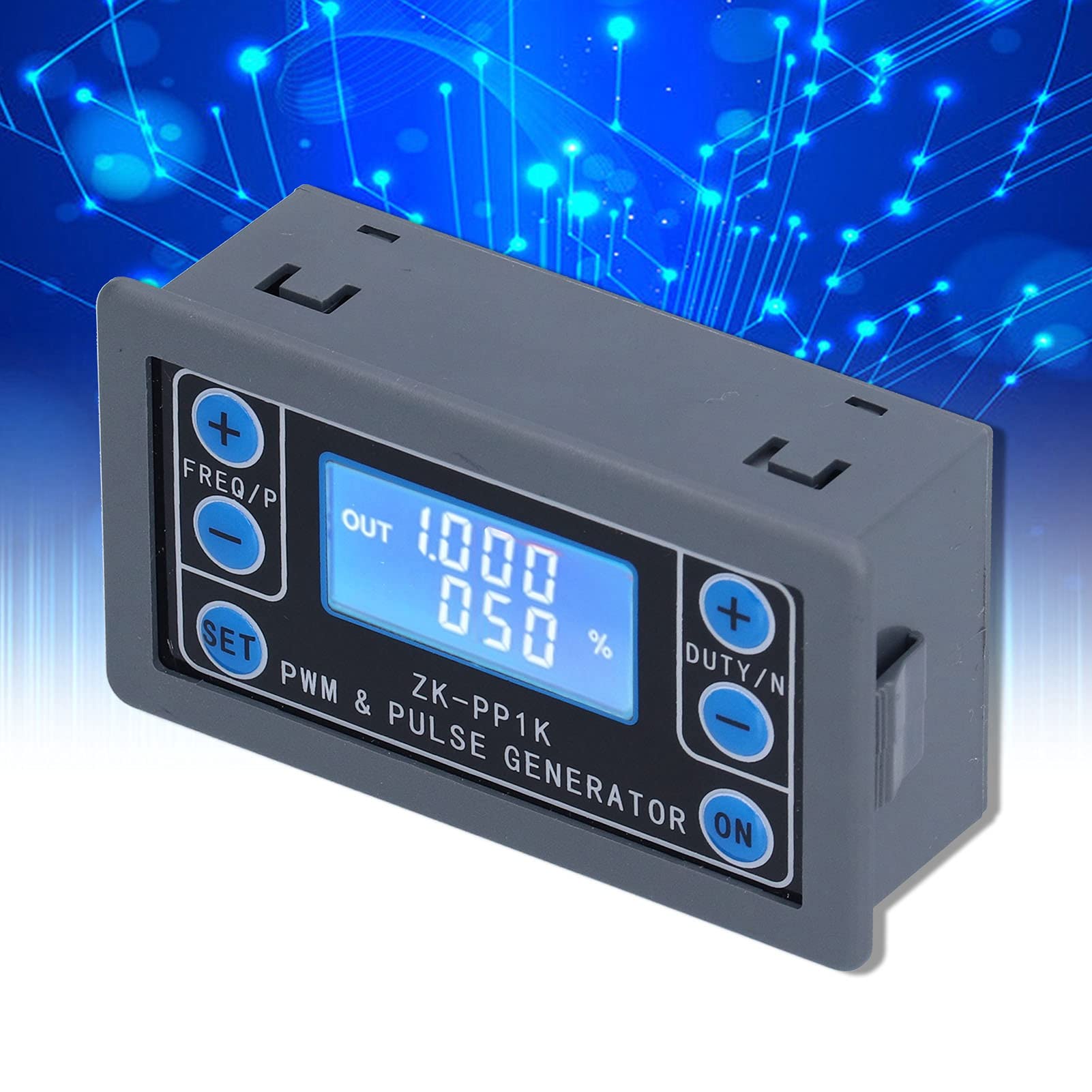

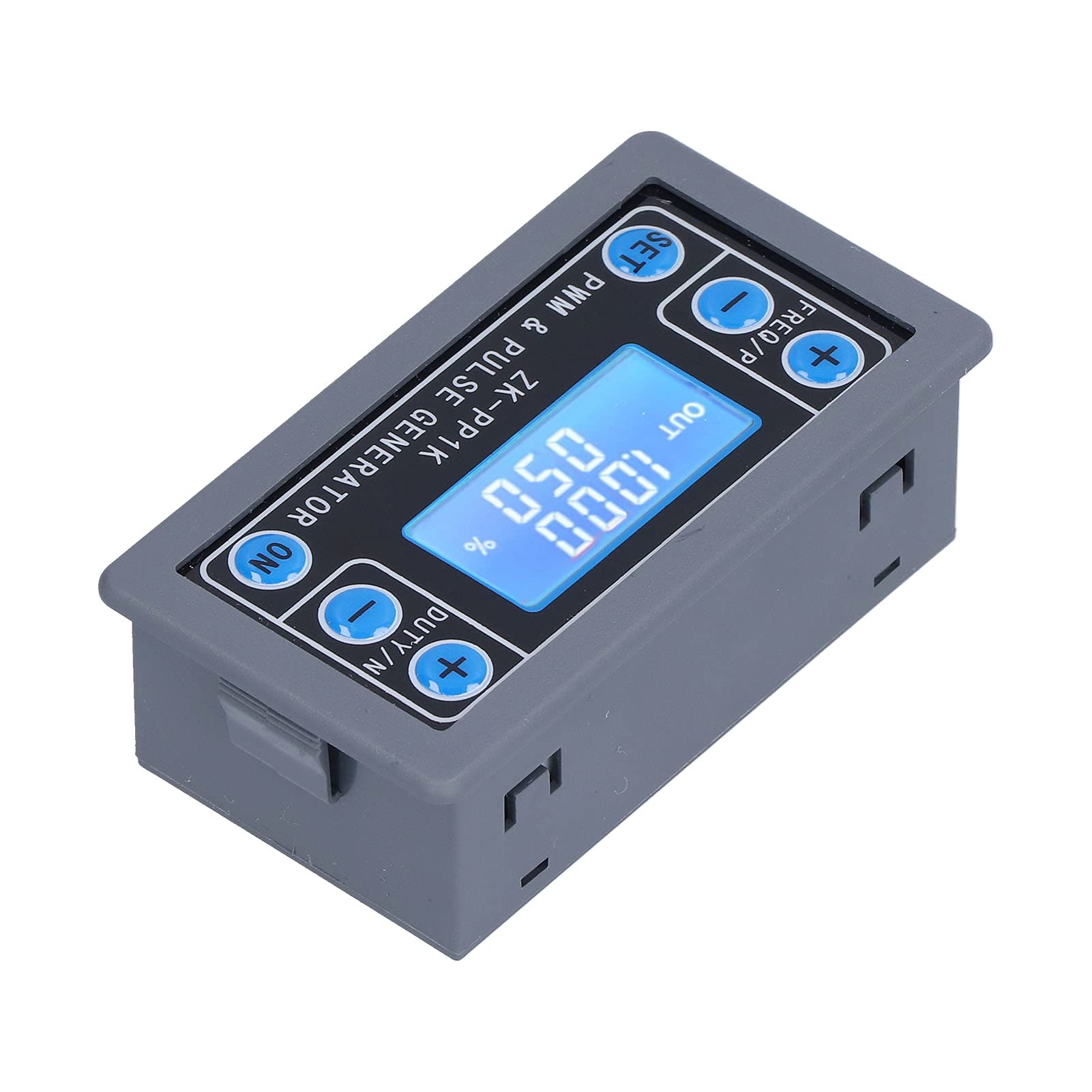

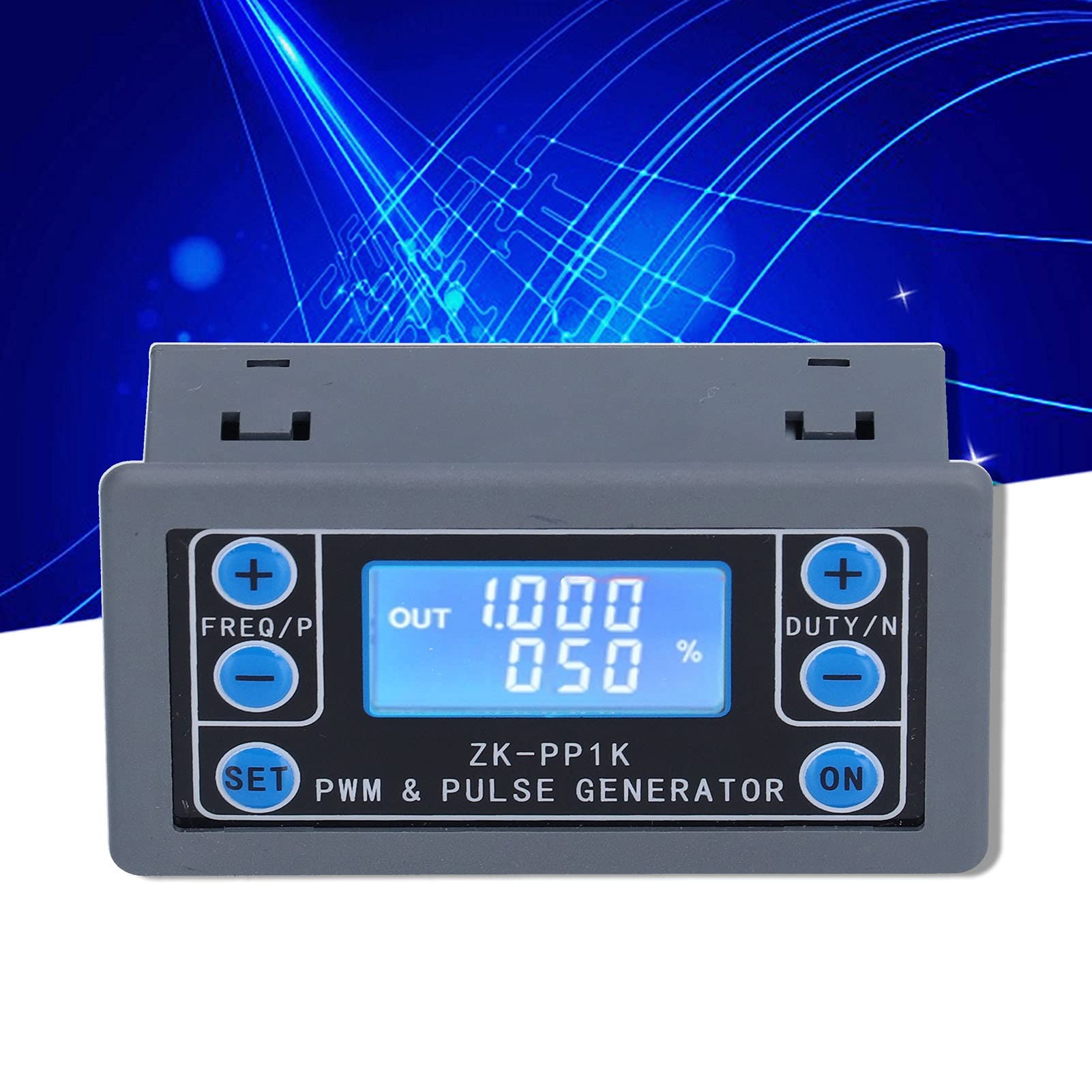

Signal Generator, Signal Generator PWM 1Hz to 150KHz LED Automatic Cycle Reliable Board Module 3.3V to 30V

• ⭐ Apply：Used for PWM signal generator, driving lamp, motor, solenoid valve, rectangular wave signal generator, servo motor, stepping motor, electric jaw

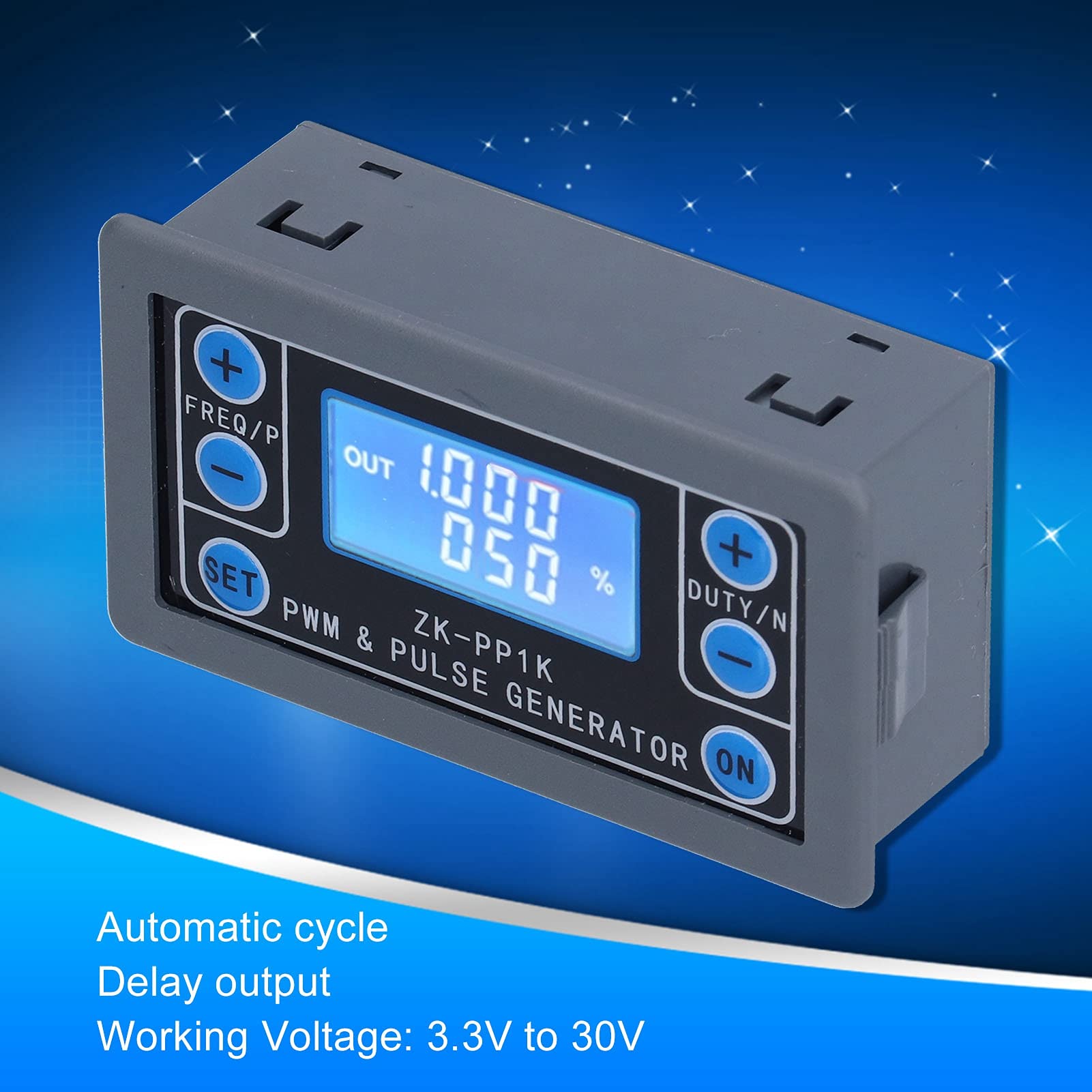

• ⭐ Automatic：Drive solenoid valve suction and discharge, automatic cycle, delayed output, cycle times (or infinite cycle) can be set
• ⭐ Adjustable：LED brightness adjustment, frequency and duty cycle adjustable. Motor speed regulation, frequency and duty cycle adjustable
• ⭐ Dependable ：Control the equipment on and off, conduct switch fatigue test, voltage drop test and other tests to verify the reliability of the equipment
• ⭐ High Quality：Good quality, durable, can be used for a long time, bring a lot of convenience

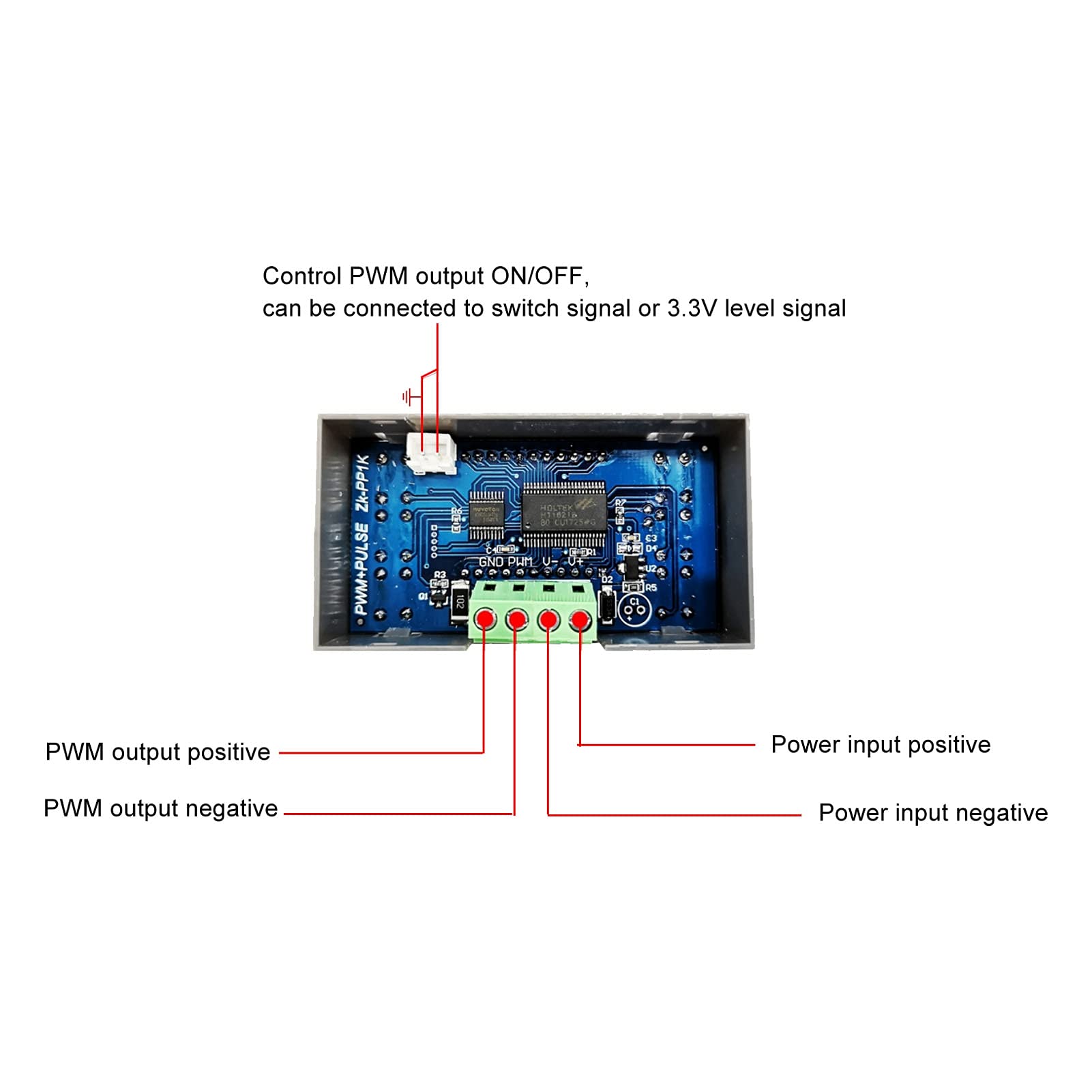

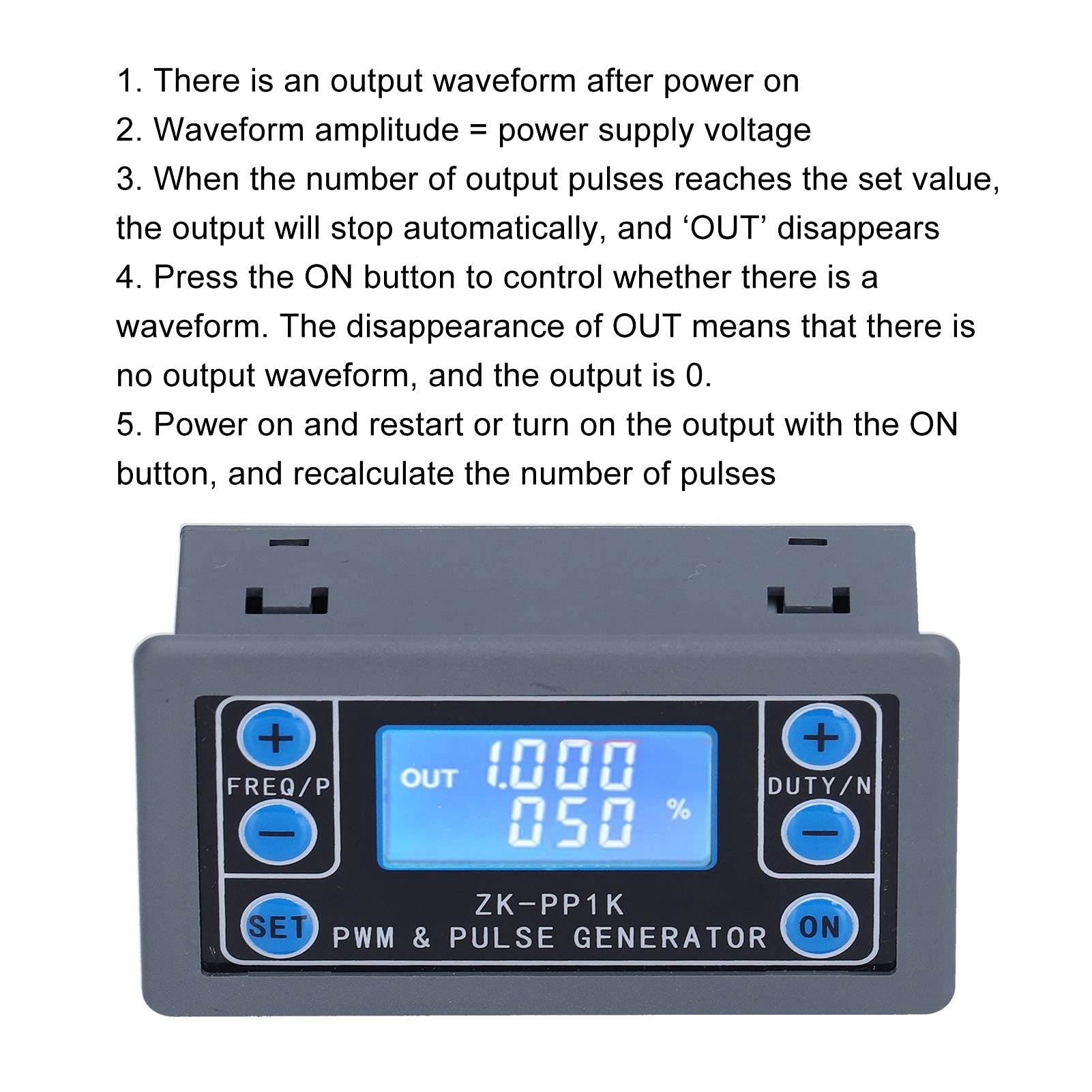

Specification: Item Type: Signal Generator Material: ABS Working Voltage: 3.3V to 30V Frequency Range: 1Hz~150KHz (20KHZ is Generally Selected for Motor Speed Regulation) Duty Cycle Range: 0 to 100%, 1% Step Number of Pulses: 1 to 9999 Delay Output Time: 0.000s to 9999s, with a Minimum Setting of 1ms Positive and Negative Pulse Width Length: 0.000s to 9999s, the Minimum Setting is 1ms Output Load Capacity: Less Than 8A (MOS Switch Tube) Output Amplitude: the Amplitude is Equal to the Power Supply Voltage (OUT , Directly Connected to V , Module) Package List: 1 x Signal Generator Note: The signal generator cannot be positive and negative, otherwise it may be burned
