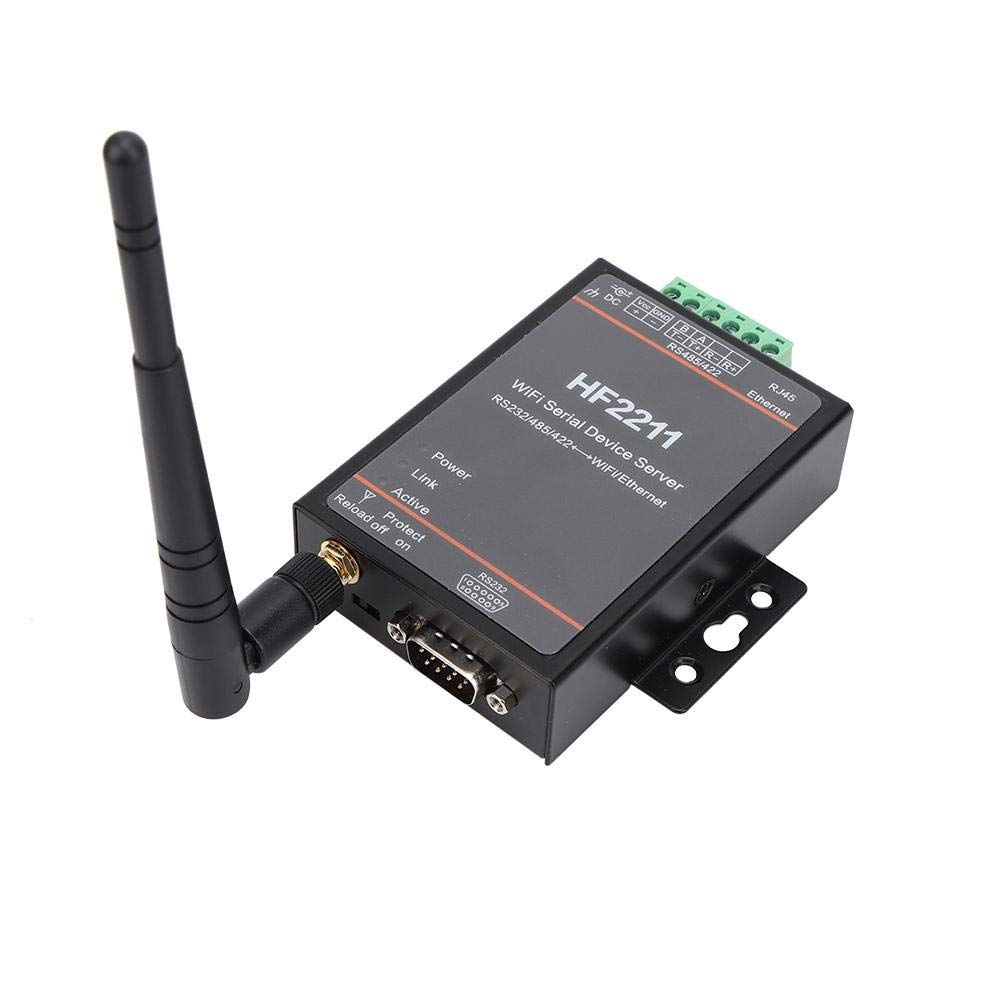

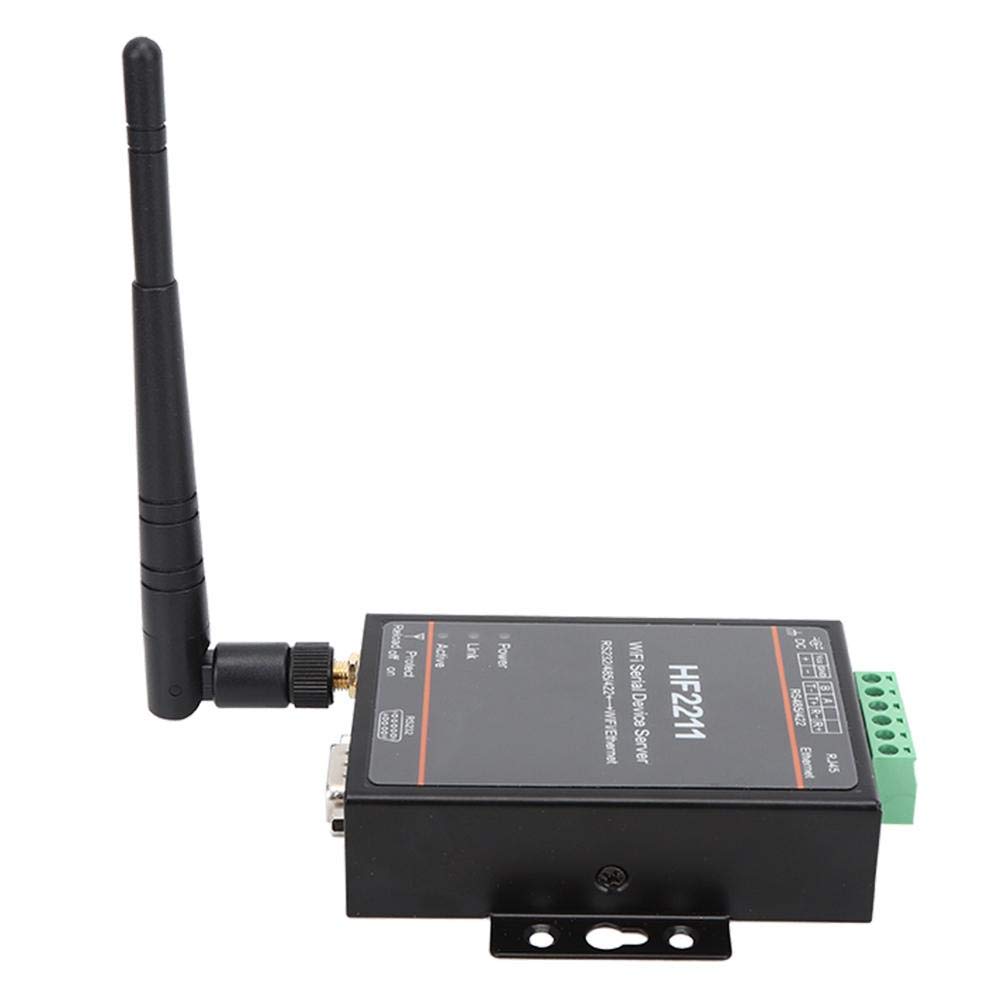

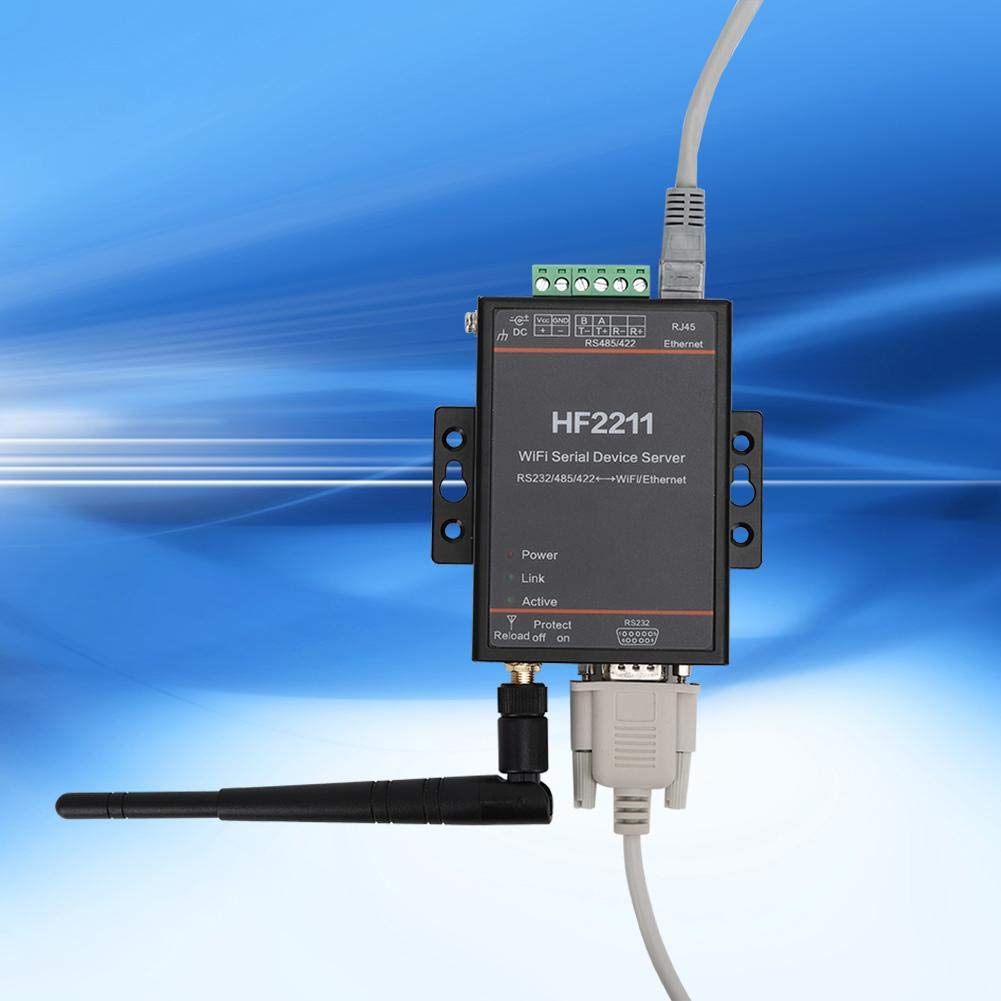

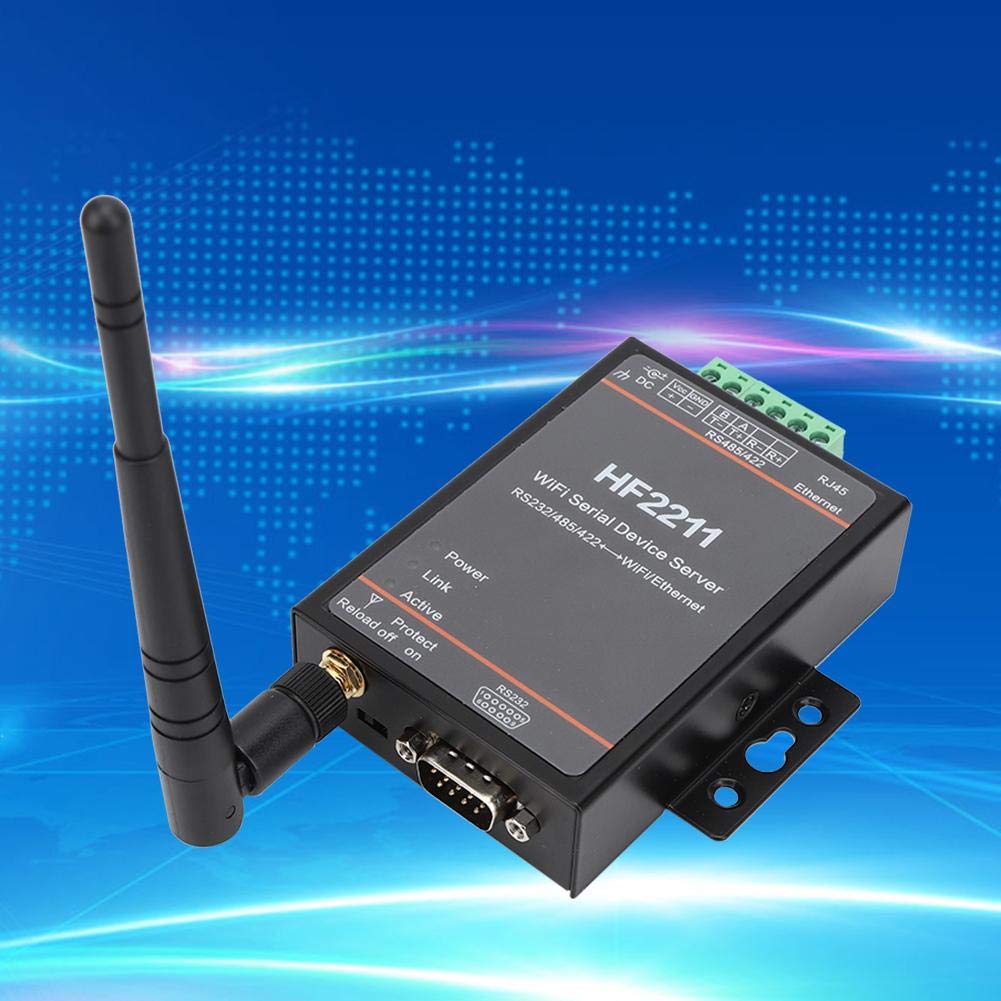

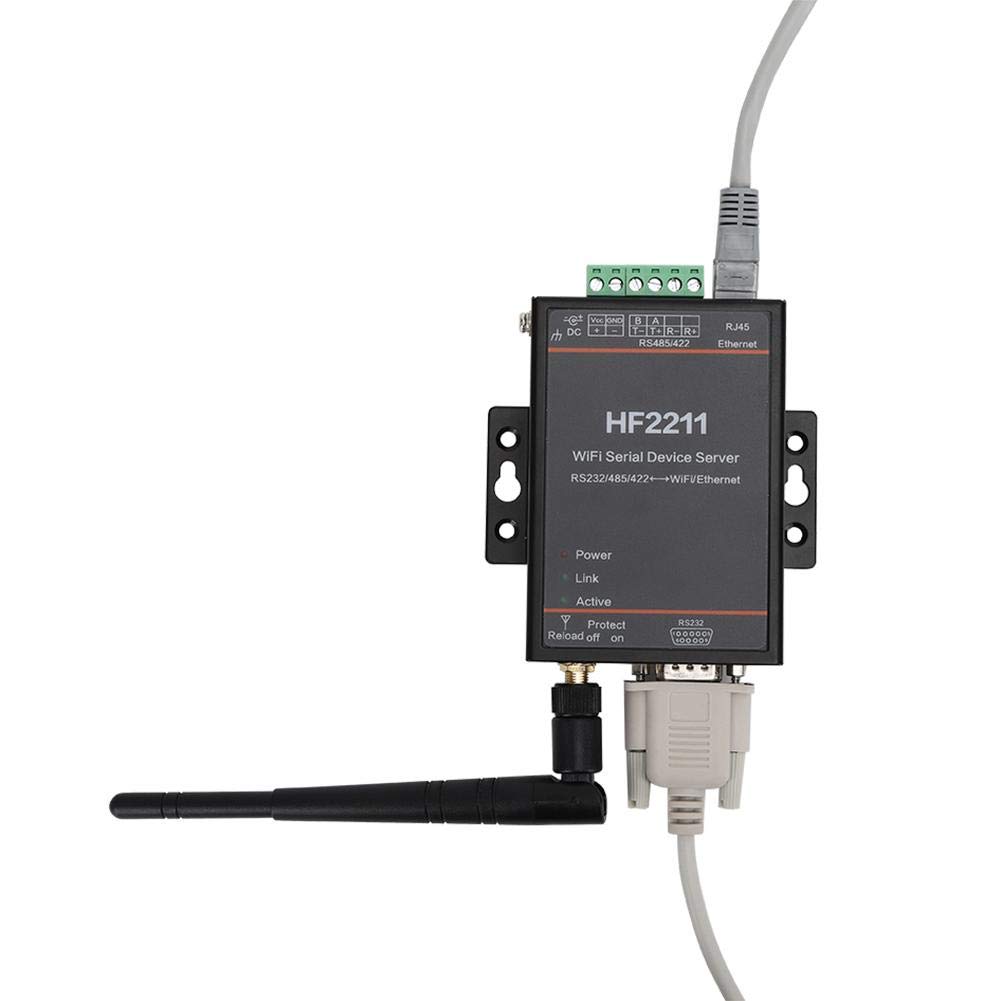

Serial Server, HF2211 Port RS-232/422/485 Serial-to-WiFi & Ethernet DTU Network Communication Device Server 5-36VDC

• Using MIPS MCU (8MB for SRAM) and 4MB Flash, based on eCos operating system.
• Passed FCC_CE_RoHS_SRRC_REACH certification.

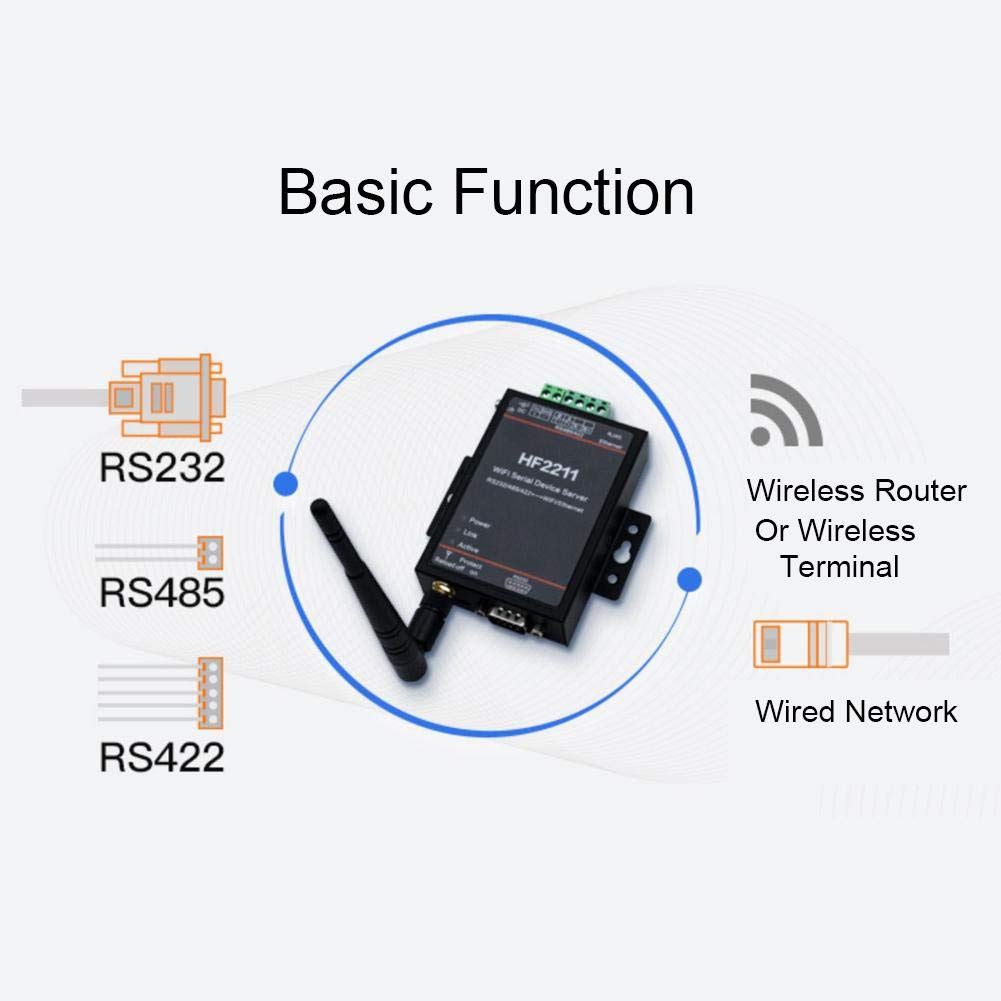

• Support RS232 / RS422 / RS485 to Wi-Fi / Ethernet data transmission, the maximum serial port speed is 230400 bps.
• Support for TCP / for IP / for Telnet / for Modbus protocol.
• Support wireless working STA / AP / AP + STA.

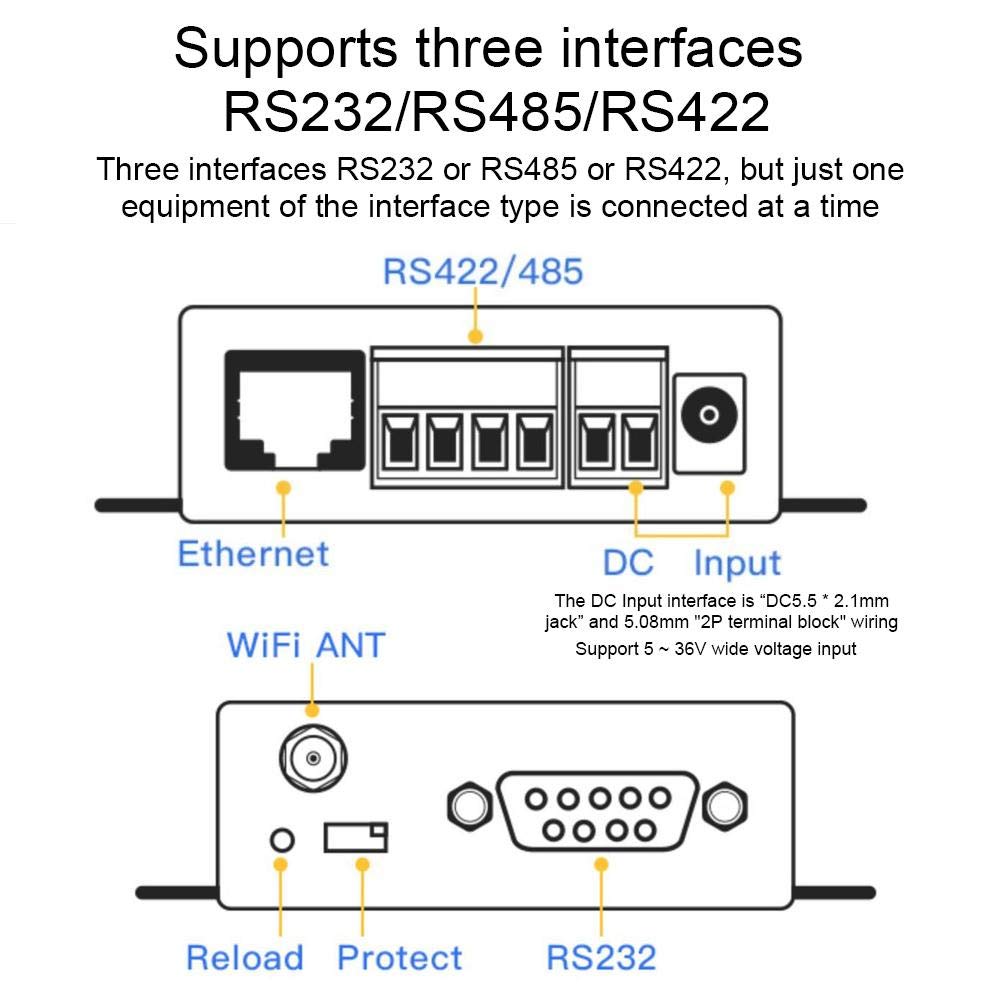

Feature: 1. Using MIPS MCU (8MB for SRAM) and 4MB Flash, based on eCos operating system. 2. Passed FCC_CE_RoHS_SRRC_REACH certification. 3. Support RS232 / RS422 / RS485 to Wi-Fi / Ethernet data transmission. 4. Support for TCP / for IP / for Telnet / for Modbus protocol. 5. Support wireless working STA / AP / AP + STA. Specification: Item Type: HF-2211 Serial Port Server Model: HF-2211 Input Voltage: Wide voltage 5 ～ 36VDC Size: Approx. 95 x 65 x 25mm / 3.7 x 2.6 x 1in Working Temperature: -45-85 ℃ Interface Form: Ф5.5 x 2.1mm socket and 5.08mm terminal block Working Current: 200mA Power Consumption: <700mW Supported Features: Supported for Http protocol transmission mode Unsupported Features: Resources: Operating System: For Ecos FLASH Resources: 4MB RAM: 8MB Ethernet Interface Parameters: Ethernet Interface Form: 1 RJ45 Interface Standard: 10/100 Base-T auto-negotiation Security Protocol: for TLSV1.2, for AES-128Bit, DES3, for SSL Serial Interface Parameters: Number Of Serial Ports: 1 (RS232 / 485/422) Interface Standard: RS232: DB9 pin type RS485 / RS422: 5.08mm terminal block Baud Rate: 600-230400bps Data Bits: 8 Stop Bits: 1, 2 Wi-Fi Wireless Interface Parameters: Wireless Standard: 802.11 b / g / n Network Mode: for STA / for AP / for STA + AP Network Protocol: for TCP / for UDP, etc. Maximum Number Of Connections: Maximum 15 STA Frequency Band: 2.412GHz-2.484GHz Network technical parameters Working Mode: Server Client UDP unicast UDP multicast UDP broadcast IP Acquisition Method: DHCP or static IP, AutolP Failure Alarm: Syslog / SMTP Package List: 1 x Serial Network Server 1 x Serial Cable 1 x Network Cable 1 x WIFI Rubber Antenna
