SEENGREAT VL53L0X Laser Time-of-Flight Distance Sensor for Raspberry Pi Models Adui STM32 ToF Ranging Sensor I2C Interface 3.3V/5V Working Level Accurate Ranging Up to 2 m

• This VL53L0X laser time-of-flight distance sensor supports for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B, Ardui and STM32

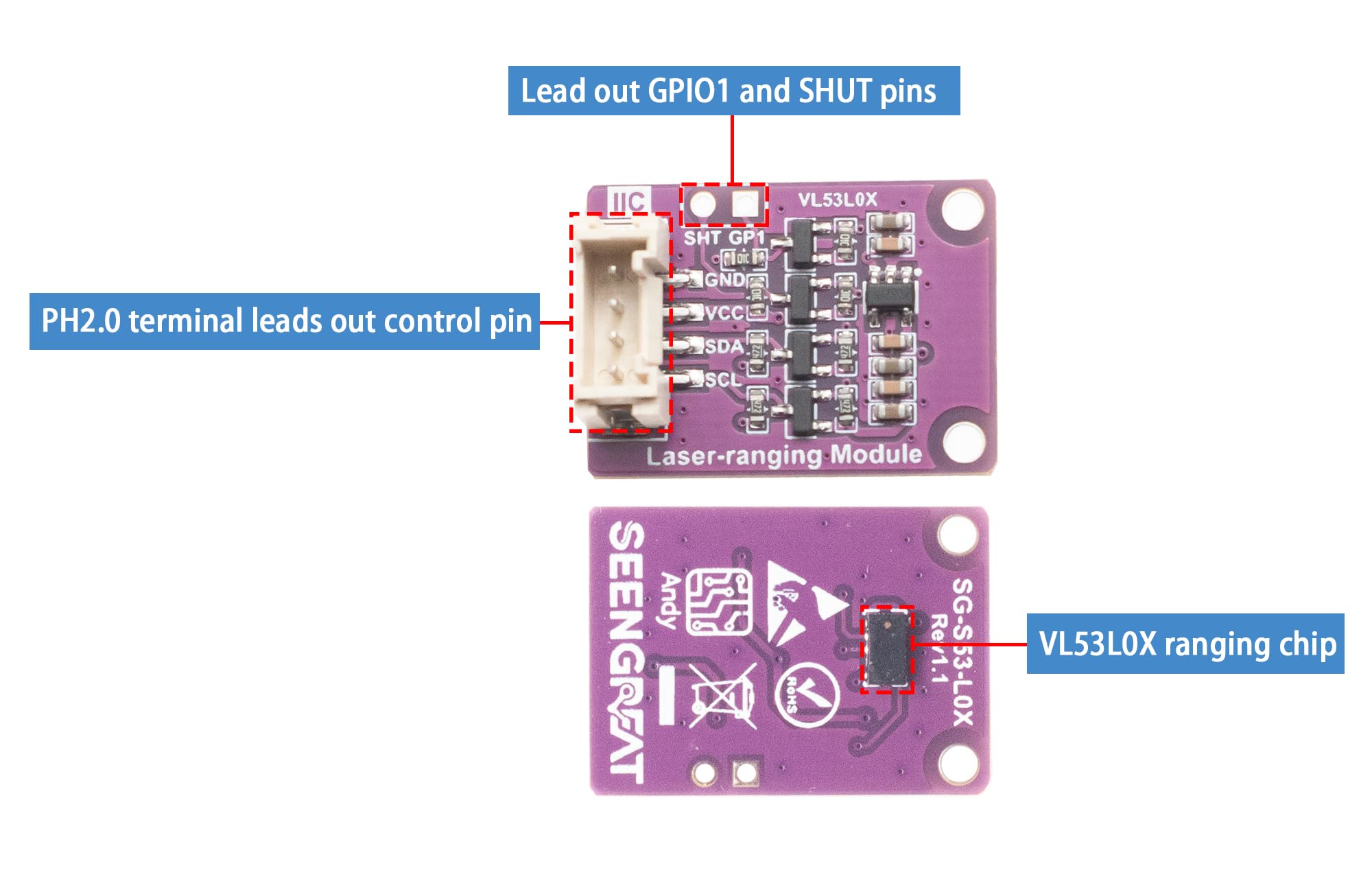

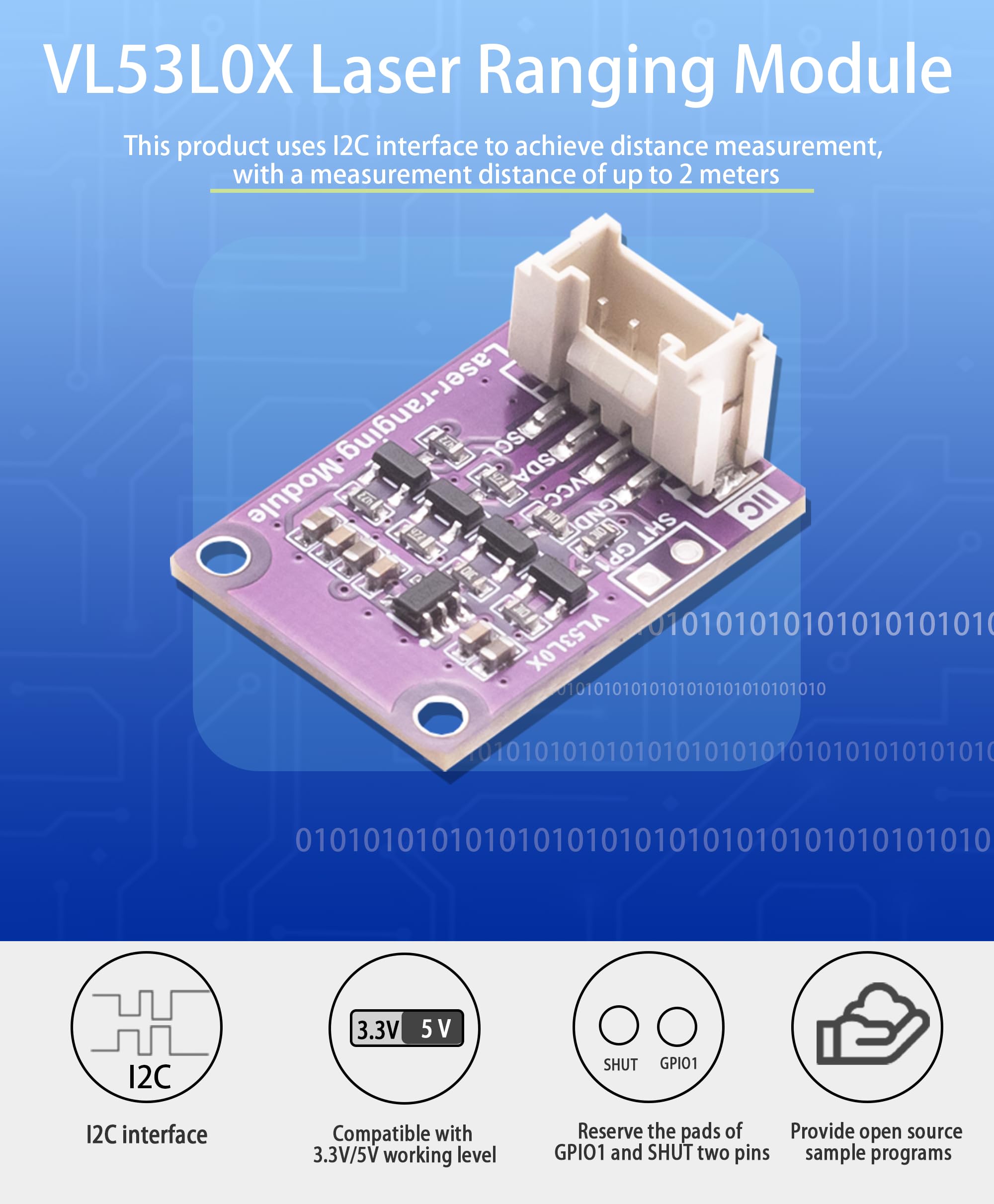

• The lidar sensor adopts I2C interface, less pin occupation, PH2.0 interface and reserved pads for GPIO1 and SHUT pins
• This VL53L0X laser sensor module is compatible with 3.3V/5V working level
• The accurate range of VL53L0X laser ranging sensor distance module is up to 2m, field of view: 25 degree, laser wavelength: 940nm

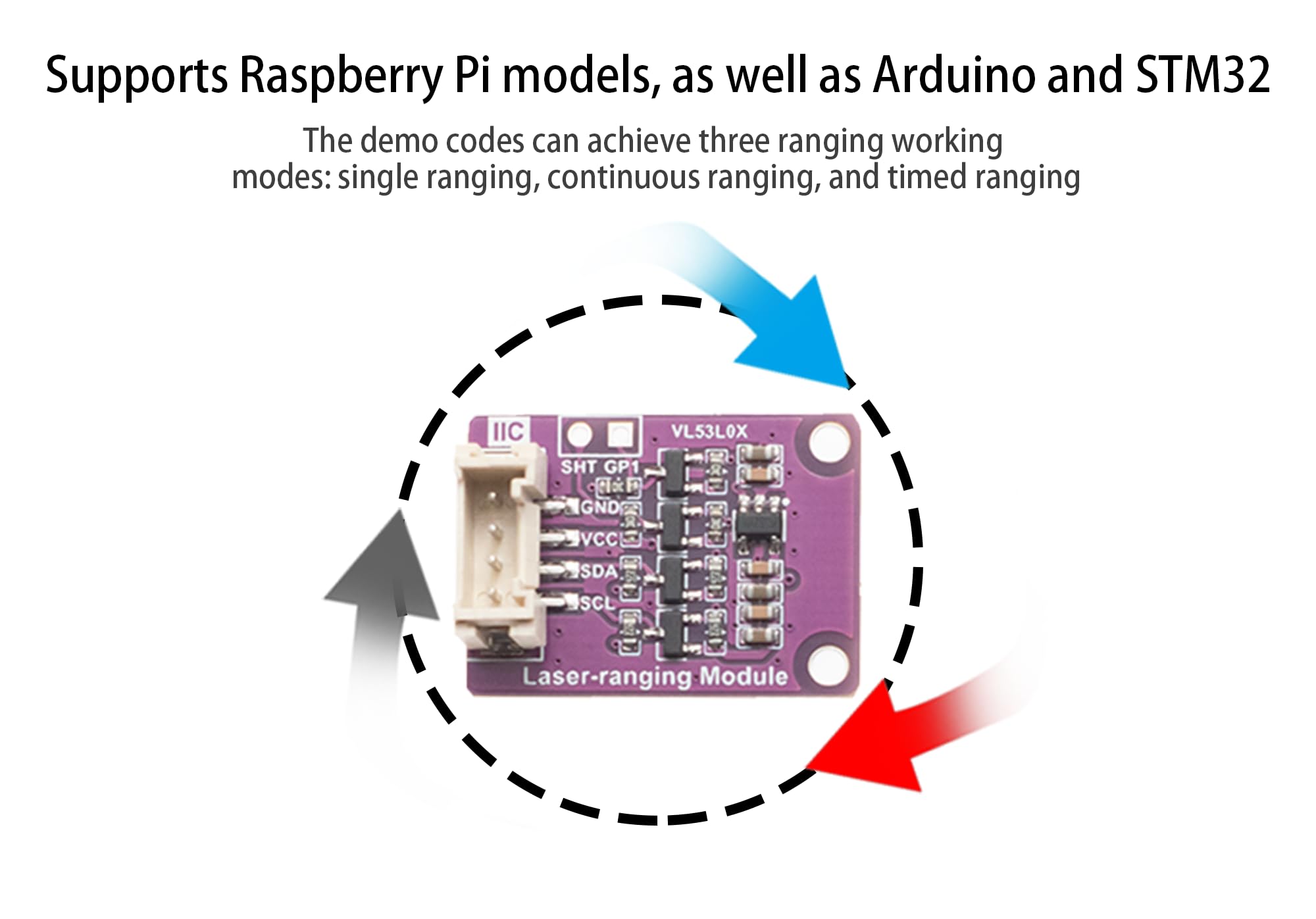

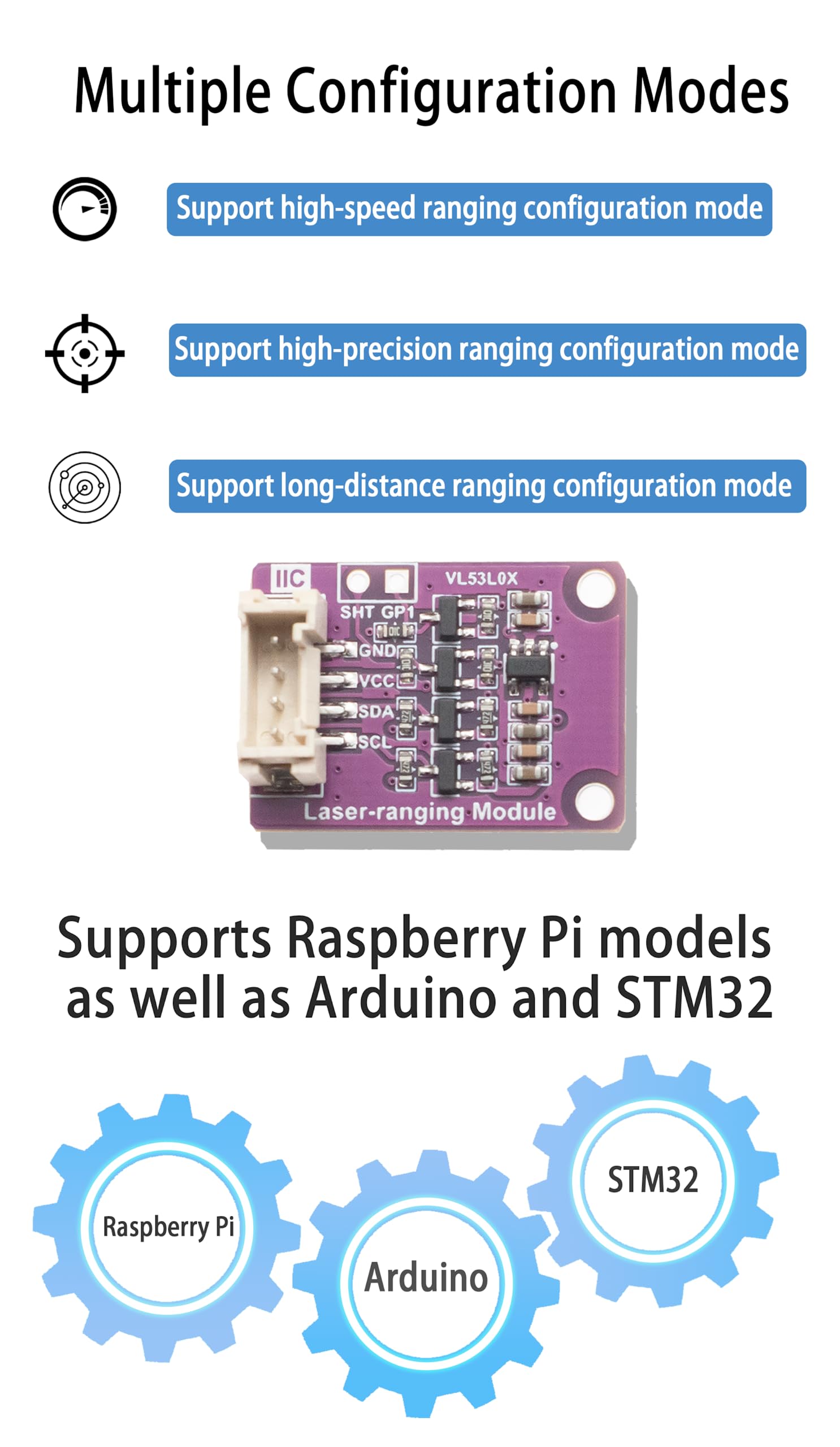

• We provide demo codes for Raspberry Pi versions of C and Python, Ardui and STM32 versions. The demo codes can achieve not only 3 ranging working modes: single ranging, continuous ranging, and timed ranging, but also 4 ranging configuration modes: default mode, high speed, high accuracy, and long range

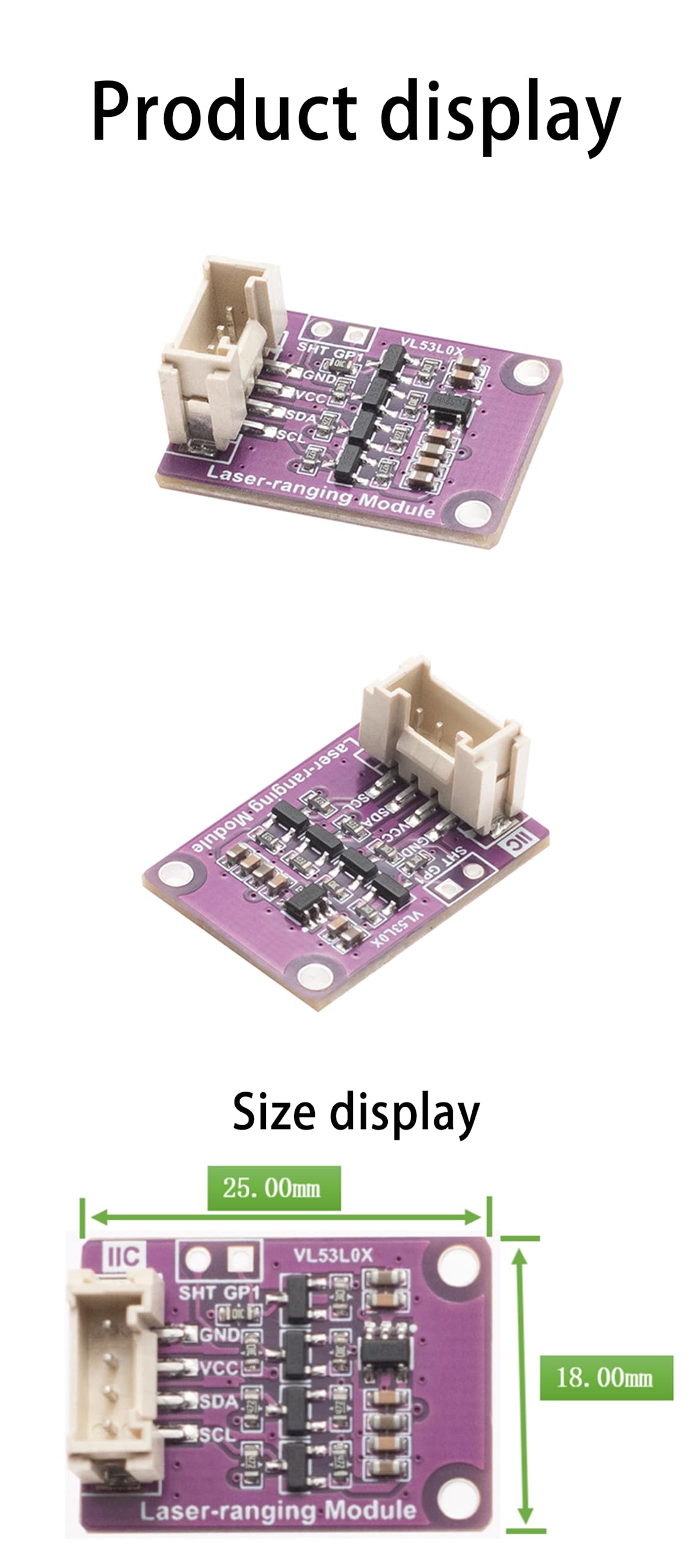

Overview: This VL53L0X Laser Time-of-Flight Distance Sensor(SG-S53-L0X) adopts I2C interface to make the distance measurement come true, and accurate measurement distance is up to 2 meters. This VL53L0X laser sensor module supports for Raspberry Pi models, Ardui and STM32 as well. We provide demo codes for Raspberry Pi(C and Python), Ardui and STM32 development boards. The demo codes can carry out three ranging working modes: single ranging, continuous ranging, and timed ranging, and four ranging configuration modes as well: default mode, high speed, high accuracy, and long range. Specifications: Supply voltage: 3.3V/5V Size: 25mm x 18mm Control chip: VL53L0X Ranging distance: 30~2000mm Ranging accuracy: ±5%(high speed mode), ±3%(high accuracy mode) Ranging time (min): 20ms(short distance mode)，200ms(medium/long distance mode) Field of view: 25° Laser wavelength: 940nm Signal interface: I2C Interface Definition: VCC: Power supply positive(3.3V/5V) GND: Power supply ground SDA: I2C data line SCL: I2C clock line SHT: shutdown control, can connects to IO pin GP1: Interrupt output, can connects to IO pin Package Lists: 1. SG-S53-L0X x1 2. PH2.0 4PIN connecting cable x1
