SEENGREAT RGB Full-color LED Matrix Panel Display 64×32 Pixels for Raspberry Pi, 3mm Pitch, Onboard 2048 RGB LEDs

• On-board 64x32,2048 full-color display LEDs
• 3mm pitch, displaying text, animation and colorful image

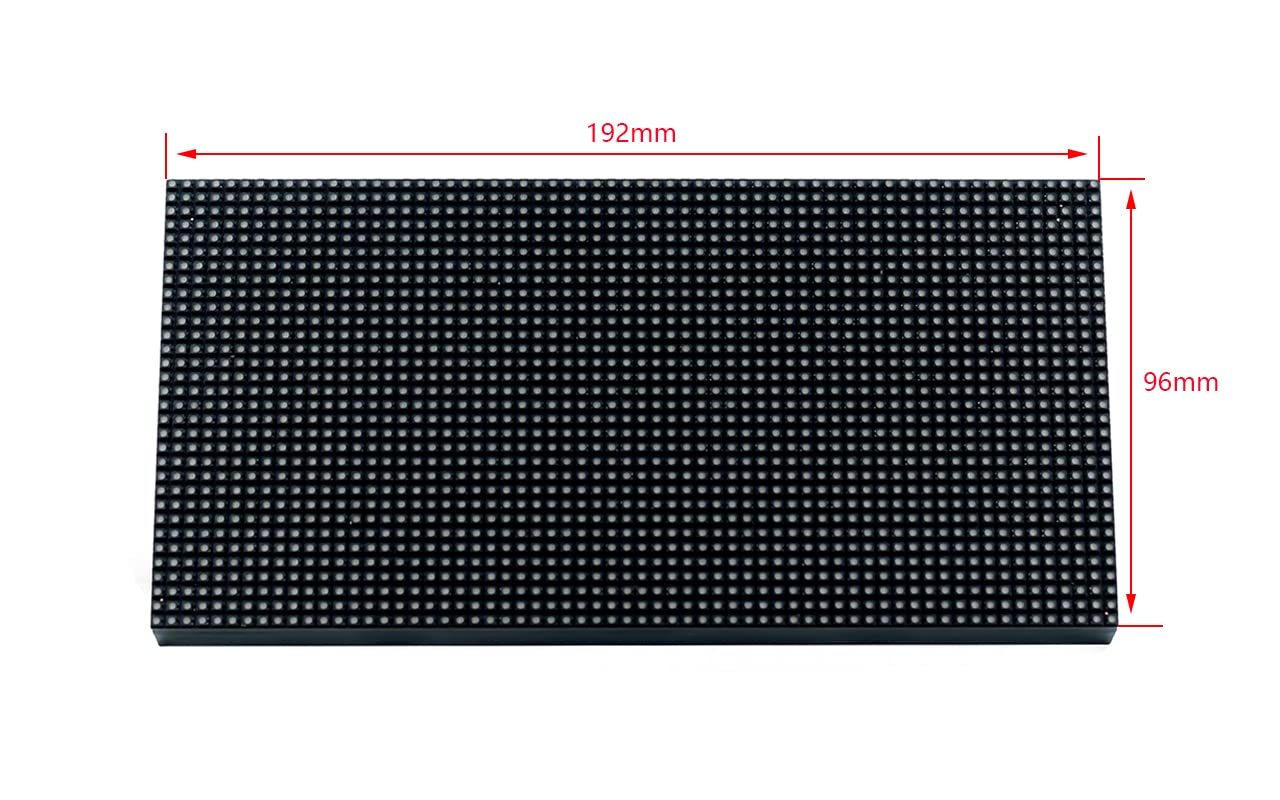

• 192mmx96mm, moderate size, suitable for DIY research and study

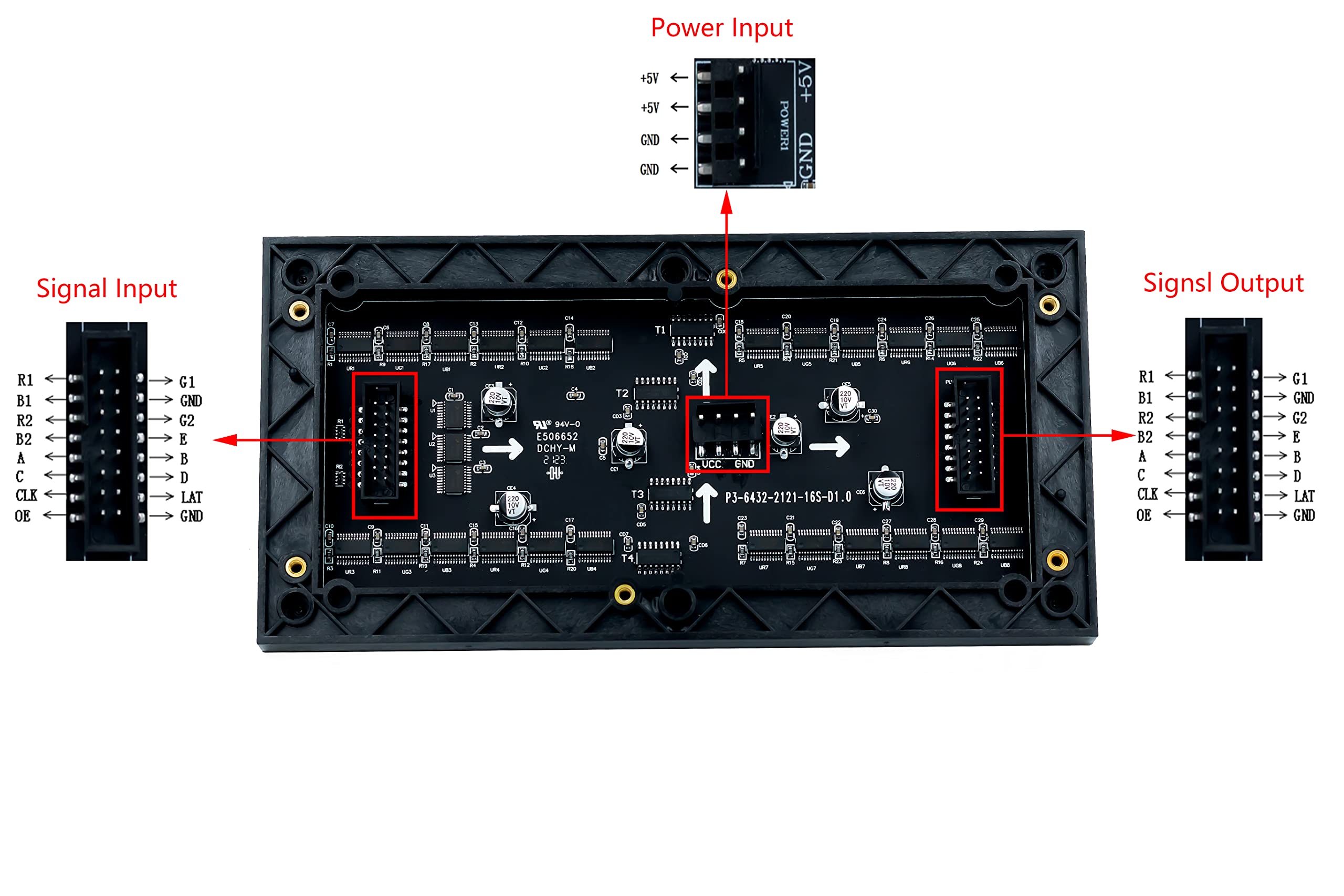

• Onboard two HUB75 interfaces, respectively for input and output. It can be cascaded multi-screen
• Providing open development resources and tutorials for the use of Raspberry Pi and Pico and Ardu.

Overview This product RGB Matrix P3.0-64x32 is on-board 2048 full-color display LEDs with 3mm pitch,which is designed for Raspberry Pi developing board. The product is provided with open development resources, suitable for the electronic makers and the related learners to learn or DIY. Specifications Dimensions:192mm(L)x96mm(W)x15mm(H) Pixels: 64x32 Pitch: 3.0mm Pixel Form: 1R1G1B Viewing AngleI: ≥160° Header: HUB75 Control Type: Synchronization Driving Type: 1/16 scan Power Supply: 5V/2A Power Port: VH4 header input Note: 1.If it is used for multi-screen cascading, please make sure that the power of each screen is 5V/2A. 2.Please feel free to contact us via Amazon message if you have any problem. Package contents: 1. RGB LED Matrix P3.0-64x32 panel x1 2. 16P wire ~30cm x1 3. Power supply terminal adapter x1 4. Signal cable (flat cable) x 1 5. Power cable x1 6. Dark brown acrylic front panel x1 7. Double-sided tape x1 8. Magnetic bolt x4
