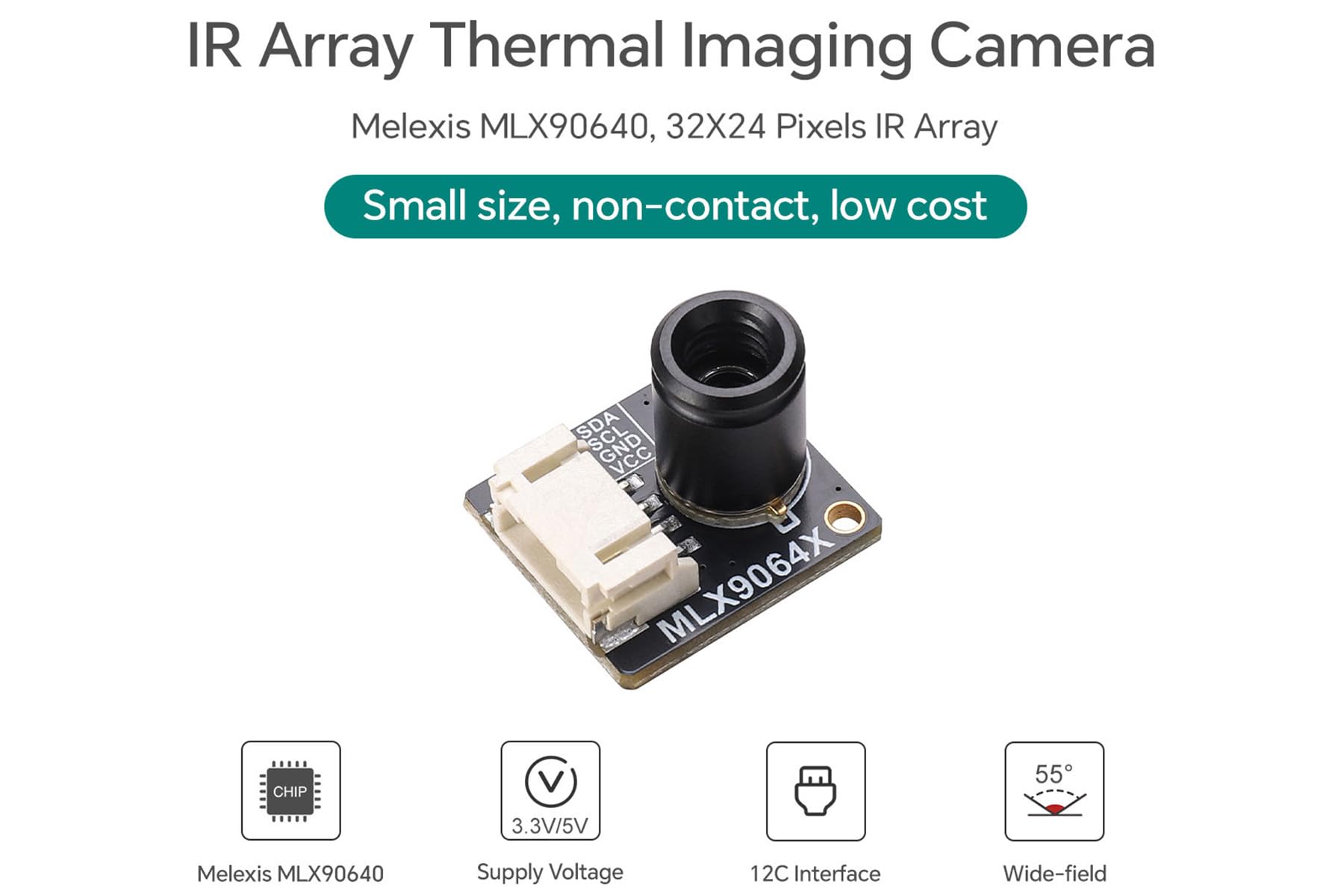

SEENGREAT MLX90640 IR Array Thermal Imaging Camera Module for Raspberry Pi, 32 x 24 Pixels, 55° Field of View Communicating, I2C Interface, Compatible with 3.3V/5V working level(55° FOV)

• Adopts MLX90640 far-infrared thermal sensor array, 32 × 24 pixels. Small size, low power consumption.
• Communicating via I2C interface, the highest speed can reach 1MHz
• Noise Equivalent Temperature Difference (NETD) is 0.1K RMS, 1Hz refresh rate. Supporting 0.5Hz~64Hz refresh rate.
• The working voltage is 3.3v/5v. The field of view is 55 ° × 35°
• Available for open development resources and tutorials of Raspberry Pi Development Board

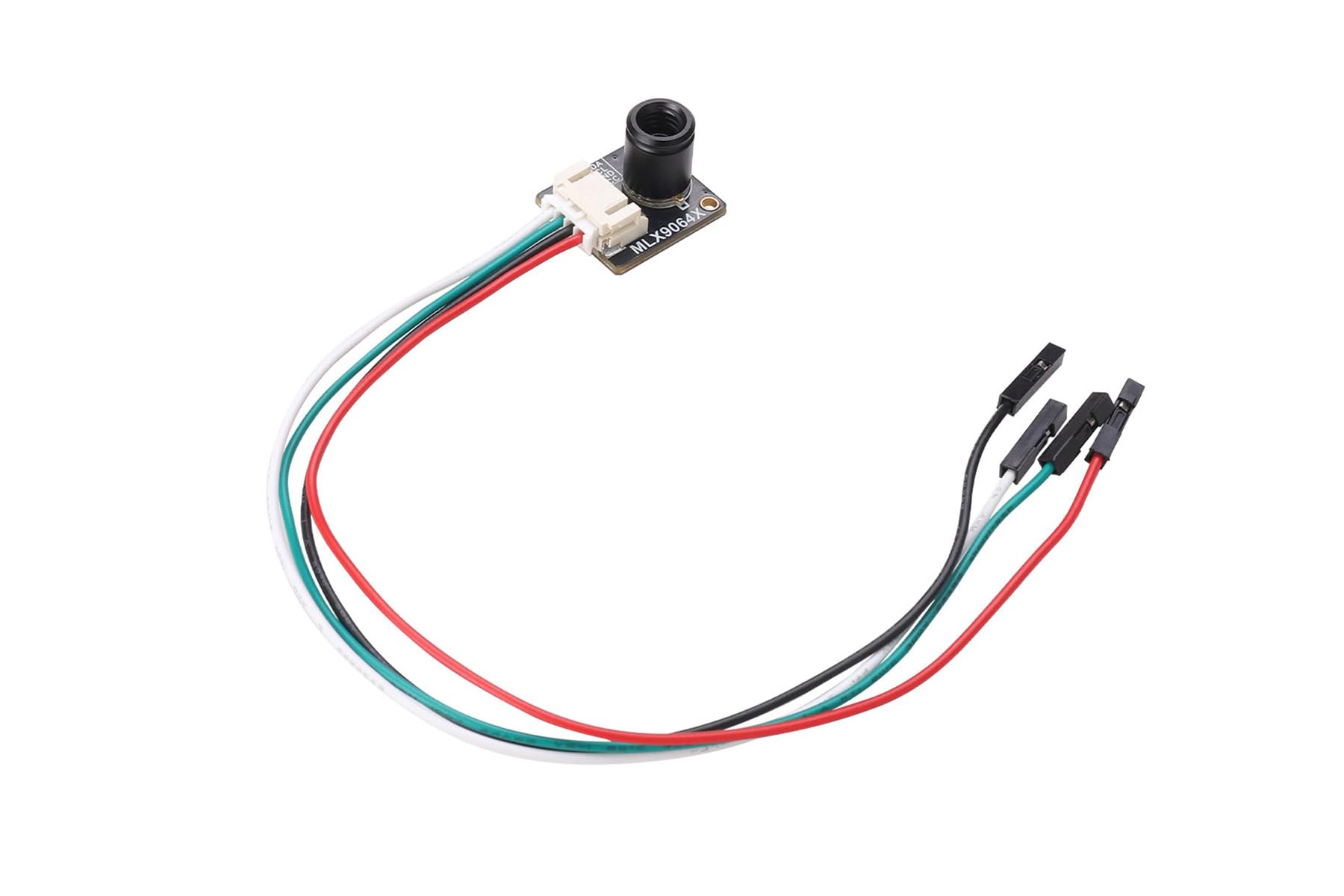

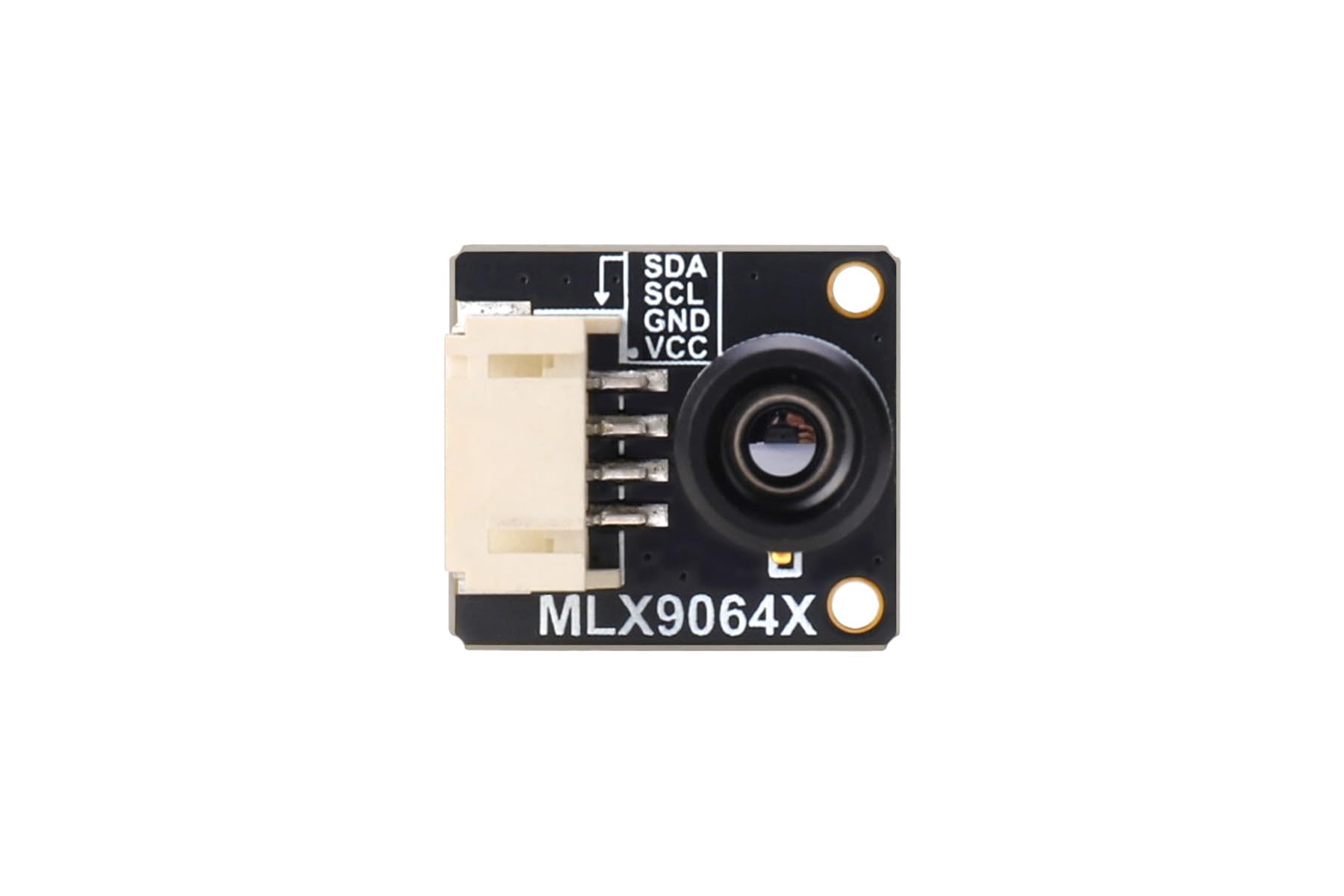

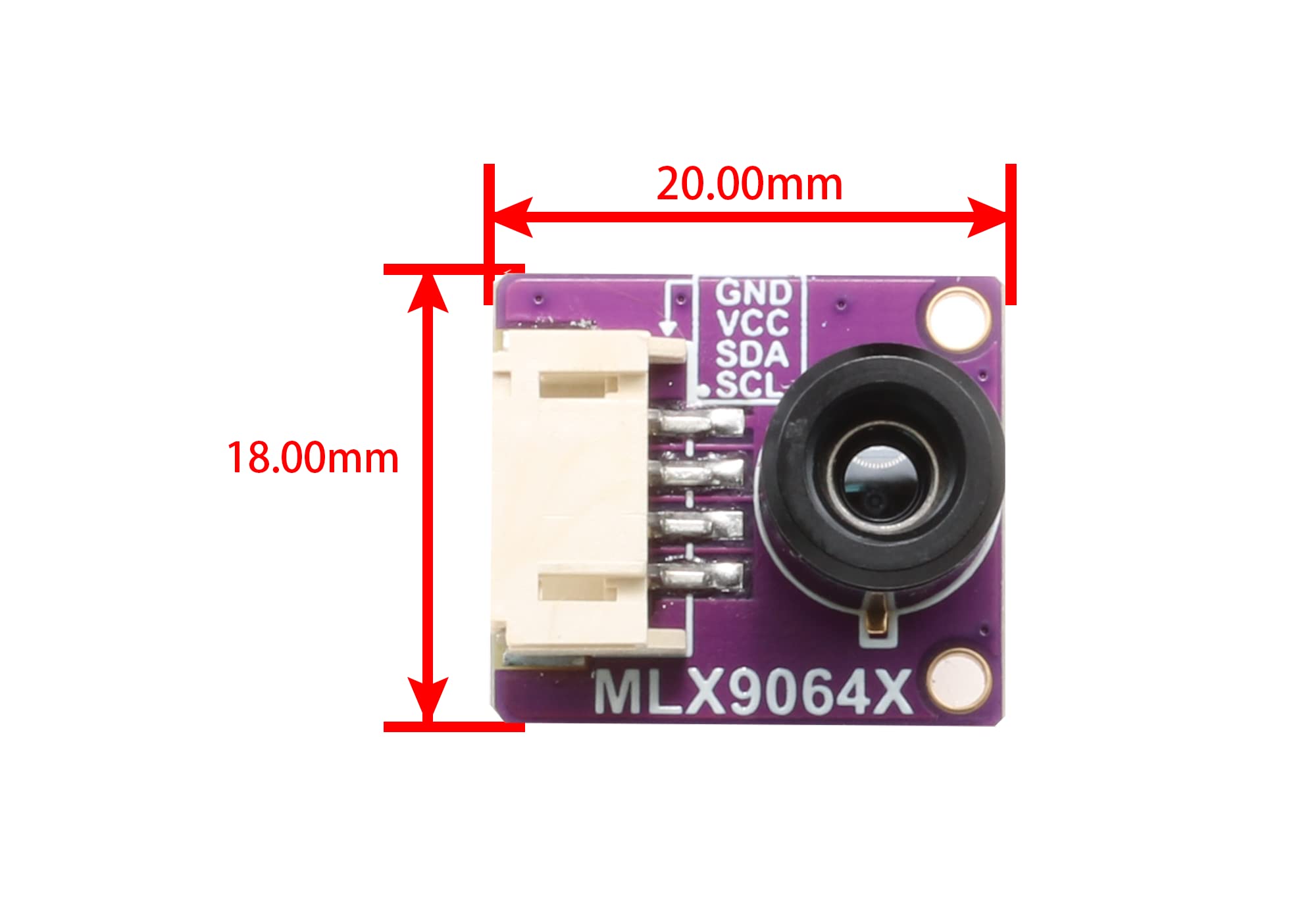

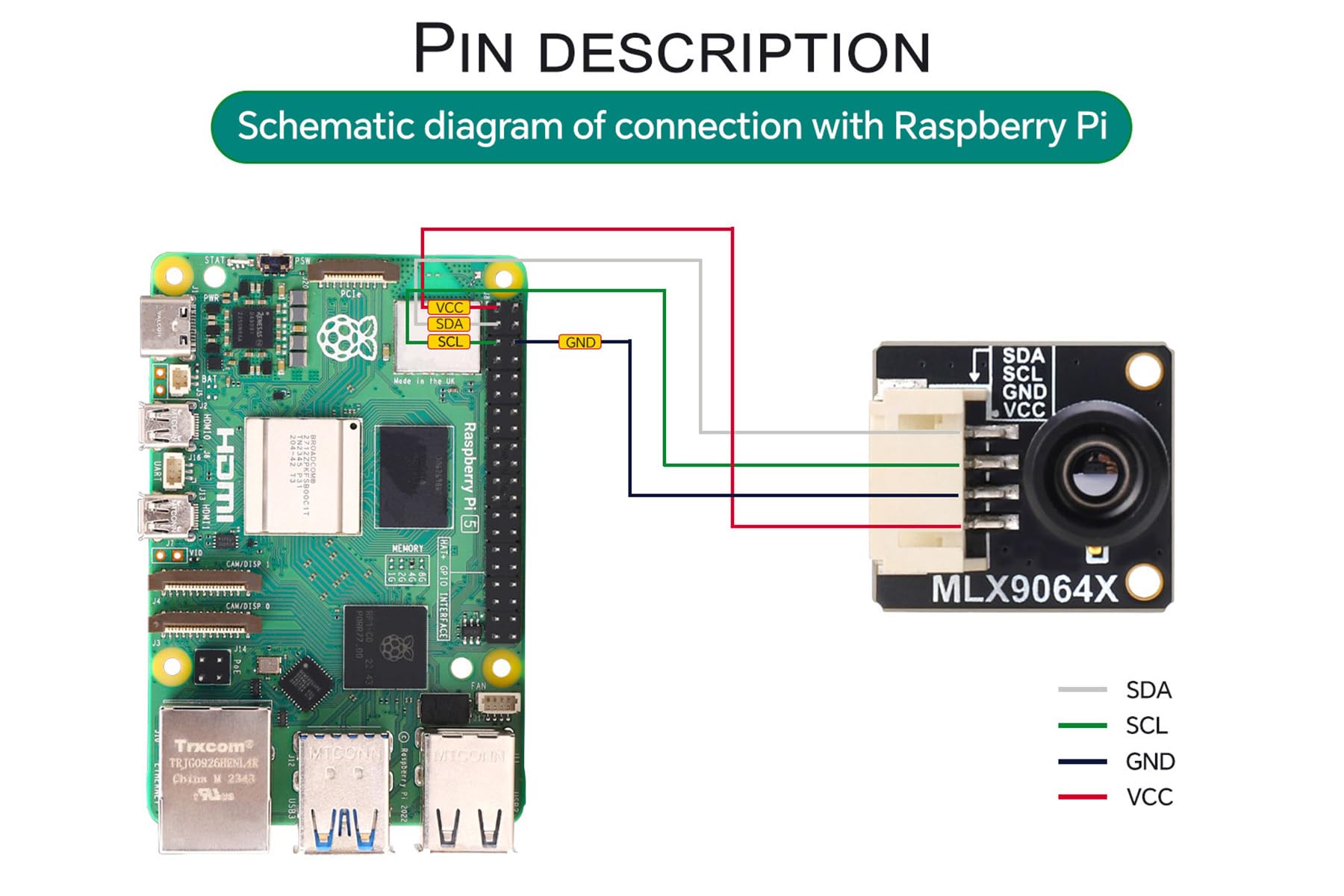

Overview Thermal Camera MLX90640(D55) is a far-infrared thermal sensor array designed with MLX90640. With a resolution of 32*24, it provides great performance for applications that do not require high-resolution images or high frame rate, and provides a cost-effective alternative to more expensive high-end infrared thermal camera. Typical applications for the MLX90640 include fire protection systems, intelligent buildings, Intelligent lighting, IP/surveillance cameras, HVAC equipment and vehicle seat occupancy detection. Specifications: Dimensions: 20mm(length)*18mm(width) Resolution: 32*24 Refresh Rate: 0.5Hz~64Hz Field Of View(FOV): 55°×35° Communication Interface: I2C Supply Voltage: 3.3V/5V Working Current: <23mA Operating Temperature: -45~85℃ Temperature Measuring Range: -40℃～300℃ Absolute Accuracy: ±2℃ Connector Definitions: GND: GND VCC: VCC（DC3.3V/5V Input） SDA: I2C Data SCL: I2C Clock Package contents: 1. Thermal Camera MLX90640-D55 x1 2. PH2.0 4-pin wire x1.
