SEENGREAT IMX219 8MP Camera for Jetson Nano Adopts IMX219 Sensor 8 Megapixels Fixed-Focus 130°FOV 3296 x 2512 Maximum Resolution Lens Shading Compensation Function 15P-1.0 MIPI Interface

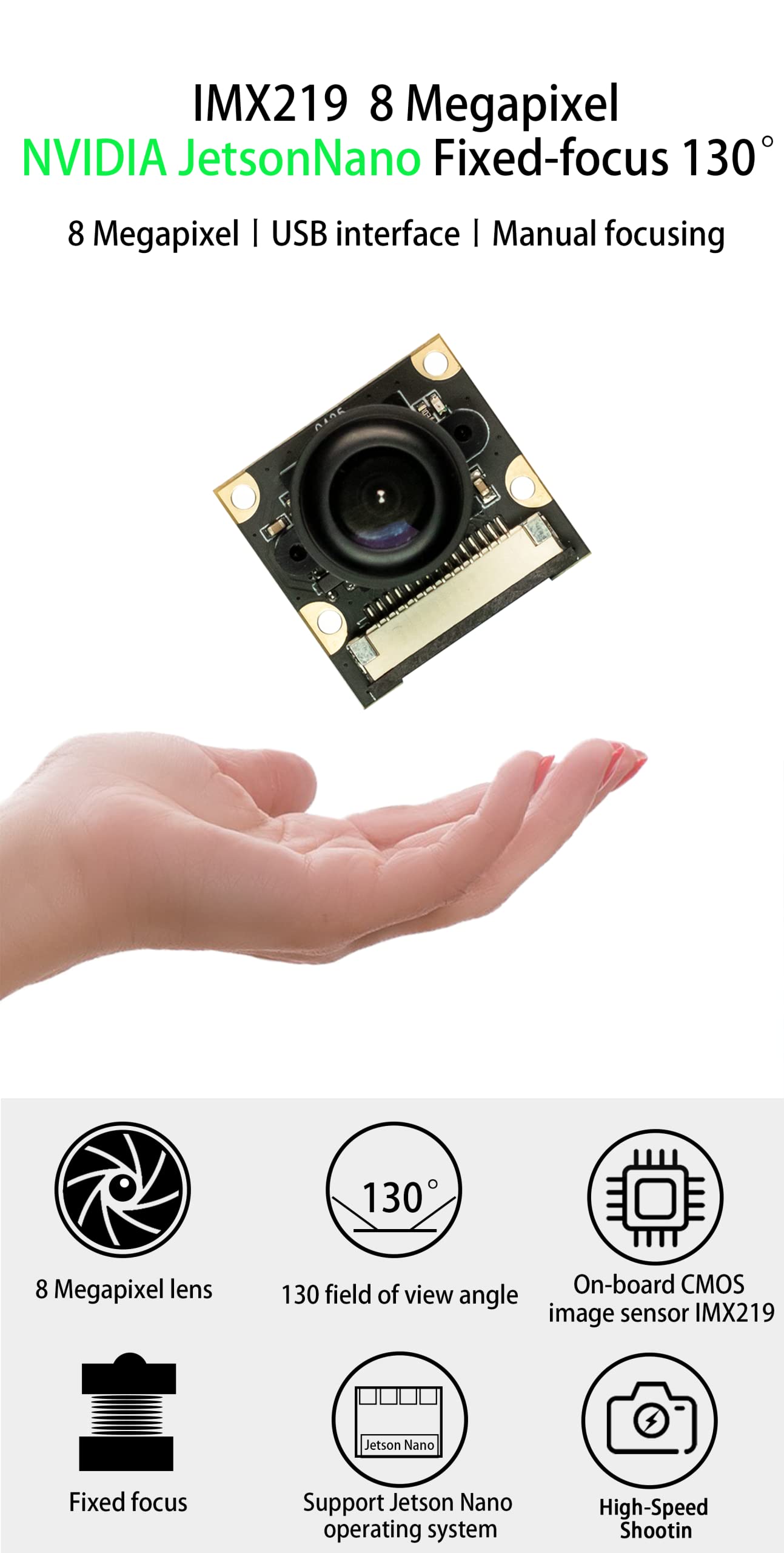

• This IMX219-130 camera sensor adopts high-definition camera, 8 megapixels (8MP), fixed focus 130 degrees wide angle, compatible with Jetson Nano operating system
• On-board CMOS image sensor IMX219, ISP (image signal processing), high-speed video shooting, lens shading compensation function
• Lens specifications: CMOS size: 1/4 inch; F/No: 2.4; EFL: 1.85 mm; FOV: 130 degrees; TV Distortion: <7.6%; Maximum Resolution: 3296 x 2512; Supply Voltage: 3.3 V (pin15)
• The IMX219 8MP camera module adopts 15P-1.0 MIPI interface, weights only 10 g
• This camera meets the basic functional requirements of high sensitivity, high frame rate shooting for high-performance photography applications, suitable for AI projects such as: face recognition, road mark detection and license plate recognition etc.

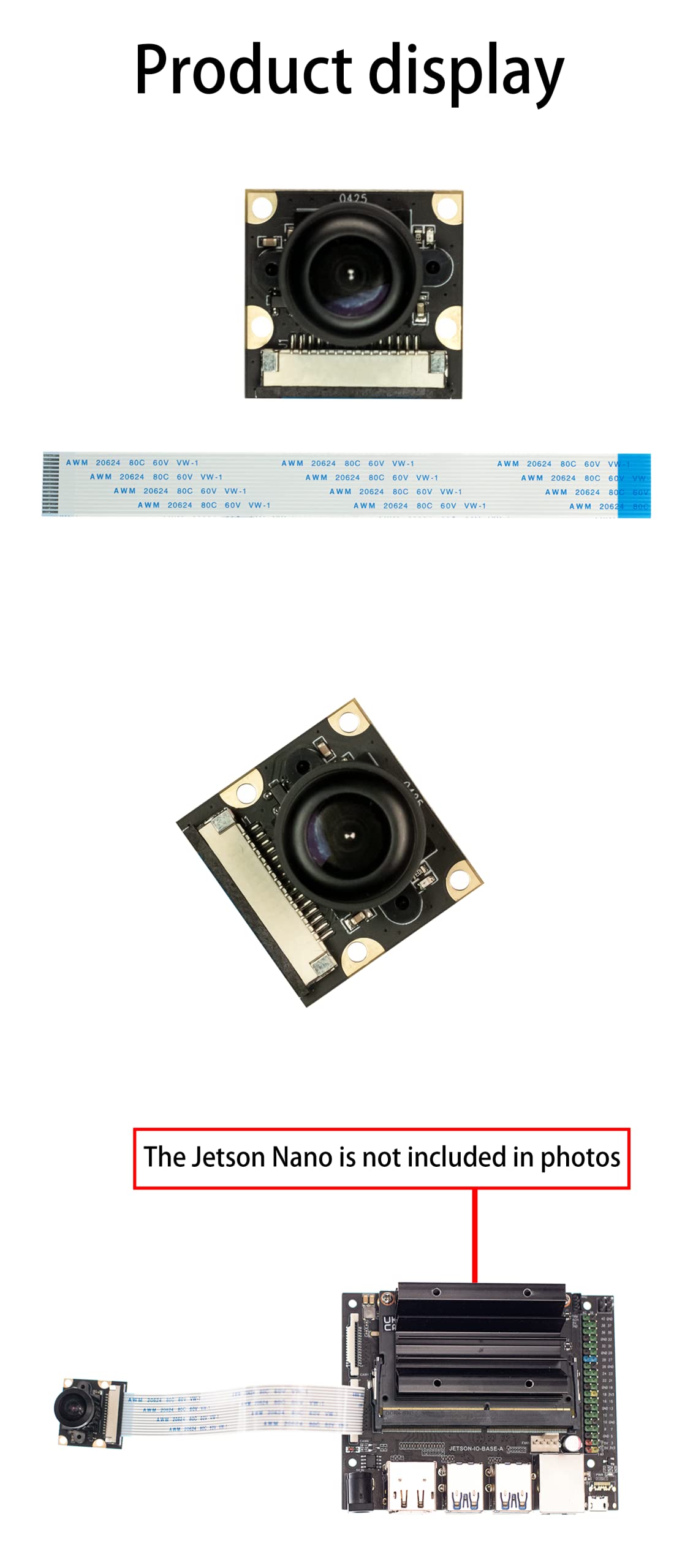

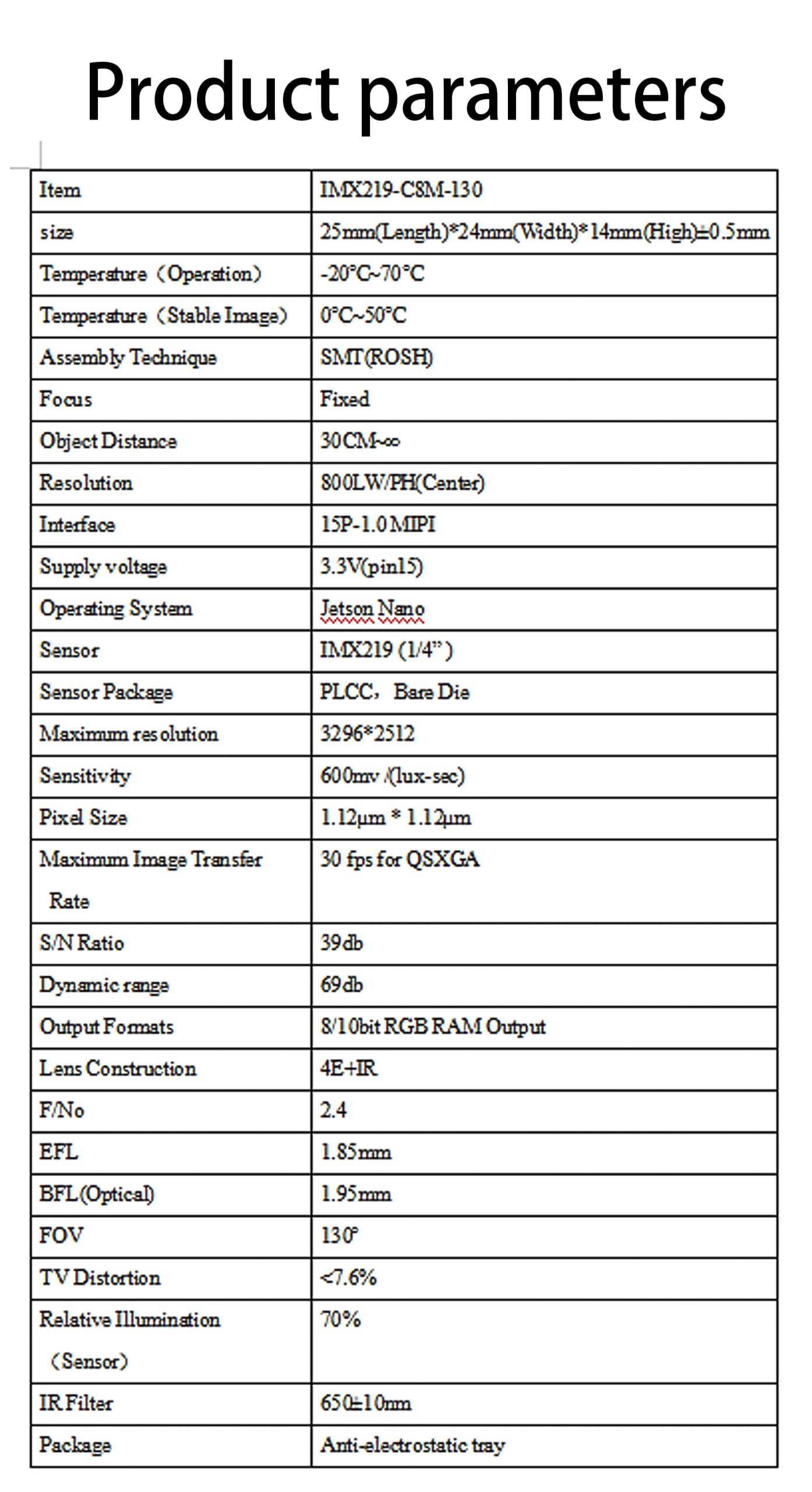

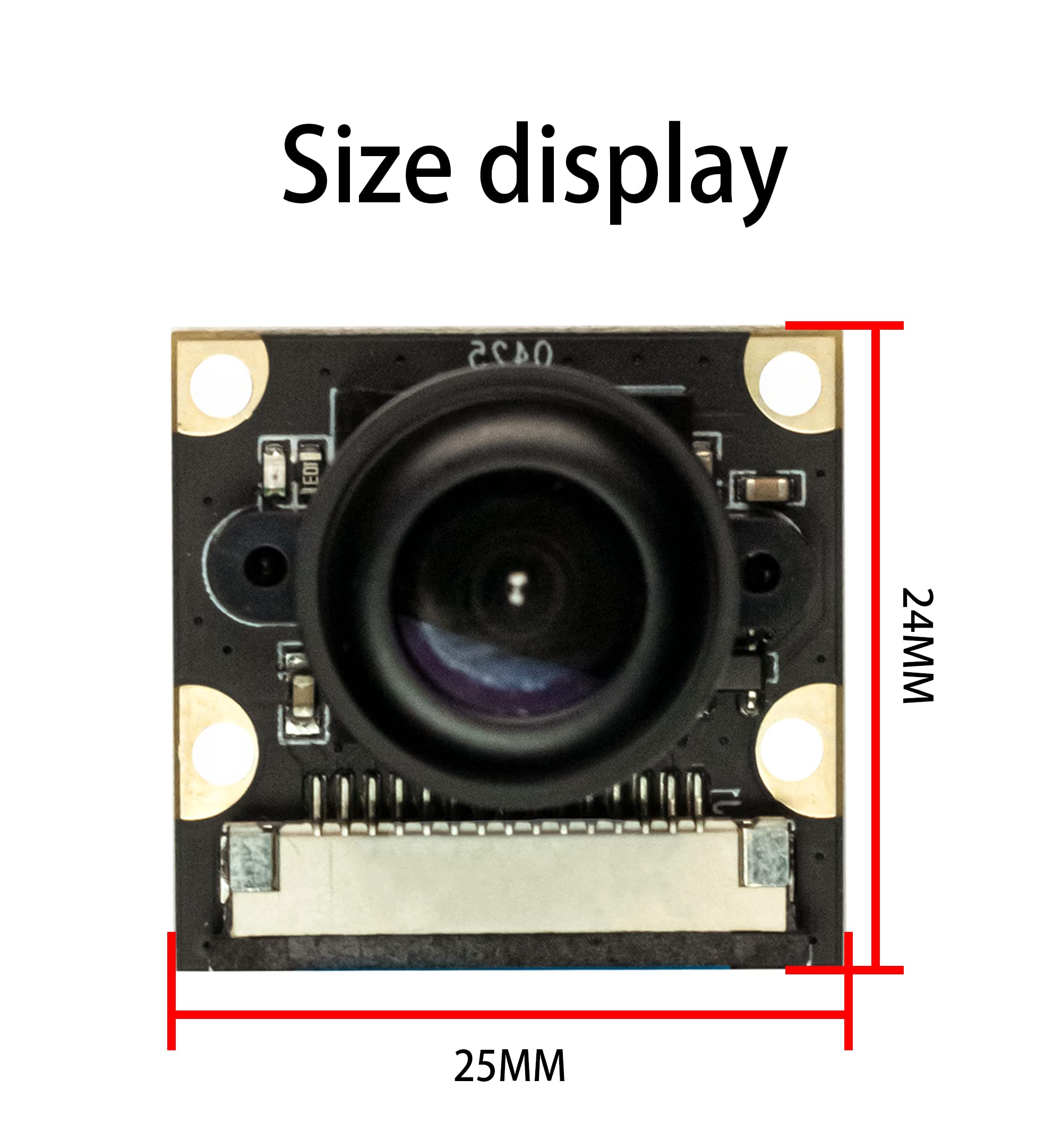

Overview: This camera module adopts IMX219 CMOS image sensor. The HD camera has 8 megapixels, excellent anti blurring characteristics, Adopts 15P-1.0 MIPI interface, weights only 10g, adopts fixed focus mode, and supports Jetson Nano operating system. Specifications: Size: 25 mm (length) x 24 mm (width) x 14 mm (high) ± 0.5 mm. Temperature (operation): -20°C ~ 70°C. Temperature (stable image): 0°C ~ 50°C. Assembly technology: SMT (ROSH). Focus: fixed. Object distance: 30 cm infinity. Resolution: 800LW/PH (centre). Interface: 15P-1.0 MIPI Supply voltage: 3.3 V (pin15). Operating system: Jetson Nano. Sensor: IMX219 (1/4 inch). Sensor Package: PLCC, Bare Die Maximum resolution: 3296 x 2512. Sensitivity: 600 mv/(lux-sec). Pixel size: 1.12µm x 1.12µm Maximum image transfer rate: 30fps for QSXGA S/N ratio: 39dB. Dynamic range: 69 dB. Output format: 8/10 bit RGB RAM output. Lens construction: 4E+IR. f/no: 2.4 EFL: 1.85 mm. BFL (Optical): 1.95 mm. FOV: 130°. TV Distortion: <7.6%. Relative illumination (sensor): 70%. IR filter: 650±10nm Package: anti-electrostatic tray. Package contents: 1. IMX219-C8M-130 x1 2. 15P-1.0 MIPI connecting cable x1.
