SEENGREAT CAT9555 IO Expansion Module Board I2C Interface Expands 16 bit Parallel GPIO Expander, SMBus I/O Port, with Pre-soldered Header
About this item
- 400 kHz I2C bus compatible
- Low stand−by current
- 5V tolerant I/O, high drive capability of I/O ports

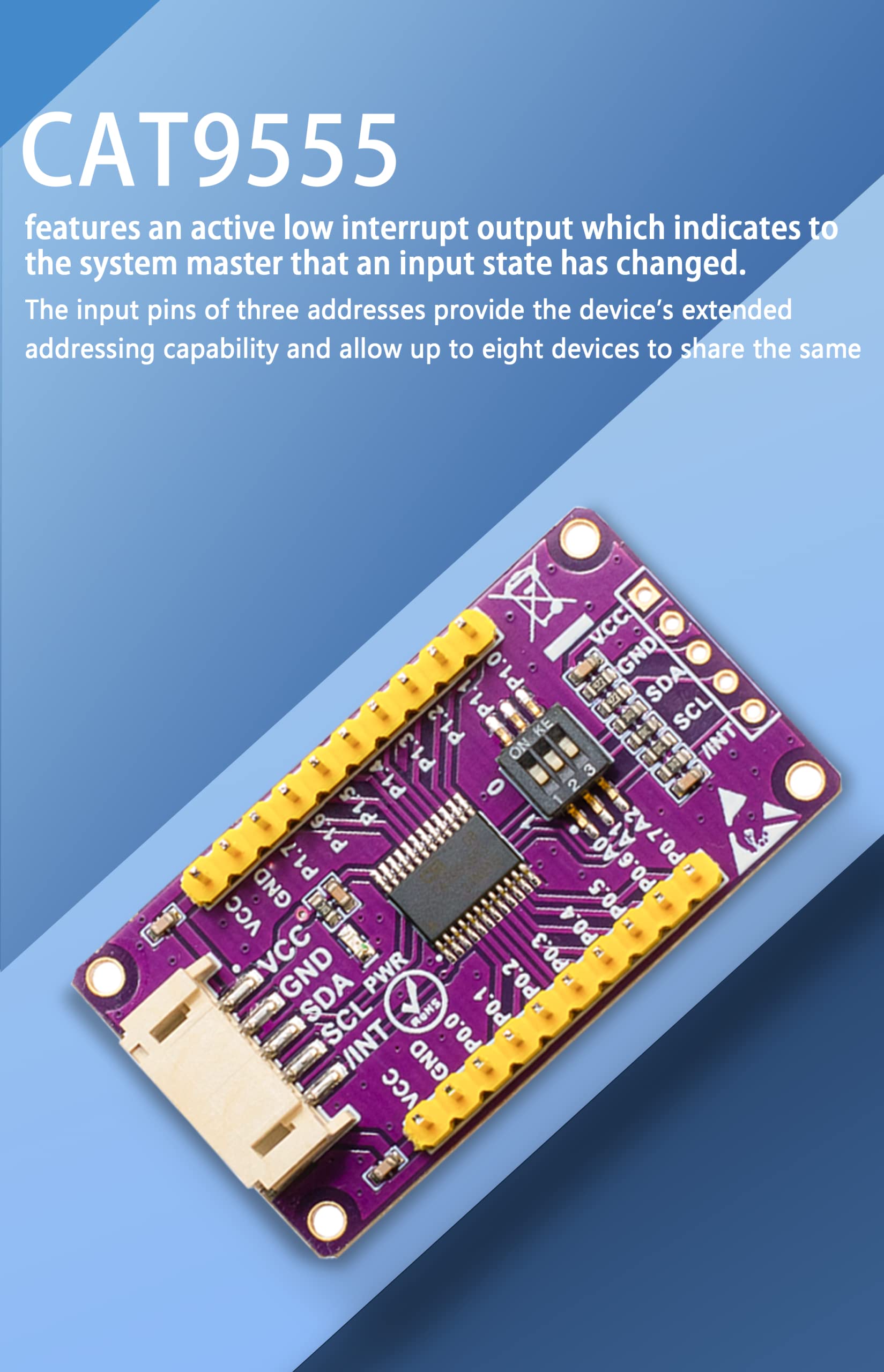

- Polarity inversion register, active low interrupt output
- Internal power−on reset
Product description

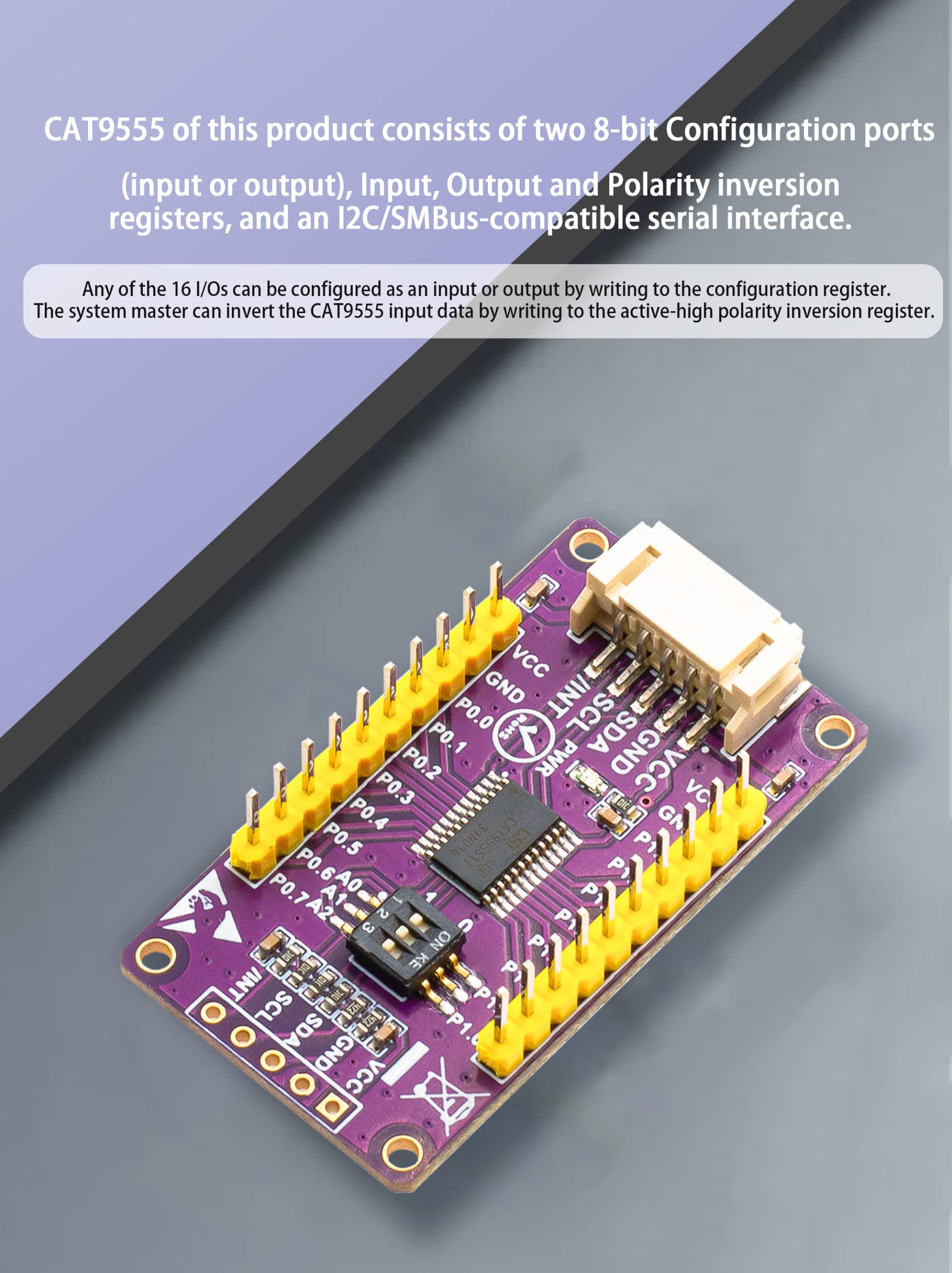

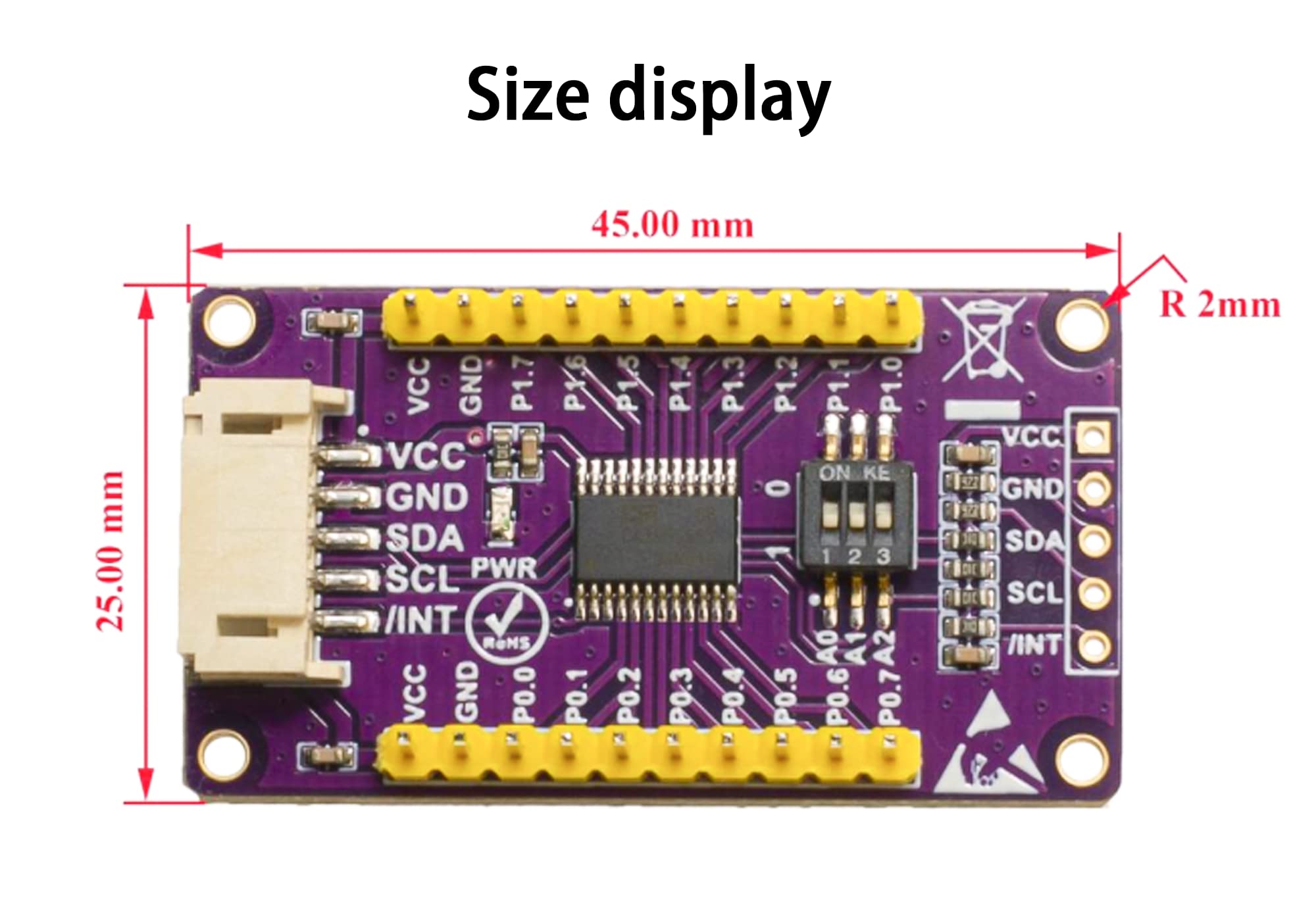

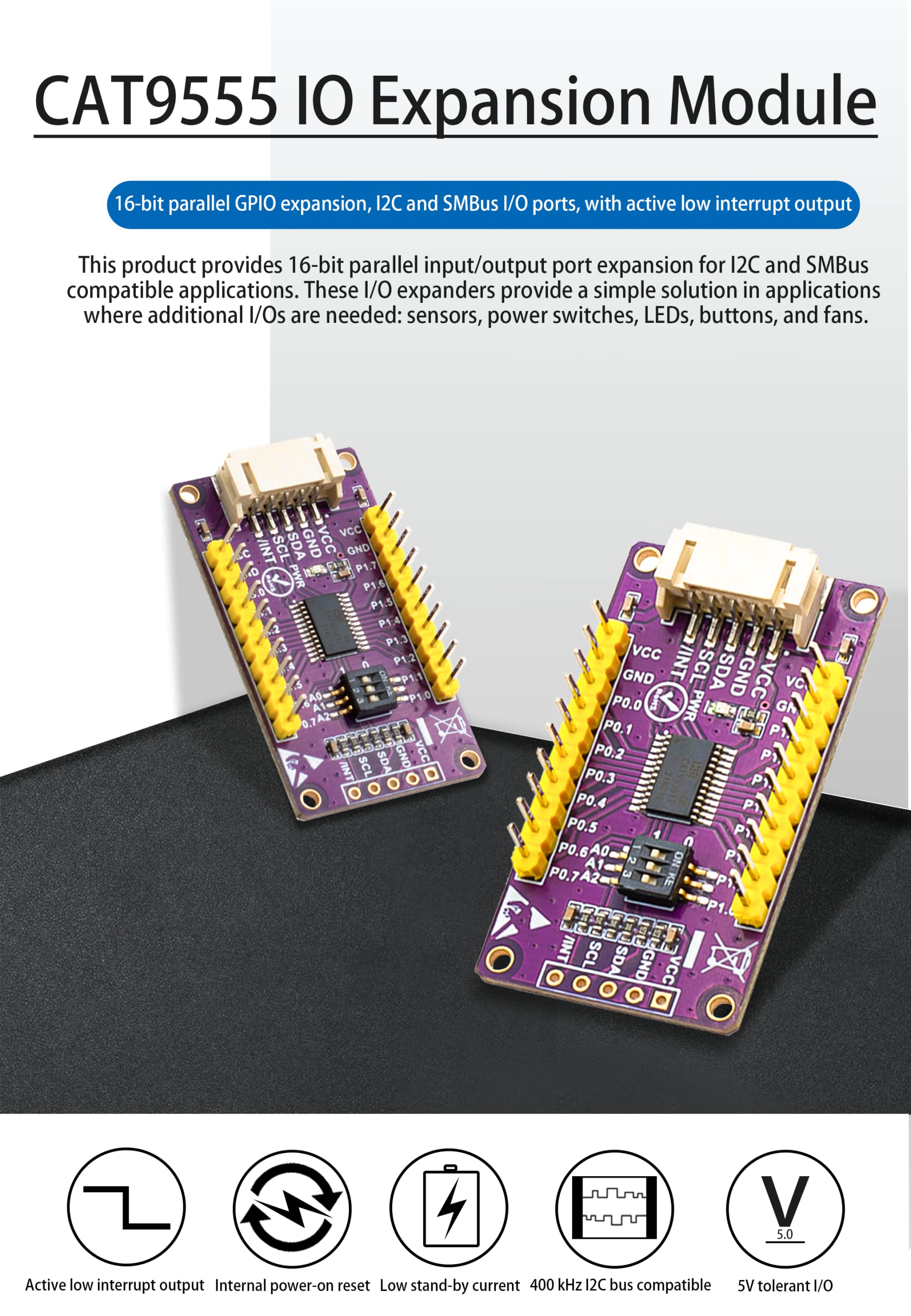

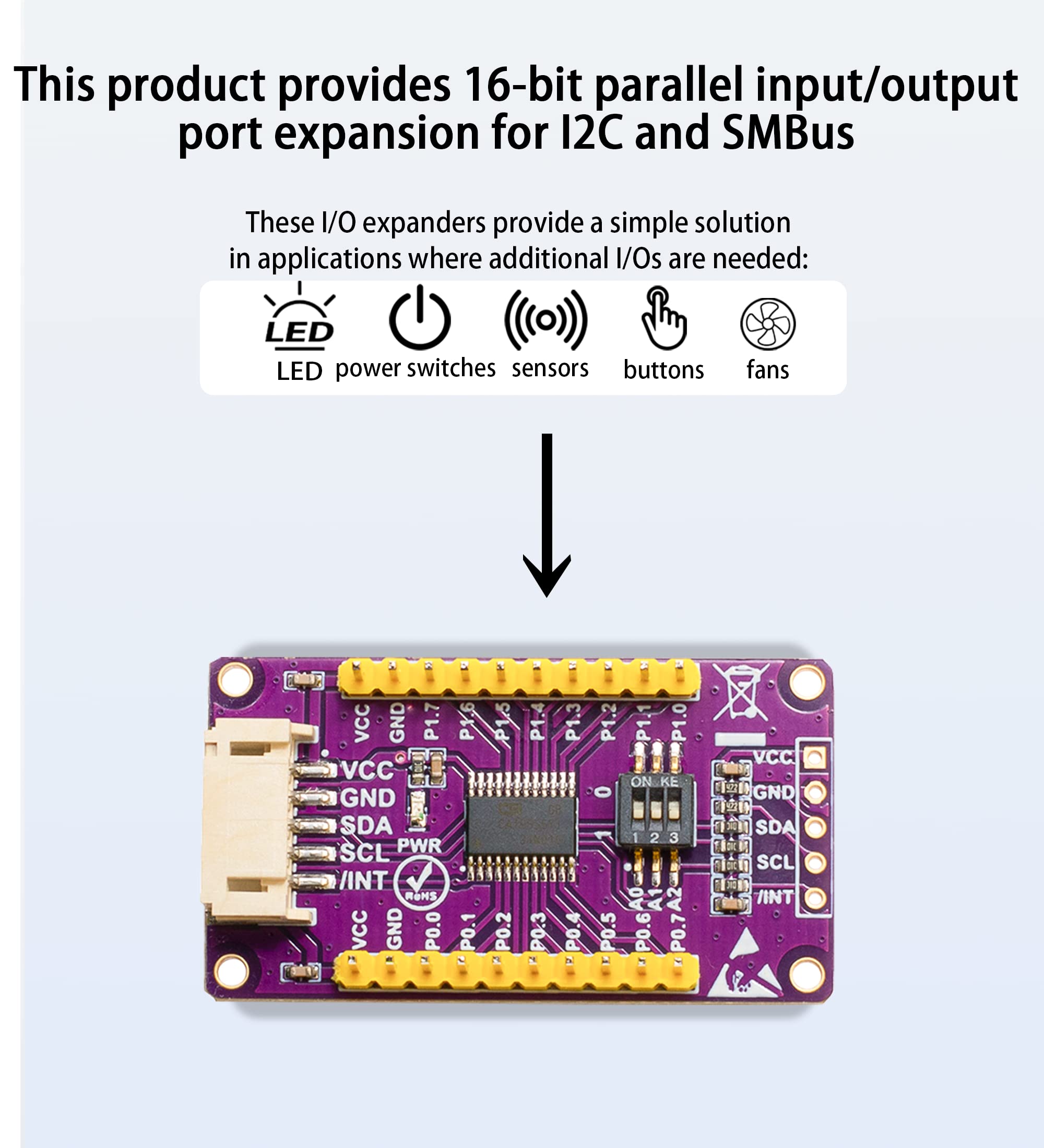

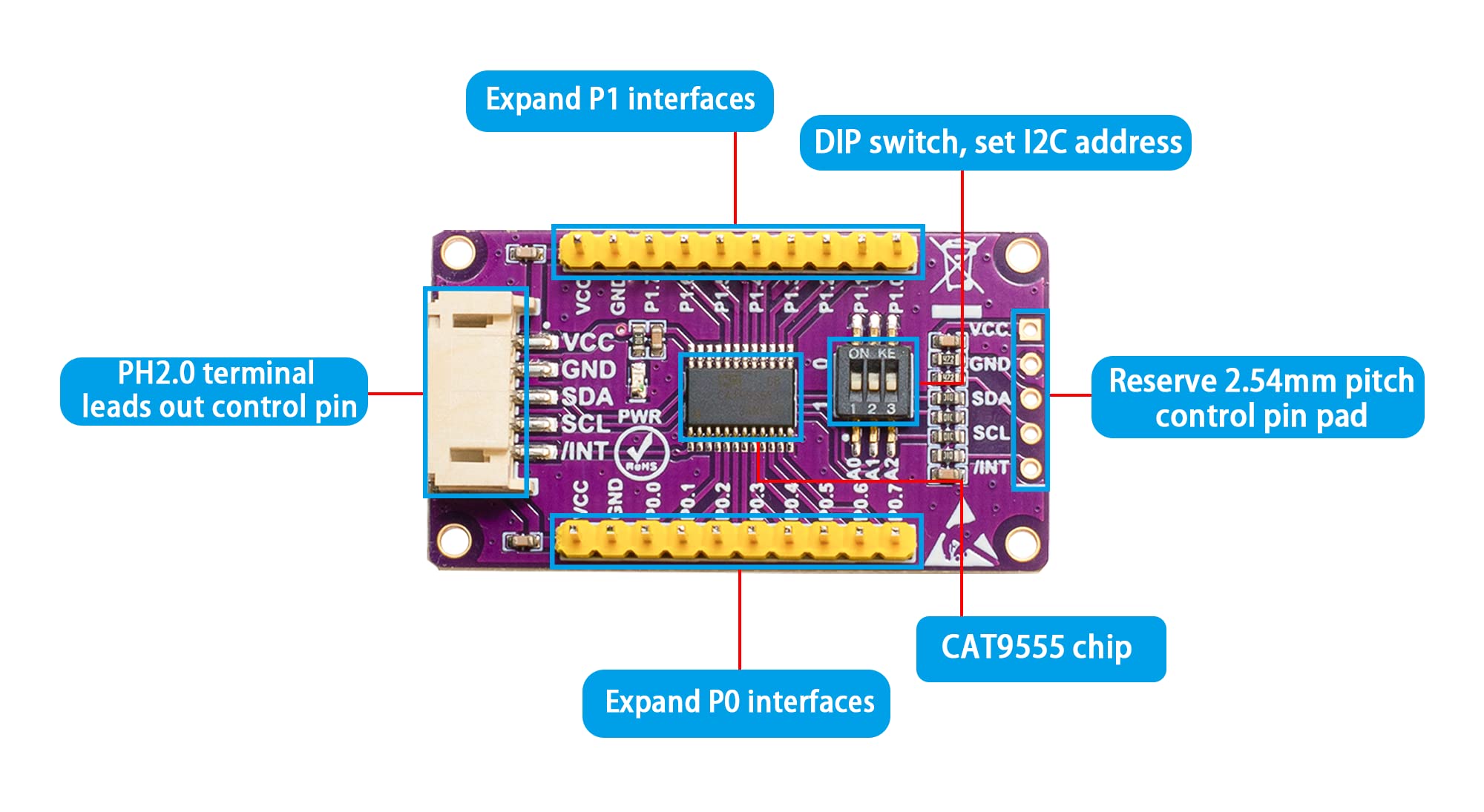

Overview The CAT9555 IO Expansion Module provides 16−bit parallel input/output port expansion for I2C and SMBus compatible applications. These I/O expanders provide a simple solution in applications where additional I/Os are needed: sensors, power switches, LEDs, buttons, and fans. We provide the demo codes based on Raspberry Pi, Ardui UNO and STM32. Specifications Dimensions: 45mm(Length)*25mm(Width) Number of I/O PORTS: 16 Control Chip: CAT9555 Signal Interface: I2C Supply Voltage: 3.3V/5V Package contents: 1. CAT9555 IO Expansion Module x1 2. PH2.0 20cm 5Pin x1 Please feel free to contact us via Amazon message if you have any problem.
