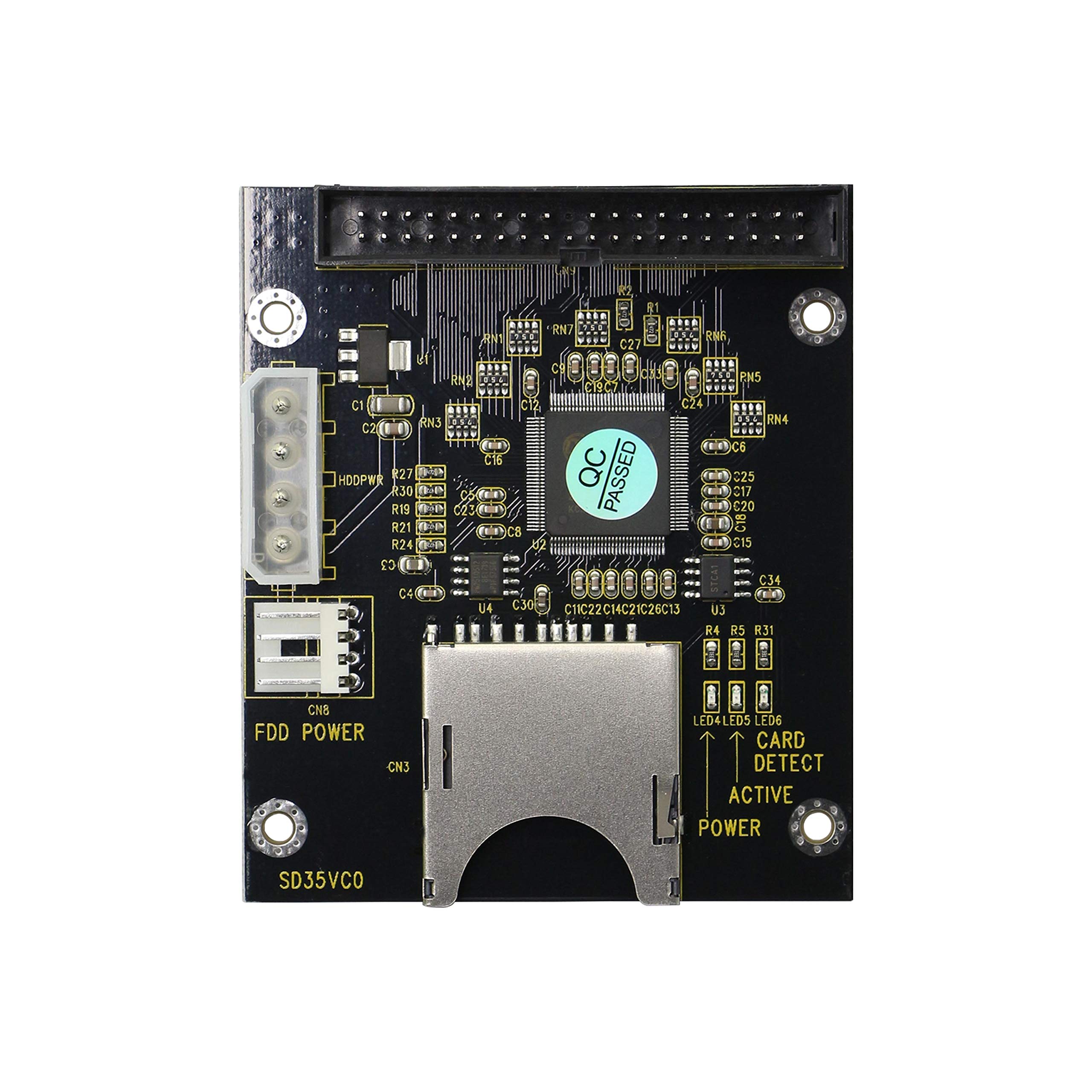

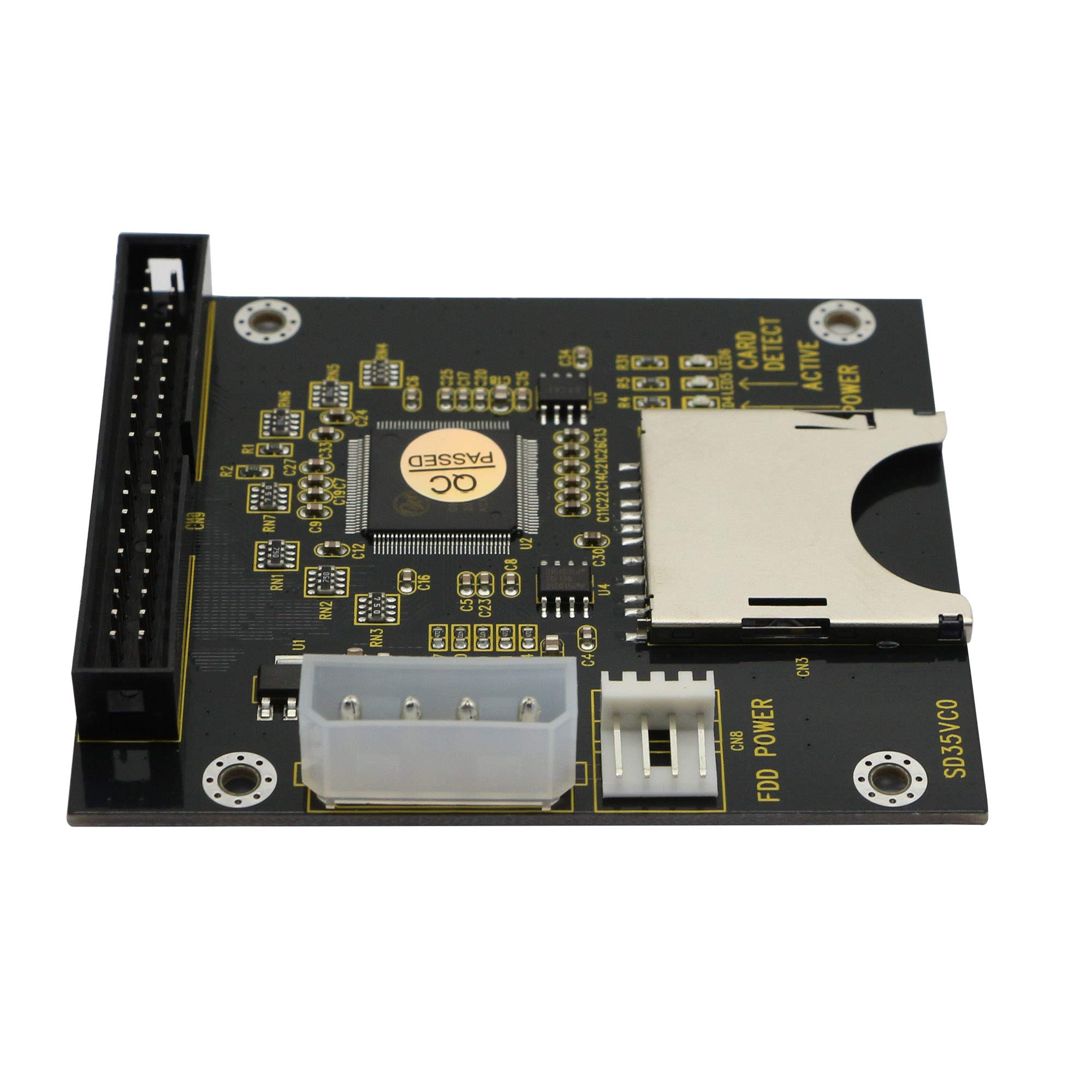

GINTOOYUN SD SDHC SDXC MMC to 3.5" 40Pin Male IDE Adapter Card SD Memory Card to IDE Hard Disk Drive Adapter

• SD to 3.5" 40Pin IDE Adapter,Convert SD, SDHC, MMC to an IDE-compatible hard drive.Support PIO, multi-word DMA and super DMA data transmission mode. high-temperature resistance, stable performance, permanent and effective data storage, no noise, no seek error.Ideal for some devices that required a fast and easy bootable device such as POS.
• Enables IT engineers and embedded technology enthusiasts to use SD/MMC card as a normal IDE 3.5" hard disk.Provides an alternative for data storage and transfer or test for mainboard, sound card, display card and memory card, etc.
• Compatible with SD Memory Card specification 1.1, MMC specification 2.0, SDHC Memory Card. SD socket support maximum 32GB SDHC card Support PIO, Multi-Word DMA and Ultra DMA data transfer mode. Compatible with DOS, Windows 98SE, Me, 2000, XP and Vista & Linux. Bootable, install OS and application on SD card.
• Easy installation and no driver required.Mini board design and no space wasted. Ompatible with MMC system specification 2.0 , SD Memory Card specification 1.0, SDHC Memory Card.
• Attention: Some of the mother board required to enable LBA mode and disable DMA transfer mode.

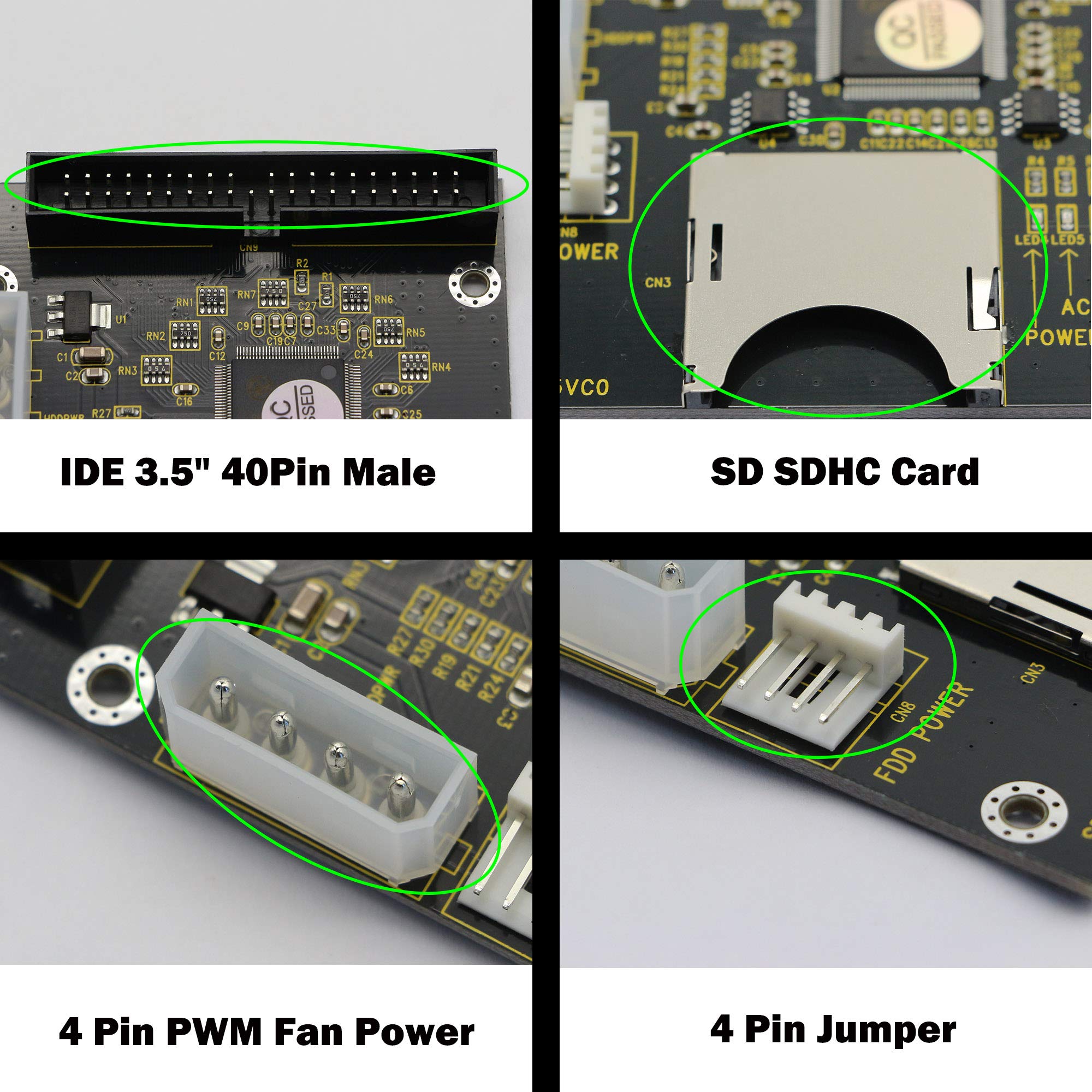

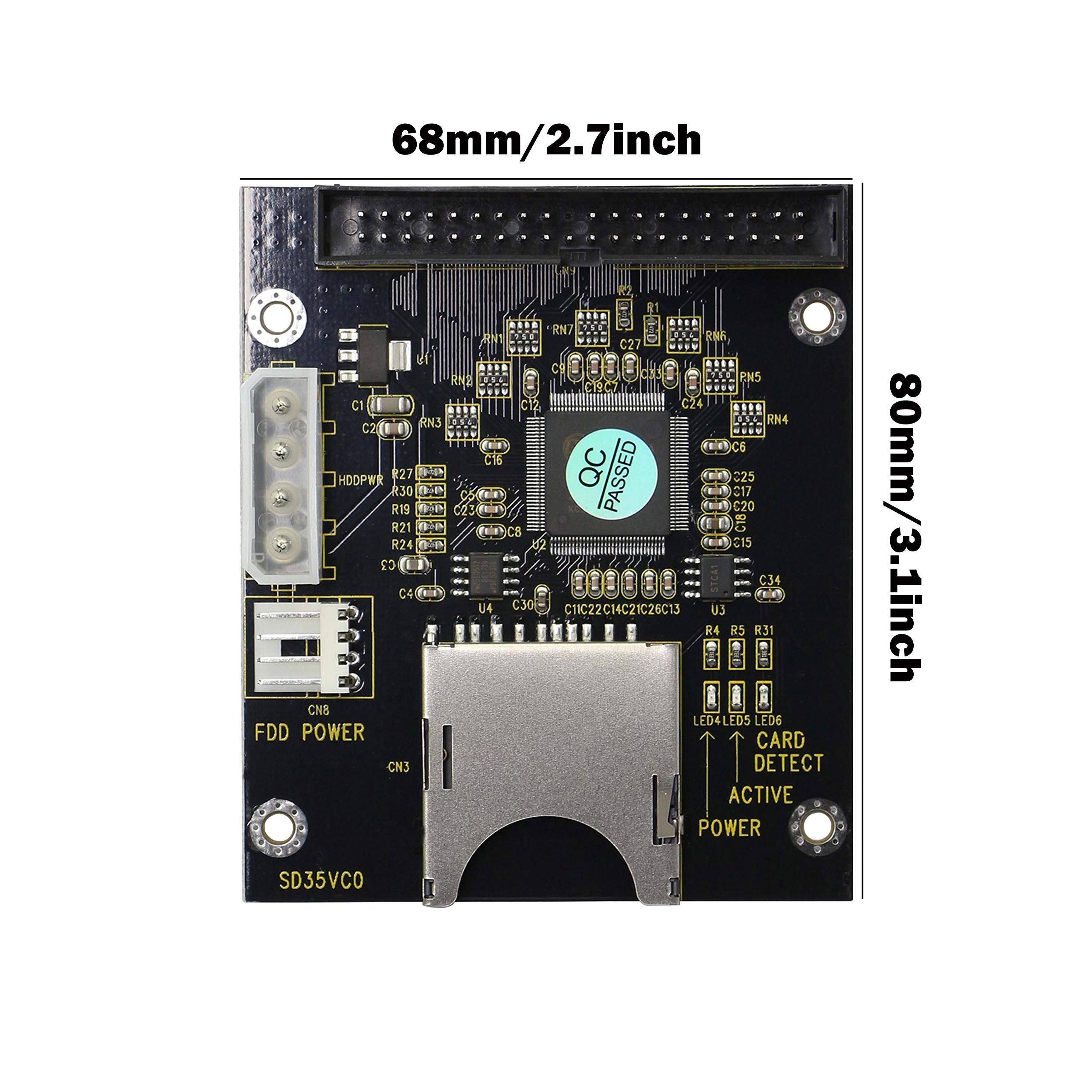

Product Name: SD to desktop ide card SD card has the characteristics of small size, large capacity, anti-seismic and moisture-proof, high-temperature resistance, stable performance, permanent and effective data storage, no noise, no seek error. Memory card is a popular mainstream product nowadays. This adapter card allows you to connect the SD card with this advantage to the standard ATA IDE interface, when the standard ide storage device. Product specification: A standard ide 3.5 'interface; A standard SD socket; A standard large 4Pin power connector. Connection Description: 1. The power supply stand can be powered by hard disk. The card only needs 5V power supply, and the normal working voltage is 5V ± 0.25V. The working current is less than 200mA. 2. For IDE socket, please select 80 pin hard disk connection cable. This card supports PIO, multi word DMA and ultra DMA host data transmission mode; 3. SD socket supports up to 8GB SD card. After connecting the power supply and IDE cable and inserting SD card into SD socket, the converter board is equivalent to an electronic hard disk without installing driver. After installing the operating system, the operating system (such as Windows 98) can be started through SD memory card. The data transmission rate is high, which is roughly the same as the system hard disk speed (ATA / 133, u-dma Mode
