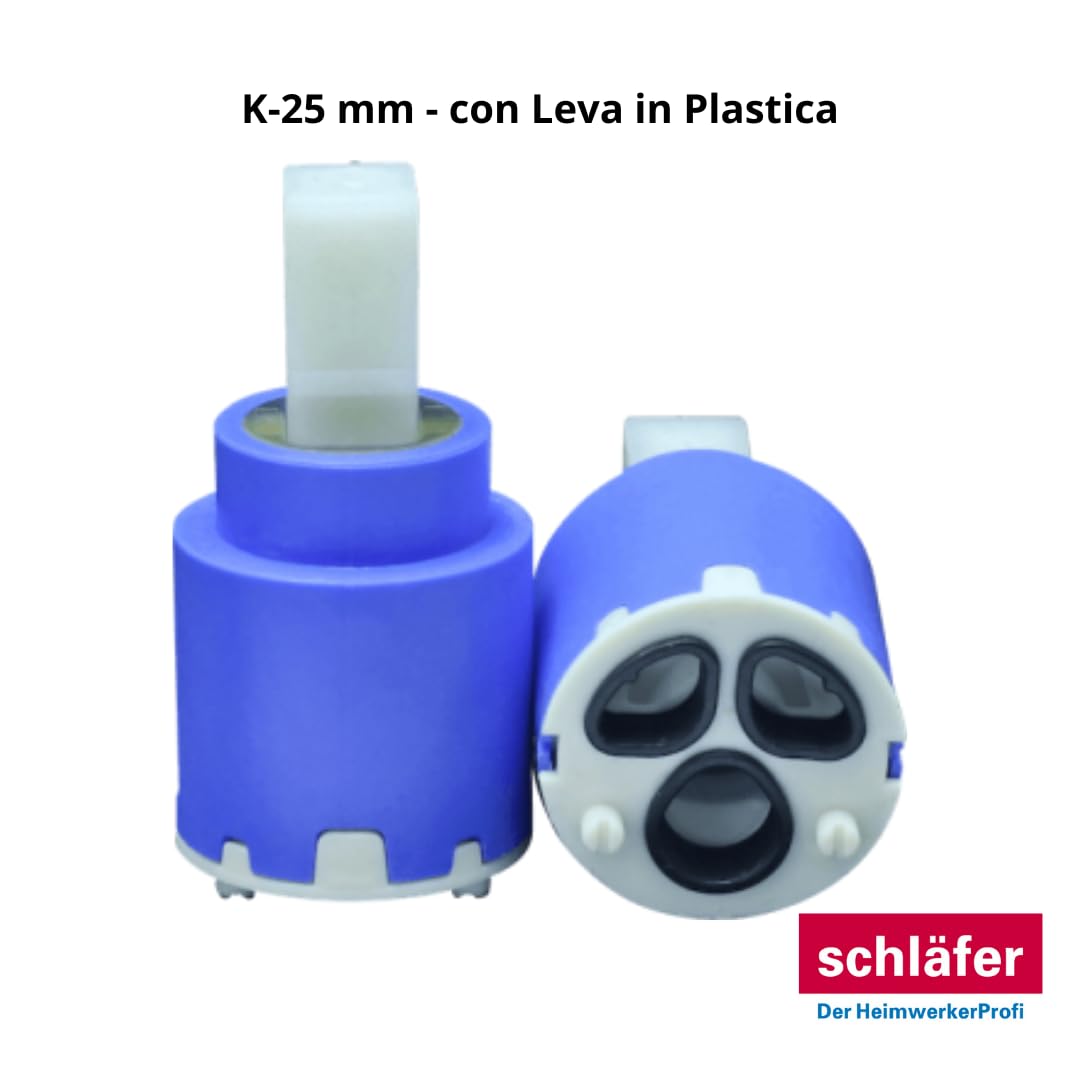

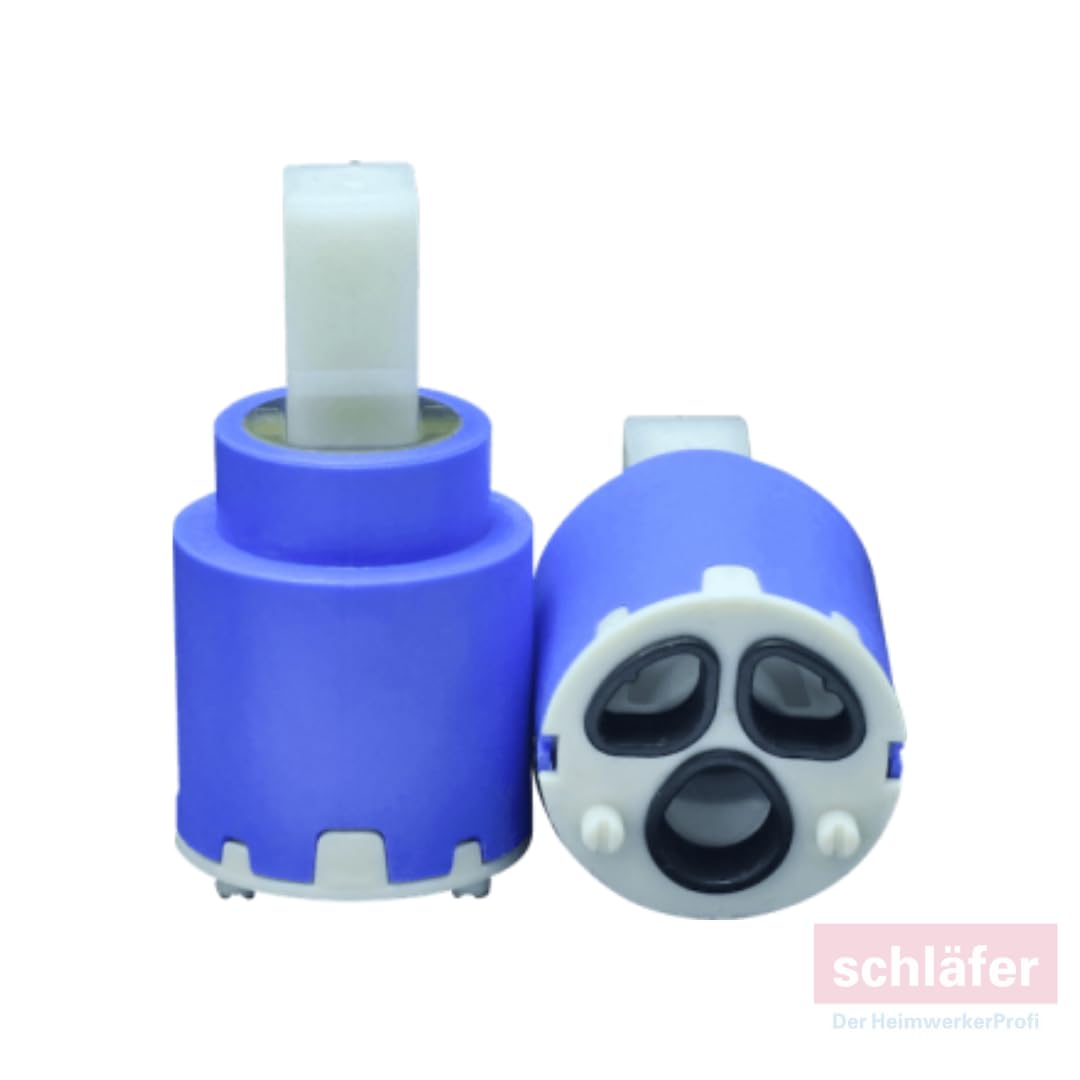

Schläfer 480033 | Ceramic Replacement Cartridge for Single Lever Mixer 25 mm, Low with 2 Feet, Plastic Lever, Shower Mixer, Kitchen, Bathroom Washbasin, Bidet, Bathtub

• SPARE CARTRIDGE: Low ceramic with 2 feet without K25 OPS ceramic disc distributor with Plastic Lever. Suitable for mixers with a low cartridge seat Ø 25 mm. Use : for single-lever mixer taps in the kitchen, bathroom, shower and bathtub.
• INSTALLATION: Make sure that the cartridge positioning feet fit into the holes in your mixer and finally make sure that you have screwed the cartridge lock nut tightly, taking care not to exert too much force, risking breaking it. If the problem of water leaks has not been solved, it is necessary to clean the holes in the tap from limescale and proceed with the installation.
• HOW TO CHOOSE A CERAMIC DISC CARTRIDGE: You need to measure the outside diameter of the ceramic cartridge of your faucet, mixer, single lever to verify that you are buying a compatible cartridge. The diameter of the cartridge with ceramic discs is generally 25 mm - 35 mm and 40 mm. Carefully read the technical data sheets of the chosen product.

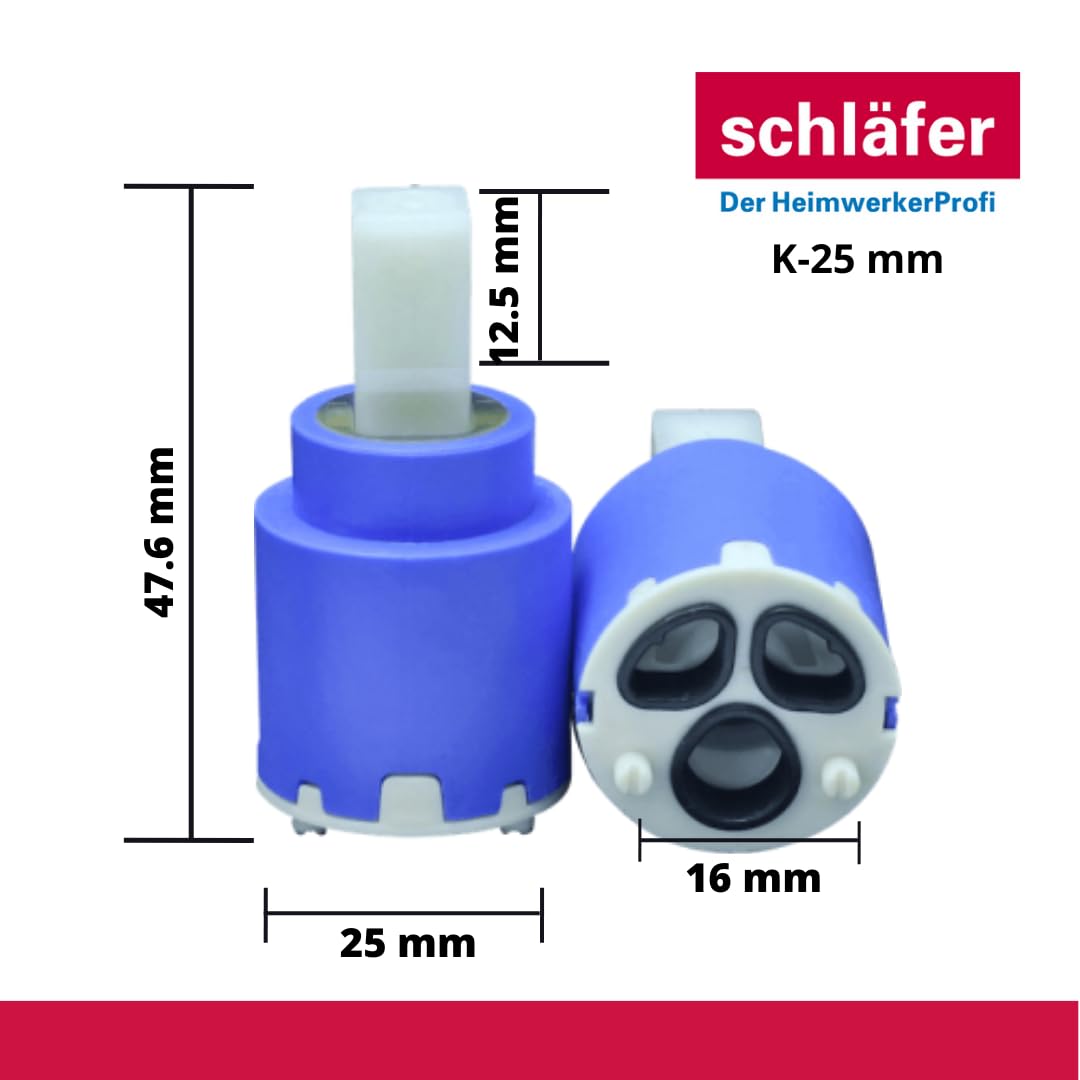

• PRODUCT CERTIFICATION: Cartridge for Ceramic Disc Mixers Dimensions: Ø25mm. low without, lifting base Leak tests under pressure: Air: 6 bar Water: 35 bar FLOW TESTS: at 3 bar in test tap EN 817 standards 20.1 l/min with resistance "C" DURABILITY TESTS: according to EN 817 standards 70 000 cycles - ASME A 112.18.1M standards 500 000 cycles.
• 24/7 SUPPORT: We offer an always-on, dedicated customer service that covers all your pre- and post-sales needs, including warranty management. Contact us if you need help. Replacement cartridge compatible with paffoni berry za91170

Schläfer Der HeimwerkerProfi - 480033 | Ceramic Replacement Cartridge for Single Lever Mixer 25 mm This cartridge is suitable for single lever mixer tap of the washbasin, bidet, shower, bathtub and kitchen sink diameter 25mm. Adjustable ring for water saving. This product is compatible with most taps on the market. Product tested and certified according to EEC standards. INSTALLATION: The ceramic cartridge you choose must be compatible with the faucet. Make sure that the cartridge positioning feet fit into the holes in your mixer and finally make sure that you have screwed the cartridge clamp nut tightly, taking care not to exert too much force, risking breaking it. If the problem of water leaks has not been solved, it is necessary to clean the holes provided for the tap, from limescale and proceed with the installation HOW TO CHOOSE A CERAMIC DISC CARTRIDGE: You must measure the external diameter of the ceramic cartridge of your tap, mixer, single lever to verify that you are buying a compatible cartridge. The diameter of the cartridge with ceramic discs is generally 25 mm – 35 mm and 40 mm. Carefully read the technical data sheets of the chosen product. PRODUCT FEATURES Cartridge for Ceramic Disc Mixers Water Saving Model: K25 9×9 mm PVC handle pin. Opening 25°. Dimensions: ø 25 mm. Low without rise base Maximum temperature: 90°C Maximum opening angle: 25° IN THE BOX x1 Mixer Cartridge Give the right space to the news! Discover all Schläfer Der HeimwerkerProfi offers on brand new products, many bargains await you!
