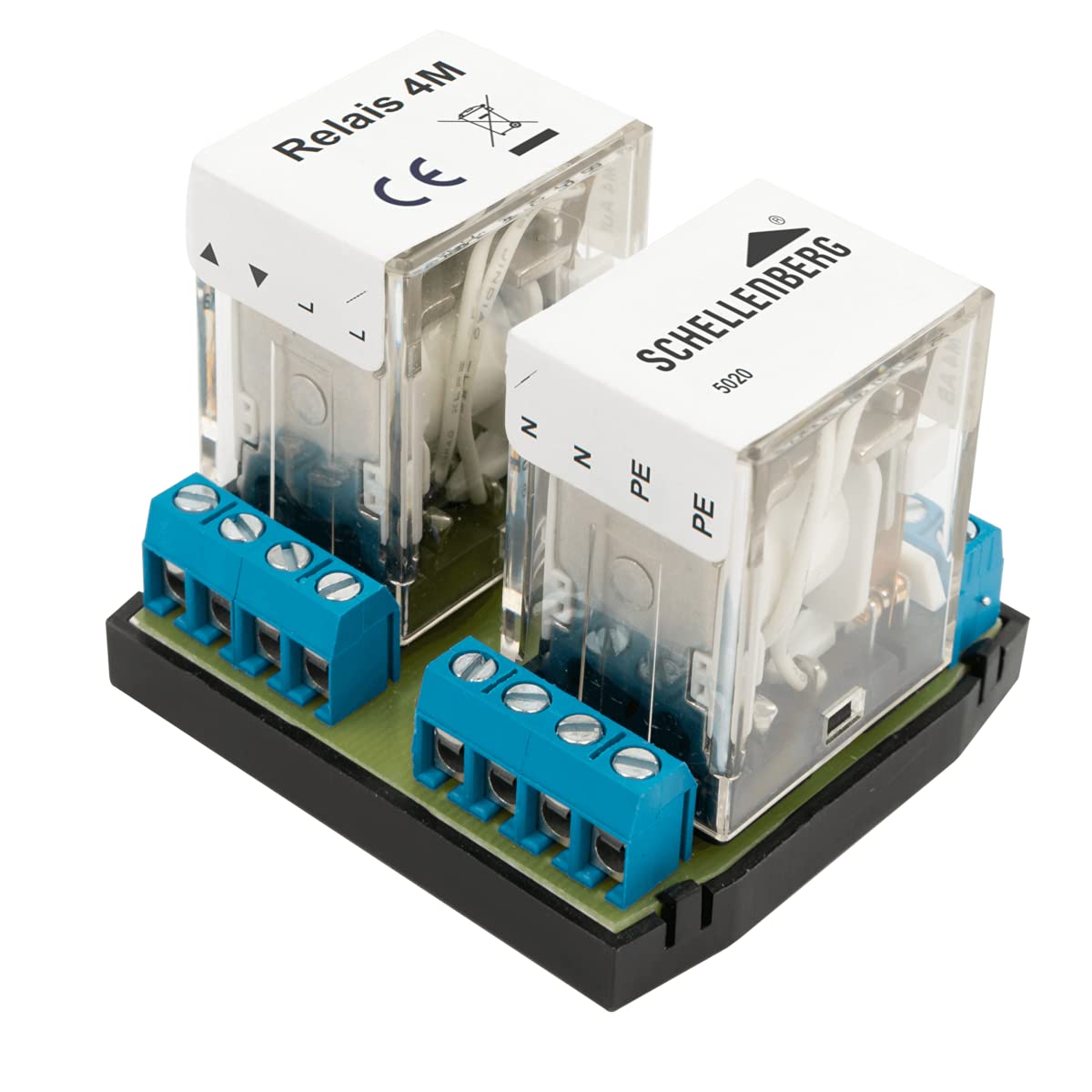

Schellenberg 24200 Roller Shutter Isolation Relay for Simultaneous Control of up to 4 Roller Shutter Motors via Switch or Timer

• Relay for controlling up to four Schellenberg roller shutter motors (item number 20306, 20308, 20310, 20315, 20320, 20340) via one control unit
• For flush-mounted box (74 mm diameter, 50 mm depth)
• Can also be mounted in the roller shutter box (use waterproof mounting housing)

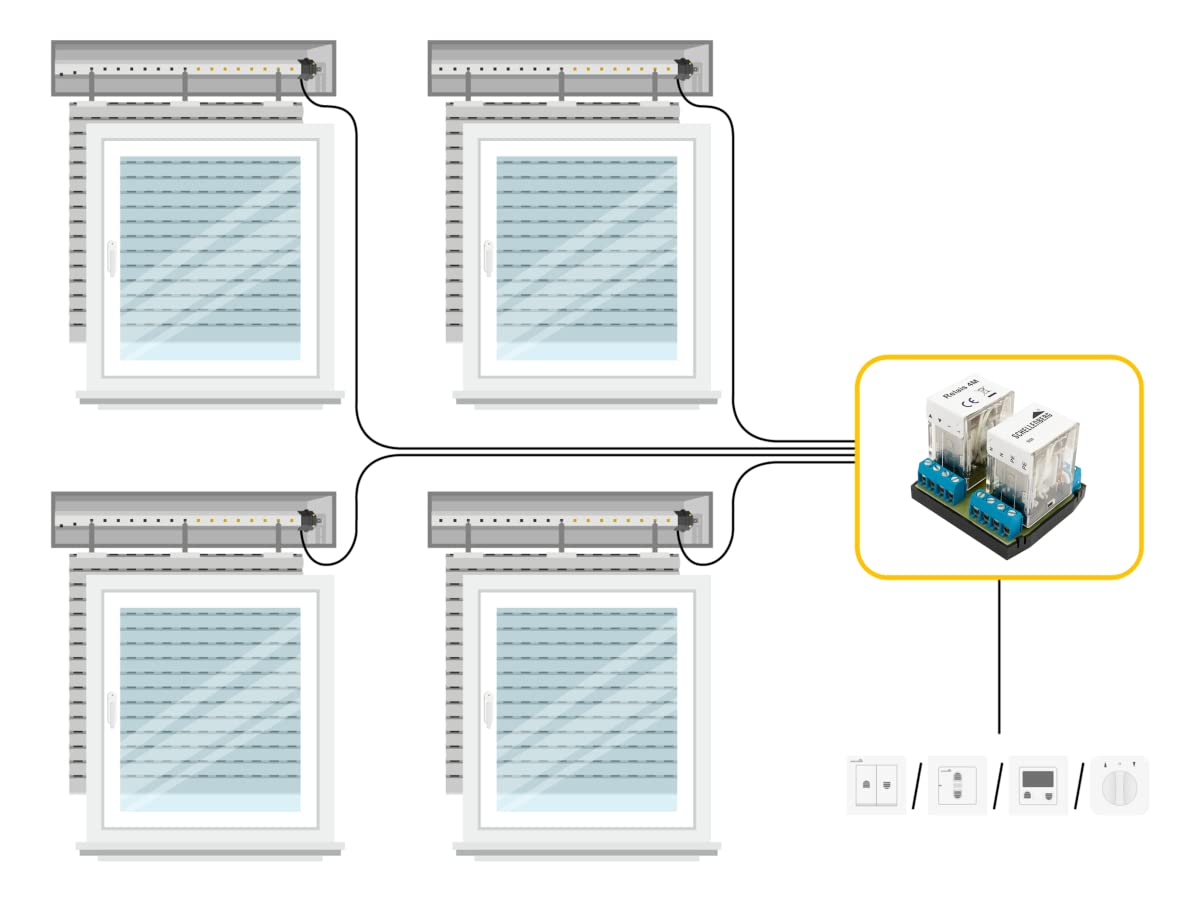

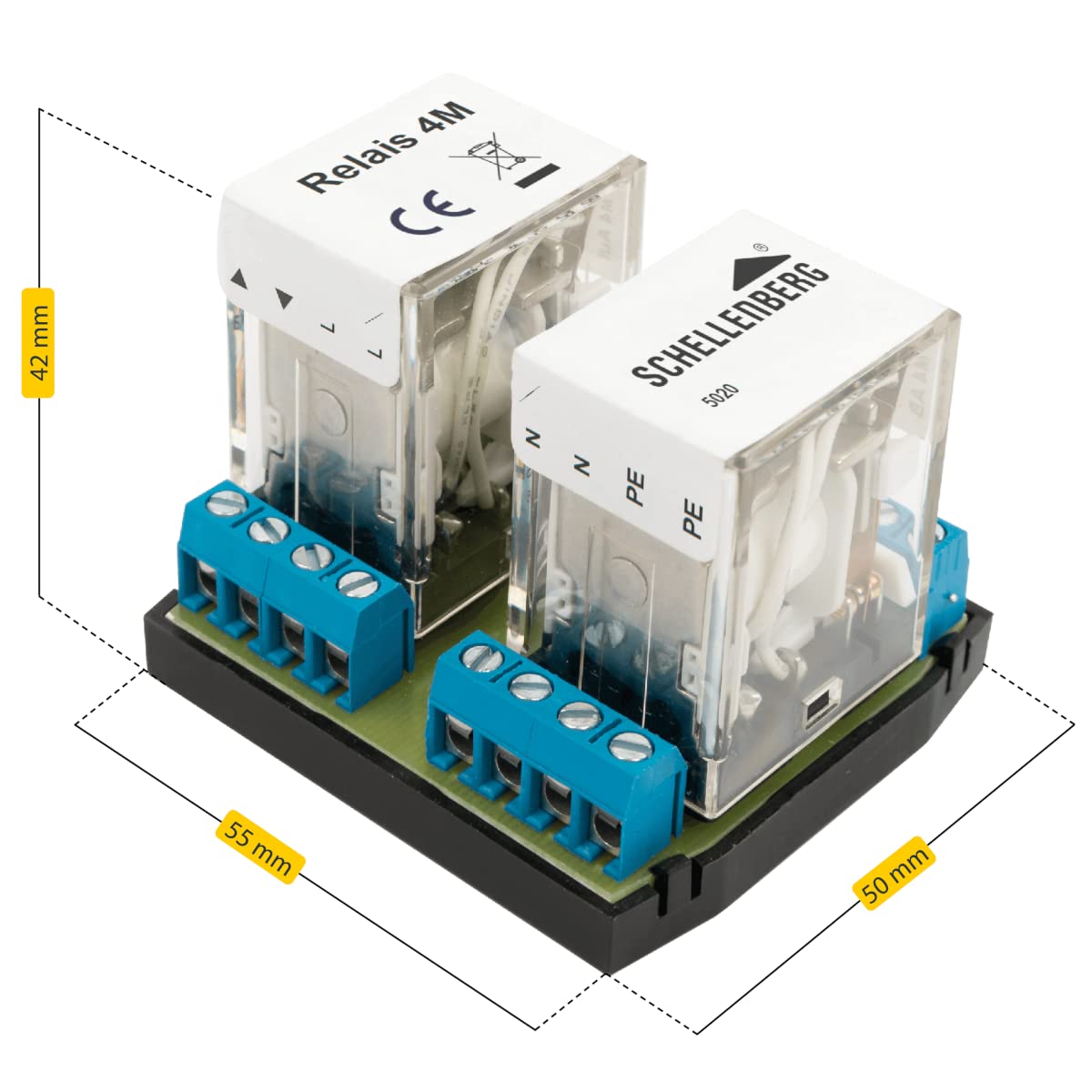

With the durable roller shutter relay, you can control up to four tubular motors via one control element at the same time, e.g. with the Schellenberg roller shutter switches or timers. The relay is designed for group control of Schellenberg tubular motors standard. It requires an operating voltage of 230 V AC/50 Hz and has a total switching capacity of maximum 8 A, which corresponds to 2 A per roller shutter motor. The 4-way roller shutter relay is installed in a flush-mounted box with a diameter of 70 mm and a depth of 50 mm. Alternatively, it can be installed in a junction box measuring 70 x 70 mm.
