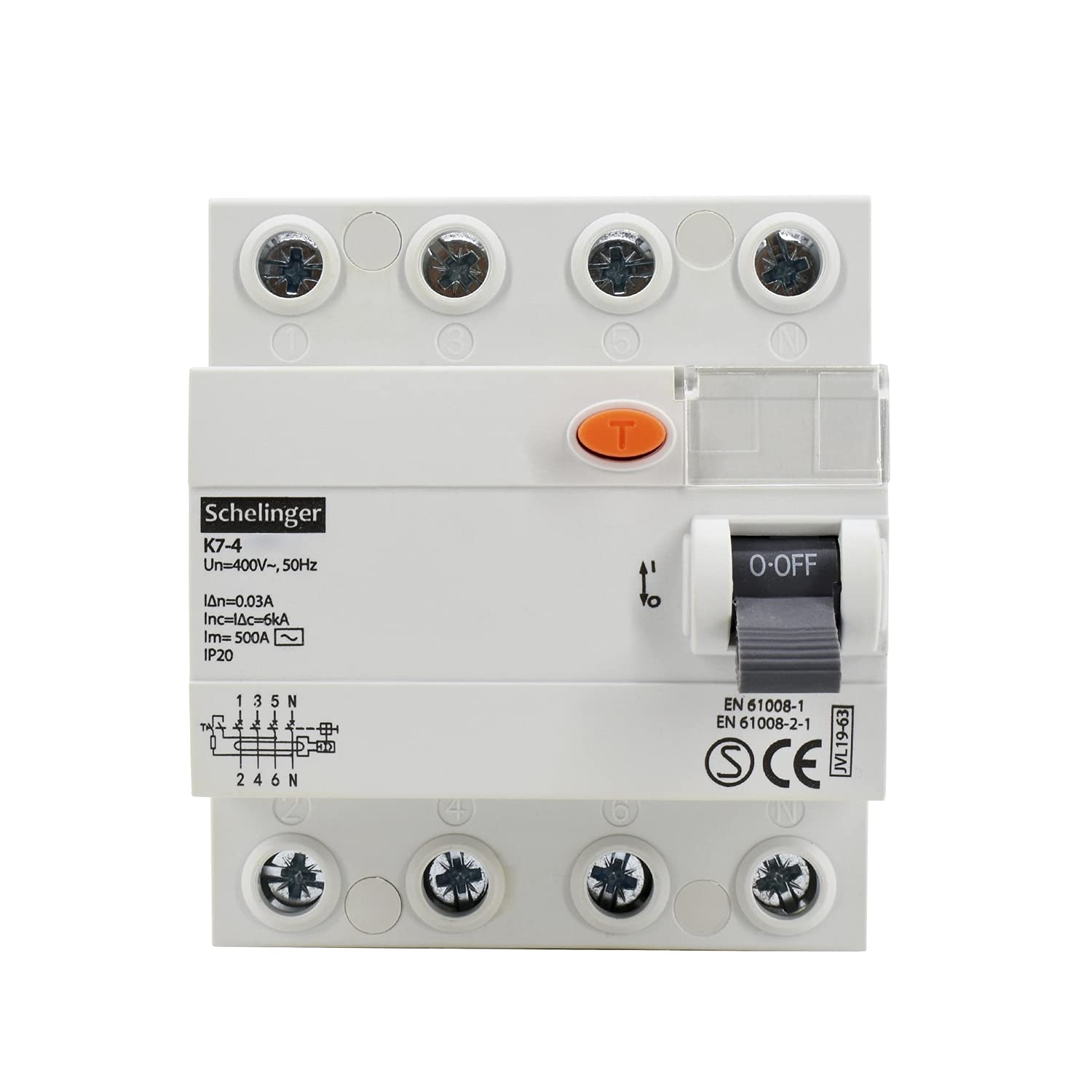

Schelinger Residual Current Circuit Breaker RCD / 30mA / 4-Pin / 40A (4-Pin 63A)

• This type A residual current circuit breaker / FI switch is either 2-pole or 4-pin (25A, 40A or 63A).
• The residual current circuit breakers are tested and certified.
• ✅ They are characterised by a high-quality workmanship and manufacturer's warranty of 5 years.

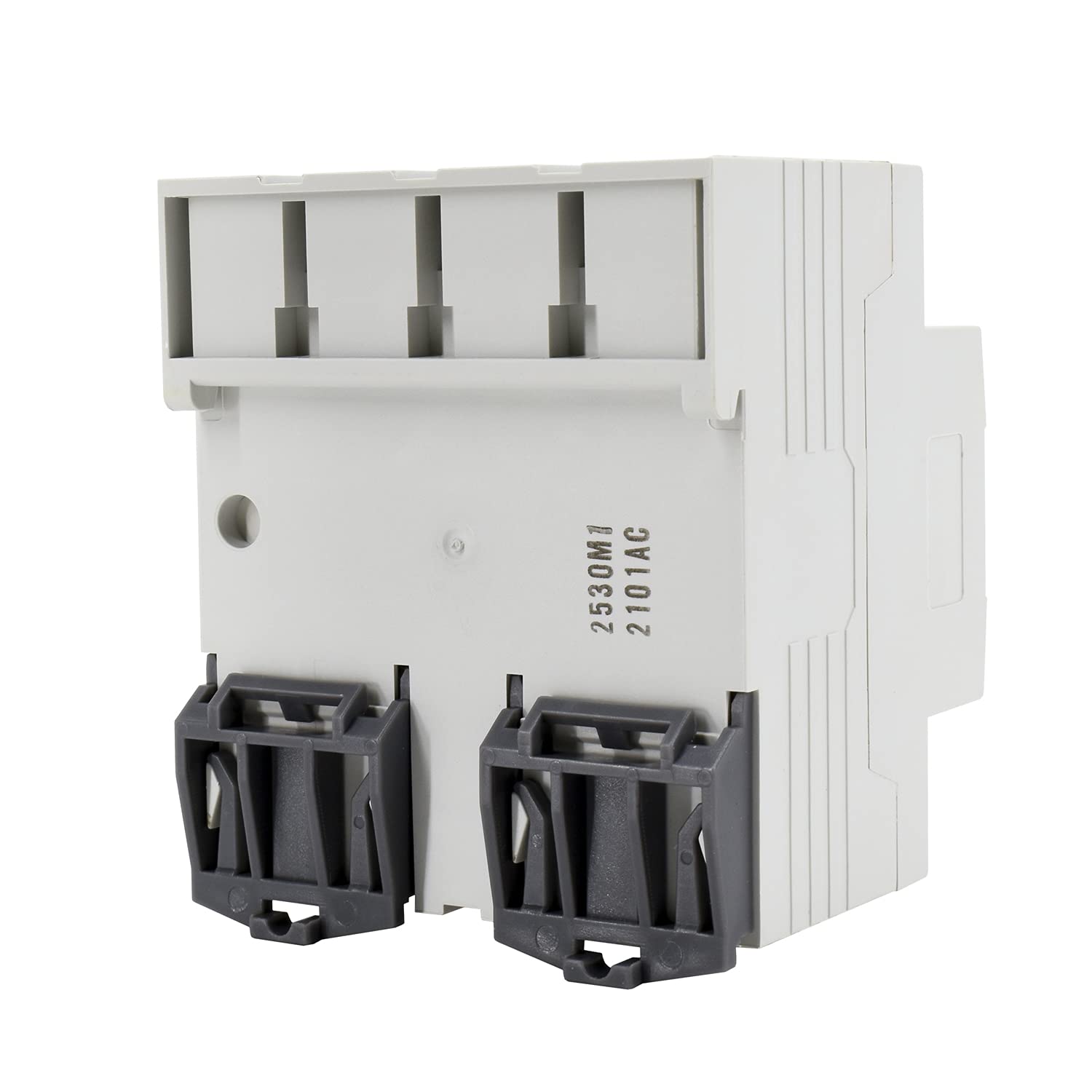

• The installation is done on a DIN rail TS/TSH 35 mm. The use of phase rails is possible.
• The connection properties are: AC 415 V / 50 Hz (3P+N).

This residual current circuit breaker, either 2 or 4 pin, reflects the high quality of the Schelinger brand. Technical details: Manufacturer's warranty: 2 years Brand: Schelinger. Ref number: A03-K7. Mounting type: DIN rail TS / TSH 35 mm. Dimensions: 2 pins: 36 x 83 x 68 mm (W x H x D) / 4 pins: 72 x 83 x 68 mm (W x H x D) Material: high-quality plastic. Specification: 30mA Design: 2 pin / 4 pin. Rated current: 25 A / 40 A / 63 A. Connection: AC 415 V / 50 Hz (3P + N). Certification: CE, LVD, PN-EN 60898-1:2003+A1+A11+A12+A13 Protection class IP 20
