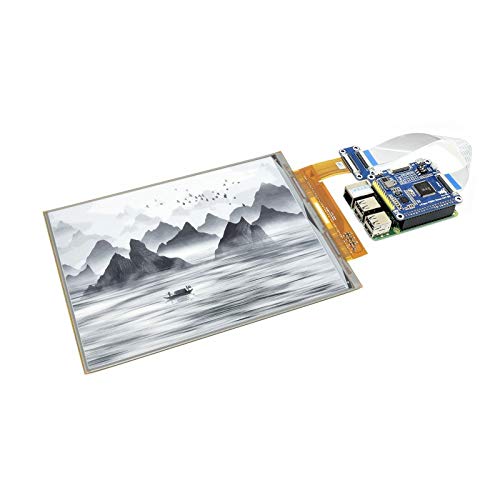

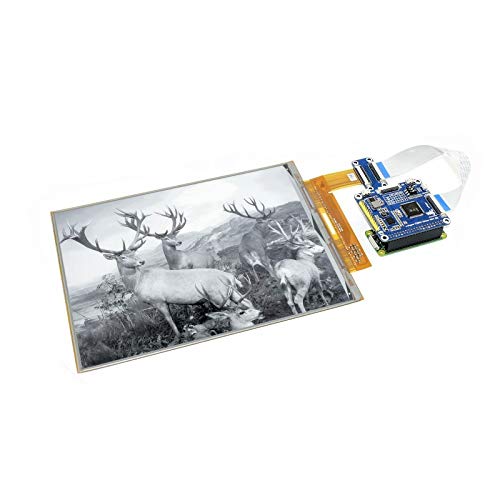

sb components 10.3inch Flexible E-Ink Display HAT for Raspberry Pi e-Paper 1872x1404 Resolution 5V Electronic Screen Panel USB/SPI/I80/I2C interface Raspberry Pi Screen

• 10.3inch 1872x1404 Resolution Flexible E-Ink Display HAT for Raspberry Pi
• Low power consumption, basically power is only required for refreshing
• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
• USB/SPI/I80/I2C interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.
• Comes with development resources and manual (examples for Raspberry Pi/STM32)

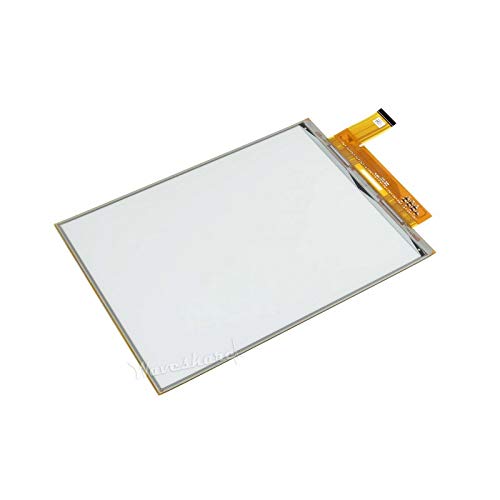

Description: This is a flexible E-Ink display HAT for Raspberry Pi, 10.3inch, 1872×1404 resolution, with embedded controller IT8951, communicating via USB/SPI/I80/I2C interface, supports partial refresh. Compared with normal e-Paper panels, this flexible panel allows bending without being damaged, and it's thinner and lighter. Due to the advantages like low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as ebook reader, e-ink display, industrial instruments, and so on. Features: Flexible e-Paper, the display section is bendable (DON'T bend the FPC section) No backlight, keeps displaying last content for a long time even when power down Low power consumption, basically power is only required for refreshing Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards USB/SPI/I80/I2C interface, for connecting with host boards like Raspberry Pi/Nucleo, etc. Comes with development resources and manual (examples for Raspberry Pi/STM32) Specifications: Operating voltage: 5V Interface: USB/SPI/I80/I2C Outline dimension: 227.7mm × 165.8mm × 0.647mm Display size: 209.664mm × 157.248mm Dot pitch: 0.112mm × 0.112mm Resolution: 1872 × 1404 Display color: black, white Grayscale: 2-16 (1-4 bit) Full refresh time: 450ms Total refresh power: 1.2W(typ.) Total standby power: 0.1W(typ.) Viewing angle: >170° Package Content: 1 x 10.3inch e-Paper (D) 1 x e-Paper IT8951 Driver HAT (B) 1 x 10.3inch e-Paper Adapter 1 x 33PIN FFC (same side contact) 2 x USB type A plug to micro B plug cable 1 x PH2.0 20cm 8Pin 1 x RPi screws pack (2pcs)
