Satix SDSH00100 rafter holder satellite dish mount with 80 cm aluminium mast pole steel frame

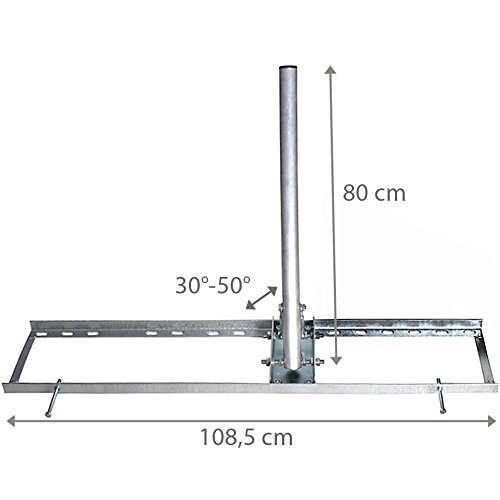

• Sturdy steel frame for mounting on the rafters with mast tube made of aluminum (length 800 mm, diameter 48 mm)
• For mounting a satellite dish or antenna on the roof, mountable from outside (or from below) on rafters
• Fits most roofs with a rafter spacing between 60 and 90 cm, can be used with roof pitches of 30 - 50 °
• For safe installation of satellite dish or outside antenna, no damage to the roof insulation
• For installation only push roof tiles up and fasten, recommended: additional roof tile with mast lead-through and seal

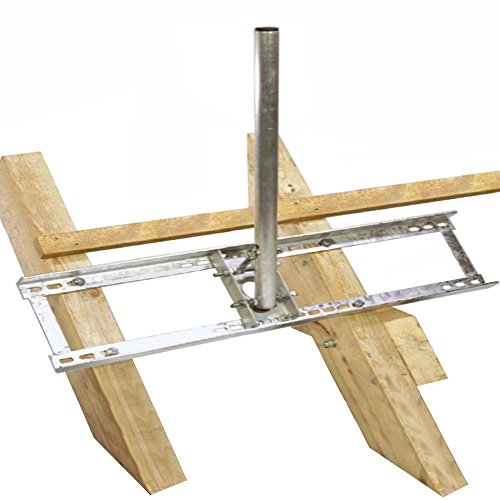

Product Description This rafter holder is used to mount a satellite dish or aerial on the roof. The frame is made of galvanized steel, the 80 cm mast tube is made of aluminum (diameter 40 mm, wall thickness 4 mm). The bracket is mounted on top of two rafters. When installing, it is sufficient to remove only the roof tiles in the area of the antenna mast and to put it back on again after tightening the screws. Suitable for all roof pitches from 30 ° to 50 ° and a rafter spacing of 60 cm to 90 cm. For installation, we additionally recommend an aluminum or plastic roof tile with mast leadthrough as well as appropriate sealing material. Box Contains rafter holder
