S2 Mini V1.0.0 ESP-32-S2 Module XTVTX 3 Pieces Based on ESP-32-S2 Development Board 4MB Flash 2MB PSRAM WiFi Compatible A-rduino MicroPython CircuitPython ESP-IDF

• ESP-32-S2 S2 Mini: based ESP-32-S2 FN4R2 WiFi IC

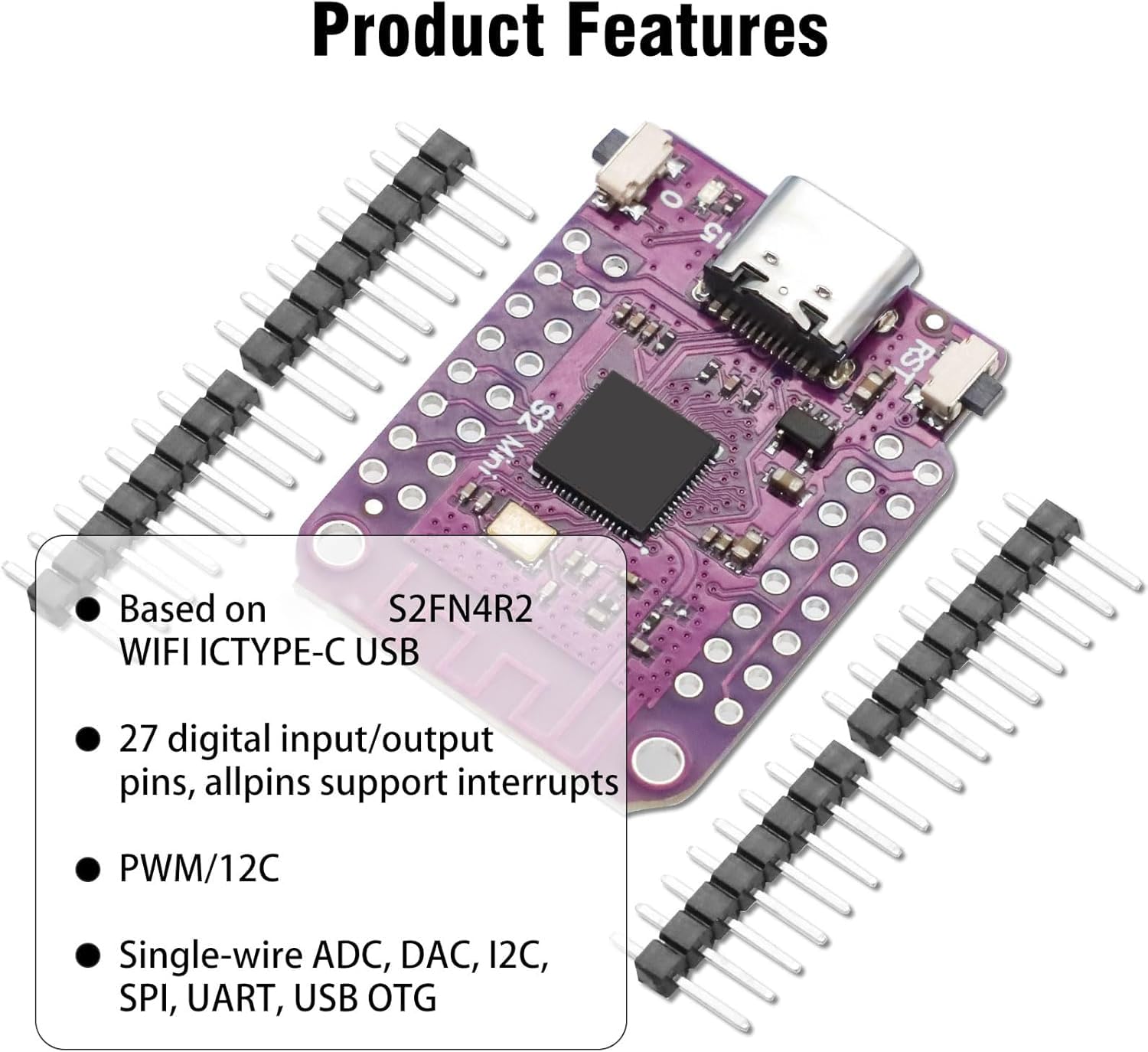

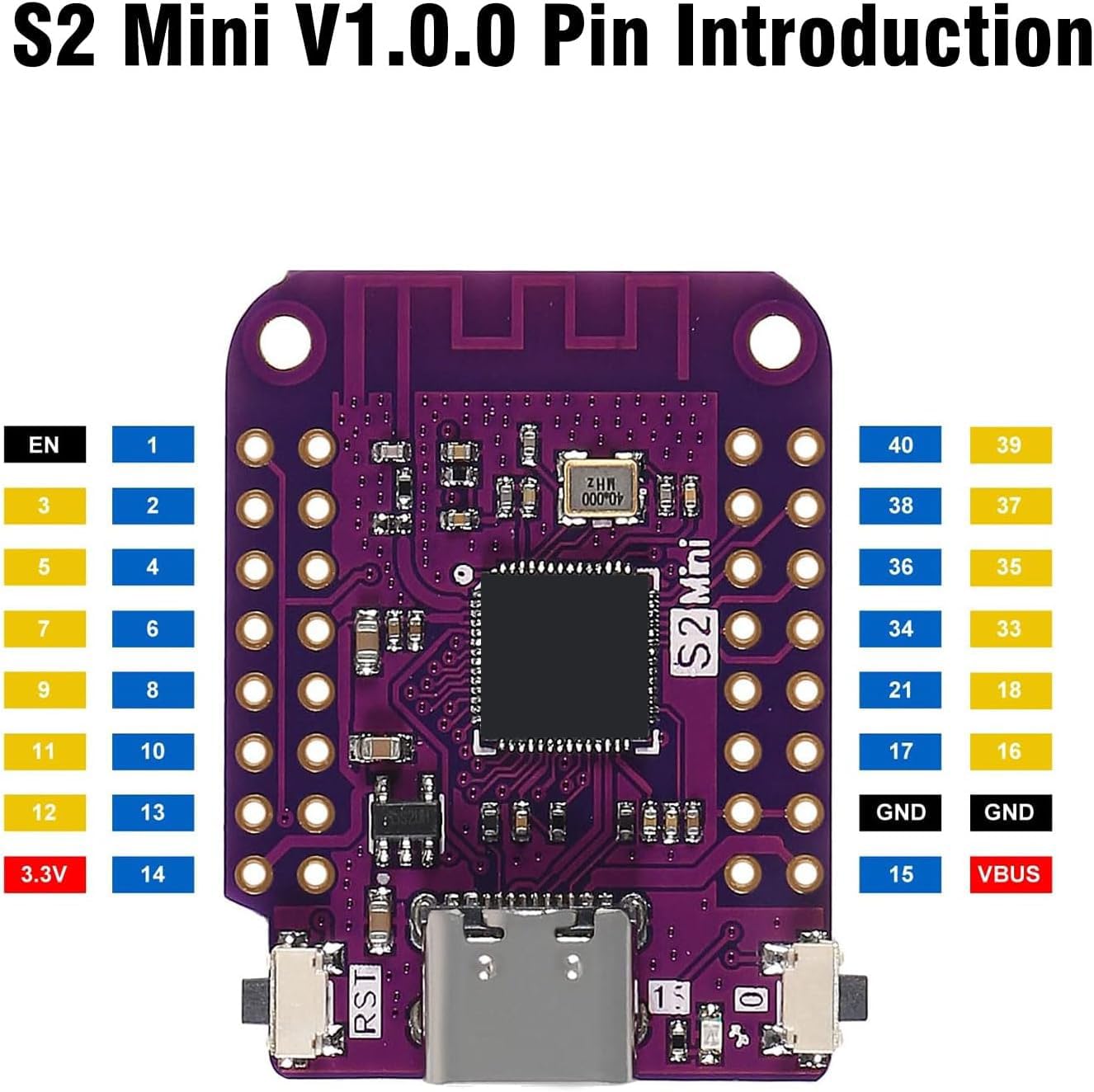

• Features: S2 Mini 4MB Flash 2MB PSRAM 27x IO
• Standard firmware: MicroPython
• Compatible: compatible with MicroPython, A-rduino, CircuitPython and ESP-IDF
• Type-C USB:ADC, DAC, I2C, SPI, UART, USB OTG, compatible with LOLIN D1 Mini Shields

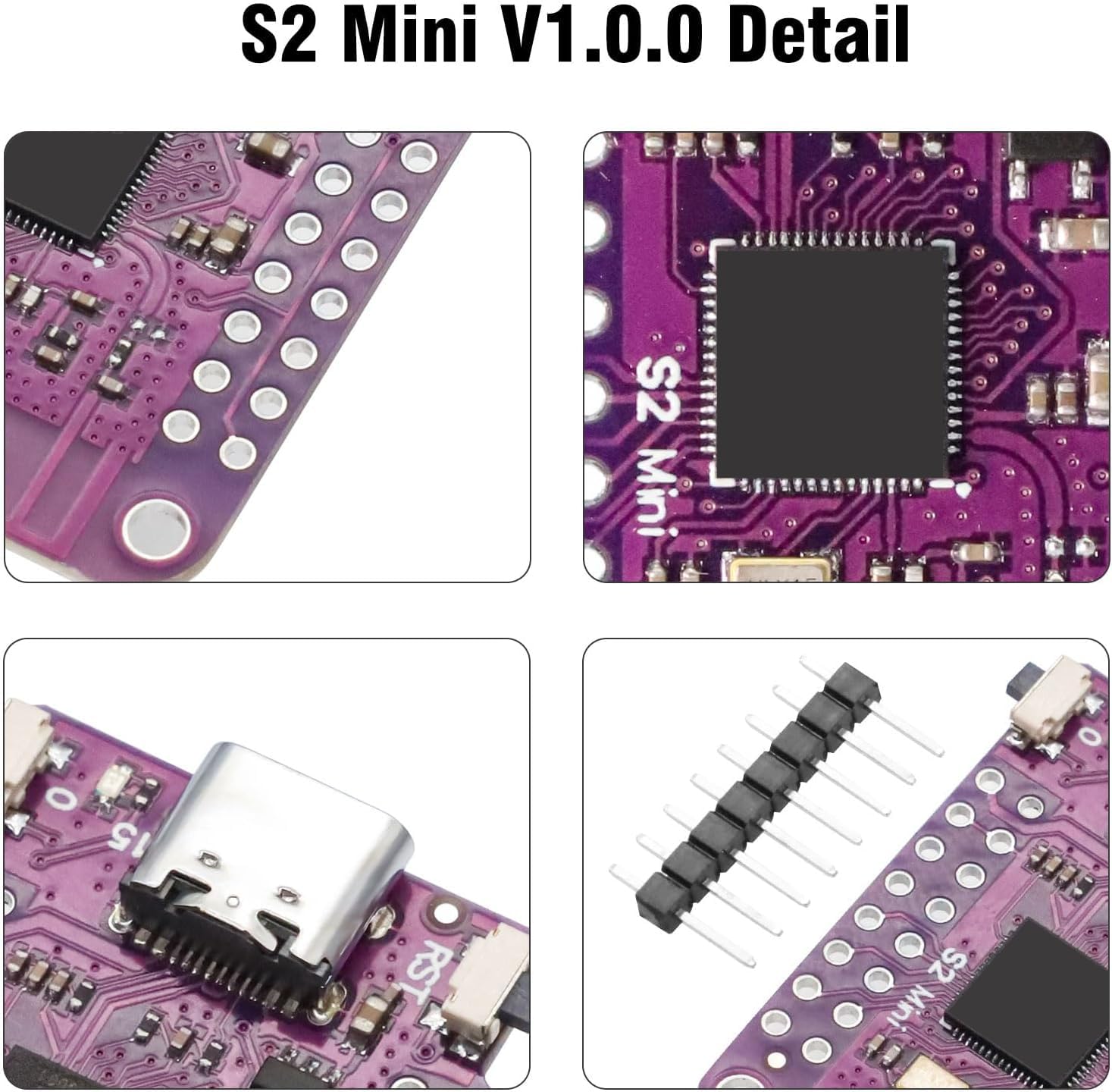

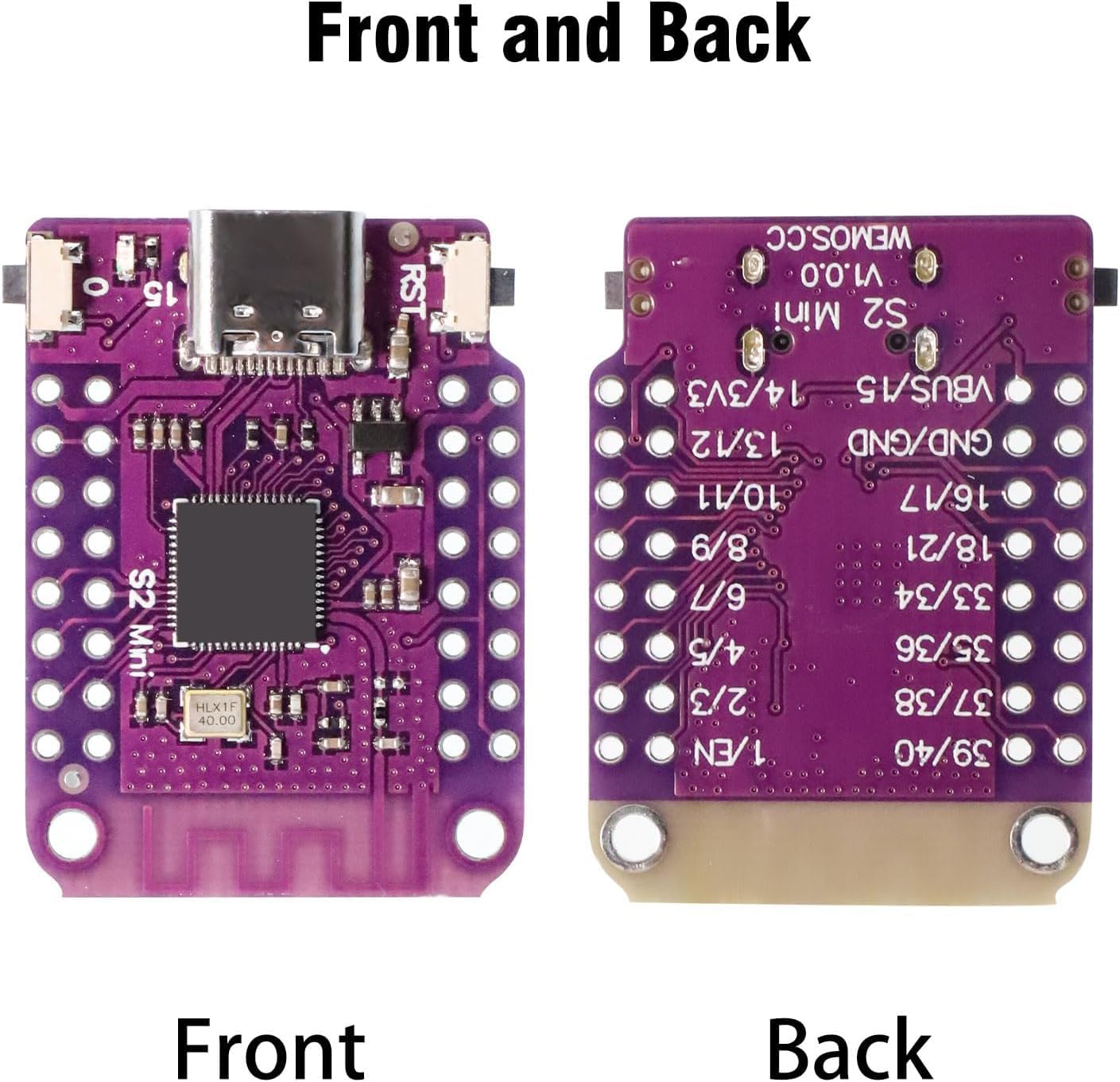

Description: S2 Mini V1.0.0 is a development board based on the ESP-32-S2 chip with 4MB flash memory. The ESP-32-S2 is a highly integrated single-chip microcontroller for IoT and embedded applications. It supports Wi-Fi connectivity and low-power operation and has a variety of peripheral interfaces and features such as GPIO, SPI, I2C and UART. The ESP-32-S2's 4MB flash memory can be used to store program code, data, file systems and more. This development board can be used for rapid prototyping and product design. Technical data: Operating voltage: 3.3 V. Digital I/O Pins:27 Clock frequency: 240 MHz. Flash: 4M bytes. PSRAM: 2M bytes. Product Features: (27 digital input/output pins, all pins support interrupt/pwm/12C/single-wire) ADC、 DAC、 2C、 SPI、UART、 USB OTG Product includes: 3 x S2 Mini V1.0.0 ESP-32-S2
