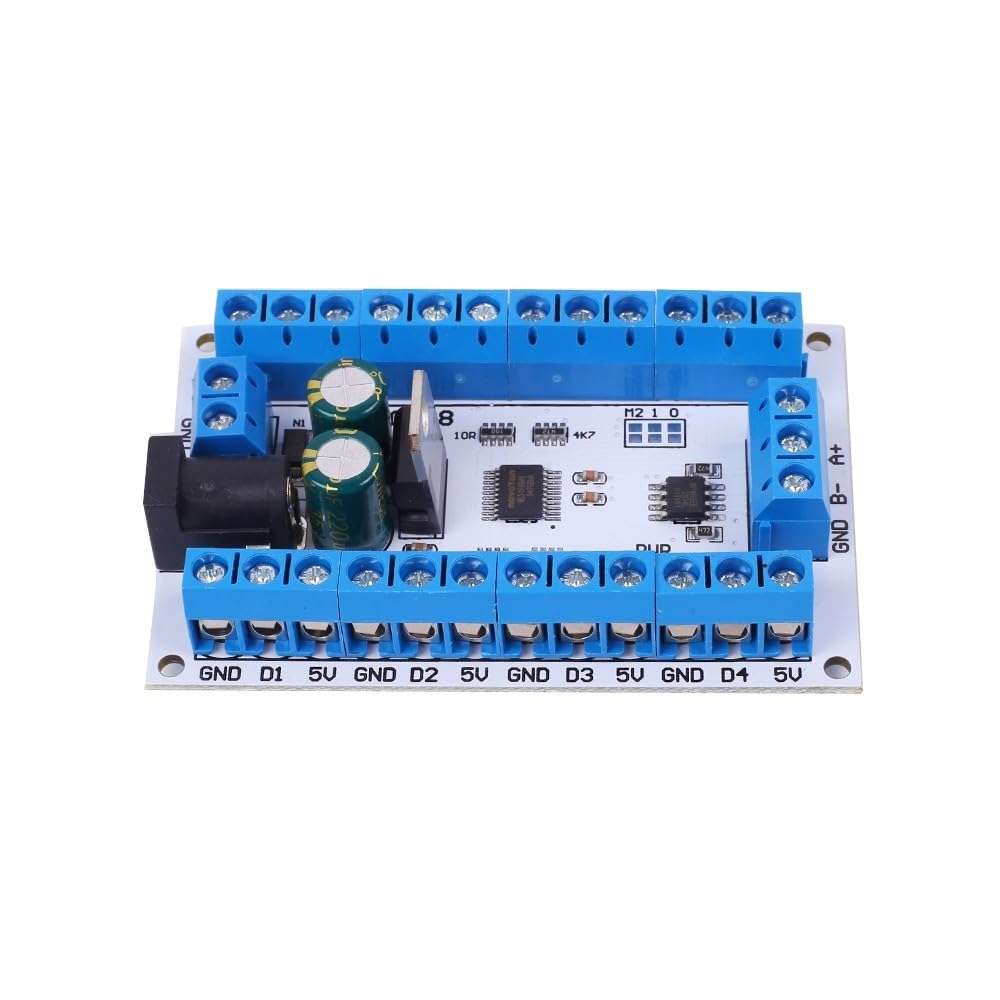

RS485 Temperature Receiver, DC 12V 24V 8Bit RTU Data Collector Signal Controller Recorder for DS18B20 Sensor MODBUS

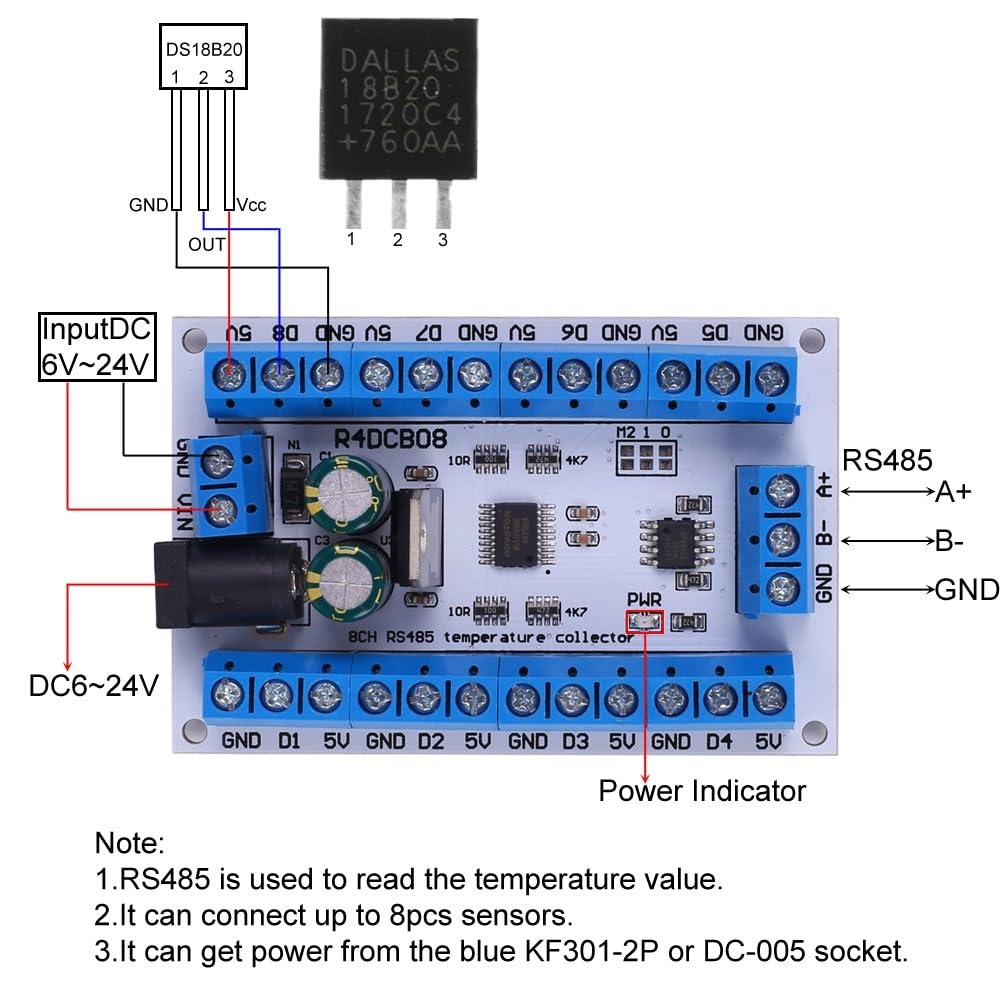

• R4DCB08 is an 8-bit RS485 temperature receiver for 8 DS18B20 sensors. It can read 8 temperature values from 8 DS18B20 sensors and output via an RS485 terminal. Users can read the temperature of different monitoring points, which is convenient for device and temperature control.
• It can read 8 temperature values from 8 DS18B20 sensors and output via the RS485 clamp.
• Users can read the temperature of different monitoring points, which is convenient for equipment and temperature control.
• Supports up to 247 devices in parallel
• International products have separate terms, are sold from abroad and may differ from local products, including fit, age ratings, and language of product, labeling or instructions.

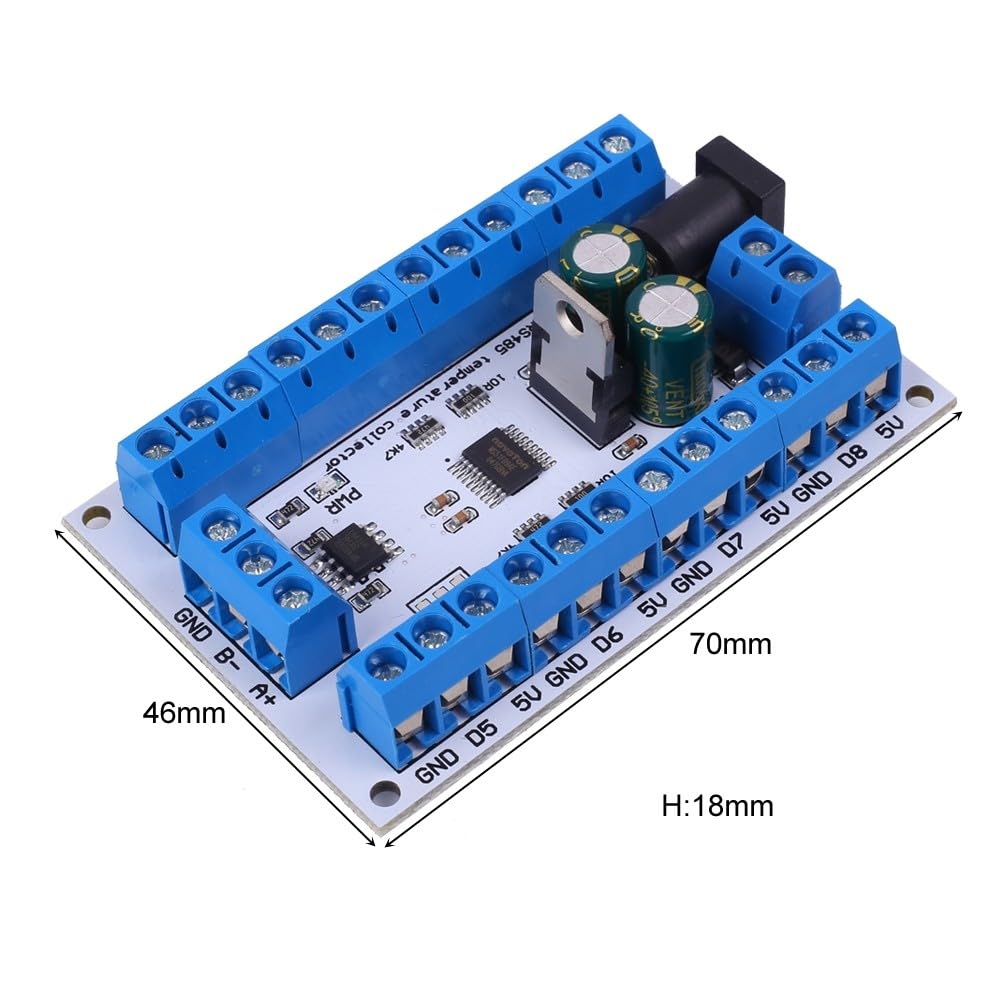

Parameters: Product name: R4DCB08 8bit RS485 temperature receiver for 8pcs DS18B20 sensors. Operating voltage: DC 6V-24V. 3>. Working current: 8 mA ~ 13 mA. 4>.Command control mode: RS485 MODBUS RTU 03 06. 5>. Customized sensor: DS18B20 temperature sensor (not included). Temperature range: -55°C ~ 125°C. 7>. Measuring accuracy: 1%. 8>.Working temperature: -40℃~80℃. Working humidity: 10% ~ 90% RH. Module size: 70 x 46 x 18 mm. Note: 1>. It is a DS18B20 temperature reader, but does not include a DS18B20 sensor. 2>.There are so many AT and UART control commands that the page cannot be filled in. Please contact us after purchase to send AT and UART control instructions. Application: Aquarium temperature measurement. 2>.Device temperature monitoring. Intelligent control of greenhouse planting. Package: 1>.R4DCB08 8Bit RS485 Temperature Receiver for 8pcs DS18B20 Sensors
