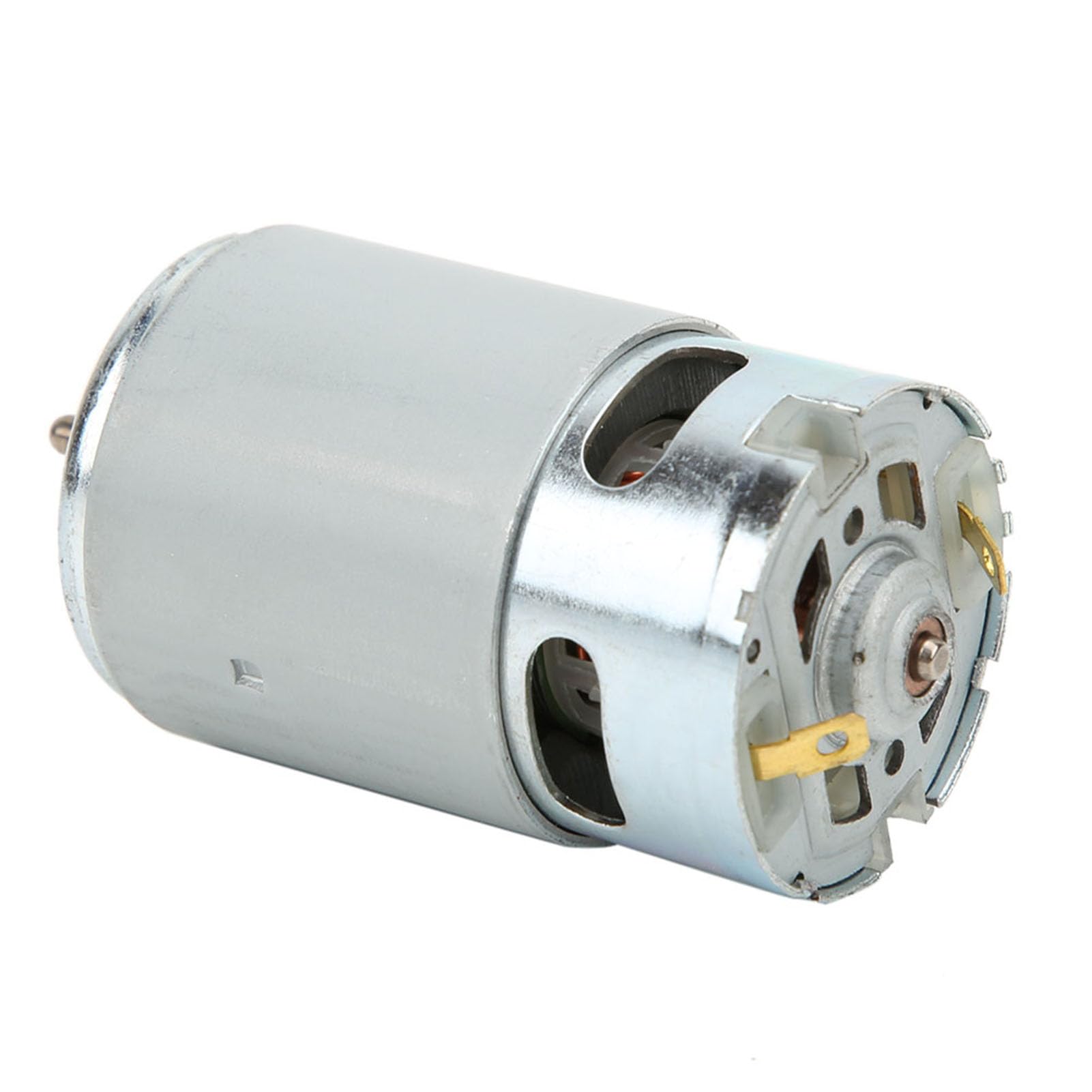

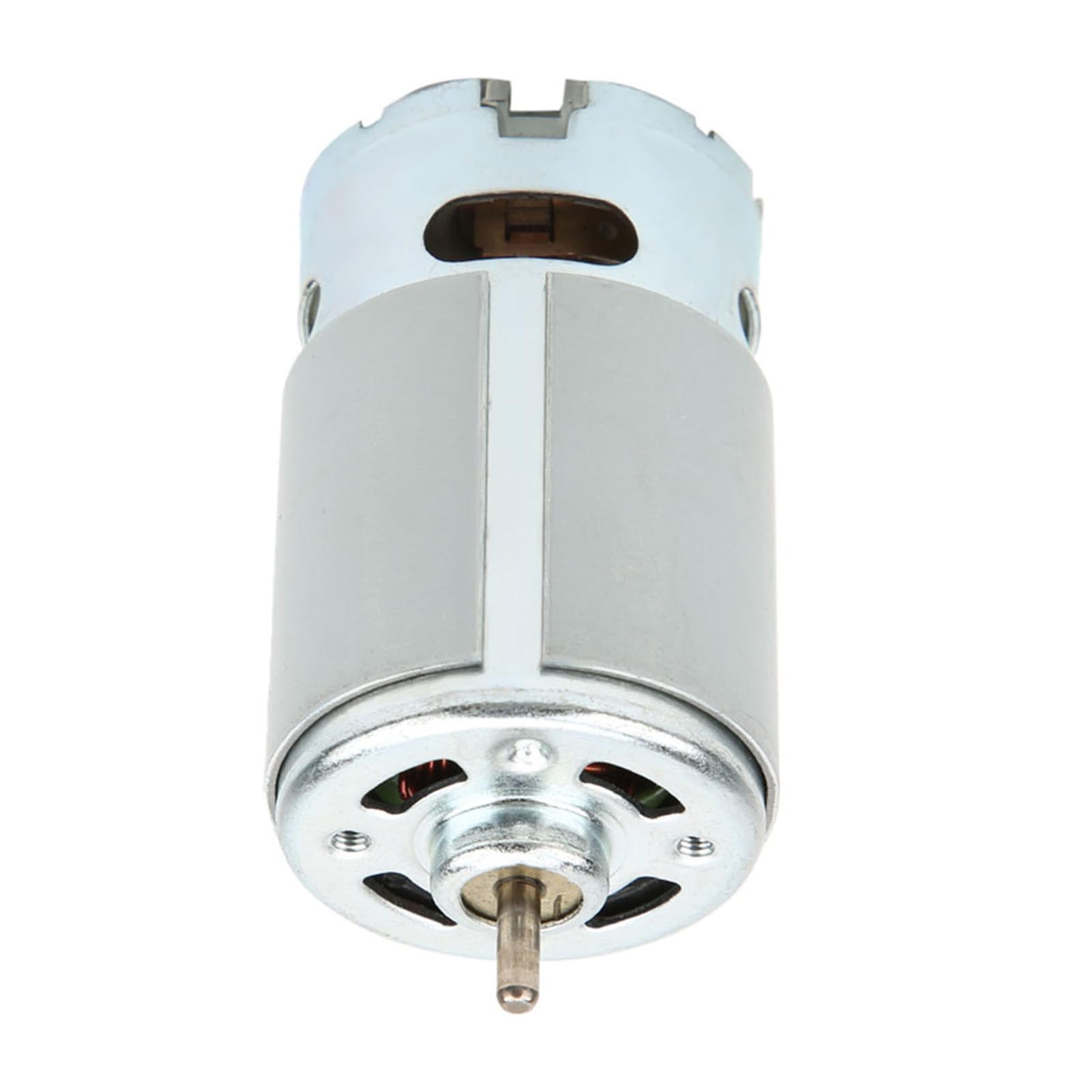

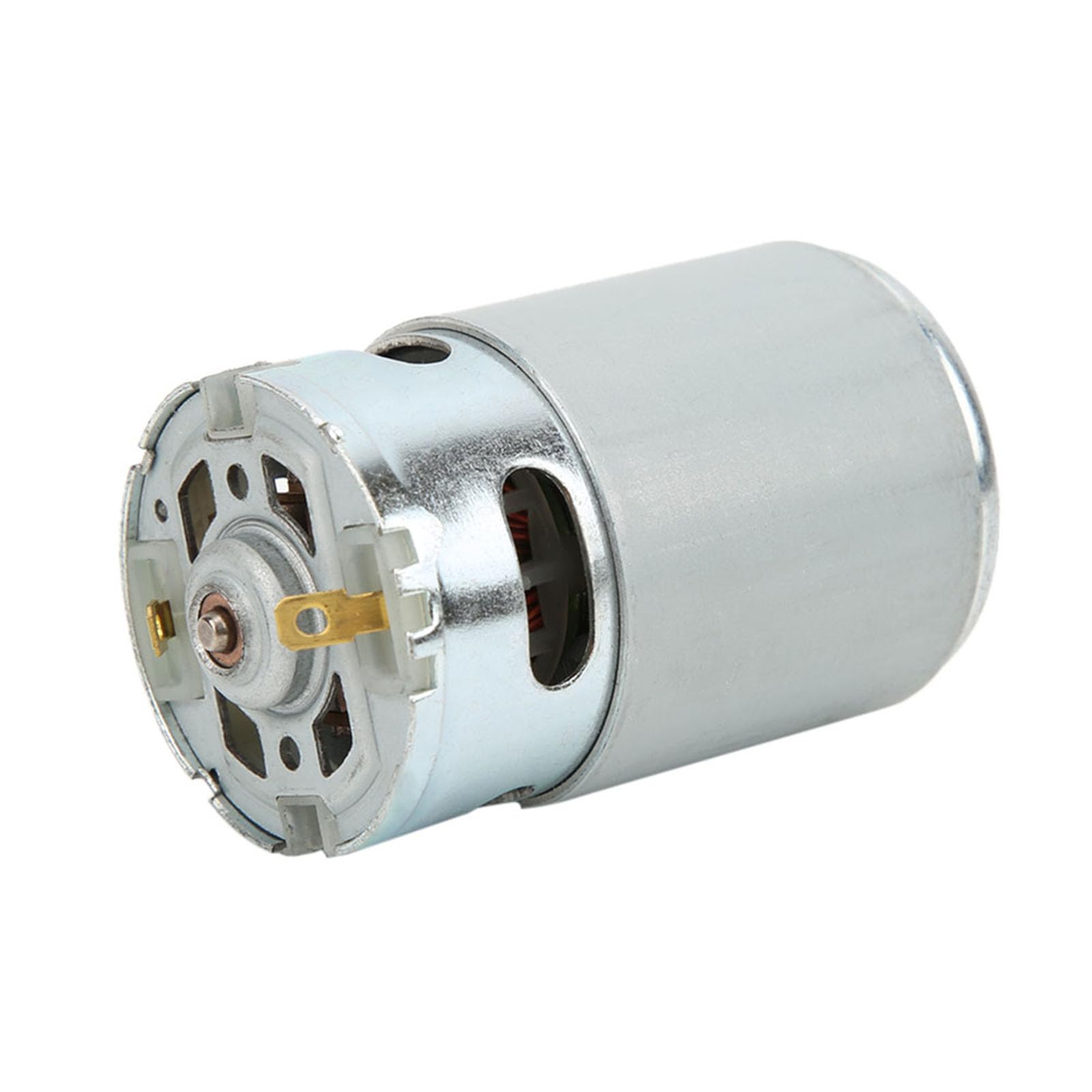

RS-550 12V DC Micro Motor - High-Speed 22000 RPM Electric Motor for Various Hand Drills

• 1. Multipurpose Use: Ideal for driving motor loads without specific control requirements, this is for audio-video devices, office automation equipment, computer peripherals, and industrial automation devices.
• 2. Key Component for Devices: Micro motor is a vital part of many devices - VCRs, disk drives, photocopiers, CNC machines, robots and more.
• 3. for Handheld Tools: Highly recommended for use in handheld devices like hand drills, electric screwdrivers, and various models.
• 4. Engineered: The RS-550 motor features machining, magnetic material treatment, and insulation treatment for stable and performance.
• 5. High-Speed Motor: This 12V DC micro motor offers a high speed of 22000 RPM, providing efficient power for various applications.

Specifications: Model: RS-550 Rated power: 100 (W) Product type: brush dc motor Rated voltage: 12 (V) Rated current: 4.5 (A) Rated speed: 22000 (RPM) Rated torque: 0.02 (NM) Appearance size: 57 * 35.8 mm/2.24 *1.41inch Product certification:CE Efficiency: 67 (%) Package Included: 1 x RS-550 motor Note: Power supply requirements: Voltage range. Strictly use 12V-DC. Overvoltage (such as 24V) may burn out the motor, while undervoltage (such as 9V) may result in insufficient torque or failure to start. Current supply: Ensure that the power supply can provide ≥ rated current (RS-550 usually requires 2 to 5A, and the current at the start-up moment is even higher). It is recommended to use a regulated power supply or battery to avoid motor blockage and overheating due to insufficient current. The polarity is correct. When wiring, make sure the positive and negative poles are correct. Reverse connection may damage the reducer (for some gear structures with unidirectional transmission).
