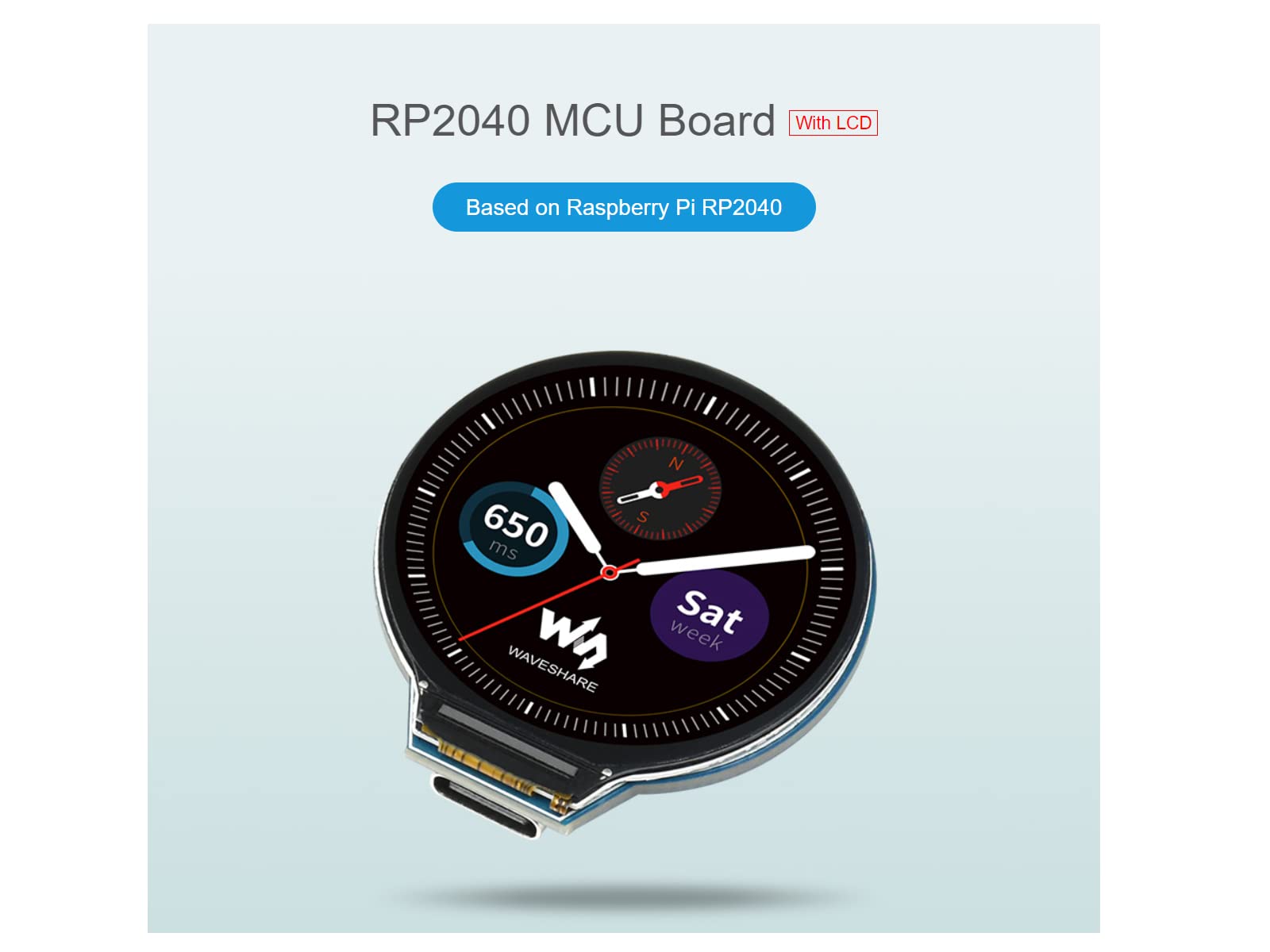

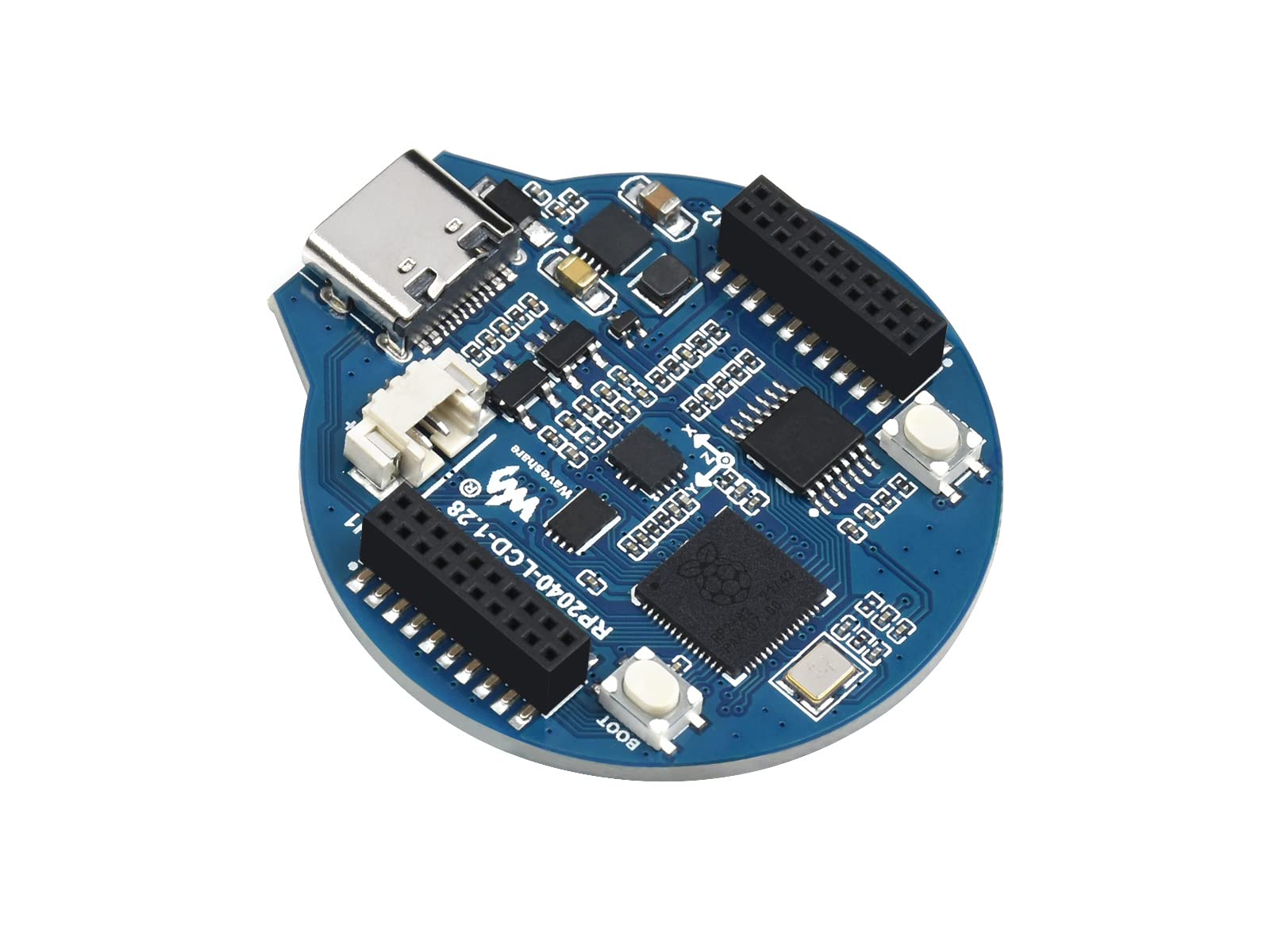

RP2040 MCU Board with 1.28 Inch Round LCD Display Module 240 x 240 Resolution 65K RGB Colours IPS Screen Based on Raspberry Pi RP2040, Accelerometer and Gyroscope Sensor,USB Type-C Connector

• RP2040 MCU Board With LCD.Based on Raspberry Pi RP2040
• Onboard 1.28inch 240×240 pixels 65K colorful IPS LCD display for clear color pictures
• C/C++, MicroPython Support.Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
• Dual-Core Arm Processor.Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz

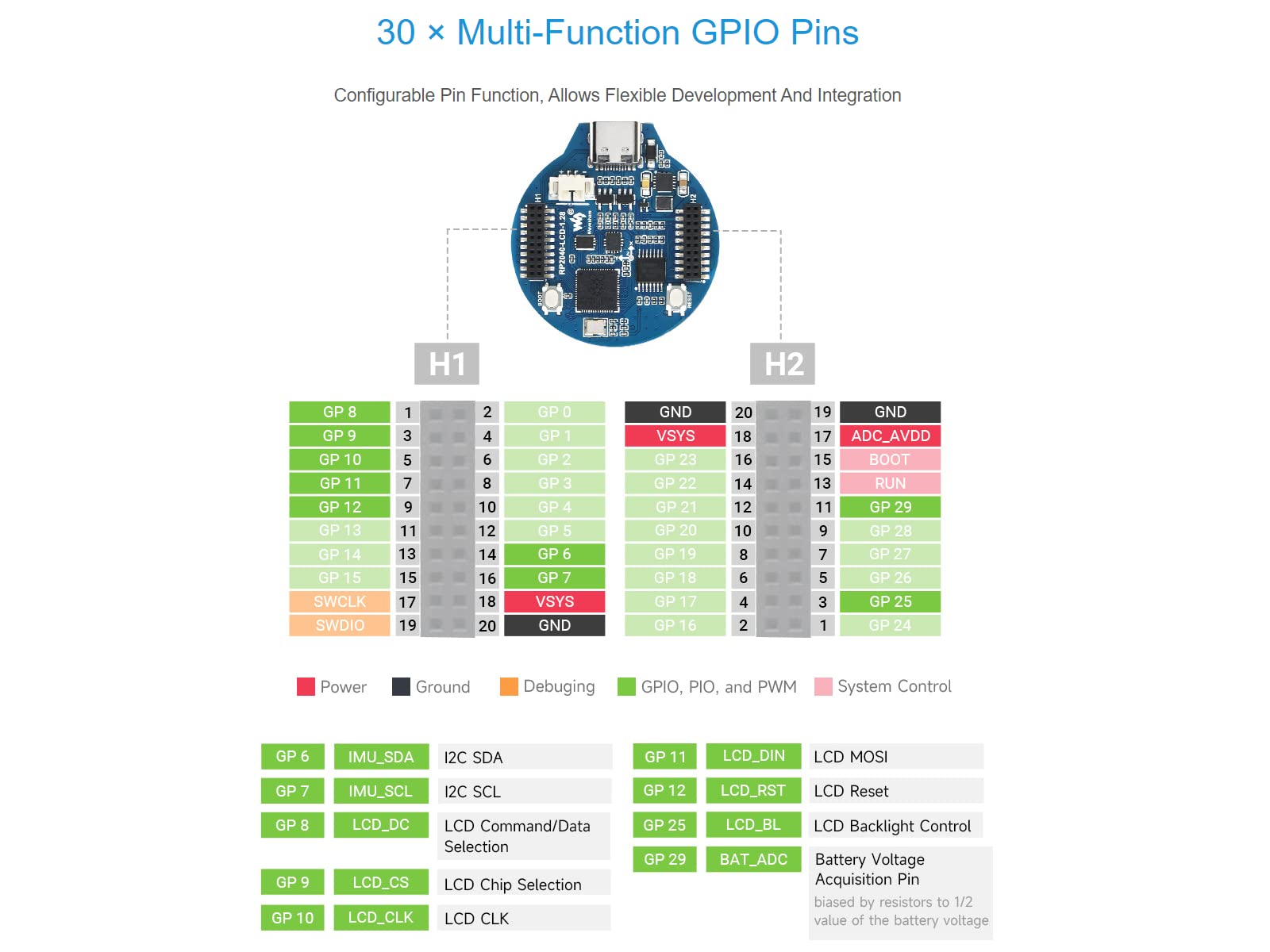

• 30 × Multi-Function GPIO Pins.Configurable Pin Function, Allows Flexible Development And Integration

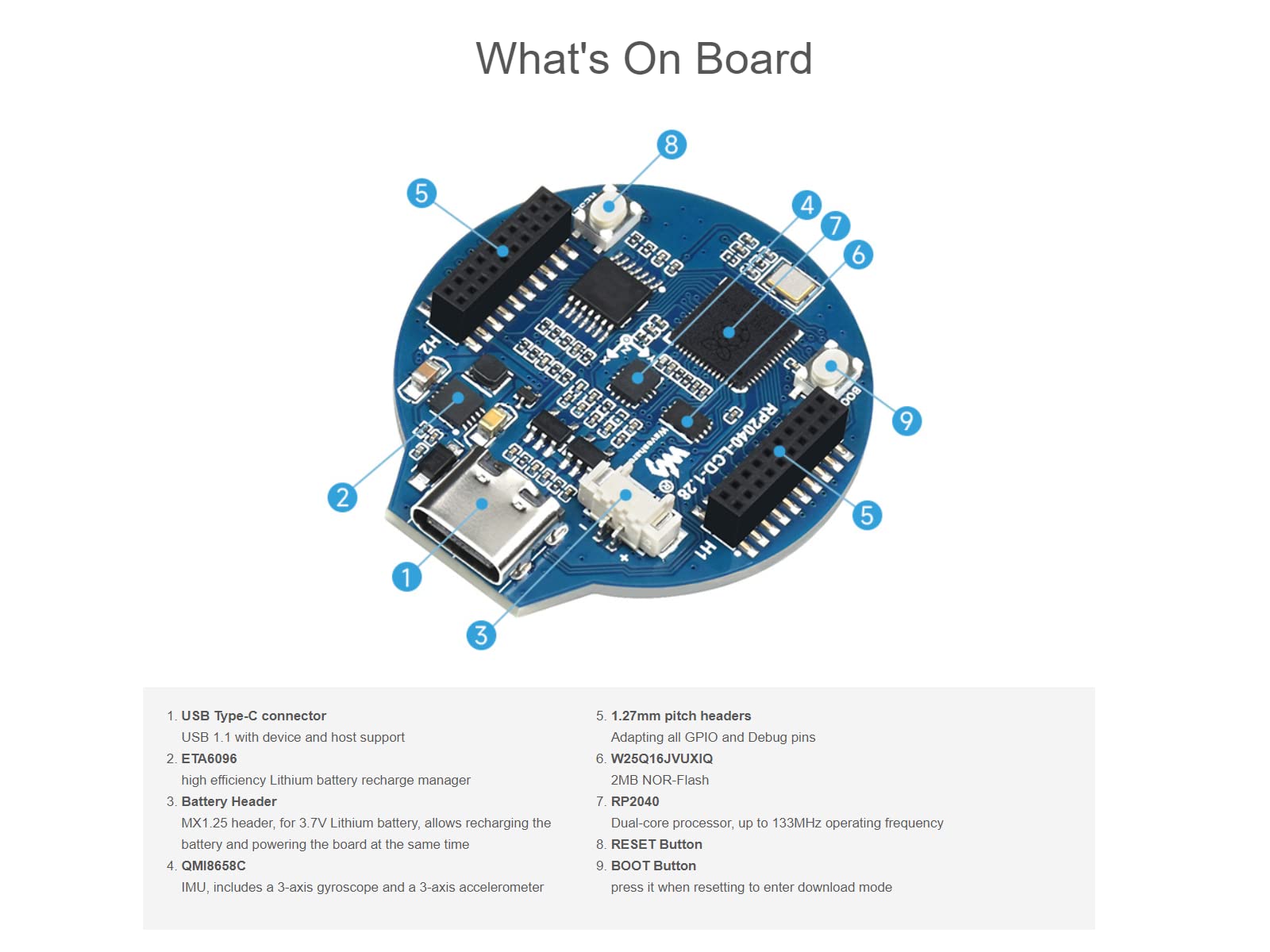

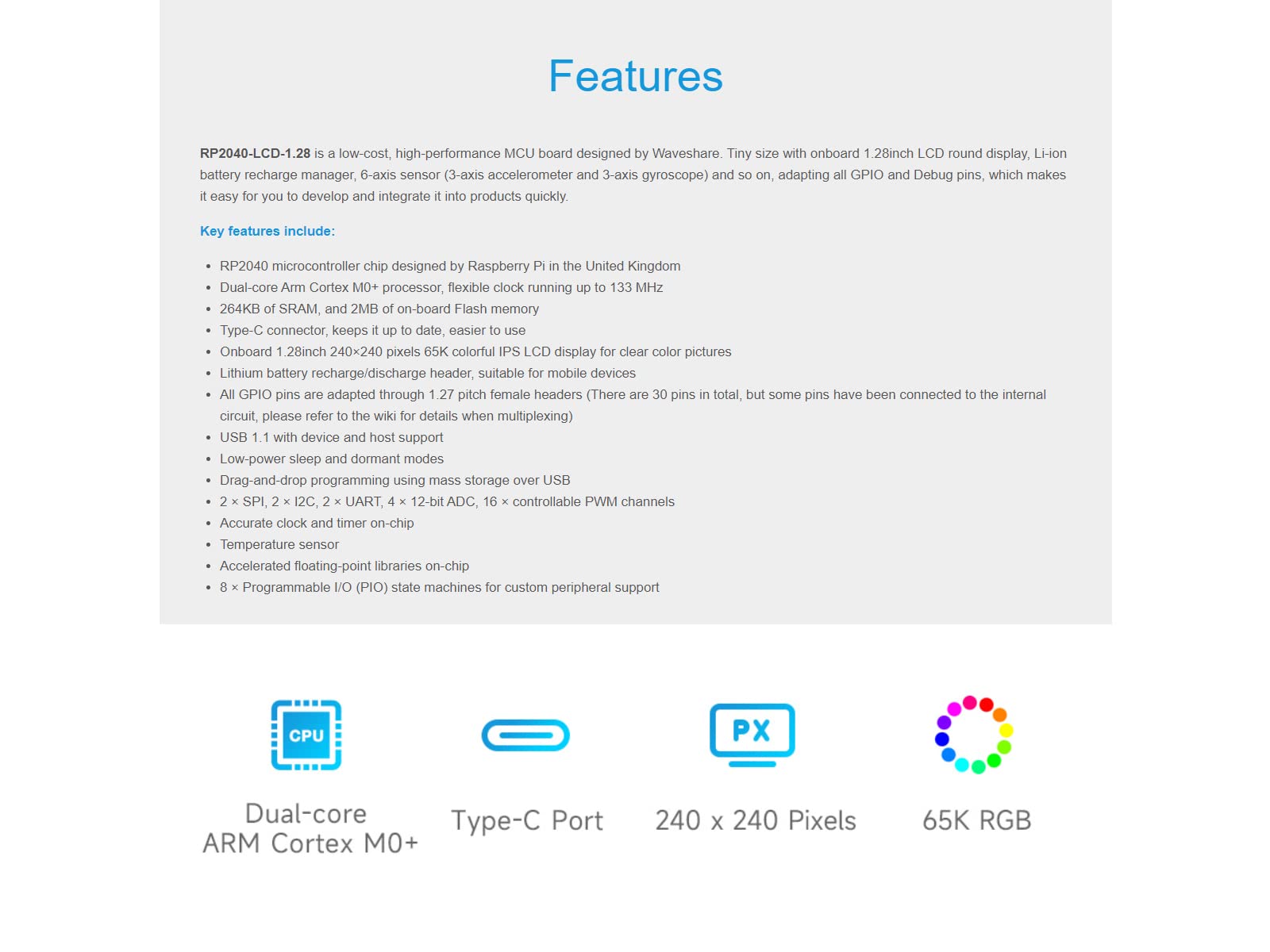

Overview RP2040-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare. Although it is tiny, it incorporates a 1.28inch LCD round display, Li-ion battery charger, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, adapting all GPIO and Debug headers, which makes it easy for you to develop and integrate it into products quickly. Feature RP2040 MCU chip designed by Raspberry Pi in the United Kingdom Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz 264KB of SRAM, and 2MB of onboard Flash memory Type-C connector, keeps it up to date, easier to use Onboard 1.28-inch 240 x 240 resolution, 65K RGB IPS LCD display for clear color pictures Lithium battery recharge/discharge header, suitable for mobile devices All GPIOs are adapted through 1.27 pitch female headers (There are 30 pins in total, but some pins have been connected to the internal circuit, you need to pay attention when multiplexing, please refer to the wiki for details) USB 1.1 with device and host support Low-power sleep and dormant modes Drag-and-drop programming using mass storage over USB 2 x SPI, 2 x I2C, 2 x UART, 2 x UART, 4 x 12-bit ADC, 16 × controllable PWM channels Accurate clock and timer on-chip Temperature sensor Accelerated floating-point libraries on-chip 8 x Programmable I/O (PIO) state machines for custom peripheral support Development Resources https://www.waveshare.com/wiki/RP2040-LCD-1.28?Amazon Package Content RP2040-LCD-1.28 x1 Note Technical Support is provided, please contact with us first if you have any problem .
