RP2040-ETH Mini Development Board RP2040 Ethernet Port Module Based on RP2040 Dual Core Processor，High-Performance Pico-Like MCU Board,USB-C Connector，RJ45 Ethernet Port

• 【RP2040-ETH】Based On RP2040, Onboard ETH Port
• 【Tiny Size And Easy Integration】Castellated Holes With Immersion Gold Design, Highly Integrated Packaging.Supports Multiple Ways To Be Embedded Into Various Product Applications

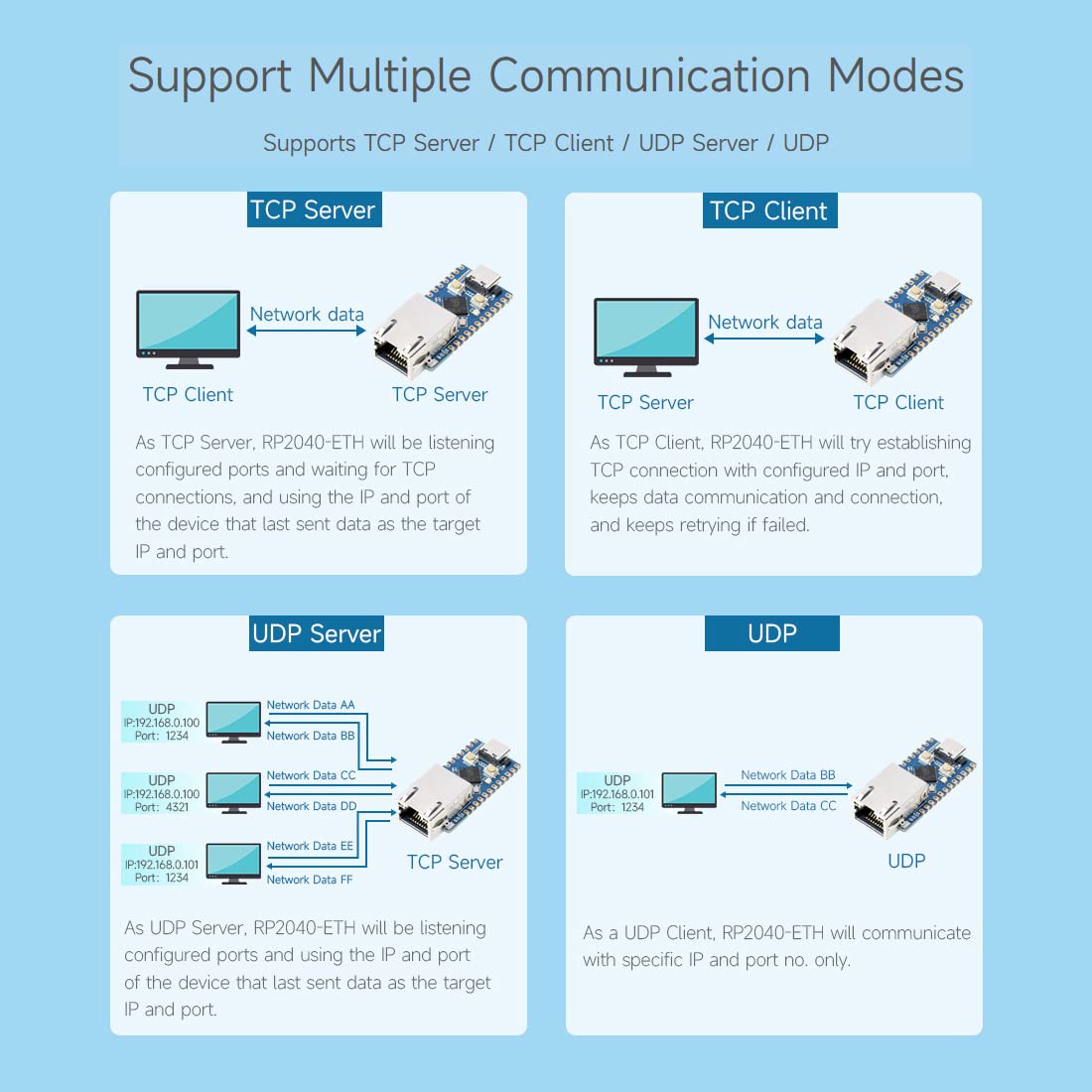

• 【Support Multiple Communication Modes】Supports TCP Server / TCP Client / UDP Server / UDP

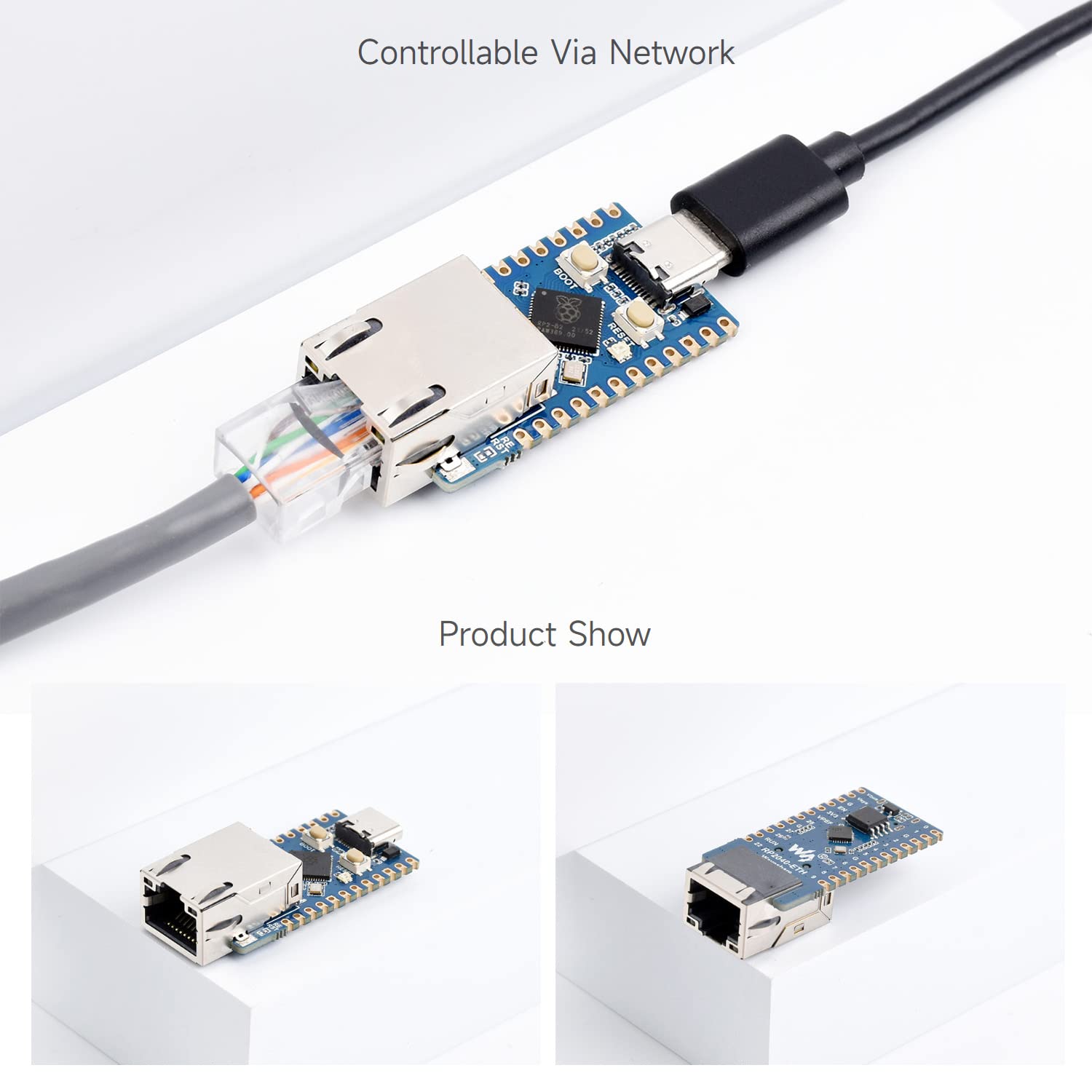

• Controllable Via Network
• 【Support C/C++, MicroPython, Arduino】Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

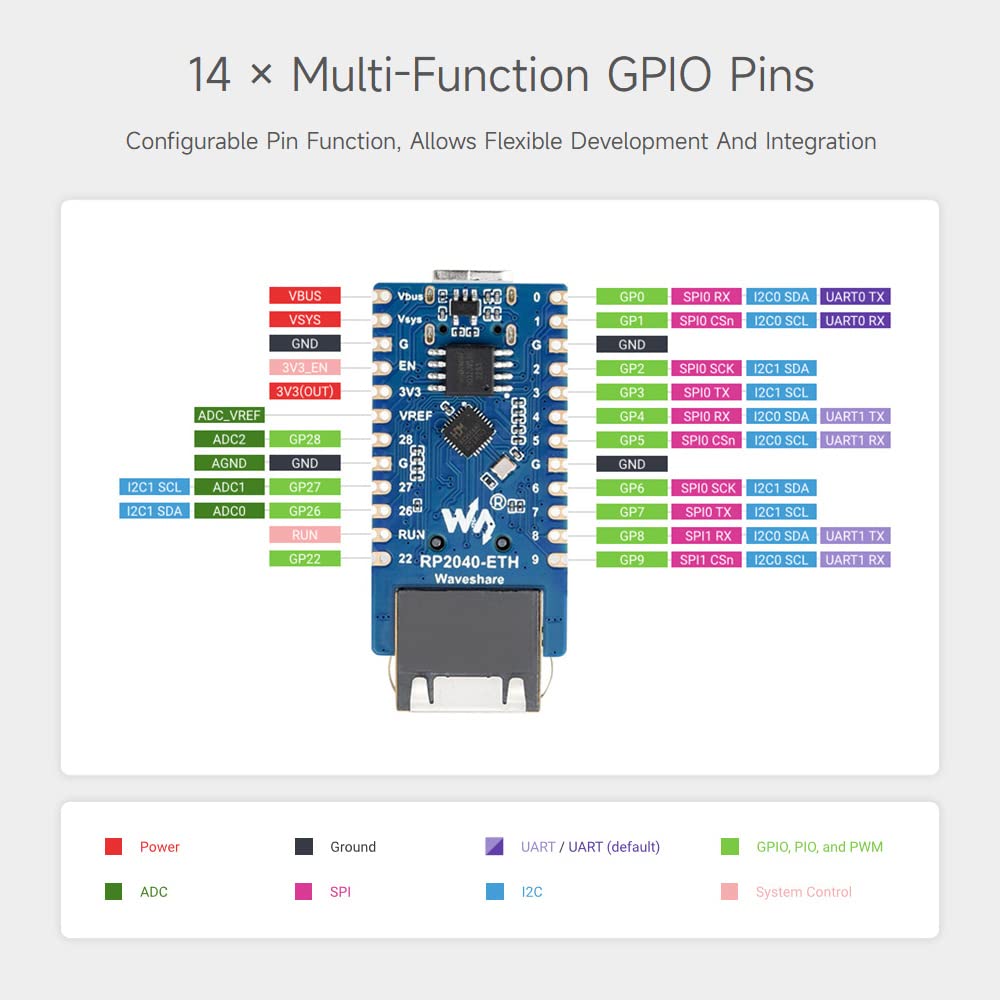

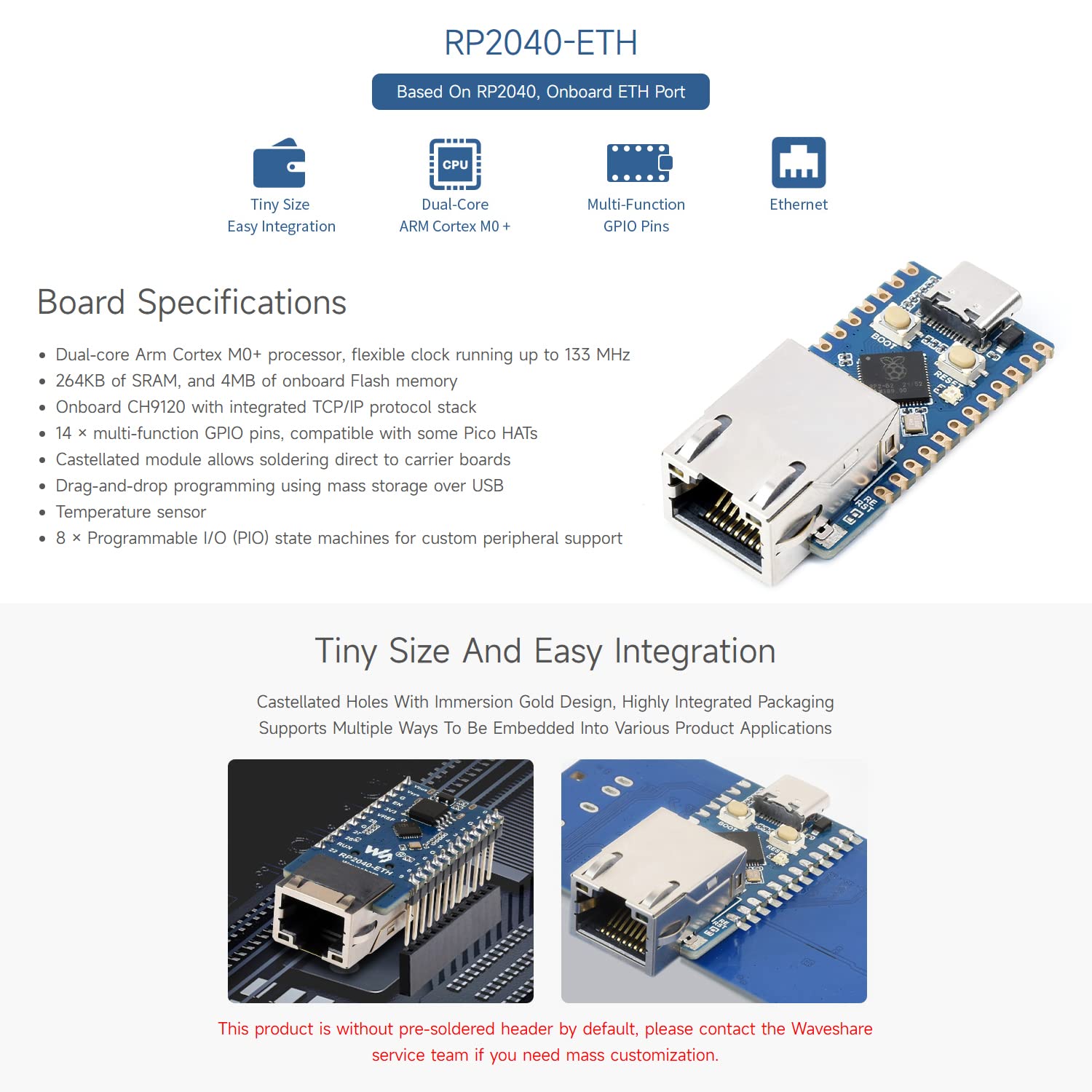

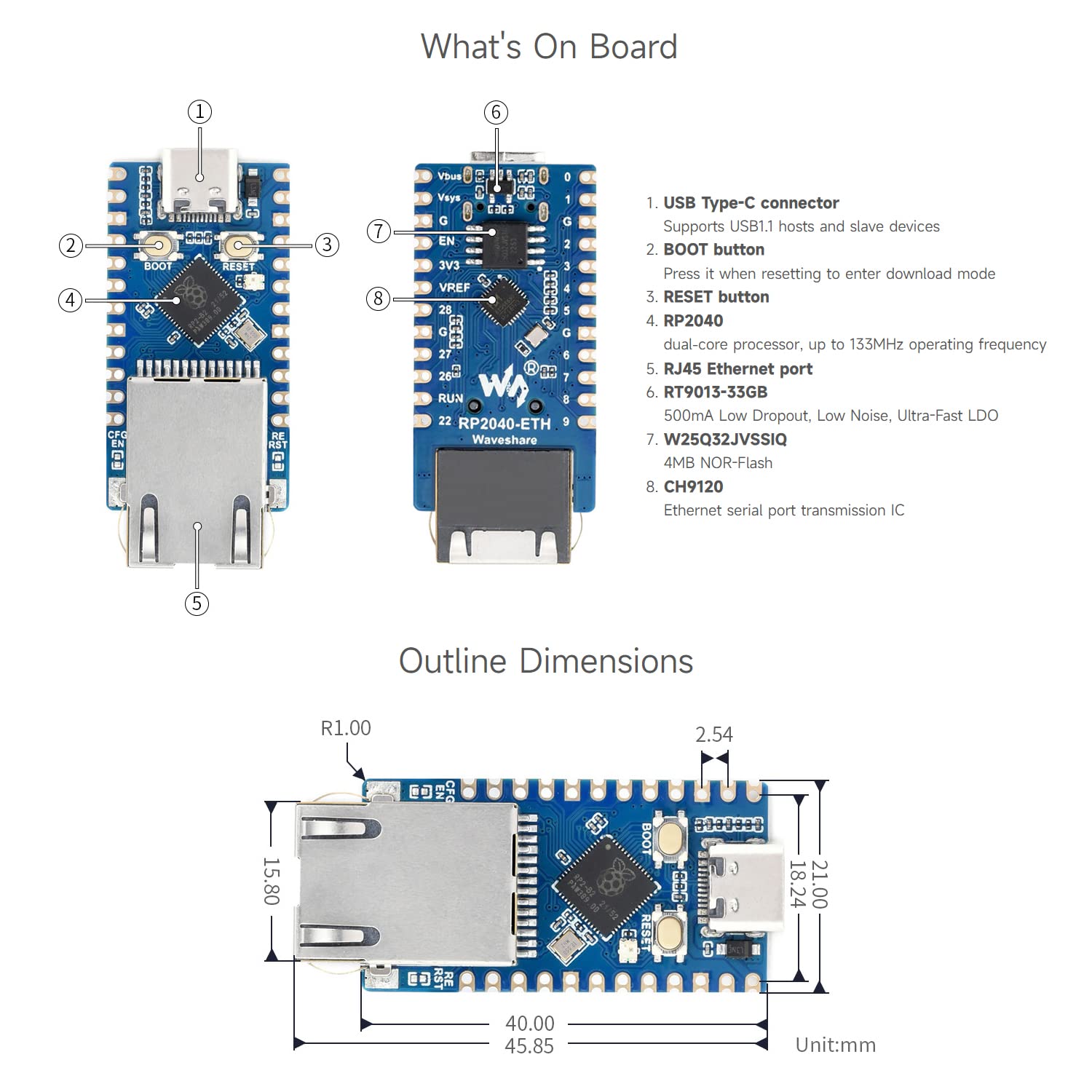

Waveshare RP2040-ETH Mini Development Board, RP2040 Ethernet Port Module, Raspberry Pi Microcontroller Development Board, Based On Official RP2040 Dual Core Processor Board Specifications Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz 264KB of SRAM, and 4MB of onboard Flash memory Onboard CH9120 with integrated TCP/IP protocol stack 14 × multi-function GPIO pins, compatible with some Pico HATs Castellated module allows soldering direct to carrier boards Drag-and-drop programming using mass storage over USB Temperature sensor 8 × Programmable I/O (PIO) state machines for custom peripheral support What's On Board 1.USB Type-C connector Supports USB1.1 hosts and slave devices 2.BOOT button Press it when resetting to enter download mode 3.RESET button 4.RP2040 dual-core processor, up to 133MHz operating frequency 5.RJ45 Ethernet port 6.RT9013-33GB 500mA Low Dropout, Low Noise, Ultra-Fast LDO 7.W25Q32JVSSIQ 4MB NOR-Flash 8.CH9120 Ethernet serial port transmission IC Development Resources https://www.waveshare.com/wiki/RP2040-ETH?Amazon Package Content RP2040-ETH x1 Note 1.This product is without pre-soldered header by default, please contact us if you need mass customization. 2.Techinical Support is provided, please contact us if you have any problem .
