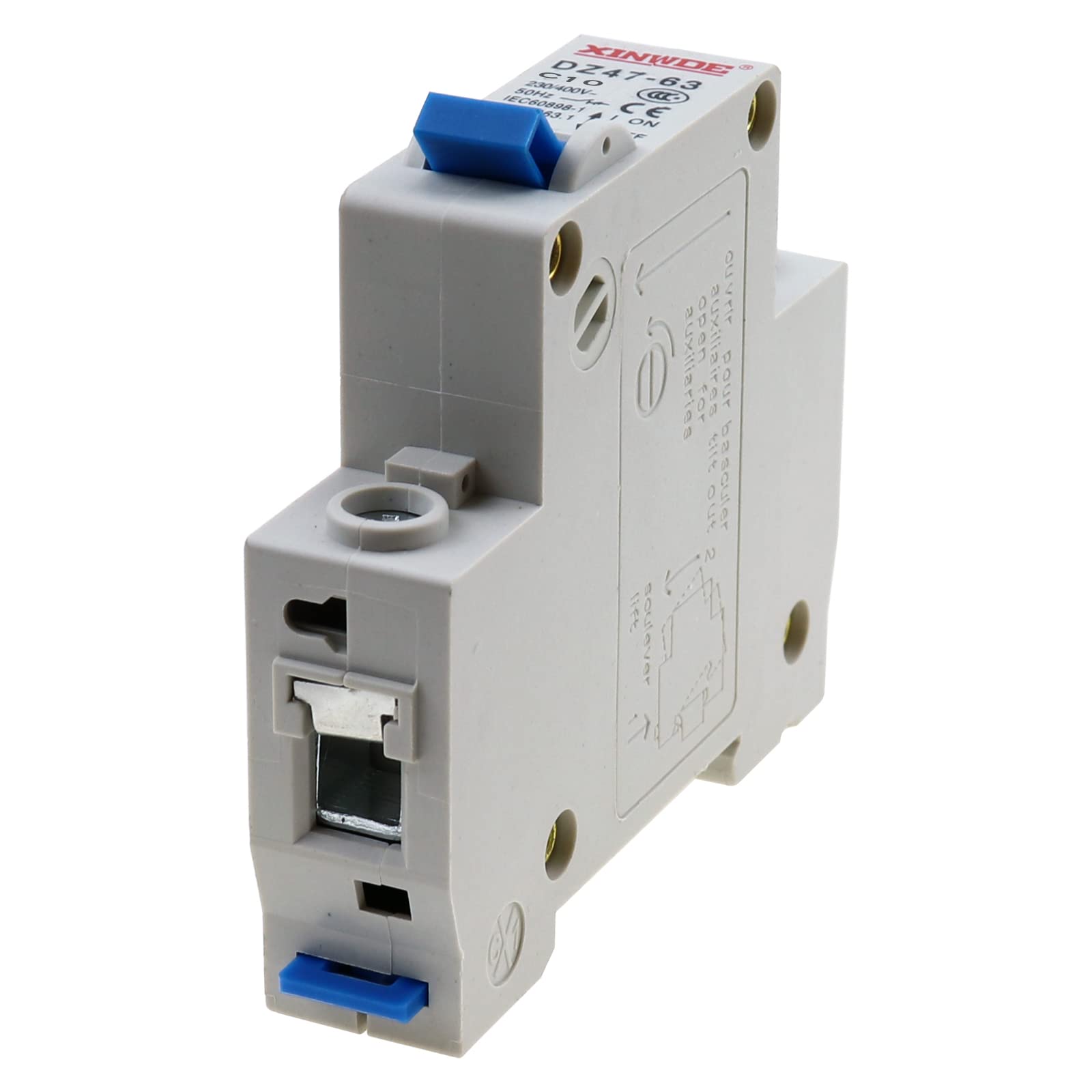

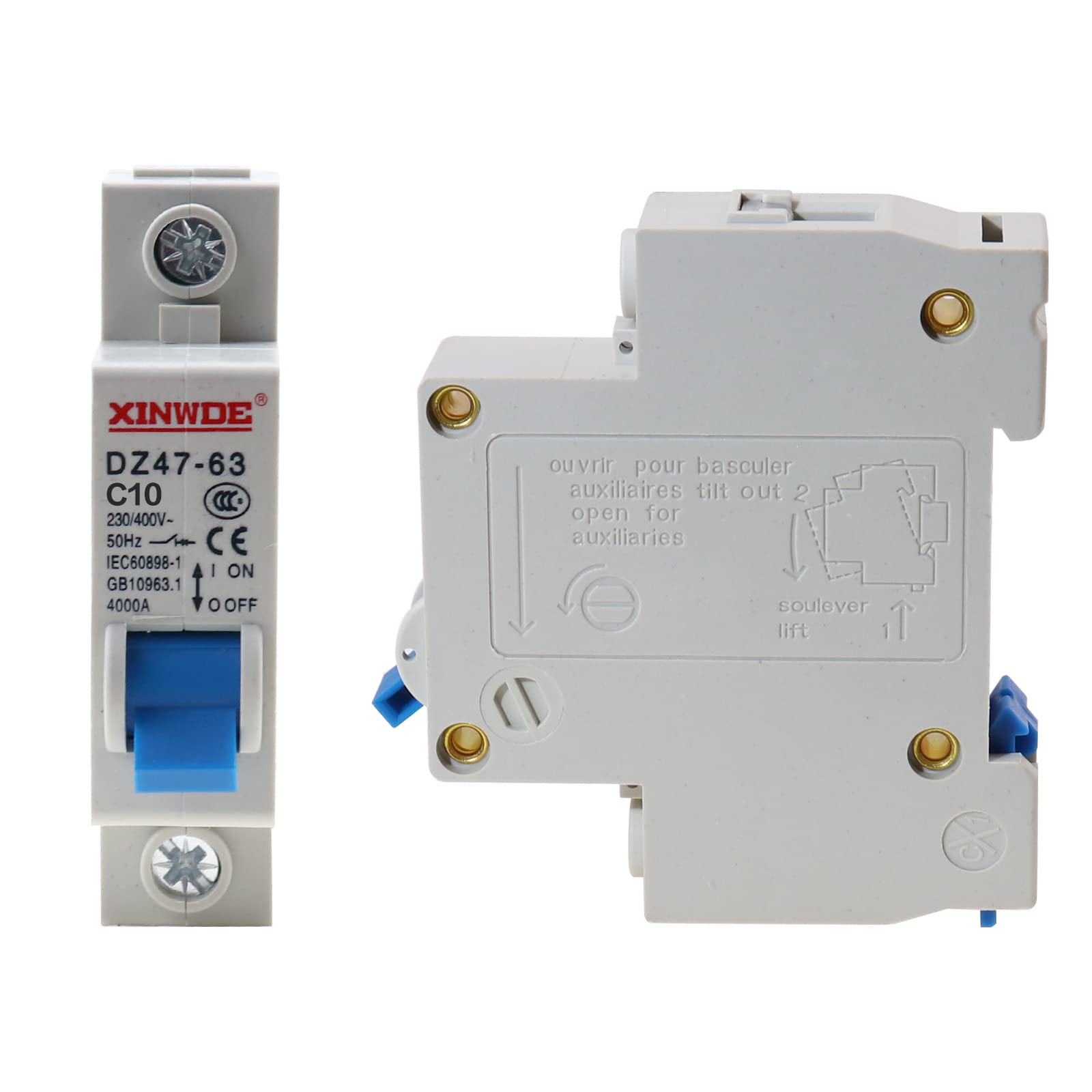

RKURCK 1 Pole 230/400V Low-voltage Miniature Circuit Breaker 10A Din Rail Mount DZ47-63 C10

• Rated Current: 10A ; Model: DZ47-63 C10 ; Number of Pole:1,For AC 50 Hz
• Rated Circuit Breaking Capacity: 4000A; Rated Voltage: 230/400V, isolation in accordance with industrial standards: IEC EC60898-1/GB10963.1
• Modular sturcture, can be easily installed on the DIN standard guide rail in distribution box, bistable locking clip,Rail Mounting : 35mm DIN Rail
• Fast trip function, Ensure reliable operation of the load and prolong the life of circuit breaker. It can also work as on-off switch for load circuits.
• Be used for distribution and protection the facilities from damages caused by overload and short-circuit, the illumination of office buildings and residential buildings.

Specifications: Rated Current: 10A Rated Voltage: 230/400V Rated Circuit Breaking Capacity: 4000A Number of Pole: 1P Switch Type: ON+OFF, Latching Mechanical Life: 20,000 Times Electrical Life: 6,000 Times Rail Mounting: 35mm DIN Rail Material: Plastic, Electric Components Overall Size: 79 x 18 x 72mm PC flame retardant thermoset shell Suitable for isolation in accordance with industry standards: IEC EC 60898-1/GB10963.1 Package Content: 1x Miniature Circuit Breaker 10A
