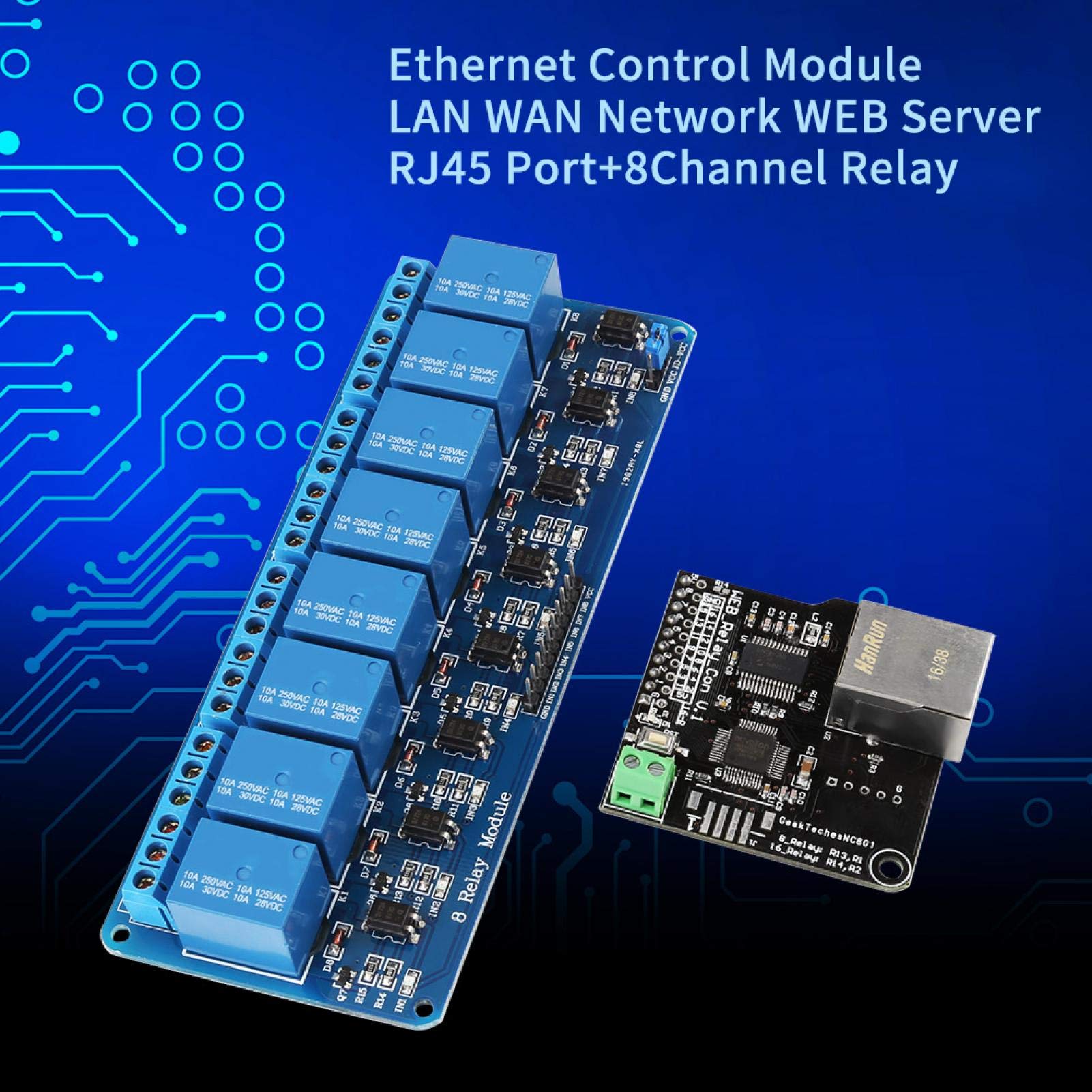

RJ45 Port Ethernet Control Module with 8-Channel Relay LAN WAN Network WEB Server Network Ethernet Relay Control Controller Module Board

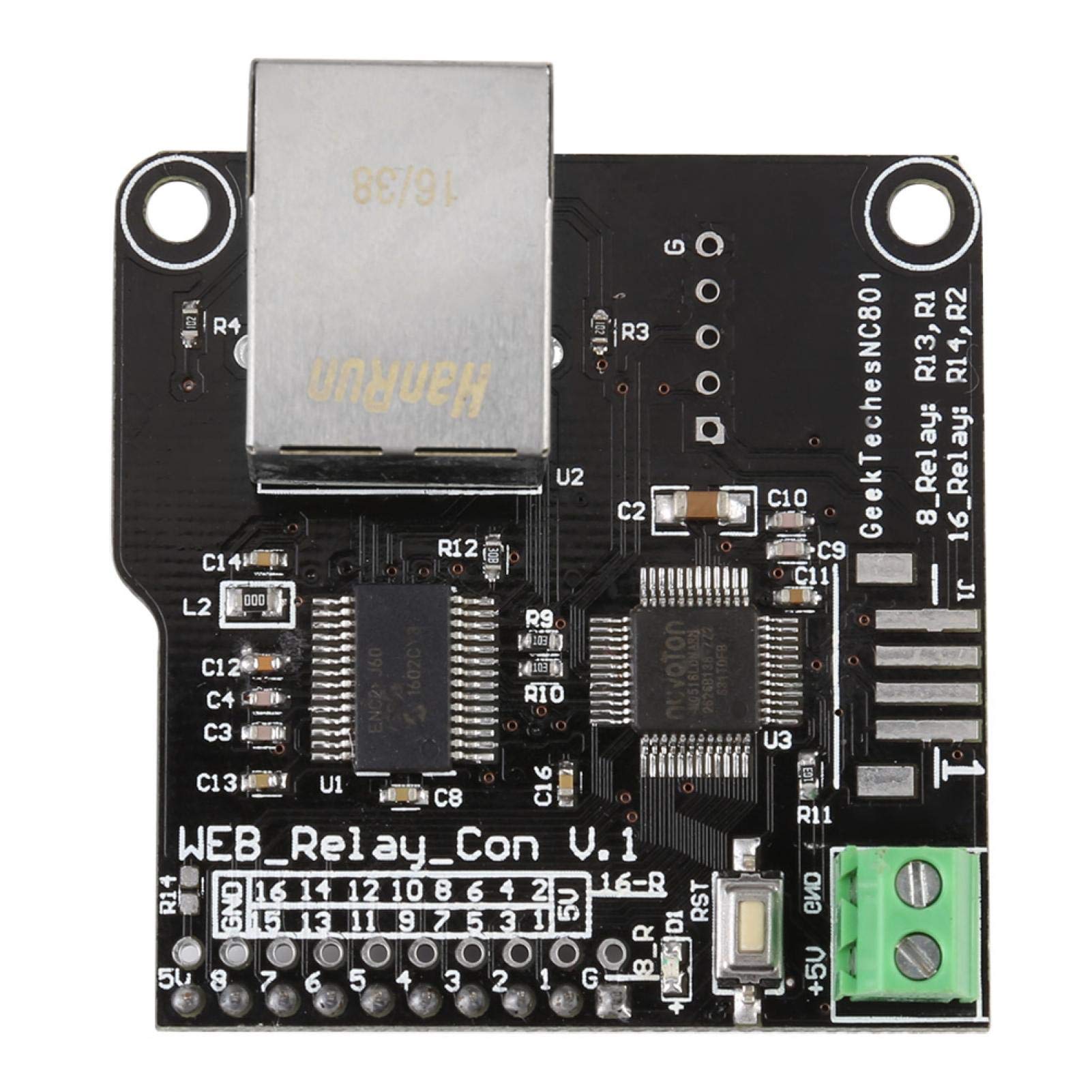

• RJ45 interface, via RJ45 telecommunications connection for network control.You can feel free to enjoy the remote controlling of your other devices with the Ethernet controller board.

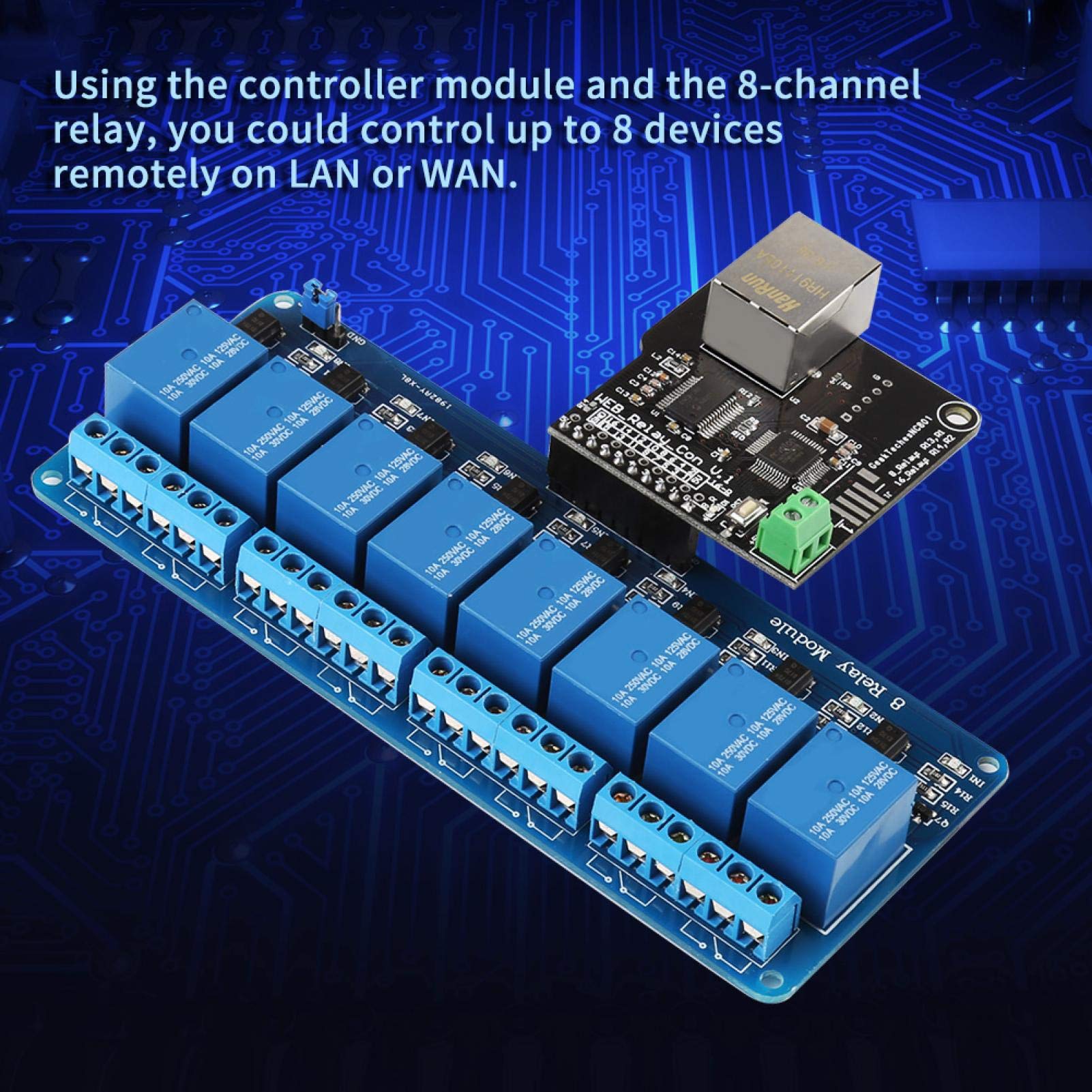

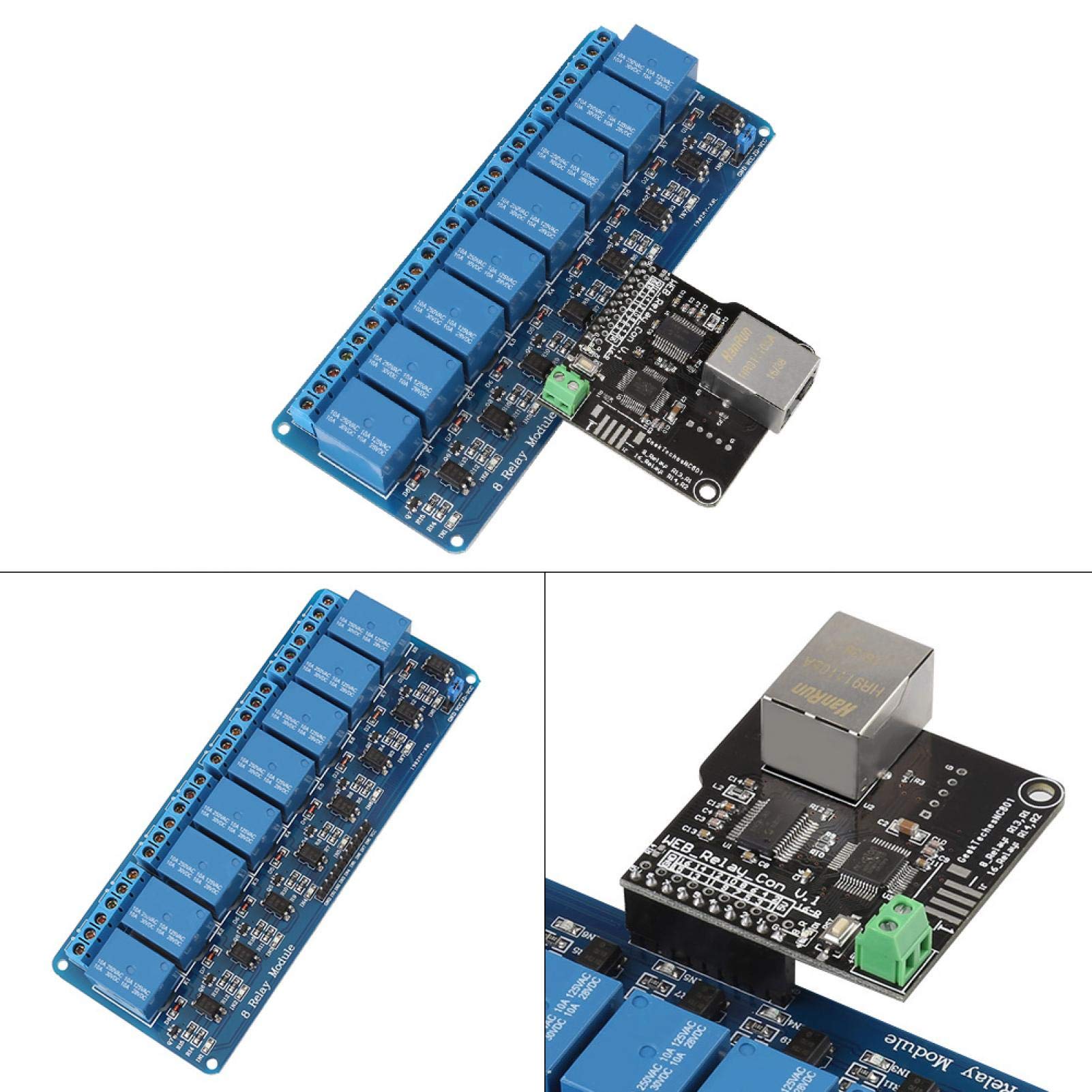

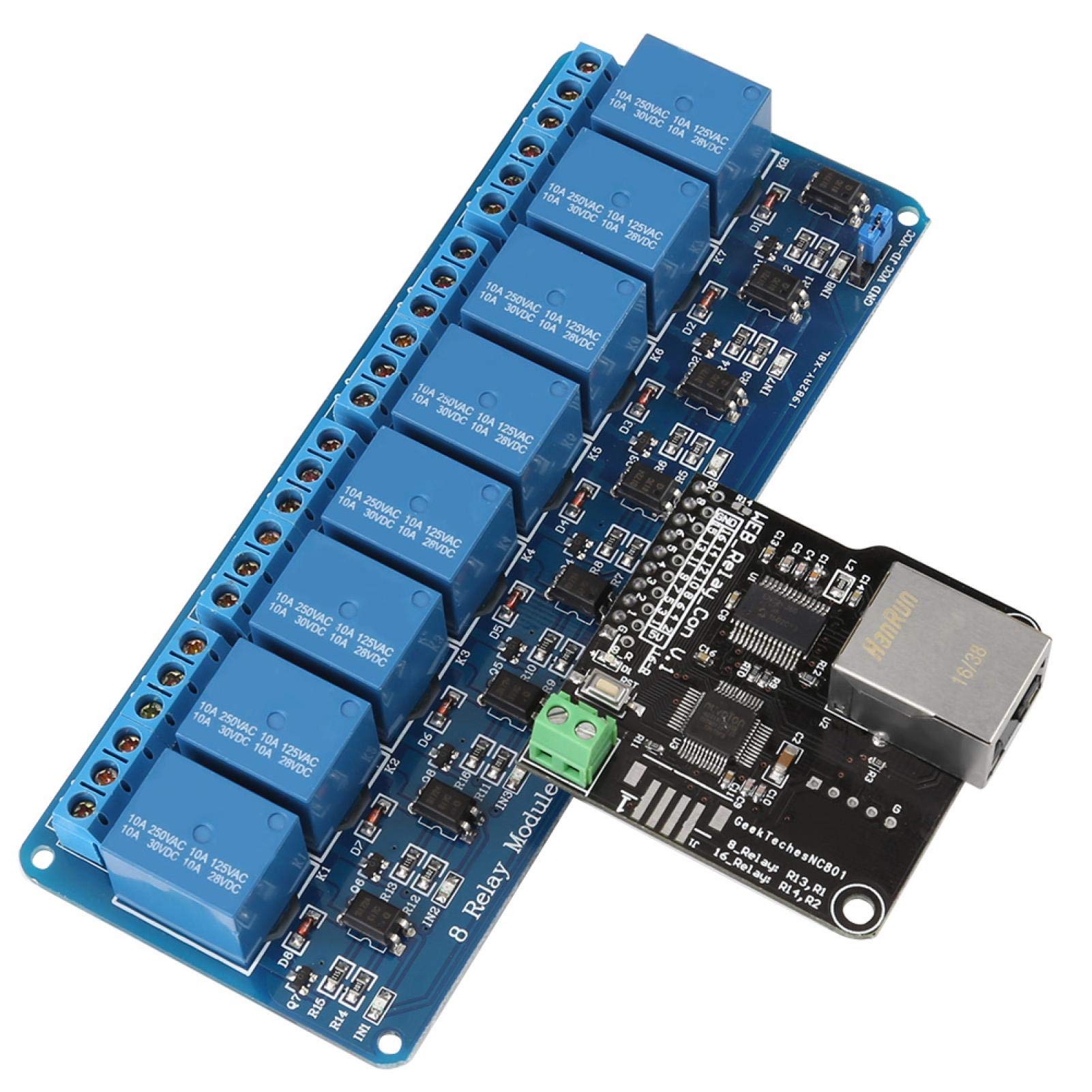

• This is an Ethernet Controller board which could be compatible with the 8-channel relay. Using the controller module and the 8-channel relay, you could control up to 8 devices remotely on LAN or WAN.
• Unique dual connect control, corresponding with above trait, local as server, accept client control when connect to remote server as client.

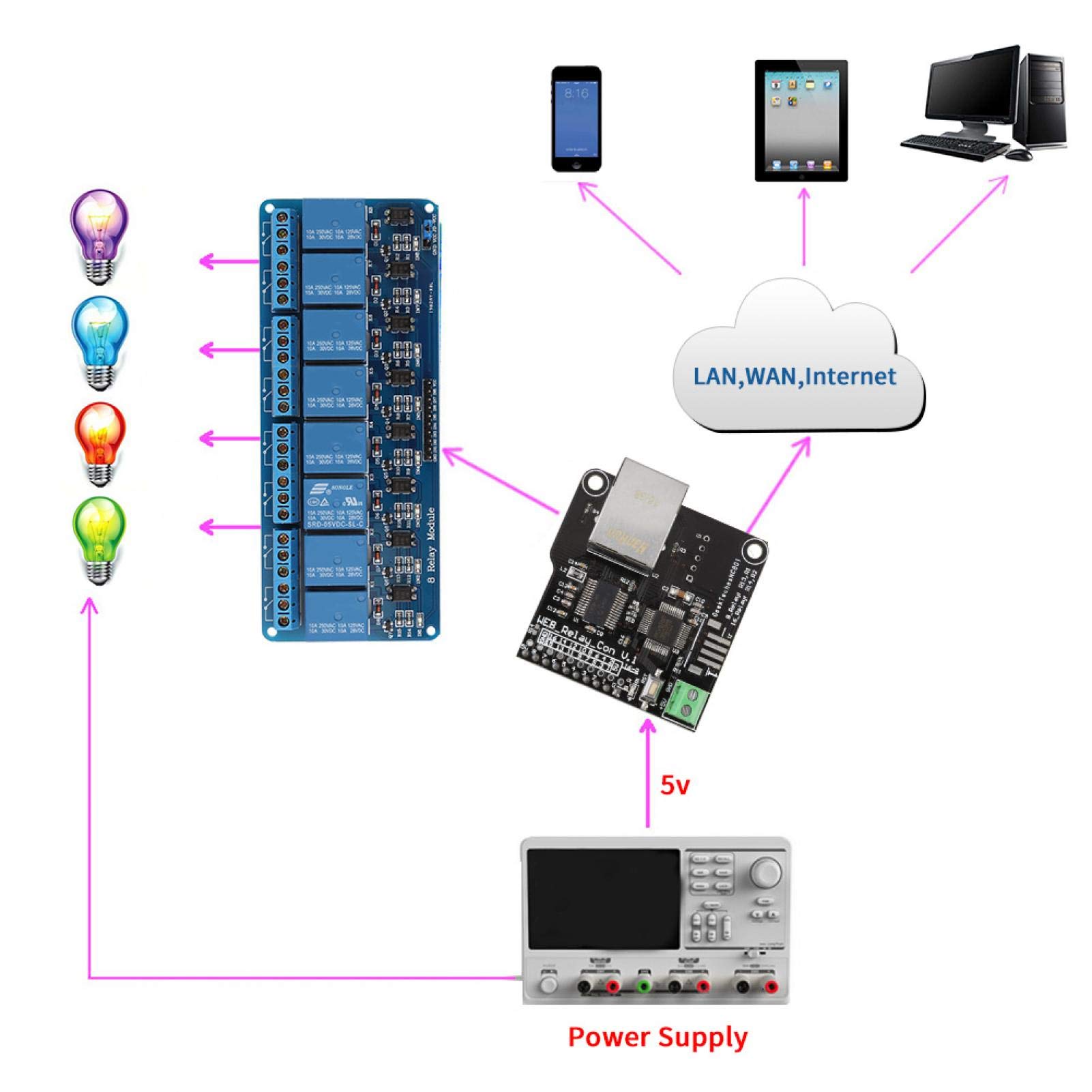

• The Ethernet controller board has integrated the web server, when you are at office, you just need to open the page on your computer, pad or smart phone, and then control your devices like lights, air-conditioning or refrigerator at your home.
• After-Sales Service:When you use our products, please contact us in time for any problems, we will solve within 24 hours for you.

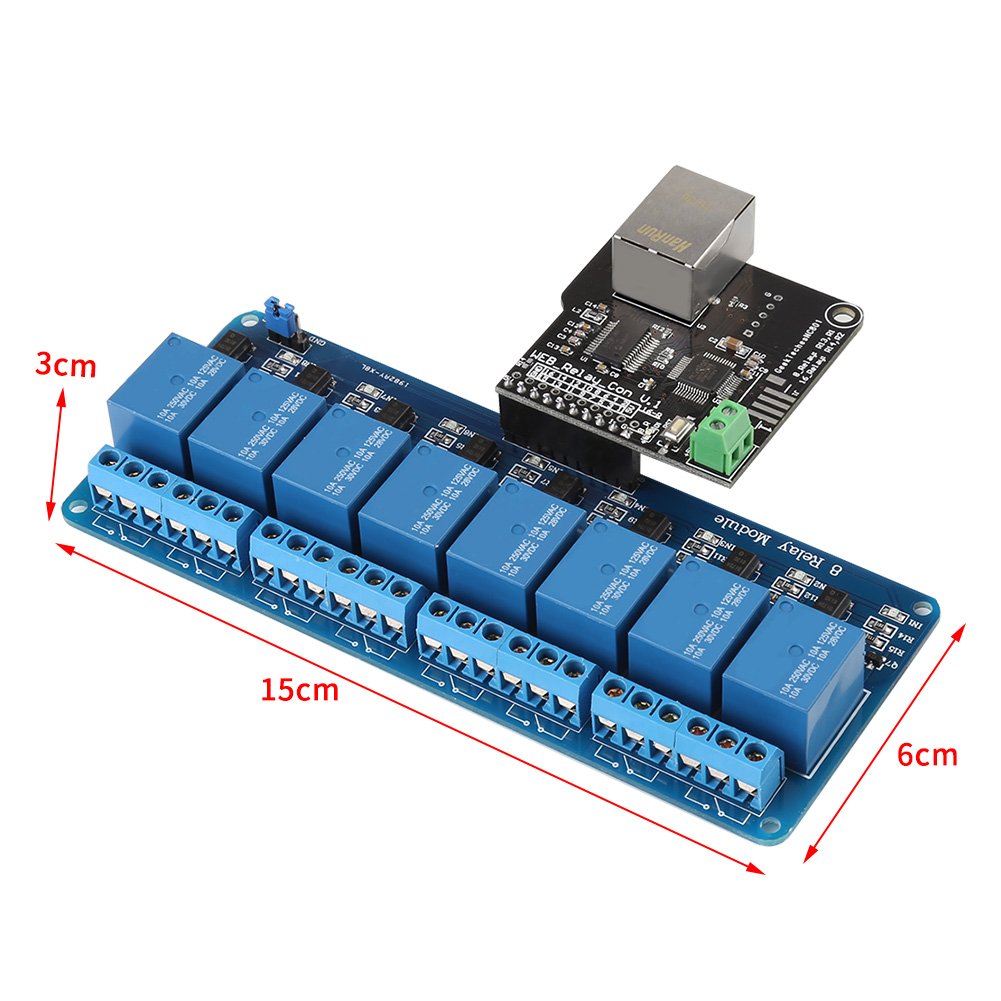

Specifications: Operating Voltage：5V DC Relay Size: 15*6*3cm/5.9*2.36*1.18" Default IP :192.168.1.4 prot:30000 http://192.168.1.4/30000 HTTP Comment: http://192.168.1.4/30000/00 : Relay-01 OFF http://192.168.1.4/30000/01 : Relay-01 ON http://192.168.1.4/30000/02 : Relay-02 OFF http://192.168.1.4/30000/03 : Relay-02 ON http://192.168.1.4/30000/04 : Relay-03 OFF http://192.168.1.4/30000/05 : Relay-03 ON ... http://192.168.1.4/30000/14 : Relay-8 OFF http://192.168.1.4/30000/15 : Relay-8 ON http://192.168.1.4/30000/41 : Enter http://192.168.1.4/30000/40 : Exit http://192.168.1.4/30000/42 : Next Page http://192.168.1.4/30000/43 : Next Page Package Includes: 1 x Ethernet Control Module with 8-Channel Relay Note: The hardware address(HWaddress) cannot be changed. It is written in uniformly for M A C system.
