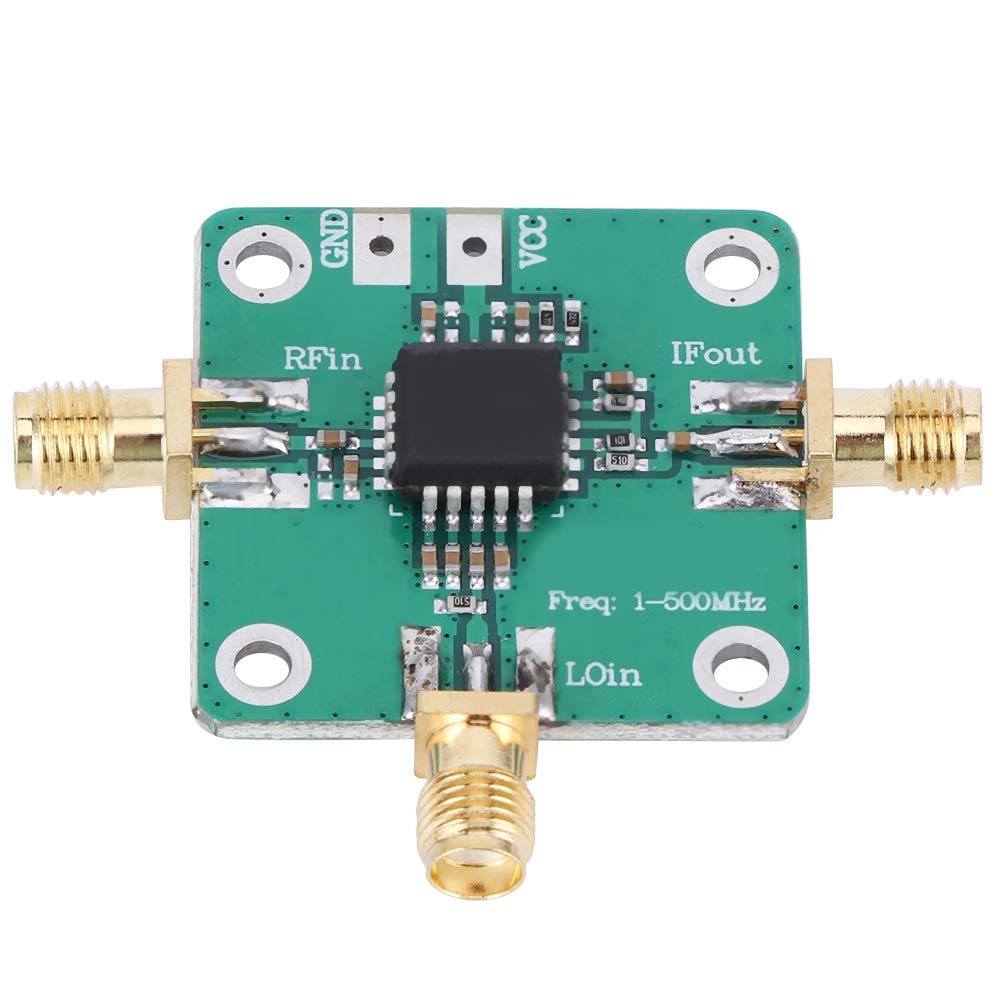

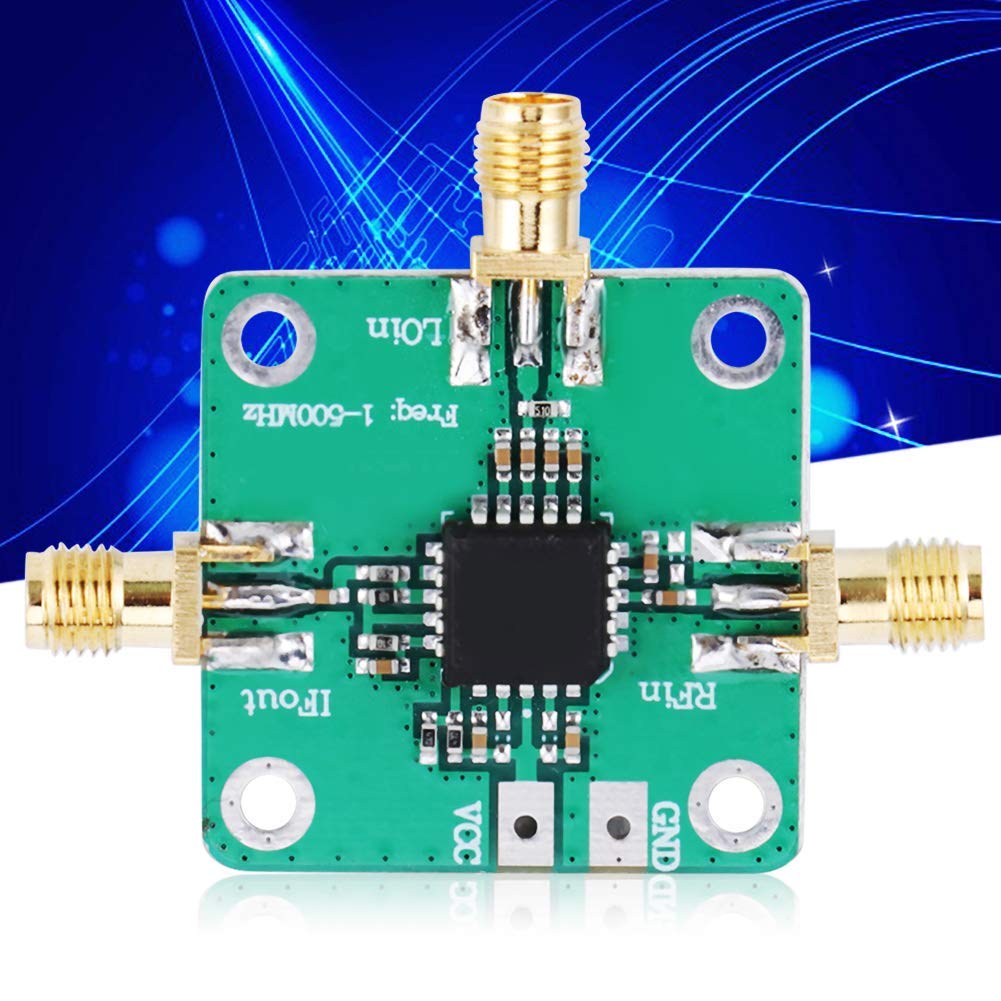

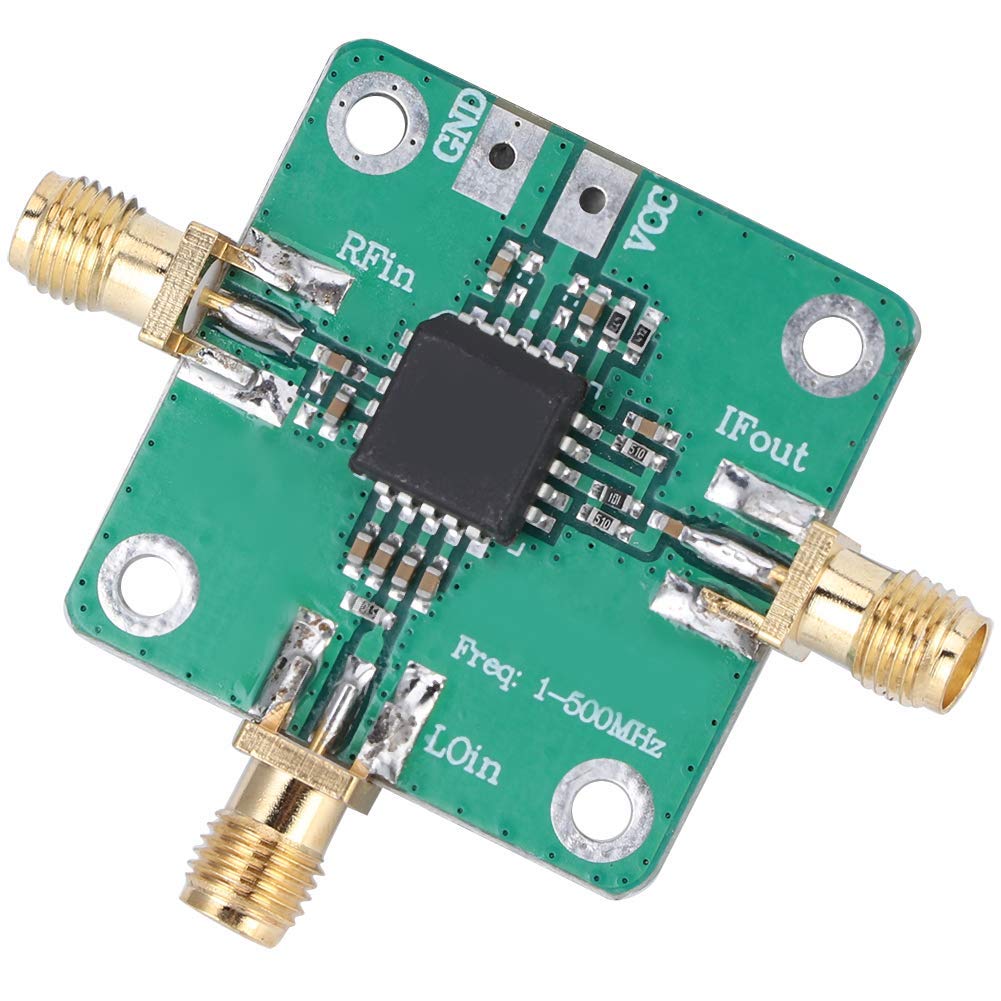

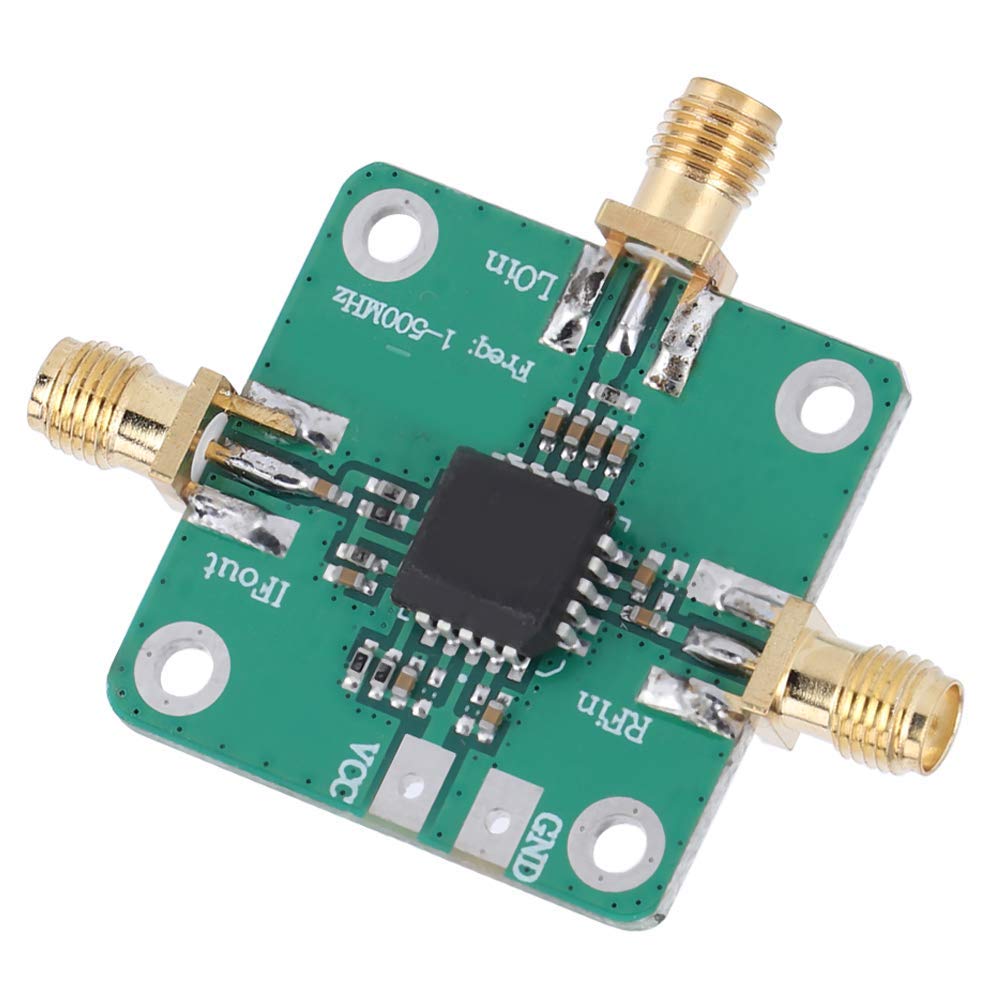

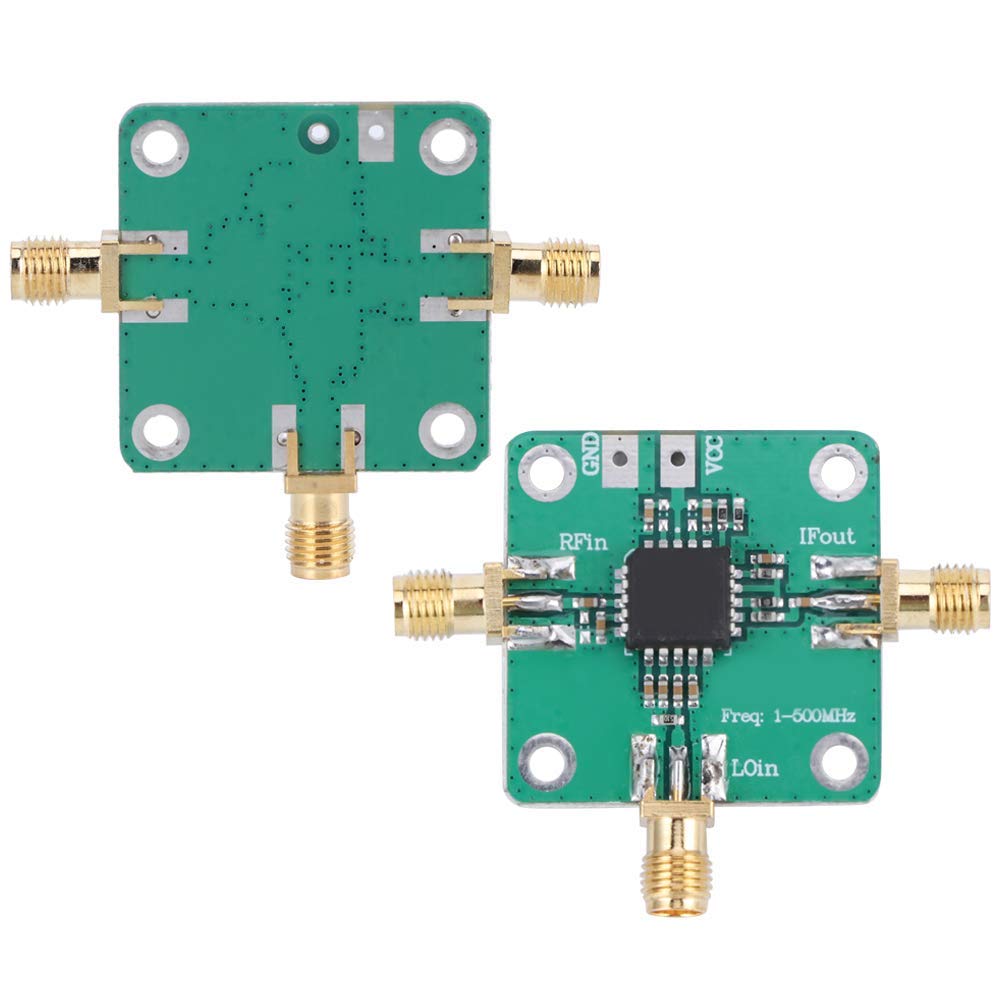

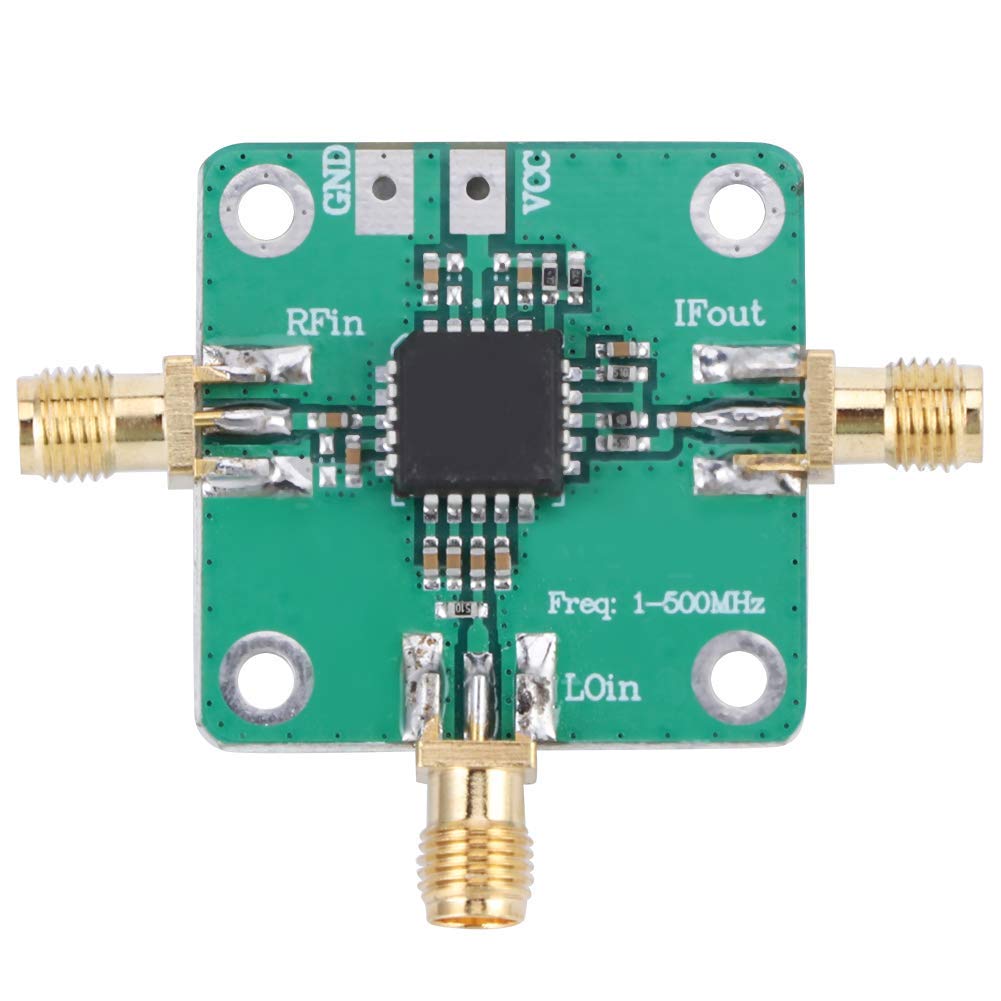

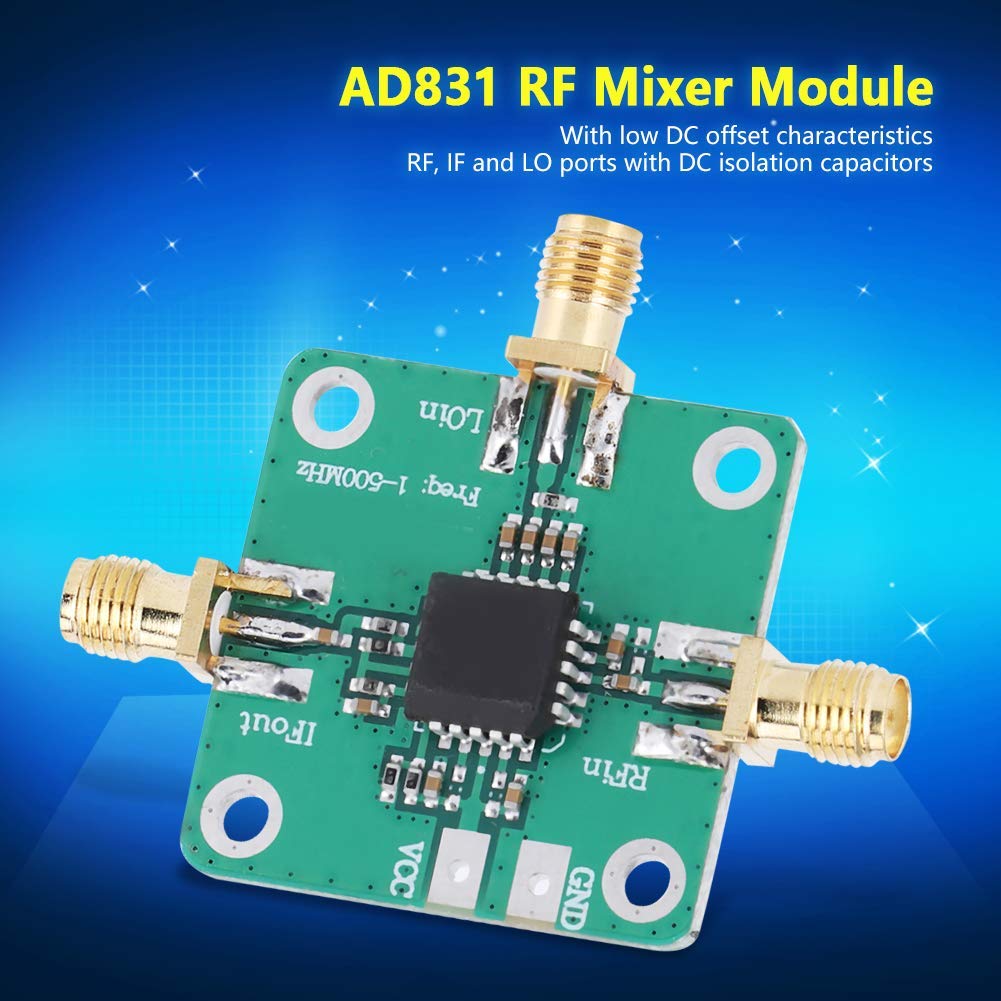

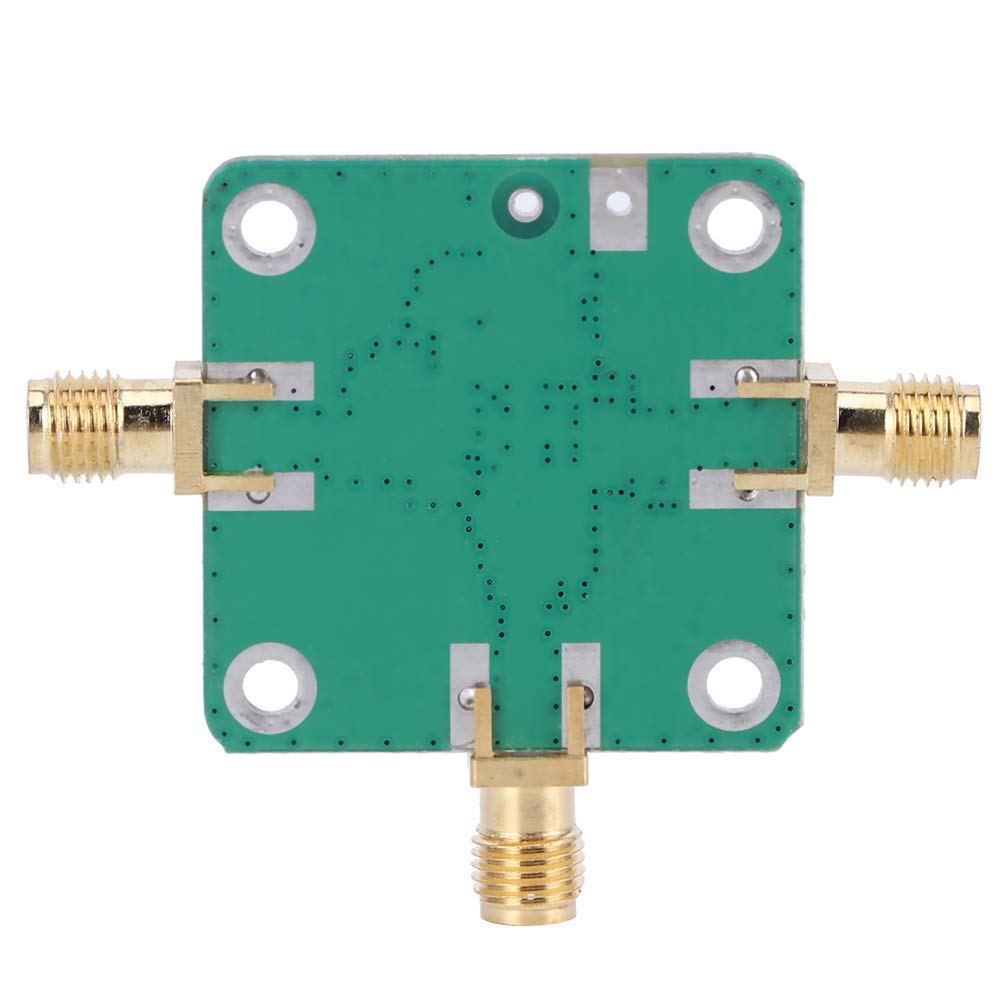

AD831 RF Mixer Module 0.1‑500MHz Drive Inverter Amplifier Board Converter for HF and VHF Receiver RF‑IF Frequency

• 【Easy to Use】There is no corresponding shielding and isolation problems, therefore, compared with the passive mixer to improve the performance of the system, reduce the system cost.
• 【Advantage】The amplifier has low DC offset characteristics, so it can be used in DC baseband frequency conversion and quadrature amplitude demodulation.
• 【Feature】The rf mixer module is designed as a single power supply, RF, IF and LO ports with DC isolation capacitor, with compact design, easy to carry and store.
• 【Good Performance】The rf mixer board has +24 dBm third-order intermodulation intercept point, realization of 10 dBm LO power, without the need for a high power LO drive.
• 【Wide Use】The high frequency rf mixer module is suitable for HF and VHF receiver RF‑IF frequency, second mixer in DC baseband conversion, quadrature demodulation etc.

Feature: 1. The amplifier has low DC offset characteristics, so it can be used in DC‑baseband frequency conversion and quadrature amplitude demodulation. 2. Easy to use, the mixer is designed as a single power supply, RF, IF and LO ports with DC isolation capacitor. 3. There is no corresponding shielding and isolation problems, therefore, compared with the passive mixer to improve the performance of the system, reduce the system cost. 4. With +24 dBm third‑order intermodulation intercept point, realization of ‑10 dBm LO power, without the need for a high power LO drive. 5. Suitable for HF and VHF receiver RF‑IF frequency, second mixer in DC baseband conversion, quadrature demodulation etc. Specification: Item Type: RF Mixer Module RF Input: 0.1-500mhz RF input + 10dBm (1dB compression point) Lo Input: 0.1-500mhz Lo Input: - 10dBm If Output: 0.1-200mhz Power Supply Voltage: 9 -- 11V single ended power supply Package List: 1 x RF Mixer Module
