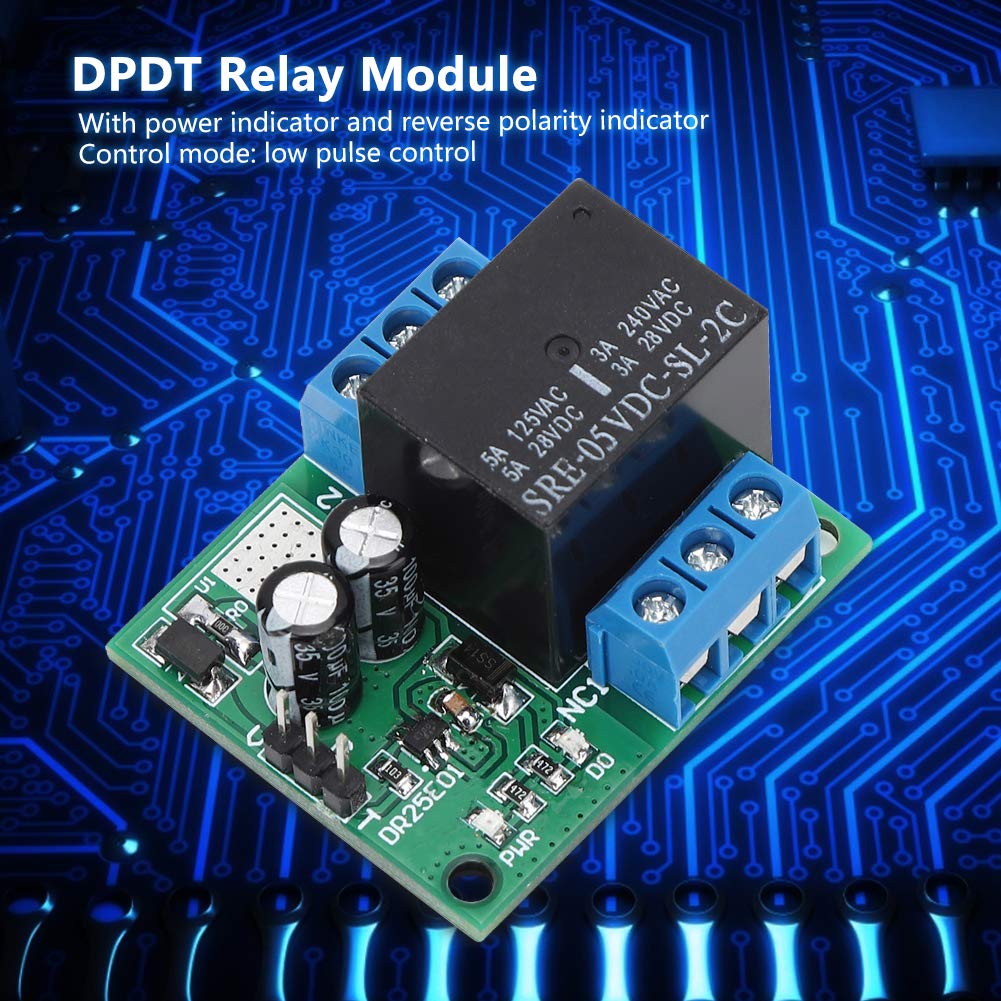

DPDT Relay Module - DC 5-24V 3-5A Flip-Flop Latch Bistable Relay Board (Self-Locking, Double Pole Double Throw)

• Professional Design - This is a self-locking (bistable) double-pole double-throw relay. Once triggered, the relay pulls in, triggers again, and the relay is disconnected.
• Function - The DPDT Relay Module with power indicator and reverse polarity indicator.Convenient for your use.
• Safe to Use - Our Relay Module has Low pulse control mode,Please rest assured to use this product.
• High Quality - This DPDT Relay Module Made of high-quality electronic components, stable and performance.Easy to install.
• Service Guarantee - If you have any question or any unsatisfactory about this Relay Module, you can contact our customer service at any time, our team will response you in 24 hours.

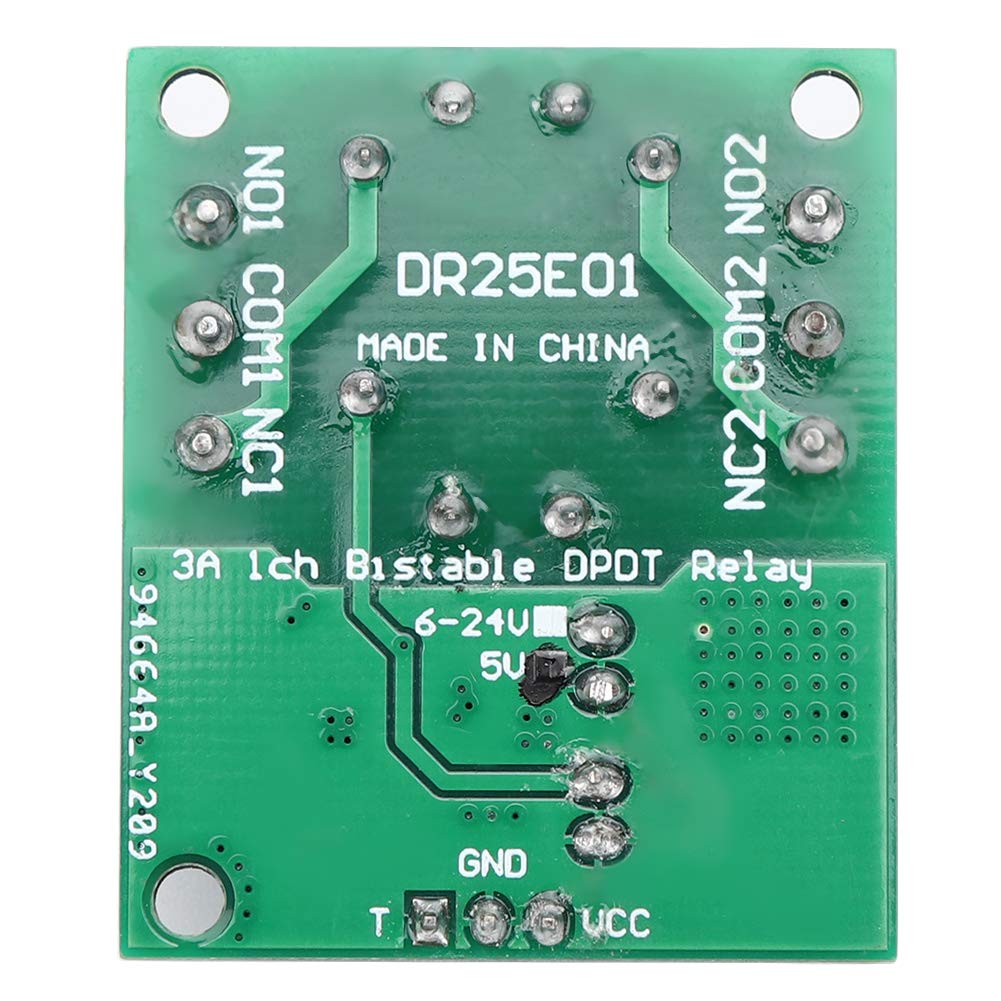

Specification: Item Type: DPDT Relay Module Input Voltage: DC 5V (5V version), DC 6-24V (12V version) (optional) Module Working Current: Forward 2MA, reverse 60-70MA Load Current: 5A maximum (motor <= 3A) Control Mode: Low pulse control Size: Approx. 39.5 x 33.3 x 23.3mm / 1.6 x 1.3 x 0.9in Pin Description: V: Power positive G: Power negative terminal and trigger ground terminal; T: Trigger input (0.2-2 seconds low pulse). NO1: Relay normally open port COM1: Relay common port NC1: Relay normally closed port NO2: Relay normally open port COM2: Relay common port NC2: Relay normally closed port How to use: When the power is turned on, the relay is turned off. Click the trigger port (T port) to pull in the relay, click the relay to release again, and so on. Package List: 1 x DPDT Relay Module
