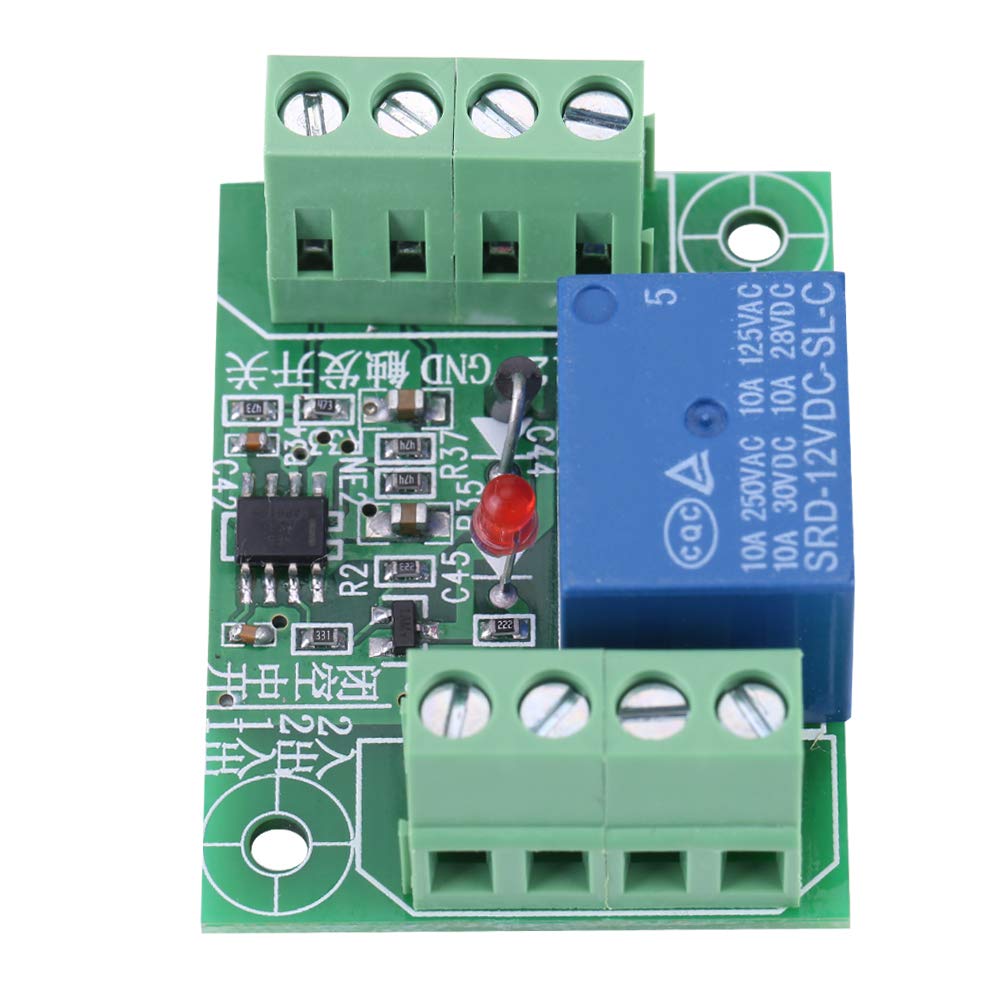

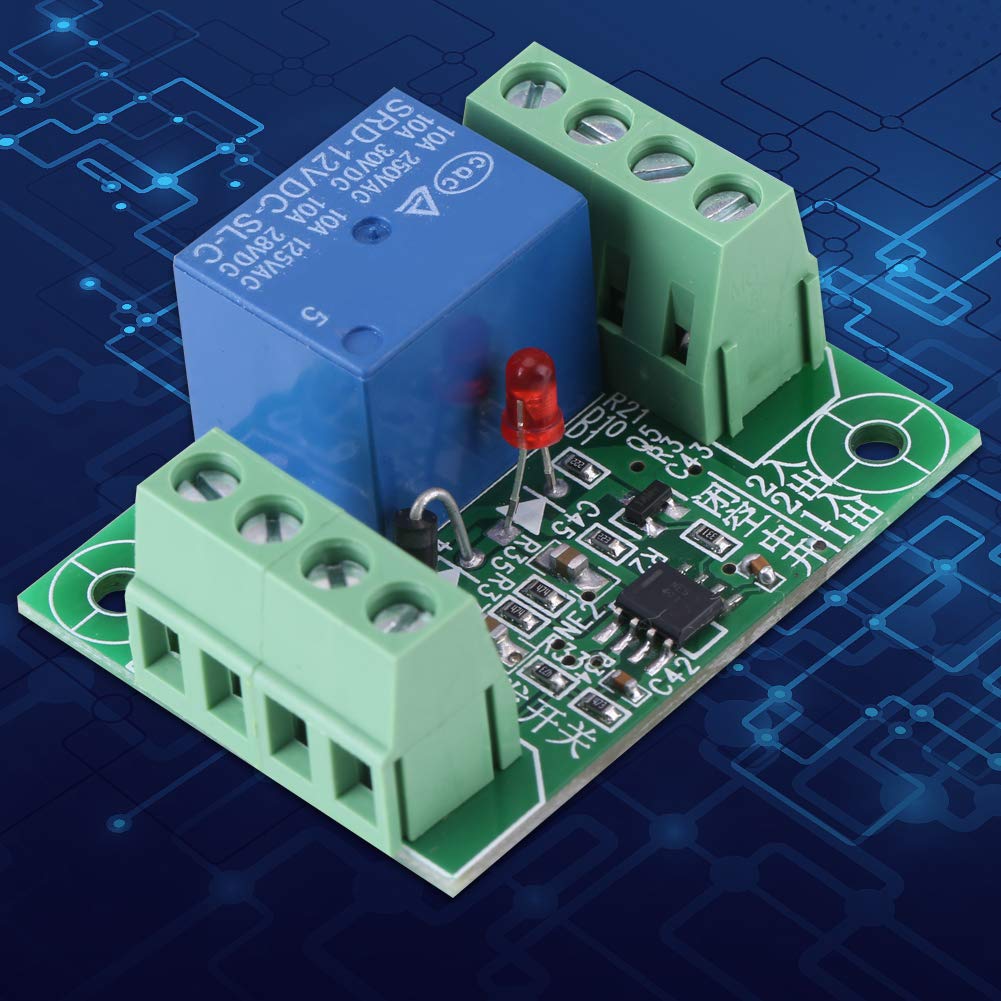

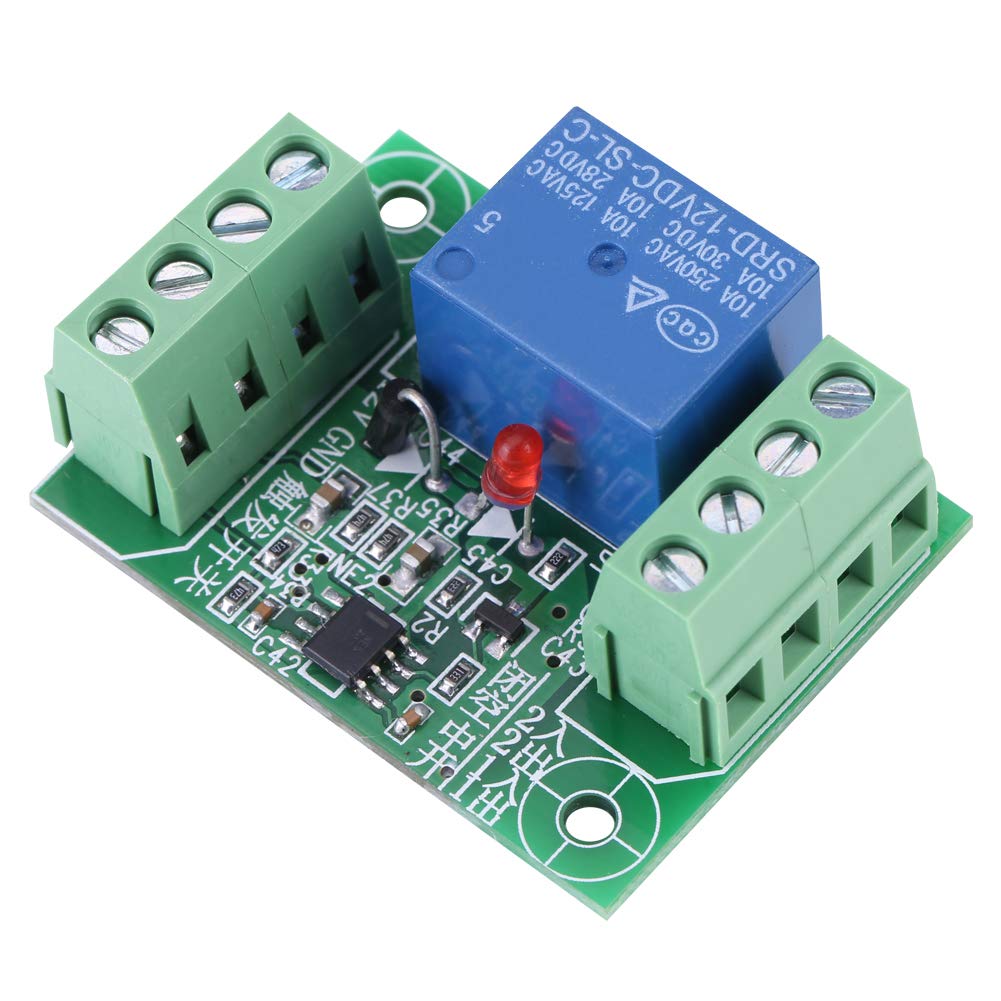

Wincal Relay DC 12V Single Channel Module Bistable Switch Circuit Trigger Switch Relay Control Module

• Bistable Circuit Relay: This is a typical bistable circuit board, press trigger switch to energize relay and press again to dis-energize relay

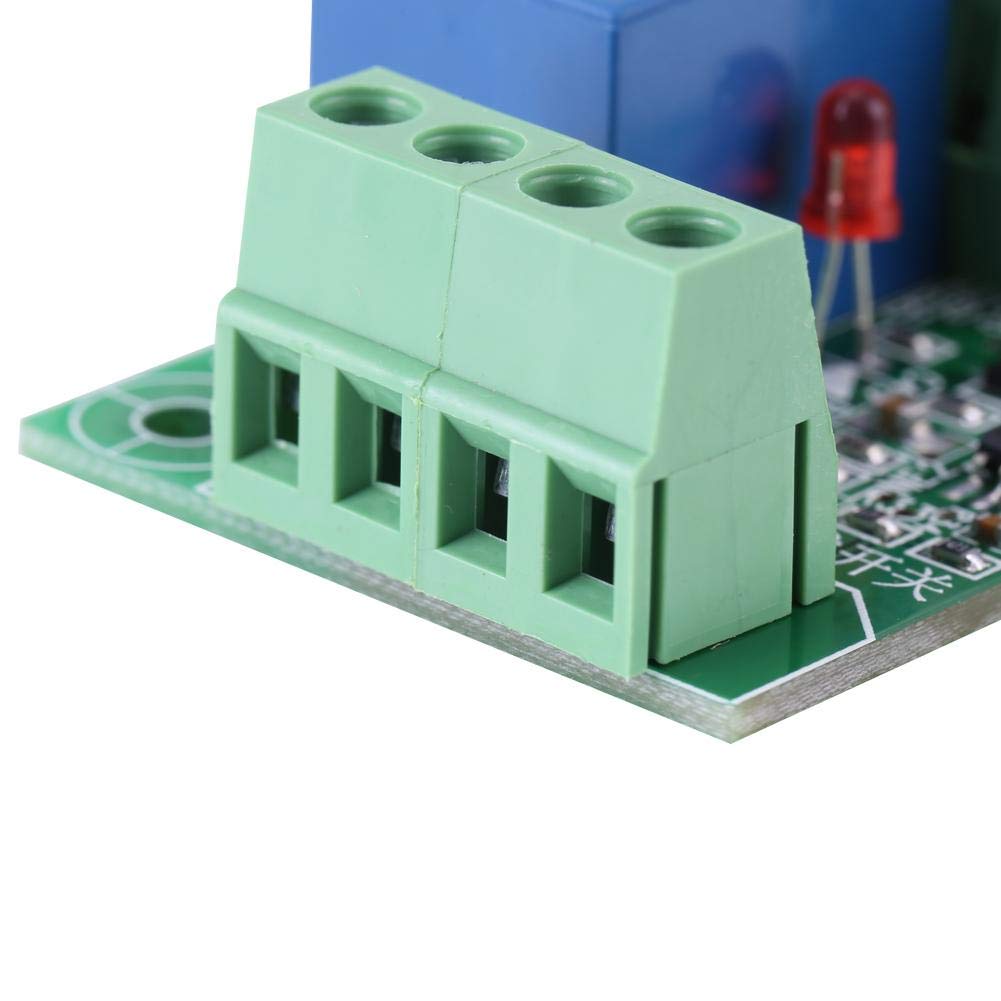

• Bistable Switch Convenient Wiring: Trigger switch relay is designed with screw terminals, it is convenient to wire and easy to use
• Single Channel Relay Module Validity: Trigger switch connect to trigger signal, trigger signal is low lever effective
• Recommendation: If used for conditions of strong interface, it is suggested to connect a diode to input terminal in series, and connect a 470UF capacitor to GND in parallel
• DC12V Relay: The power supply should be DC12V, but cannot be used for cars because instant voltage of cars may exceed 12V

Features: This is a typical bistable circuit board, press trigger switch to energize relay and press again to dis-energize relay. Designed with screw terminals, it is convenient to wire and easy to use. Trigger switch connect to trigger signal, trigger signal is low lever effective. If used for conditions of strong interface, it is suggested to connect a diode to input terminal in series, and connect a 470UF capacitor to GND in parallel. The power supply should be DC12V, but cannot be used for cars because instant voltage of cars may exceed 12V. Specifications: Power Supply: 12V DC Load Capacity: 10A, 250VAC; 10A, 30VDC Size: 1.5*3.5*4.5cm/0.59*1.38*1.77in Package Includes: 1 x Relay Module
