Regatta Processing NMEA 2000 (N2k) 4-Metre Engine Interface Cable for Yamaha Outboard with Included Tee Connector, for Lowrance Simrad B&G Navico & Garmin Networks

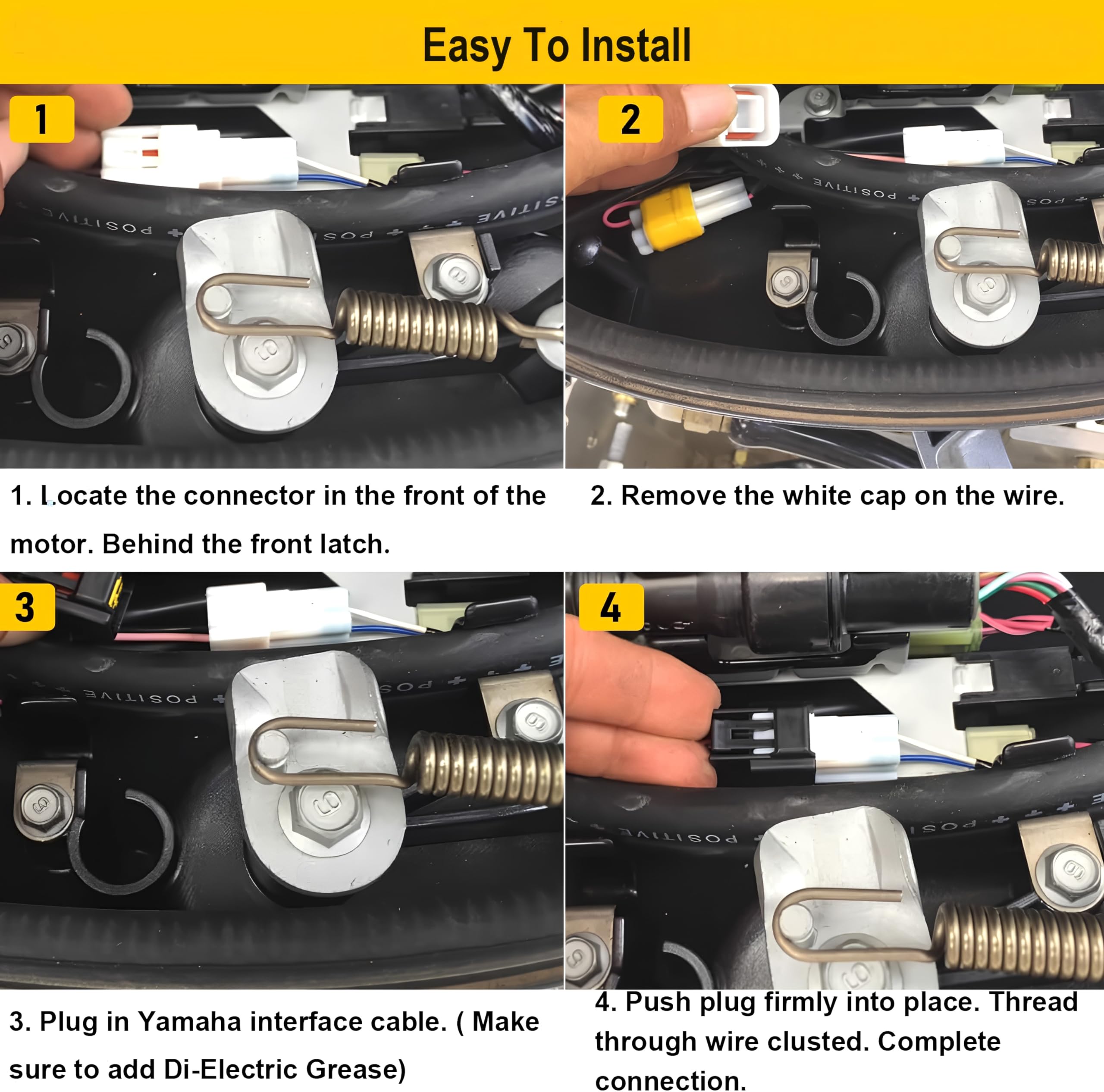

• Use this engine interface cable with the included Tee-Connector to connect the Yamaha engine to your NMEA 2000 network, without the need for the CommandLink Plus system.
• With this cable, you will be able to capture and display: RPM, alternator voltage, engine hours, engine temperature, fuel pressure, fuel rate, oil pressure and water pressure.
• For Yamaha engine models 2006 - 2023: F50, T50, F60, T60, F75, F90, F115, LF115, F150, LF150, F200, LF200, F225, F225, F250, LF250. [2006 and later]: Z150, LZ150, VZ150. Z175, Z200, LZ200, VZ225, Z250, LZ250, VZ250, Z300, LZ300, VZ300.
• This cable is 100% compatible with Lowrance 000-0120-37 Yamaha Engine Interface Cable.

The Yamaha engine interface cable is designed to interface your outboard motor with a NMEA 2000 network, without the need for the CommandLink Plus system. With this cable, you will be able to capture and display: RPM, alternator voltage, engine hours, engine temperature, fuel pressure, fuel rate, oil pressure and water pressure. For Yamaha engine models 2006 - 2023: F50, T50, F60, T60, F75, F90, F115, LF115, F150, LF150, F200, LF200, F225, F225, F250, LF250. [2006 and later models]: Z150, LZ150, VZ150. Z175, Z200, LZ200, VZ225, Z250, LZ250, VZ250, Z300, LZ300, VZ300.
