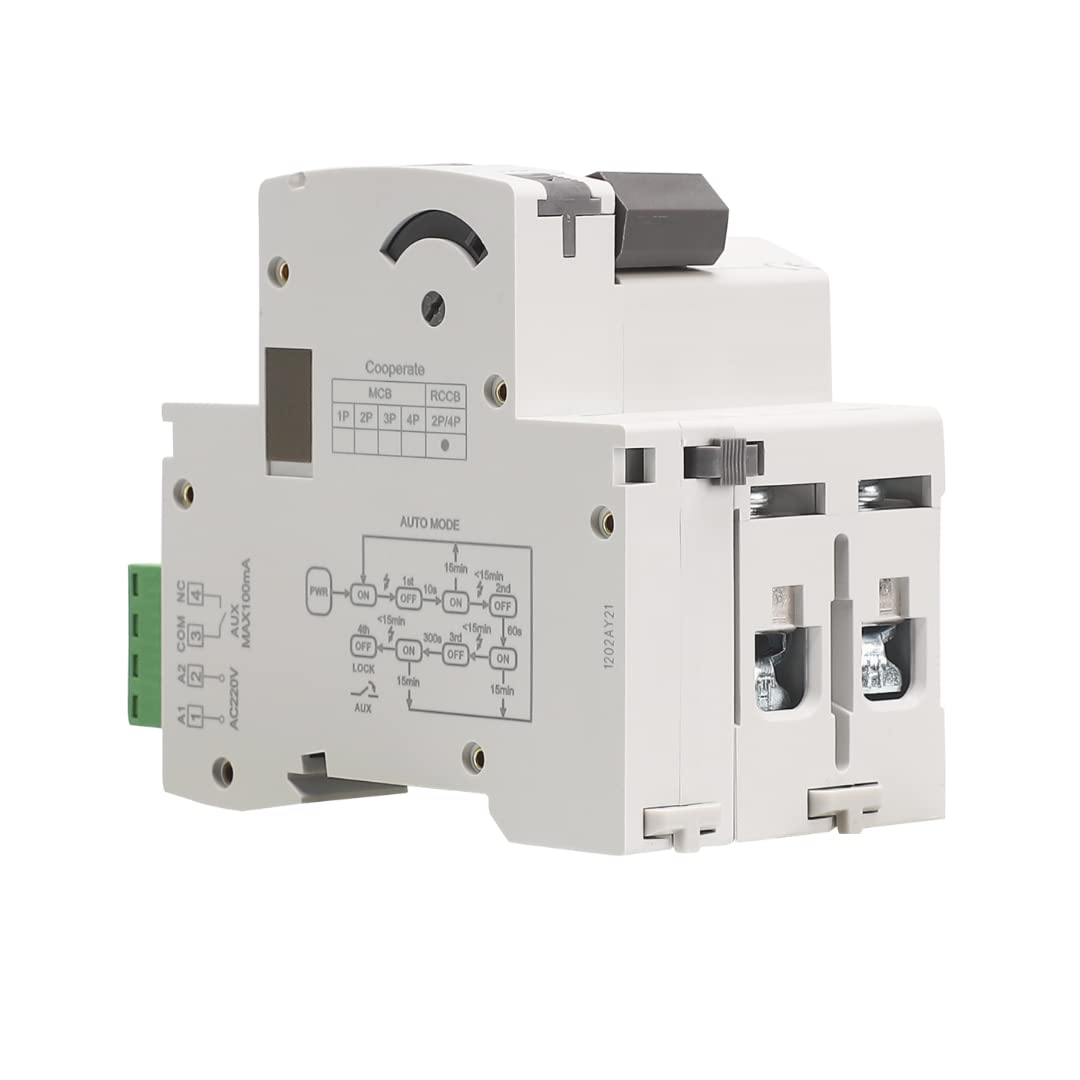

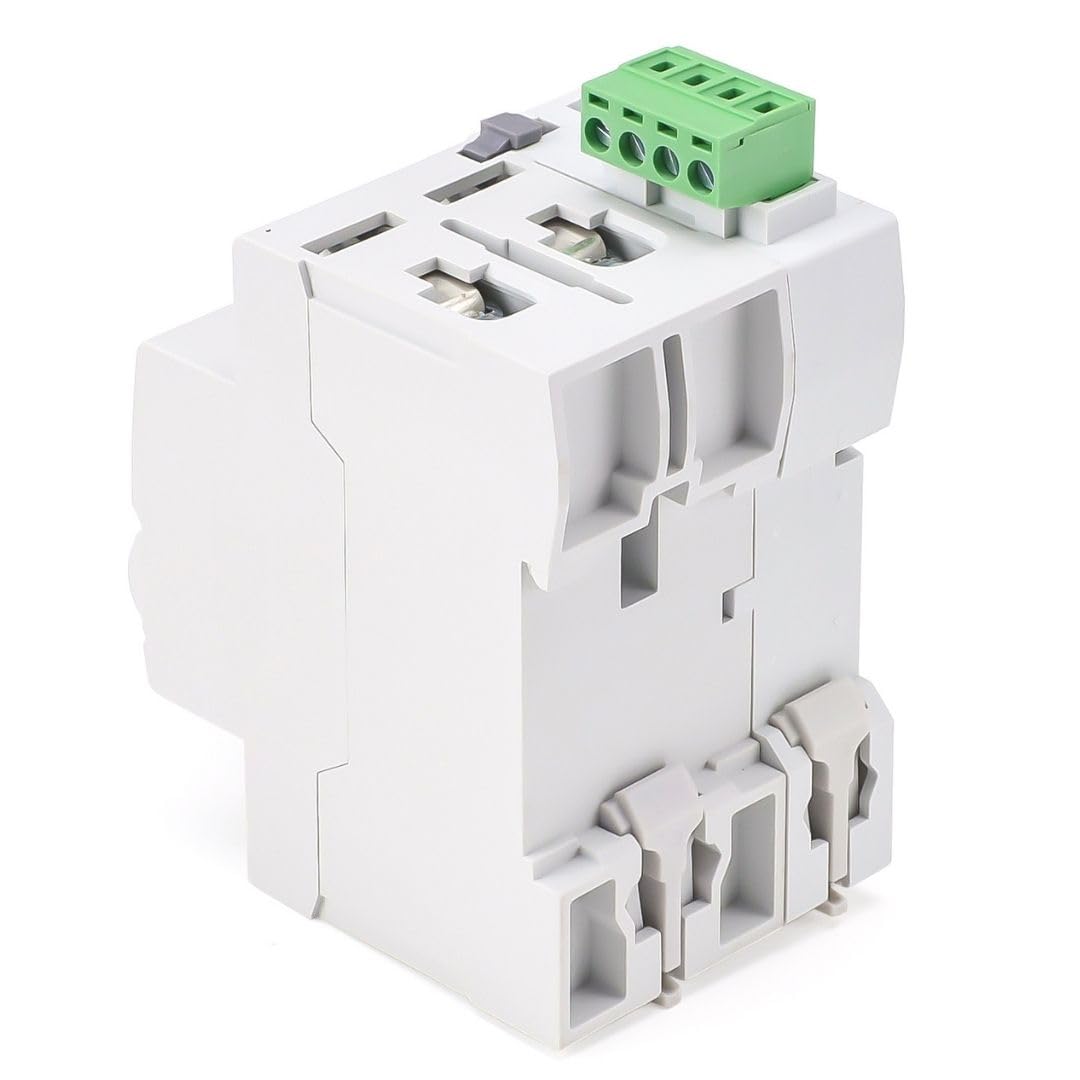

Rearmable Superimmunized Differential SI 2P 40A 30mA 6Ka TYPE A. Super Immunized Auto Rearmable Differential Switch Automatic Rearme Circuit Breaker Din Rail
About this item

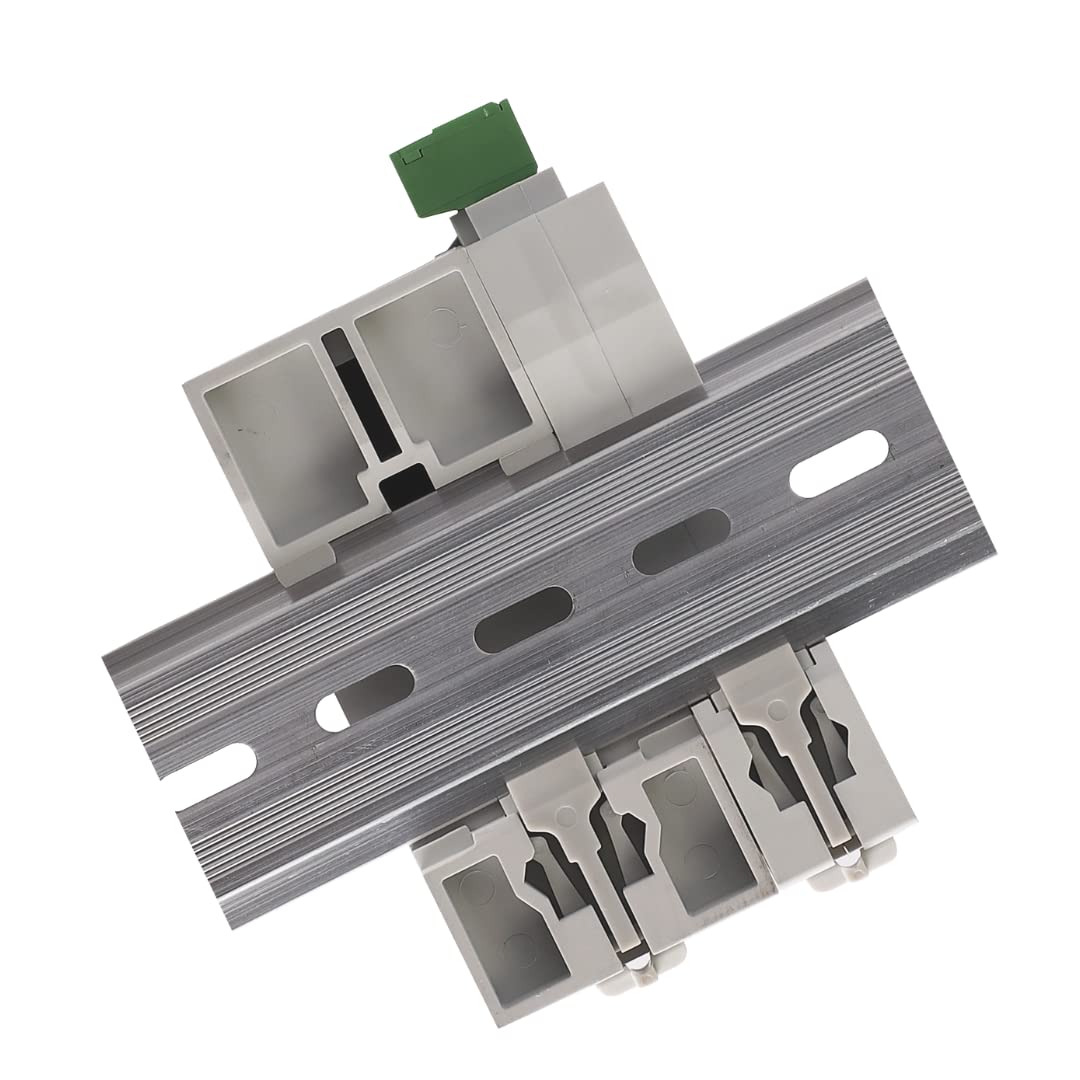

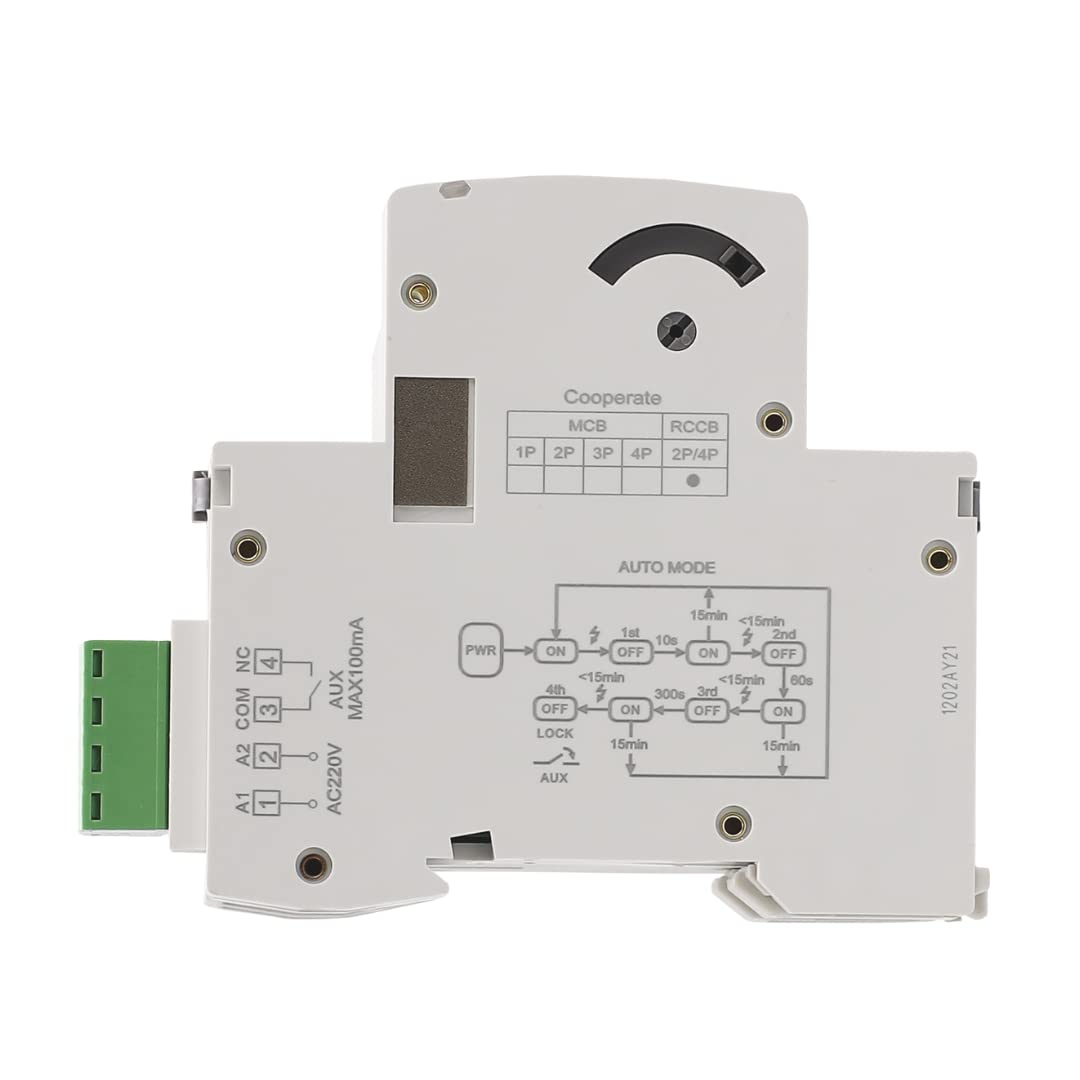

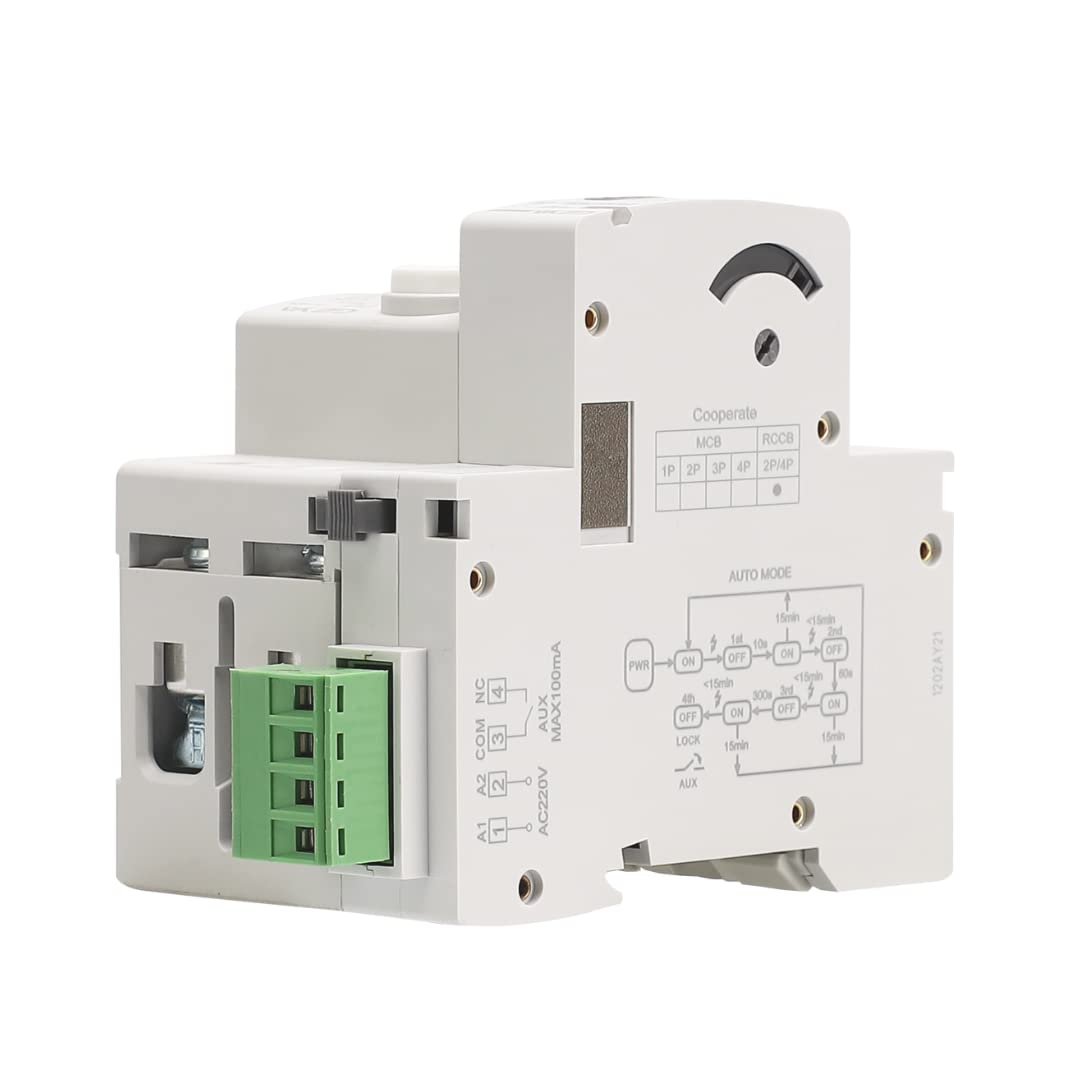

- EASY INSTALLATION: Installs like any other differential in the light box, in rail. You have to power the autorearm, you have to feed in the green strip the terminals of L and N by putting them in parallel with the top of the differential or the general automatic input (connect to the differential input A1 and A2 of the green terminal). The resettable differential has a locking system with which you can choose the operation of manual, automatic and closed mode.

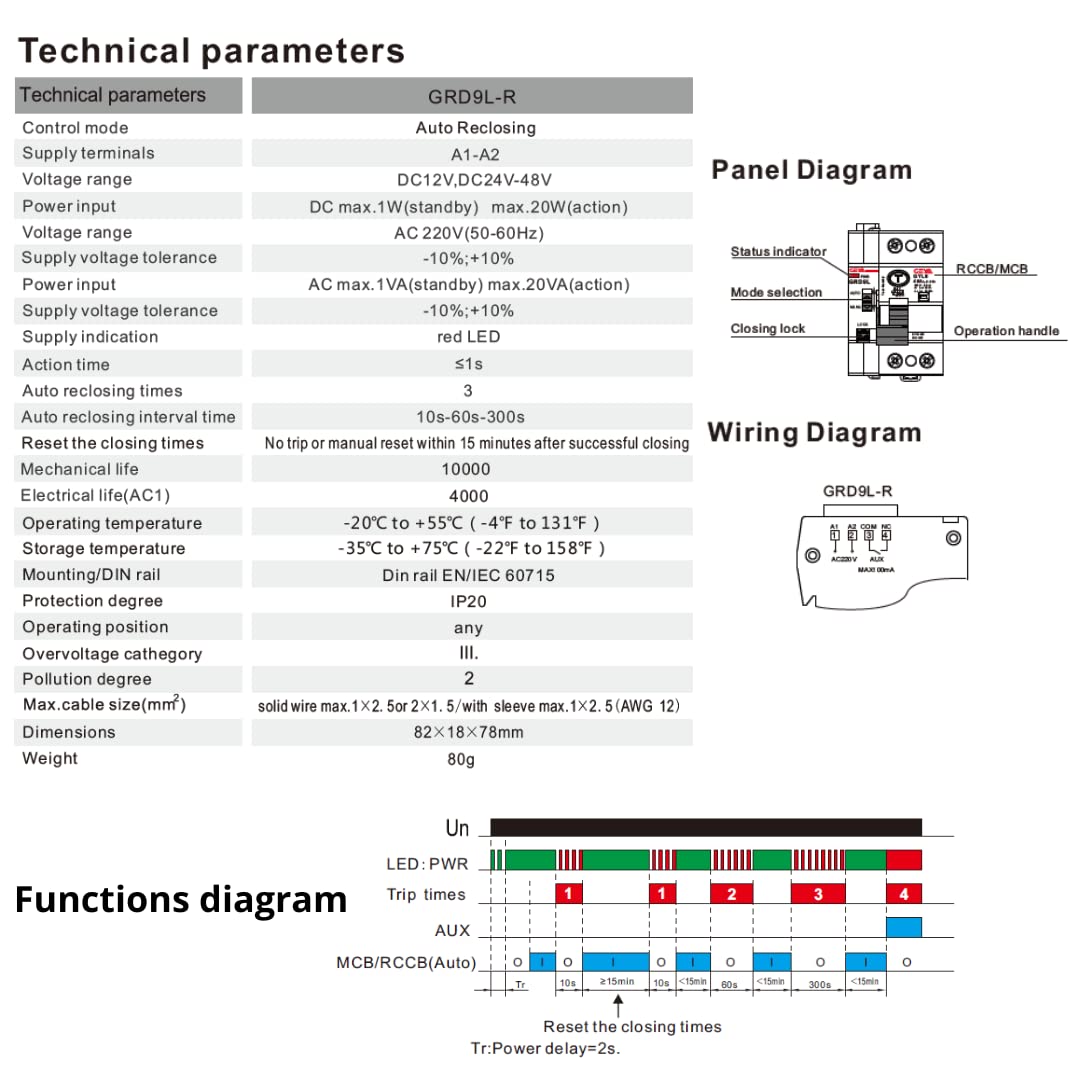

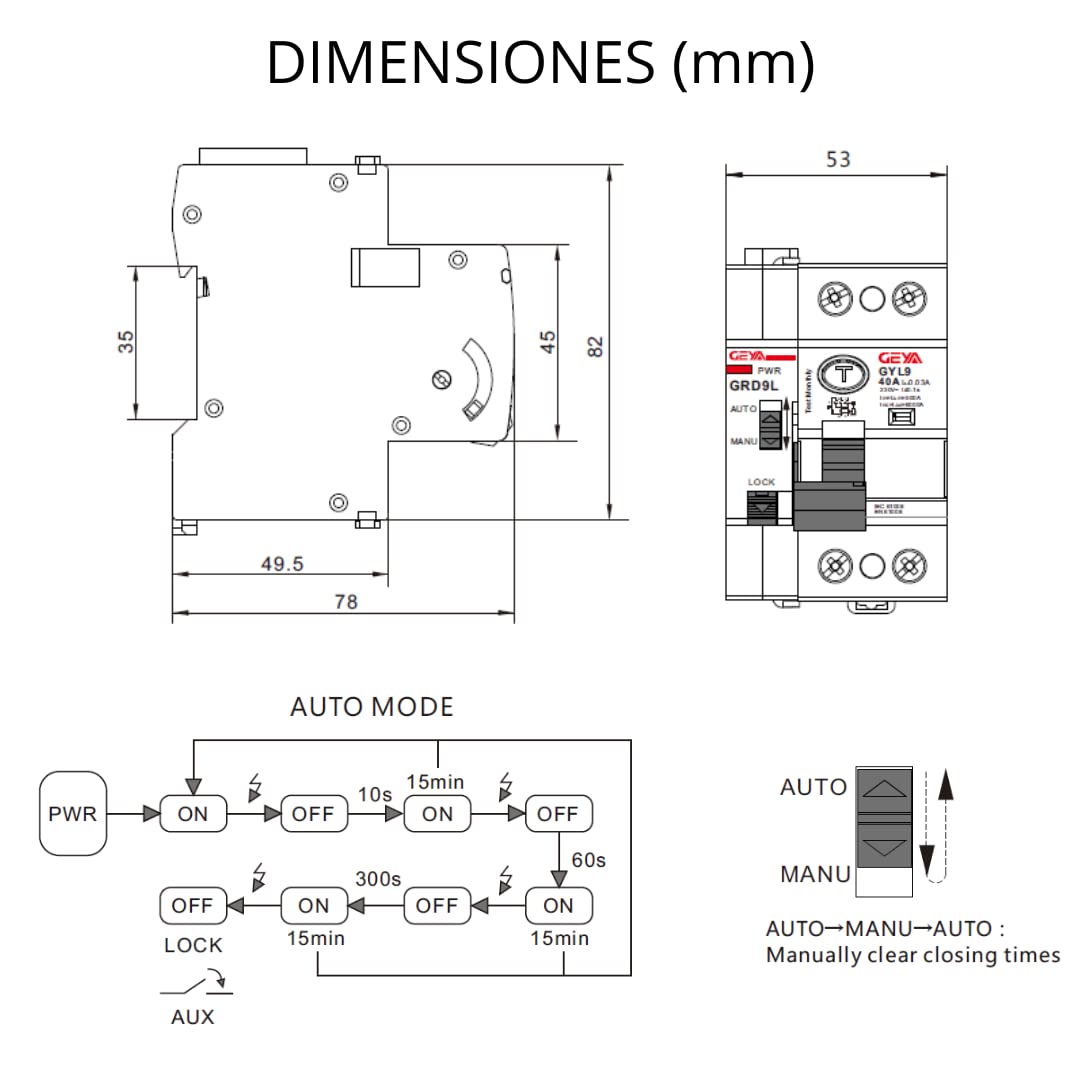

- 3 RECONNECTION ATTENTS: When the light goes out and the differential jumps up, it makes 3 attempts to reset, usually at 10 second time intervals from the cut, then 60 seconds and another at 300 seconds. If after the three attempts you do not manage to rearm the differential, it is considered that there is an electrical problem and do not try again. To unlock the rearm, the AUTO-MANU tab must be raised and lowered twice in a row.
- AUTOMATIC RESET TYPE A: The 2 Pole Automatic Rearme Superimmunized Differential Switch is a useful element within the electrical installation. Reset the differential switch automatically, so its function is more important when protecting the electrical installation.
- PROTECT YOUR ELECTRIC INSTALLATION WITH THE REARMABLE DIFFERENTIAL RECONNECTOR: Allows you to avoid the loss of the electrical connection after checking that the defect has disappeared.
- DO NOT STAY OUT OF LIGHT: Our Superimmunized Rearmable Differential is a device that allows you to reset the light, automatically, when the differential jumps due to a transient incidence. Conforms to IEC61008, EN61008 and CE standards.
Product description
Differential Superimmunized Rearable device that allows to reset the light, automatically when the differential jumps due to a transient incidence. It is a useful element within the electrical installation. This super immunized 2-pole differential switch resets the differential switch automatically, so its function is more important when protecting the electrical installation. When the light goes out and the differential jumps, the differential makes 3 attempts to reset, usually at 10 second time intervals from the cut, then at 60 seconds and another at 300 seconds. If after the three attempts you do not manage to rearm the differential, it is considered that there is an electrical problem and do not try again. Installs very easily, like any other differential in the light frame, in rail. You have to power the autorearm, you have to feed in the green strip the terminals of L and N by putting them in parallel with the top of the differential or the general automatic input (connect to the differential input A1 and A2 of the green terminal). The resettable differential has a locking system with which you can choose operation manually or automatically, has a front on/off switch with equipment lock and a reset button on the attempt counter. Maximum short circuit current 6Ka, 220/230v. Automatic, manual and closed selection (allows you to connect a padlock).
Product details
