innomaker Global Shutter Camera Module with OV7251 Sensor Support Hardware & Software Trigger,Support Rpicam,Libcamera for Raspberry PI Build in Driver Unique Driver

• Low cost raspberry pi GS Camera global shutter camera module mipi cam-mipi7251raw;

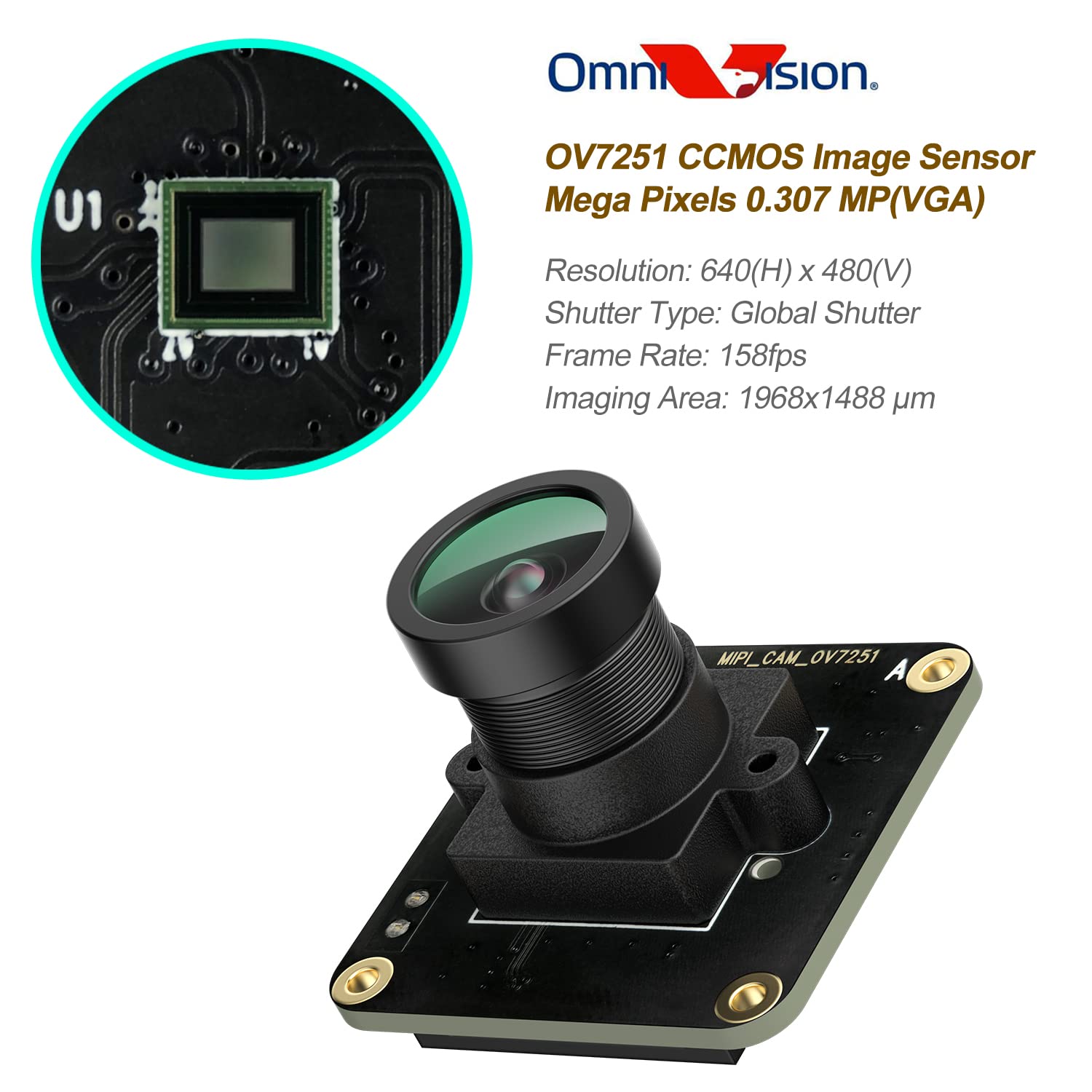

• Output formats 8bit RAW BW and 10 bit RAW BW 158fps resolution 640*480;

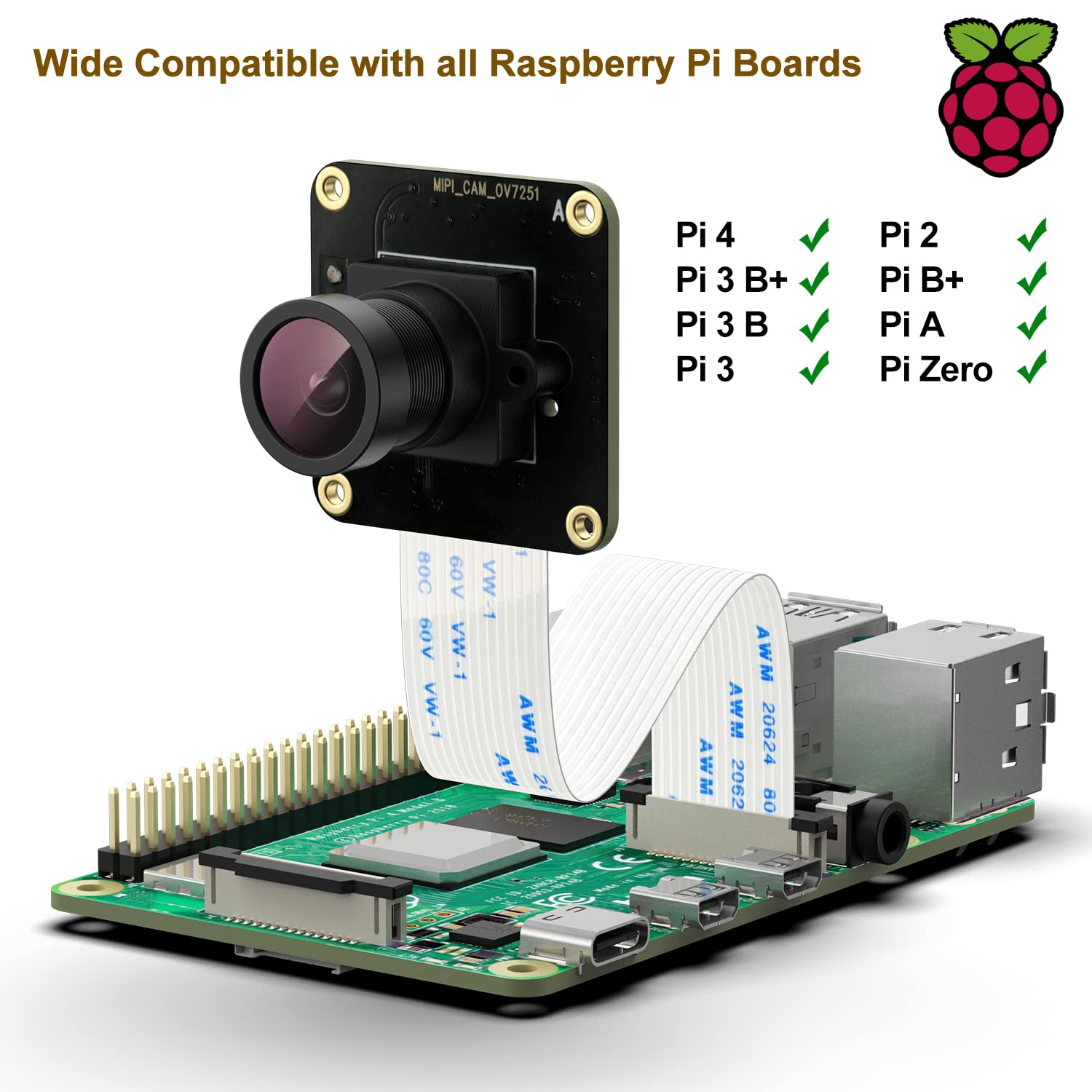

• Compatible with raspberry pi os dtoverlay ov7251 provide python demo;
• Provide innomaker driver source code support external trigger provide sdk;
• Innomaker driver support 4 working mode fullfill different application scenario;

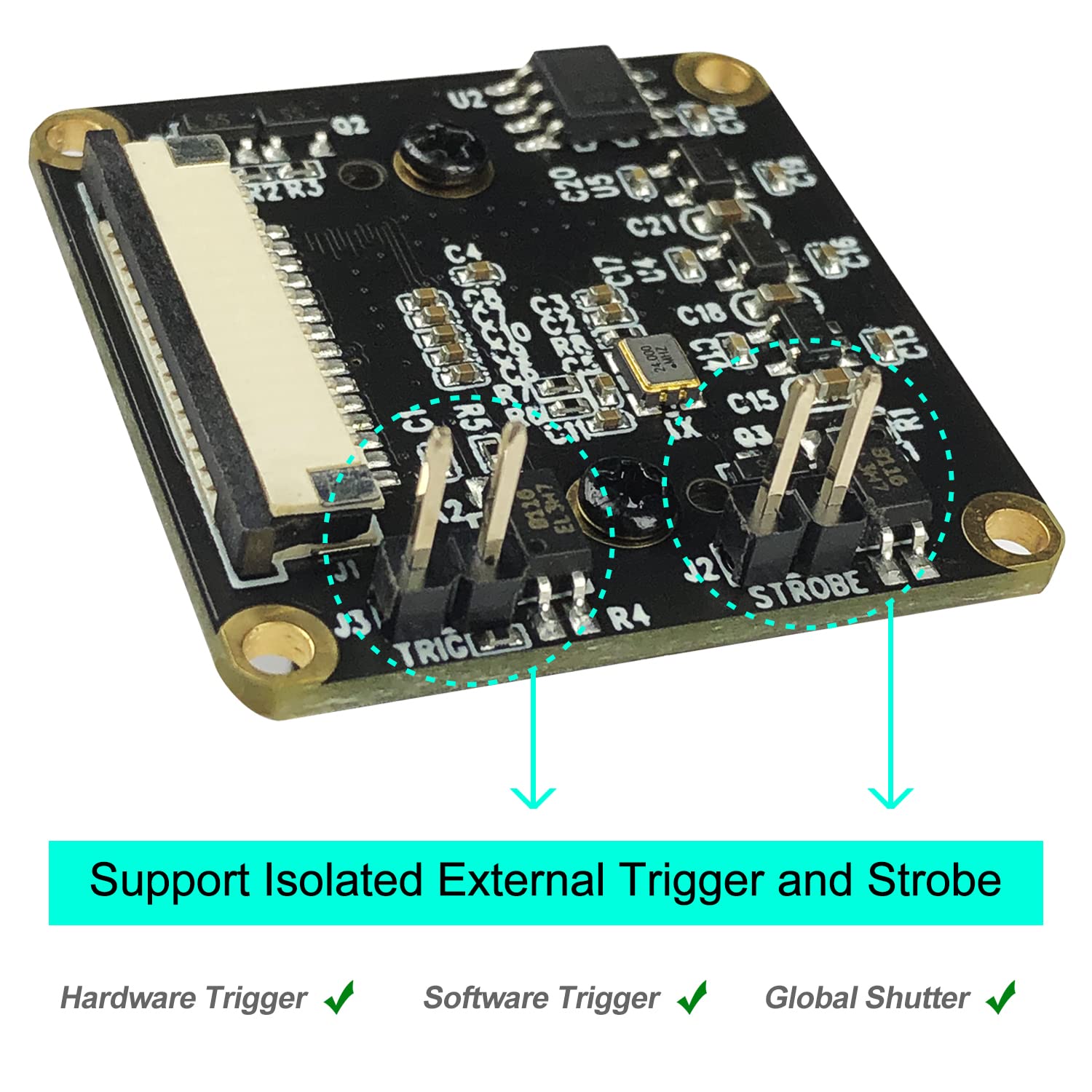

Key Feature: 1, active array size: 640x480 ,global shutter. 2, output formats: 8bit RAW BW and 10 bit RAW BW. 3,Frame rate: 158fps. 4,Optical coupled isolated external trigger input and flash output support 5,Support 4 work mode: A,8 bit stream mode B,10bit stream mode C,8bit external trigger mode D,10bit external trigger mode Work on 8bit stream mode by default. 6, Software trigger input support. 7, driver feature support : gain, exposure, hflip, vflip 8, Provide GPL Linux 5.15.32 driver source code. Quick Start: step1, download from our wiki (please follow our instuction send with products) Step2, driver complier. 2.1,Install the linux kernel header by: “$sudo apt-get install raspberrypi-kernel-headers” 2.2，Compile the driver source code “$sudo make” 2.3,Install the driver "$sudo make install" step2, "sudo nano /boot/config.txt",add "dtoverlay=vc_mipi_ov7251" to the last line; Remark: if you use pi0, use "sudo nano /boot/config.txt",add "dtoverlay=vc_mipi_ov7251,i2c_pins_28_29=1" to the last line instead; Step3, "ls /dev/video*" Step4,Open /dev/video0 device in VLC
