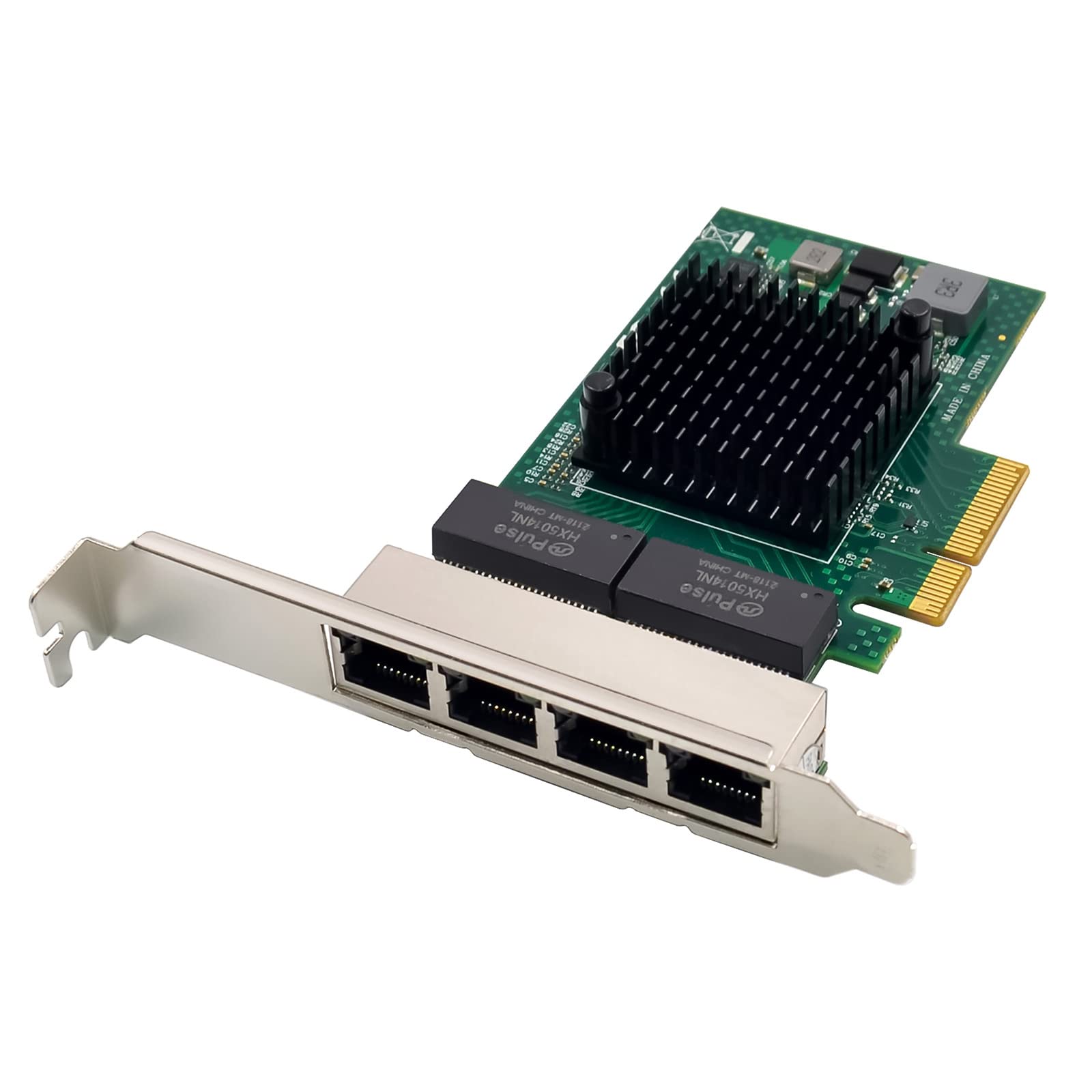

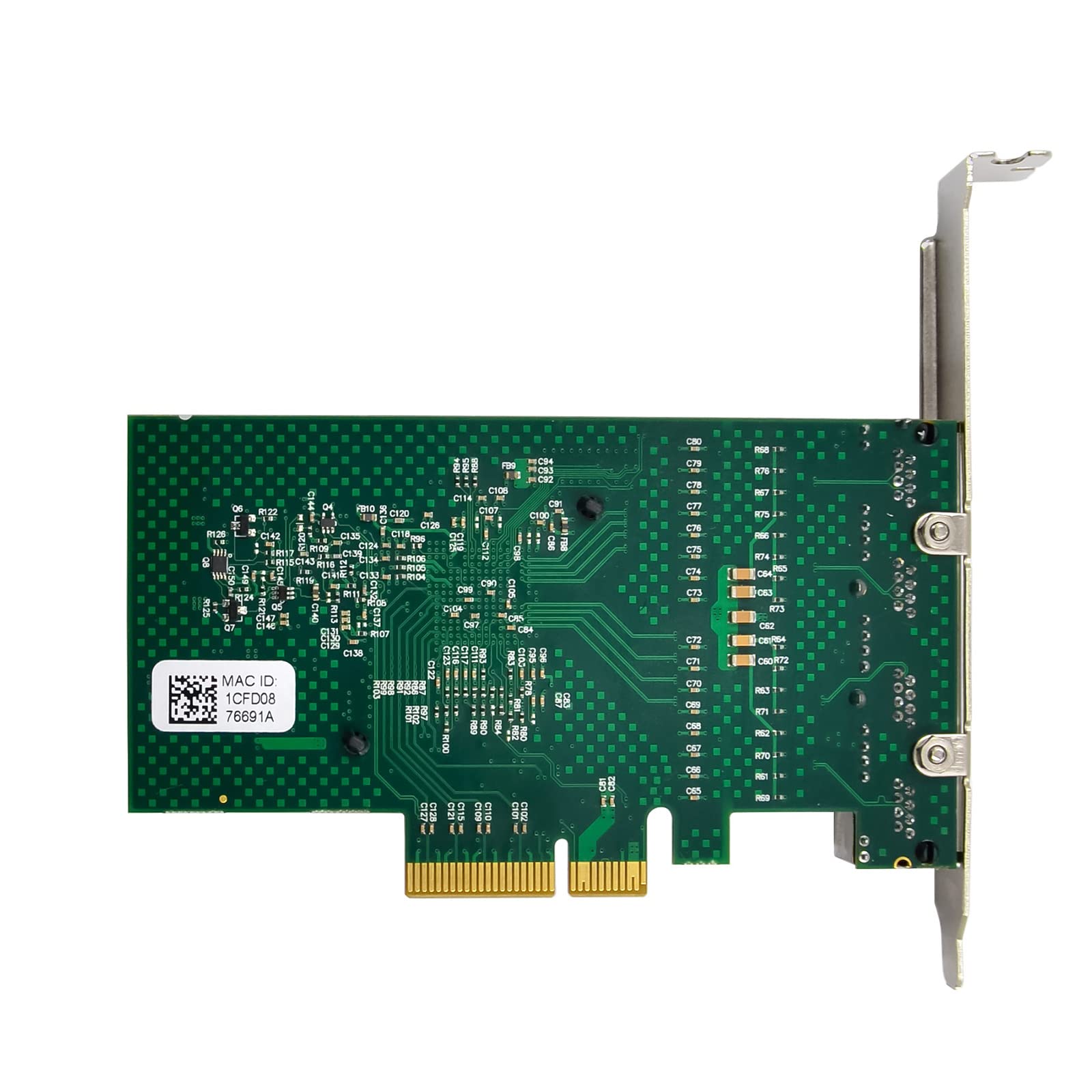

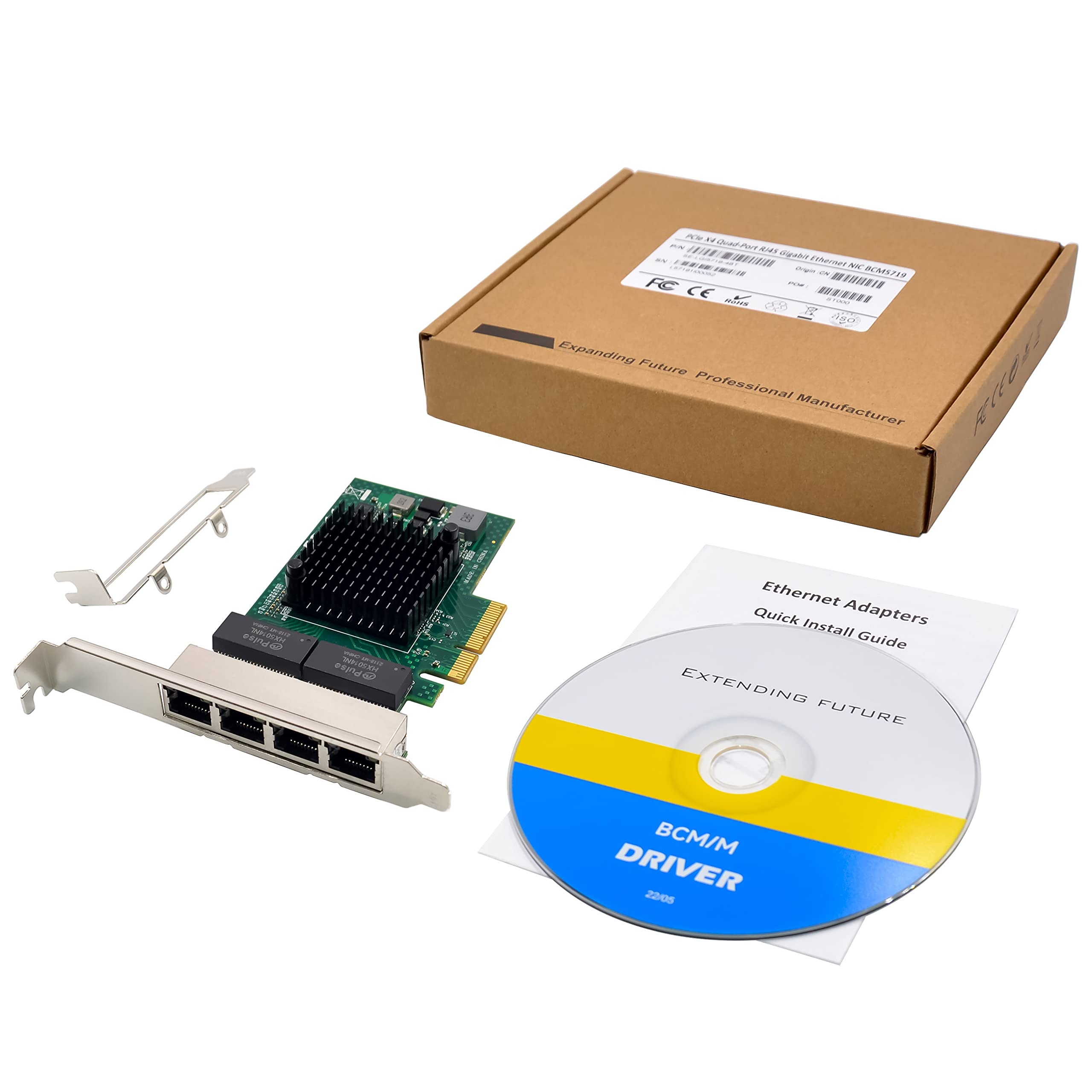

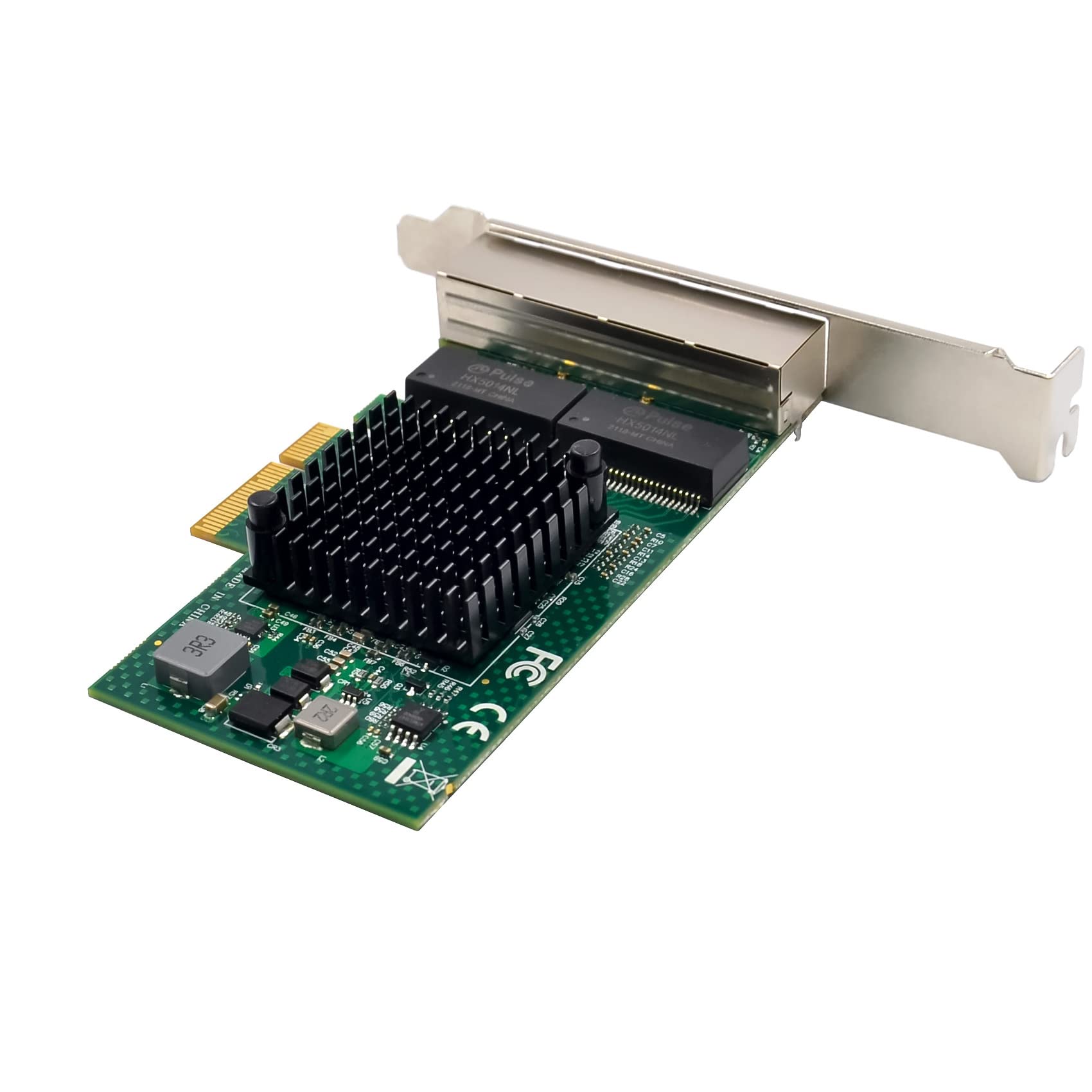

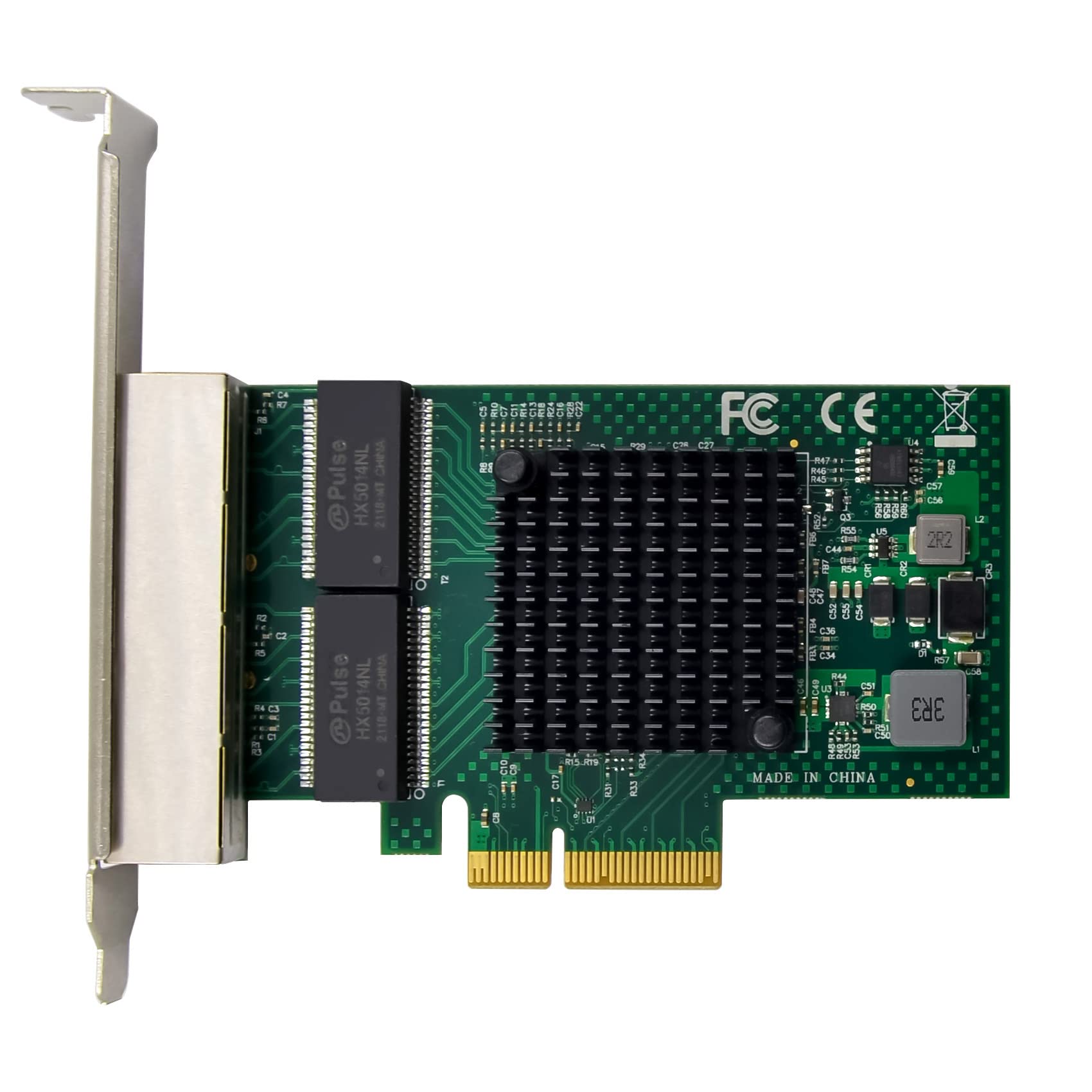

Quad-Port PCIe Gigabit Ethernet Server Adapter with NetXtreme® BCM5719 Chipset PCI Express 1000M Network LAN Card for Windows Server Linux Ubuntu VMware

• The BCM5719-4P is compatible with x86 and x64 servers utilizing the PCIe v1.x and v2.x interfaces
• PCIe x4,compatible with pci-e x8,x16.Comes with Low Profile Bracket
• Wide range of applications:Cloud and Web2.0 data center servers,Enterprise data center servers,Private Cloud,Machine Learning (ML) clusters,High-Performance Computing (HPC) clusters,Multi-node container platforms,NVMe storage disaggregation (NVMe-oF),Database servers
• OS Support:CentOS, Debian, Microsoft Windows, Oracle Linux, Oracle Solaris, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, SUSE Linux Enterprise Server, Ubuntu, VMware, VMware ESX(Esxi 5/6/7/8), VMware vSphere, Windows Hyper-V, Windows Server
• 180 day worry-free warranty and friendly customer service. If you have any questions, we will help you solve the problem when you need it, and if it can’t be solved, we will provide a refund and no return is required.

The Broadcom BCM5719-4P is a quad-port 10/100/1000 Mb/s x4 PCI Express (PCIe) Specification v2.1 Ethernet server adapter that supports the IEEE 802.3ab standard over Category-5 twisted pair cable. The card supports offload technologies, including Large Send, TCP segmentation, and TCP/UDP/IP checksum, and Receive Side Scaling (RSS) that deliver optimal network throughput, lower host processor utilization and, as a result, improve system overall performance. The server adapter ships in a small form factor that is suitable for both low-profile and standard chassis configurations. Features / The BCM5719-4P Ethernet server adapter supports the following features: Bus type—x4 PCI Express 2.0 (5 GT/s) Data rate—10/100/1000 Mbps per port, per direction MAC controller—BCM5719-4P Quad-port 10/100/1000BASE-T Ethernet server adapter x4 PCI Express v2.1 at 5 GT/s or 2.5 GT/s Hardware assist for IEEE 1588 and IEEE 802.1AS time synchronization implementations I/O Virtualization supported with 17 receive queues and 16 transmit queues per port Full line-rate performance across all ports Broad OS and hypervisor support Preboot eXecution Environment (PXE) support Support for VMware NetQueue and Microsoft VMQ Link aggregation and automatic load-balancing Wake-on-LAN support MSI and MSI-X support IPv4 and IPv6 offloads TCP, UDP, and IP checksum offloads Large Send Offload (LSO) TCP Segmentation Offload (TSO) ACPI v2.0 SMBus 2.0 IEEE 802.3ab 1000BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3i 10BASE-T IEEE 802.1q—VLAN tagging support IEEE 802.3x—Flow control IEEE 802.3az—EEE Receive Side Scaling (RSS) Transmit Side Scaling (TSS) VLAN support with VLAN tagging Jumbo frame support for frames larger than 1500 Bytes Broadcom Advanced Control Suite (BACS) management application iSCSI remote boot support OS Support
