QTX VH45B Compact VHF Wireless Microphone System

• On/Off and mute controls on handheld unit
• 5 octave
• Up to 50m range

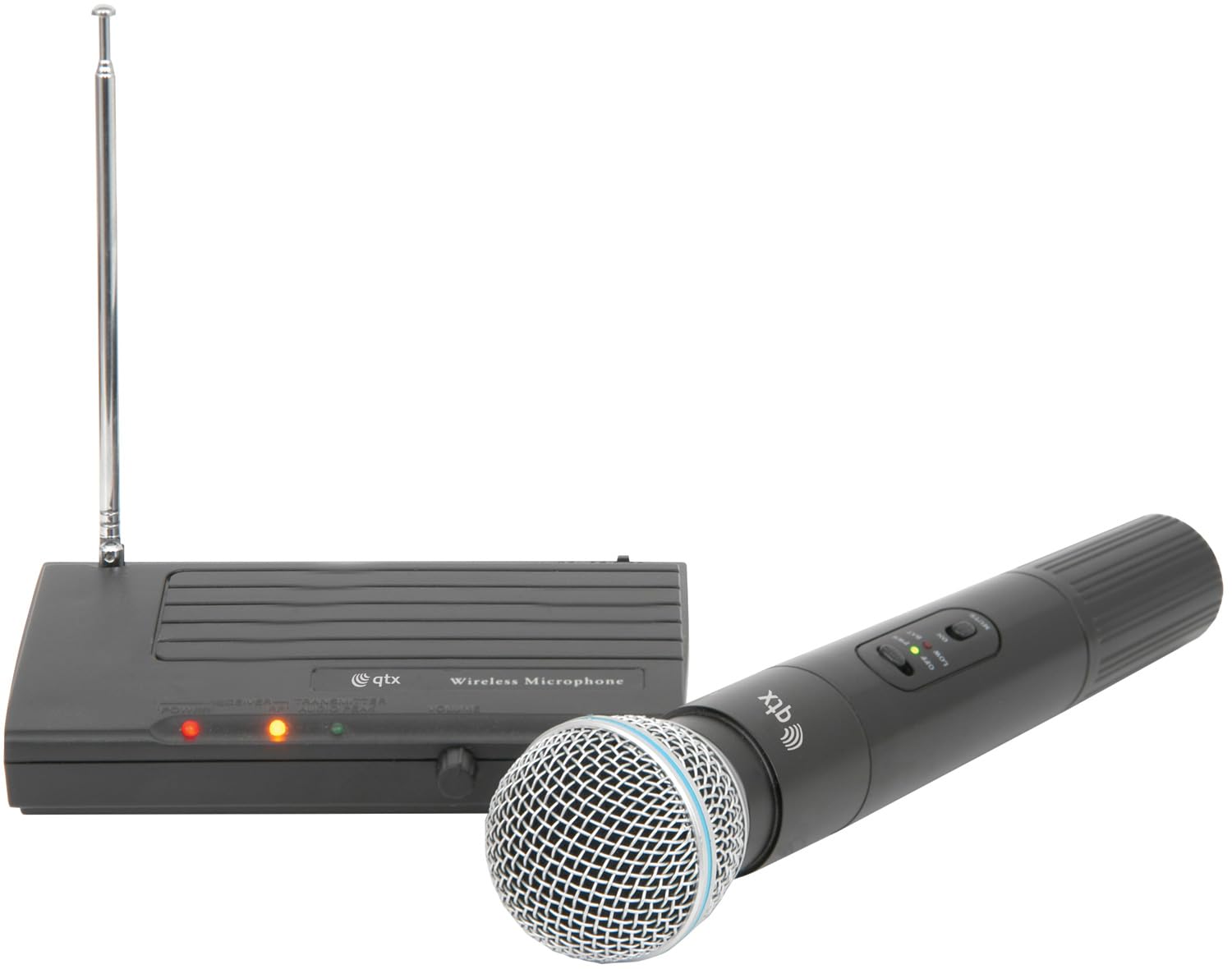

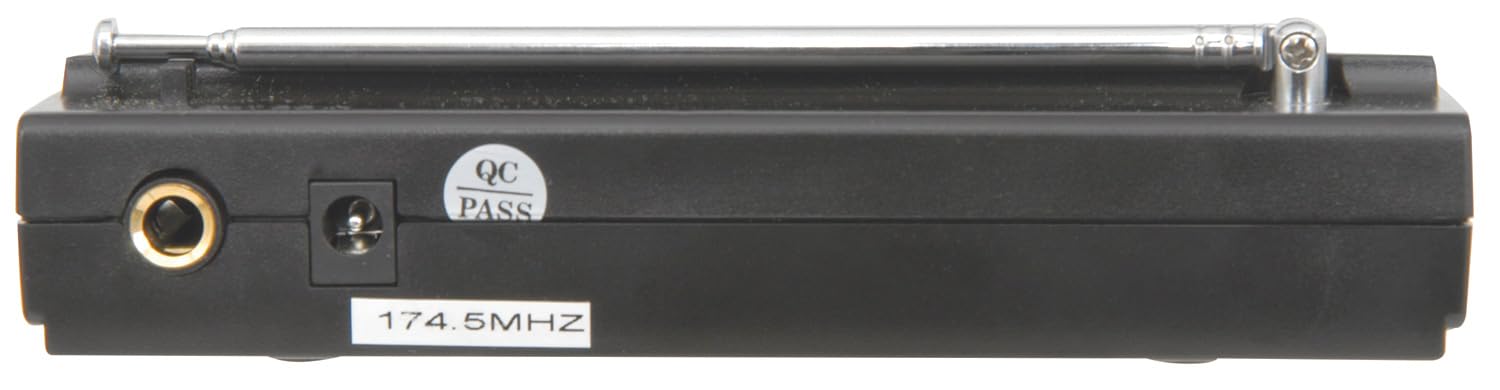

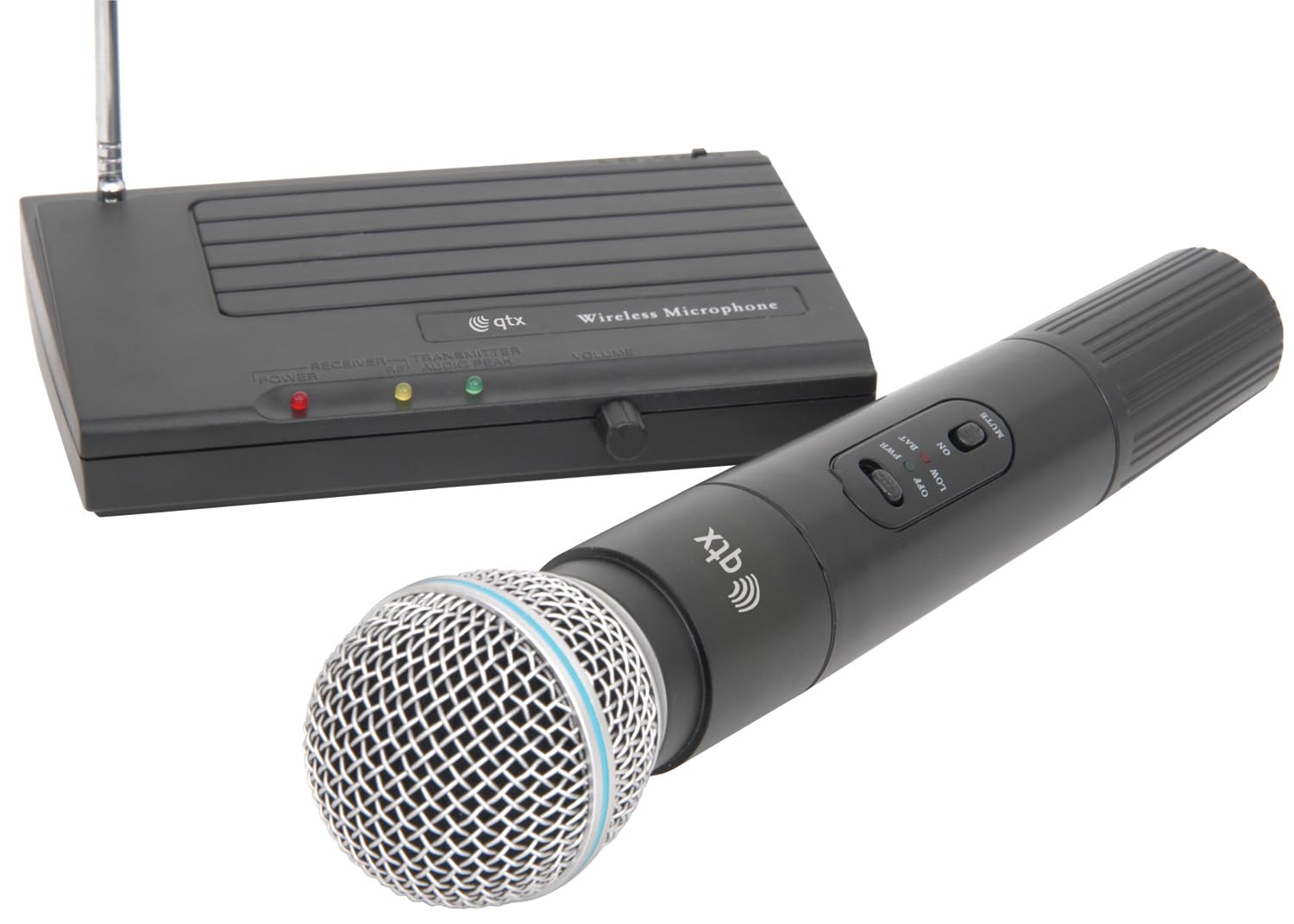

Product Description qtx VH45B microphone set comes with a handheld microphone and a receiver also supplied with power supply, batteries and signal lead. It has a range of 50m making this product perfect for DJ's and large events. The microphone features accessable buttons for power and to mute the microphone. Power supply : receiver - 9 - 15Vdc 200mA (supplied). Battery : transmitter - 9V PP3 (supplied). Operating frequency - 174.5MHz. Maximum range - 50.0m. Output connection - 6.3mm jack. S/N ratio - >85dB. THD - <0.2%. Dimensions : transmitter - 250 x 50mm˜. Dimensions : receiver - 150 x 110 x 35mm. Weight : transmitter - 280g. Weight : receiver - 190g. Note: 1. The output signal level of the receiver should be connected to a microphone input on the mixer or amplifier. If connected to a line level input the level will be too low to be sufficiently amplified and will give poor results. The volume control on the receiver should be adjusted accordingly to achieve the optimum level to match the amplifier. 2.The microphone has power and low battery. Both should be lit. The low battery led will fade over time as the battery drains. If used with a low battery drop out and distortion may result. Box Contains Handheld VHF wireless microphone with desktop receiver, supplied with power supply, batteries and signal lead
