QT Py RP2040 Ada 4900

• RP2040 32-bit Cortex M0+ dual-core running at ~125 MHz @ 3.3V logic and power
• Can be used with MicroPython or CircuitPython
• Built-in RGB NeoPixel LED
• 8 MB SPI FLASH chip for storing files and CircuitPython/MicroPython code storage. No EEPROM

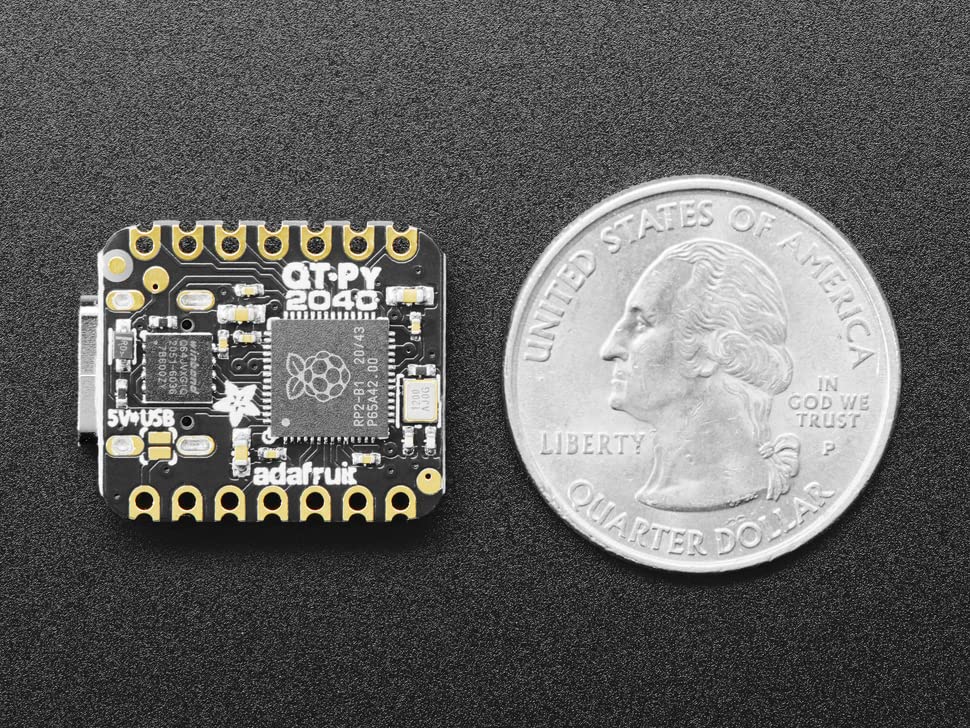

• Really really small

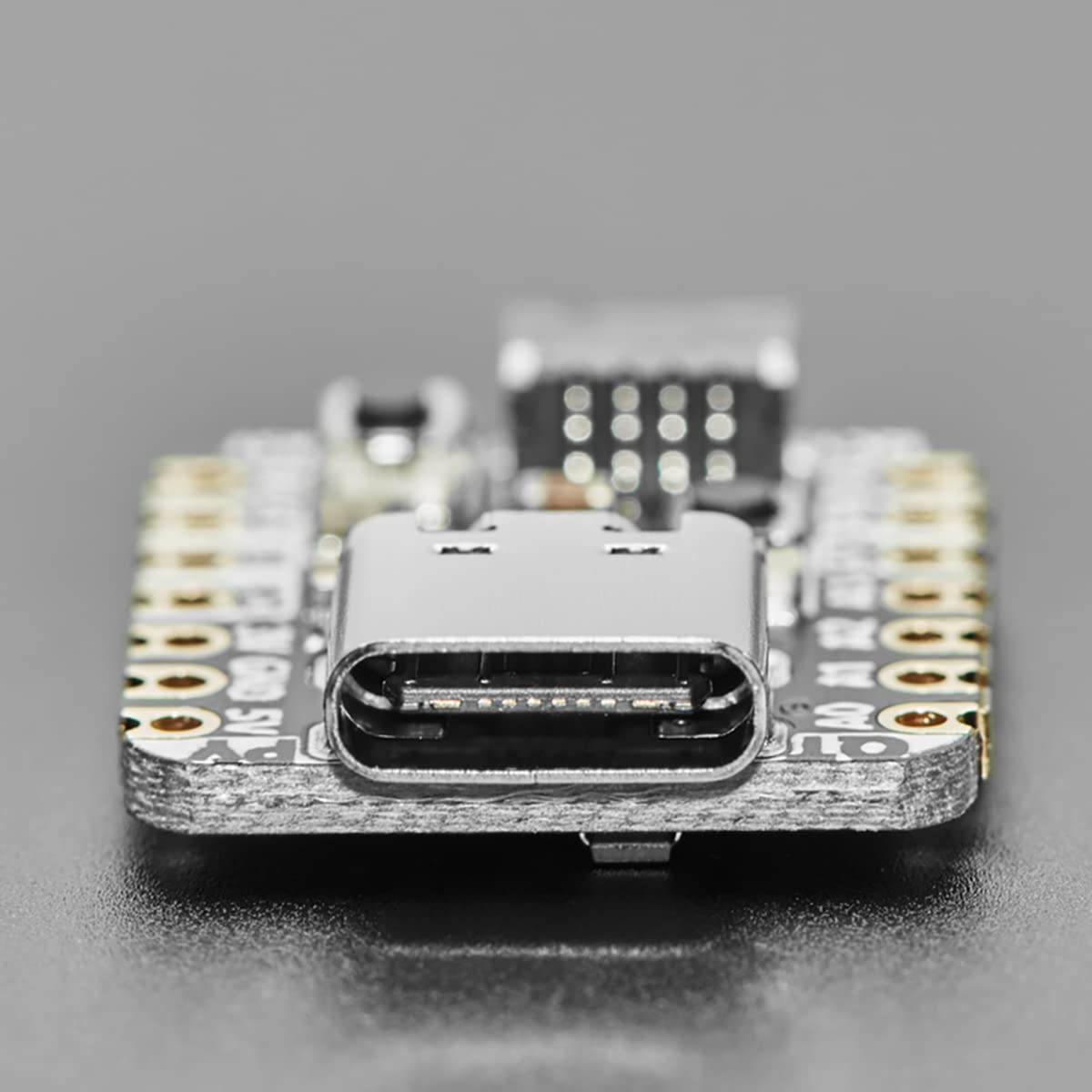

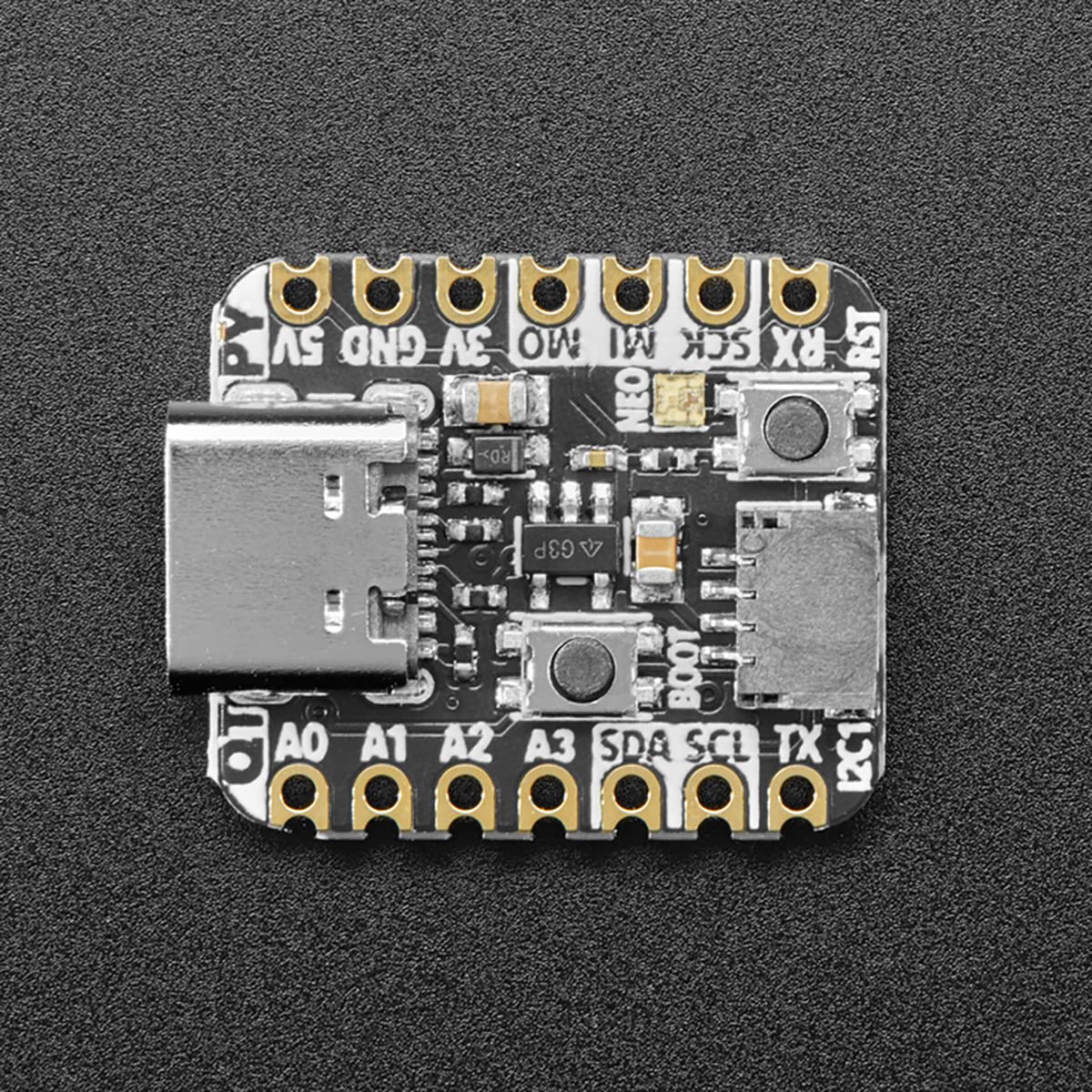

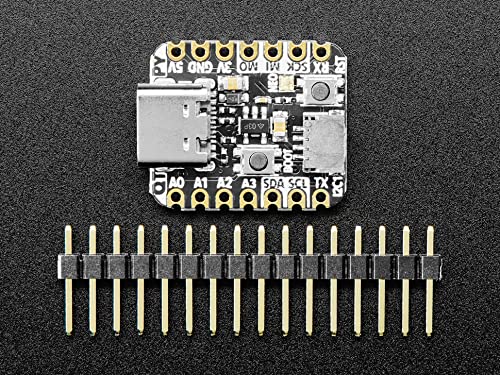

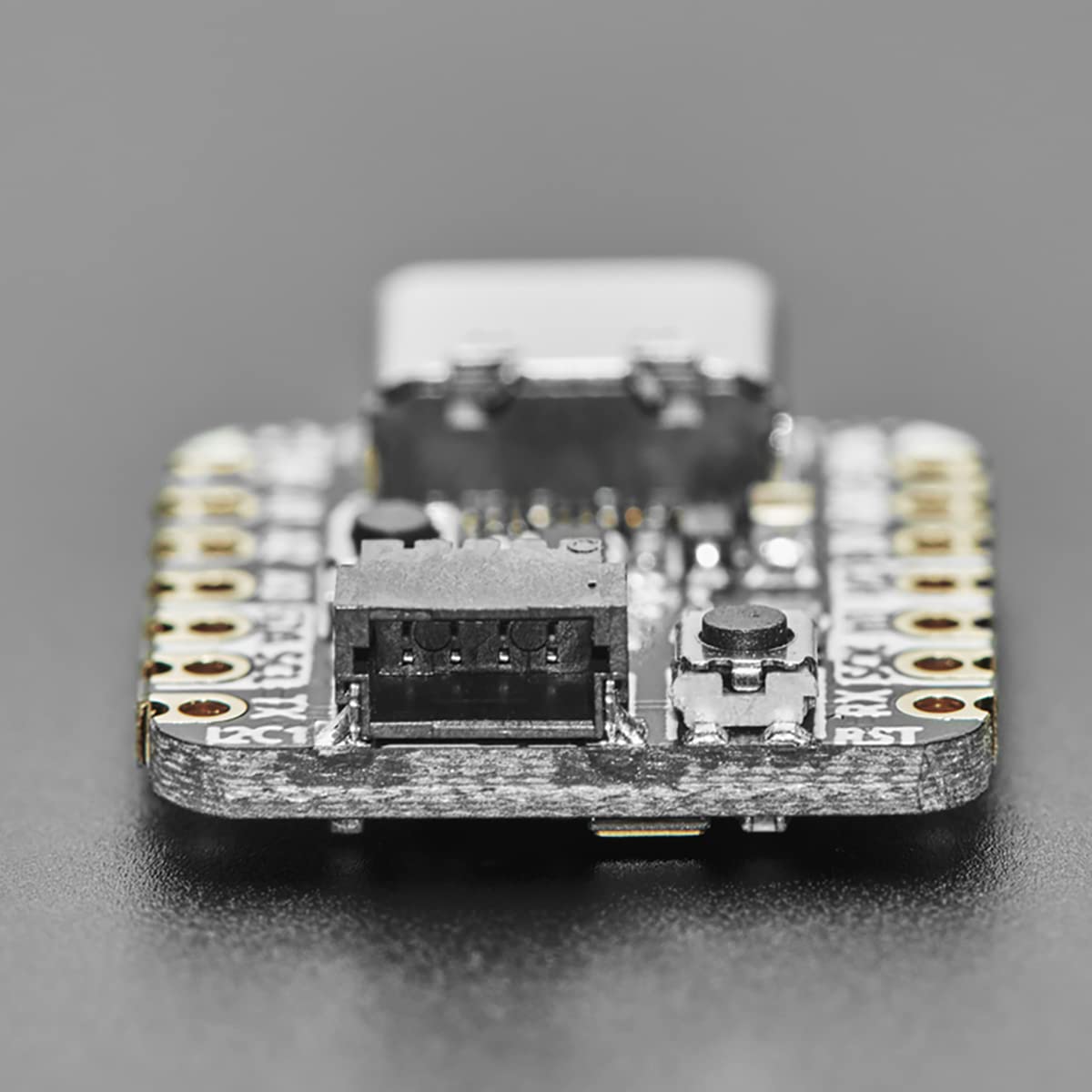

Pinout and shape is Seeed Xiao compatible, with castellated pads so you can solder it to a PCB with a cut out to allow the bottom components some breathing room. In addition to the QT connector, we also added an RGB NeoPixel (with a controllable power pin to allow for ultra-low-power usage), and both boot-mode and reset buttons (great for restarting your program or entering the bootloader). This QT Py comes with loose 0.1" headers you can solder in for breadboard use While the RP2040 has lots of onboard RAM (264KB), it does not have built-in FLASH memory. Instead, that is provided by the external QSPI flash chip. On this board there is 8MB, which is shared between the program it's running and any file storage used by MicroPython or CircuitPython. When using C/C++ you get the whole flash memory, if using Python you will have about 7 MB remaining for code, files, images, fonts, etc. Same size, form-factor, and pin-out as our SAMD-based QT Py USB Type C connector - If you have only Micro B cables, this adapter will come in handy! RP2040 32-bit Cortex M0+ dual-core running at ~125 MHz @ 3.3V logic and power 264 KB RAM 8 MB SPI FLASH chip for storing files and CircuitPython/MicroPython code storage. No EEPROM Native USB supported by every OS - can be used as USB serial console, MIDI, Keyboard/Mouse HID, even a little disk drive for storing Python scripts. Can be used with MicroPython or CircuitPython Built-in RGB NeoPixel LED 13 GPIO pins (11 breakout pads and two QT pads): Four 12 bit ADCs (one more than Pico) Two I2C ports (one on the QT connector, one on the breakout pads) SPI and UART peripherals, in standard QT Py locations, PWM outputs on every IO pin - for servos, LEDs, etc There are 6 GPIO in consecutive order for PIO compatibility 3.3V regulator with 600mA peak output 12 MHz crystal Both Reset button and Bootloader select buttons for quick restarts (no unplugging-replugging to relaunch code) Really really small
