QIANRENON USB2.0 Solderless Adapter Metal Case USB 2.0 Male to 5Pin Terminal Block Data Connector 480Mbps USB Screw Terminal Breakout Board Plug 5V/2A charging, for USB repair or DIY

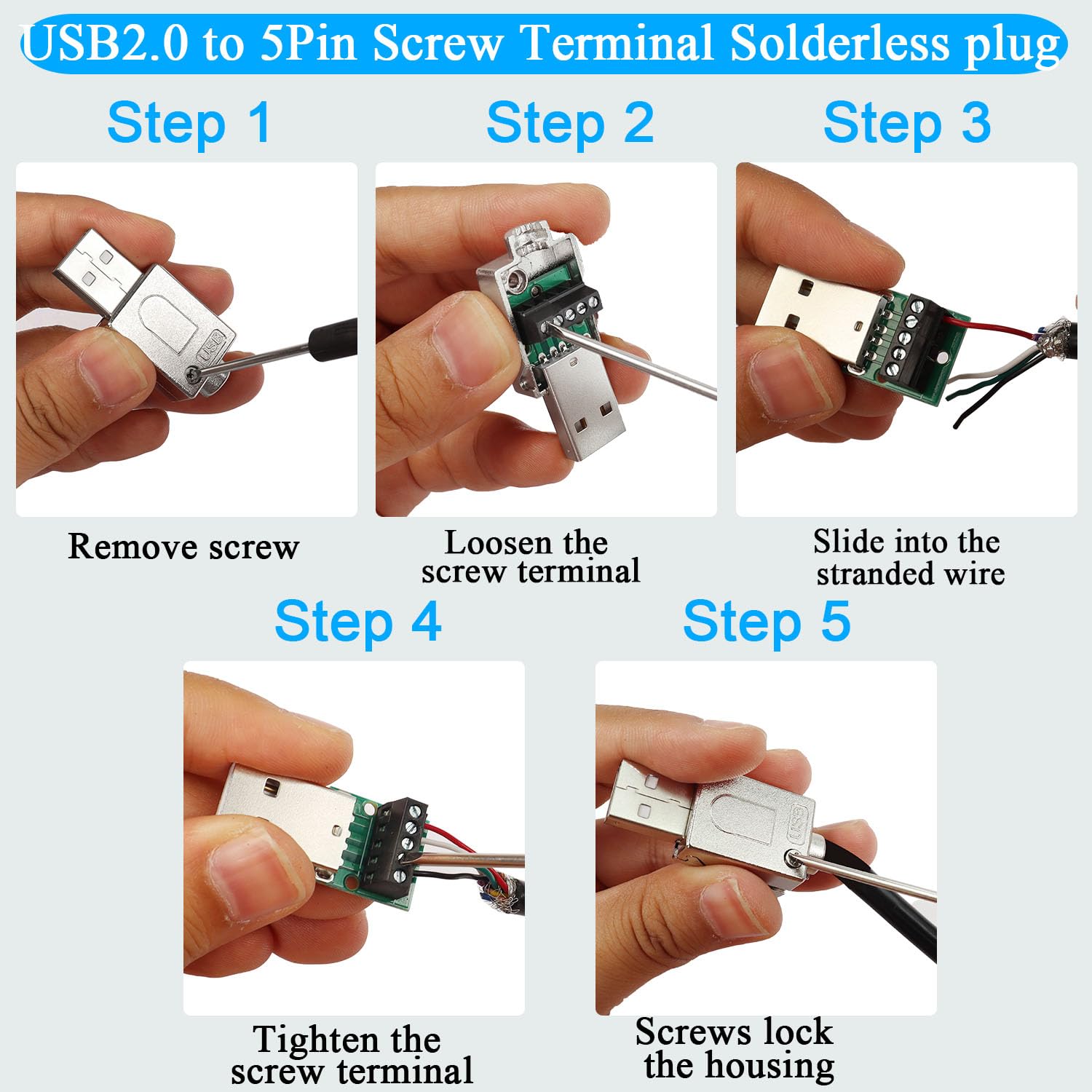

• 【USB Repair or DIY】Metal Case USB 2.0 male to 5Pin solderless terminal adapter. Solderless wire via screw terminals, allowing you to DIY or repair USB 2.0 cable freely. Wiring wire gauge is 24-18AWG.

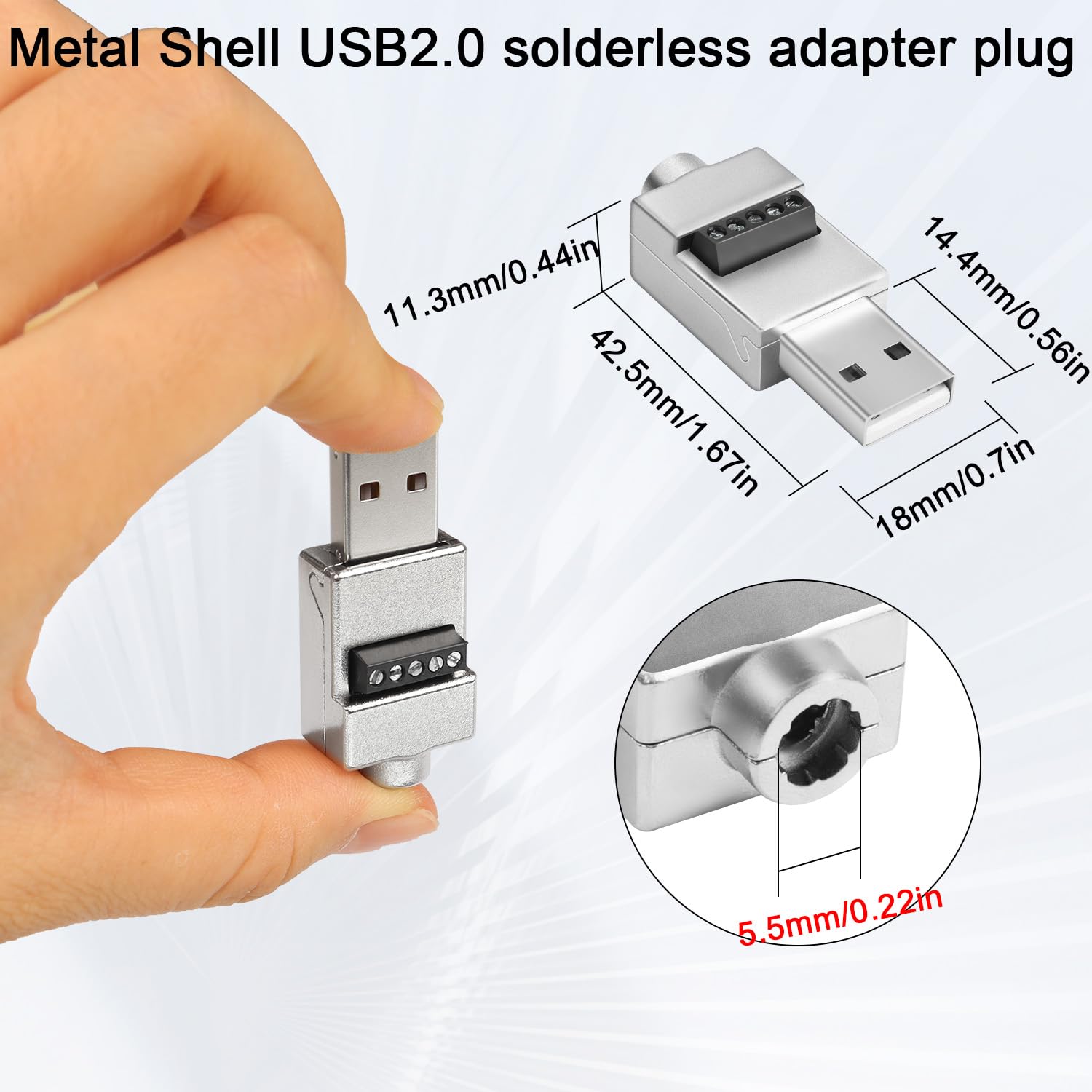

• 【Metal Shell】USB2.0 to 5Pin Screw Terminal Solderless plug. Metal housing for solid ground protection. Adopts screw-locking shell for easy installation. Cable OD ≤5.5mm/0.22in
• 【Data Transfer/Charging】USB2.0 male to 5Pin solderless cable board adapter.Support 480Mps data transfer or 5V 2A charging.

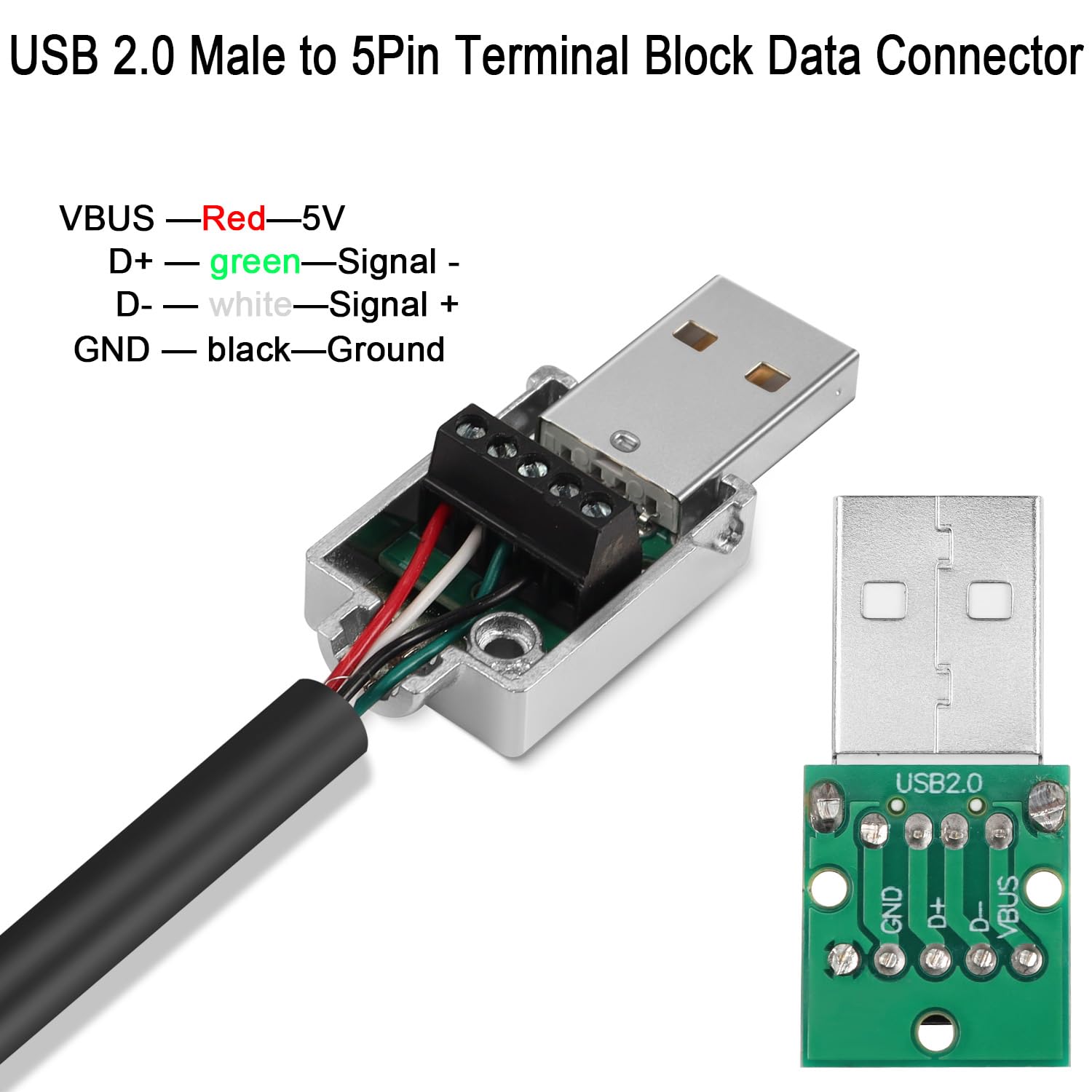

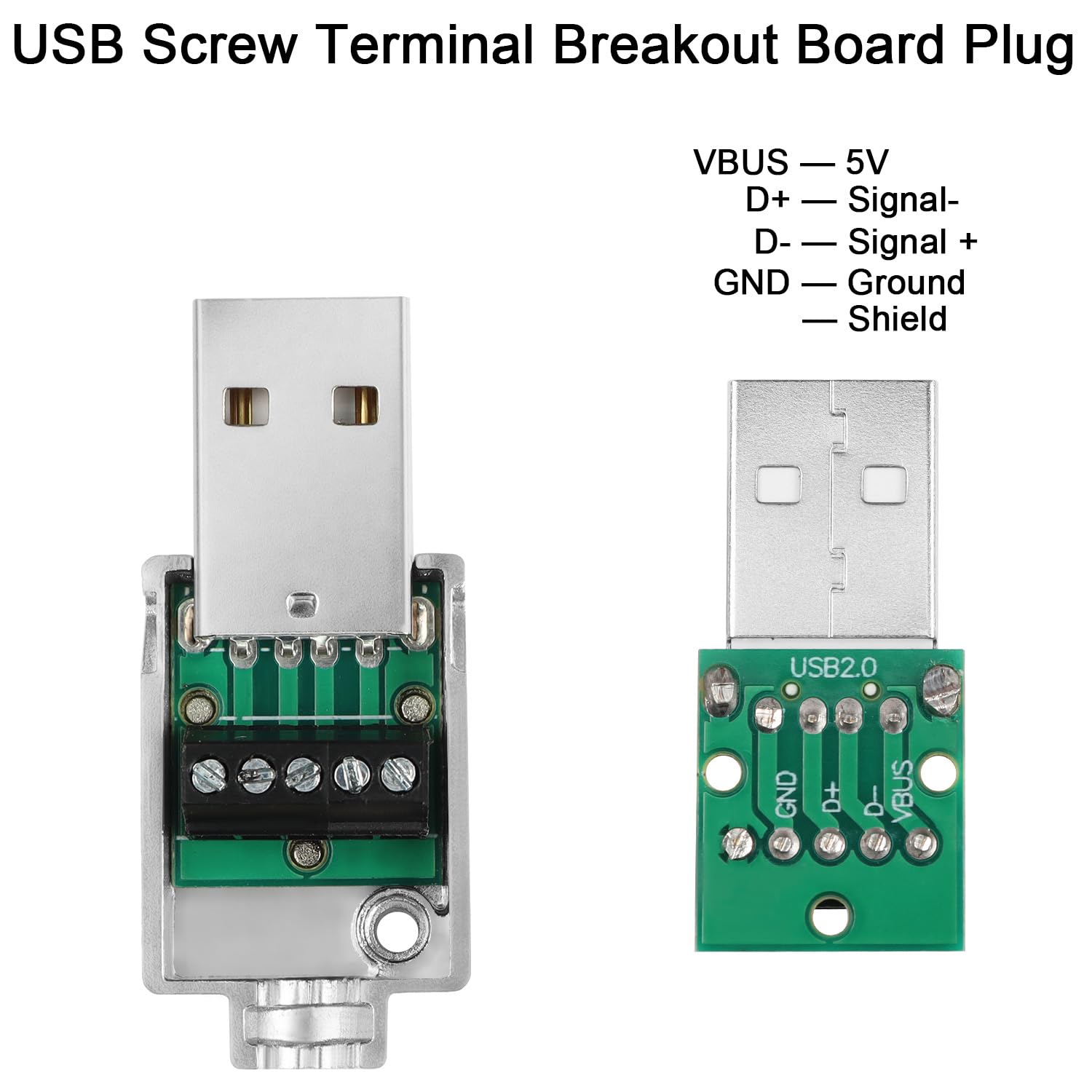

• 【Wiring】USB2.0 male solderless connector, 5-pin pin wiring: VBUS (5V DC), D+ (signal -), D- (signal +), GND (ground). Unmarked pins (shielded).
• 【Application】Metal Shell USB2.0 solderless adapter plug. Used for USB2.0 data cable, USB 2.0 charging cable and keyboard, mouse, printer and other USB cable repair.

Metal Case USB 2.0 Male to 5Pin Screw Terminal solderless adapter. With the screw terminal solderless cable, it gives you the freedom to DIY or repair the USB 2.0 cable. With its metal casing, it provides solid protection. With screw locking housing for easy installation. Used for USB 2.0 data cable, USB 2.0 charging cable and keyboard, mouse, printer and other USB cable repair. Interface type: USB 2.0 male Wiring: 5Pin screw terminal Wiring specification: 24-18AWG Cable OD: 5.5mm/0.22in Pin Wiring: VBUS (5V DC), D+ (signal negative), D- (signal positive), GND (GND) Function: Data transmission, charging Transmission rate: 480MBPS Charging power: 5V/2A Case: Metal Color: Silver Package: 1*USB 2.0 Male to 5Pin Wiring Terminal Solderless Connector, 1*Screwdriver
