QIANRENON 75 Ohm BNC Panel Mount Connector Adapter BNC Female to Female Panel Feed-Through Connector, XLR Panel/D-type Panel Mount,for Video Security Camera CATV System

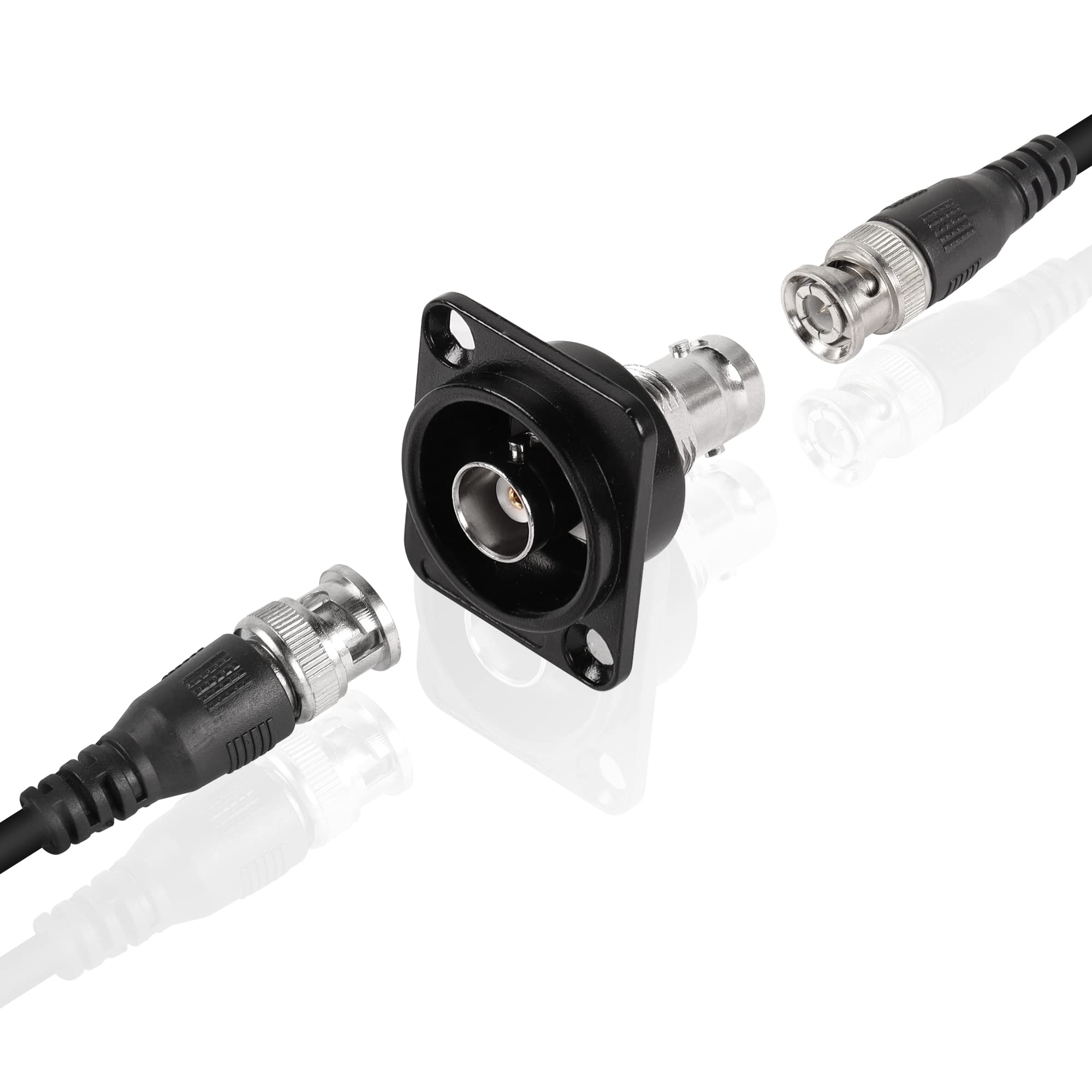

• ☆ BNC panel mount receptacle, suitable for developing custom communication system, RF electronic system input/output configuration, connecting BNC coaxial cable for safe and stable signal transmission.
• ☆ BNC socket to socket adapter, Applications in surveillance engineering, audio-visual imaging and laboratories, connecting wireless communication systems, TV, test equipment, LMR, wireless LAN, other RF electronic devices.

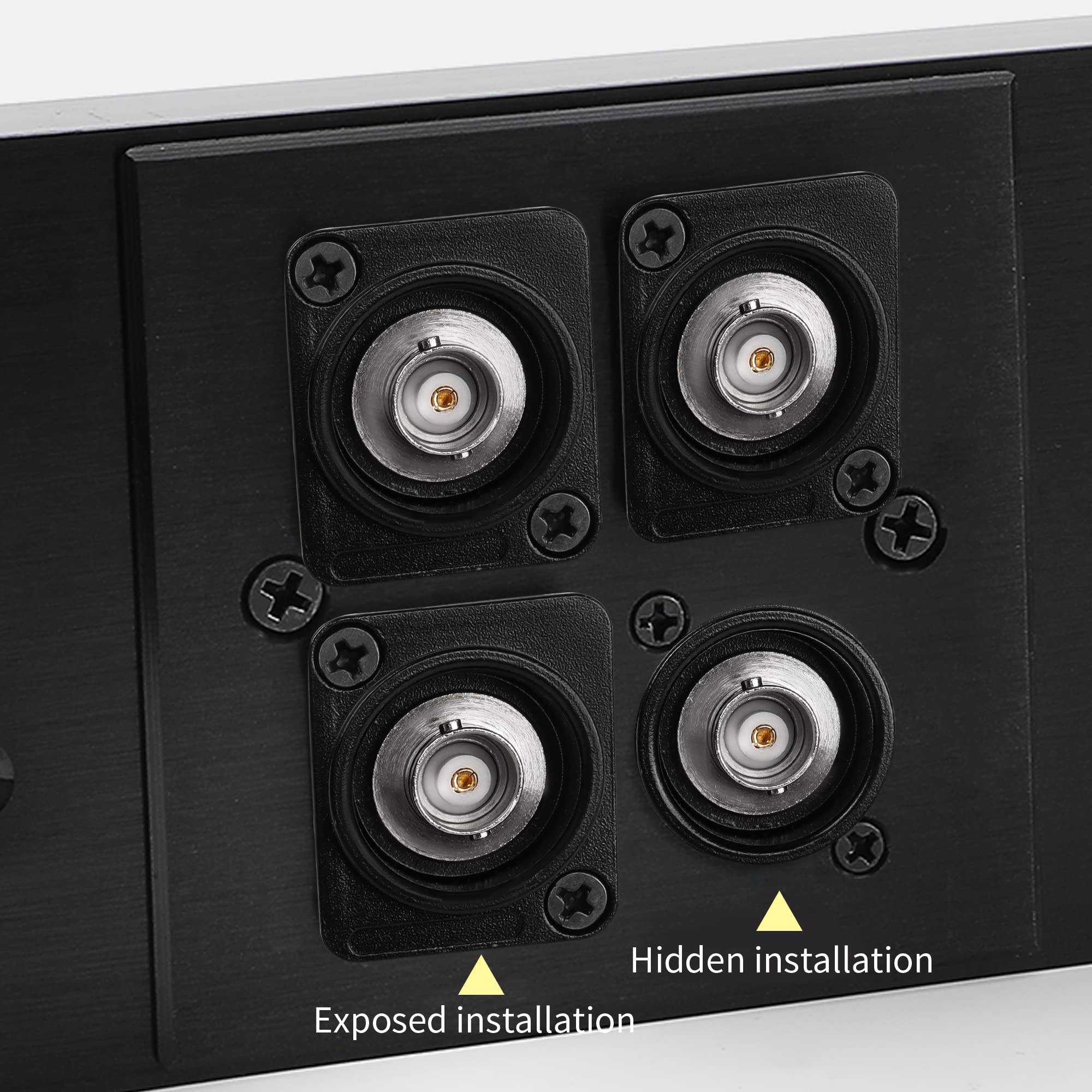

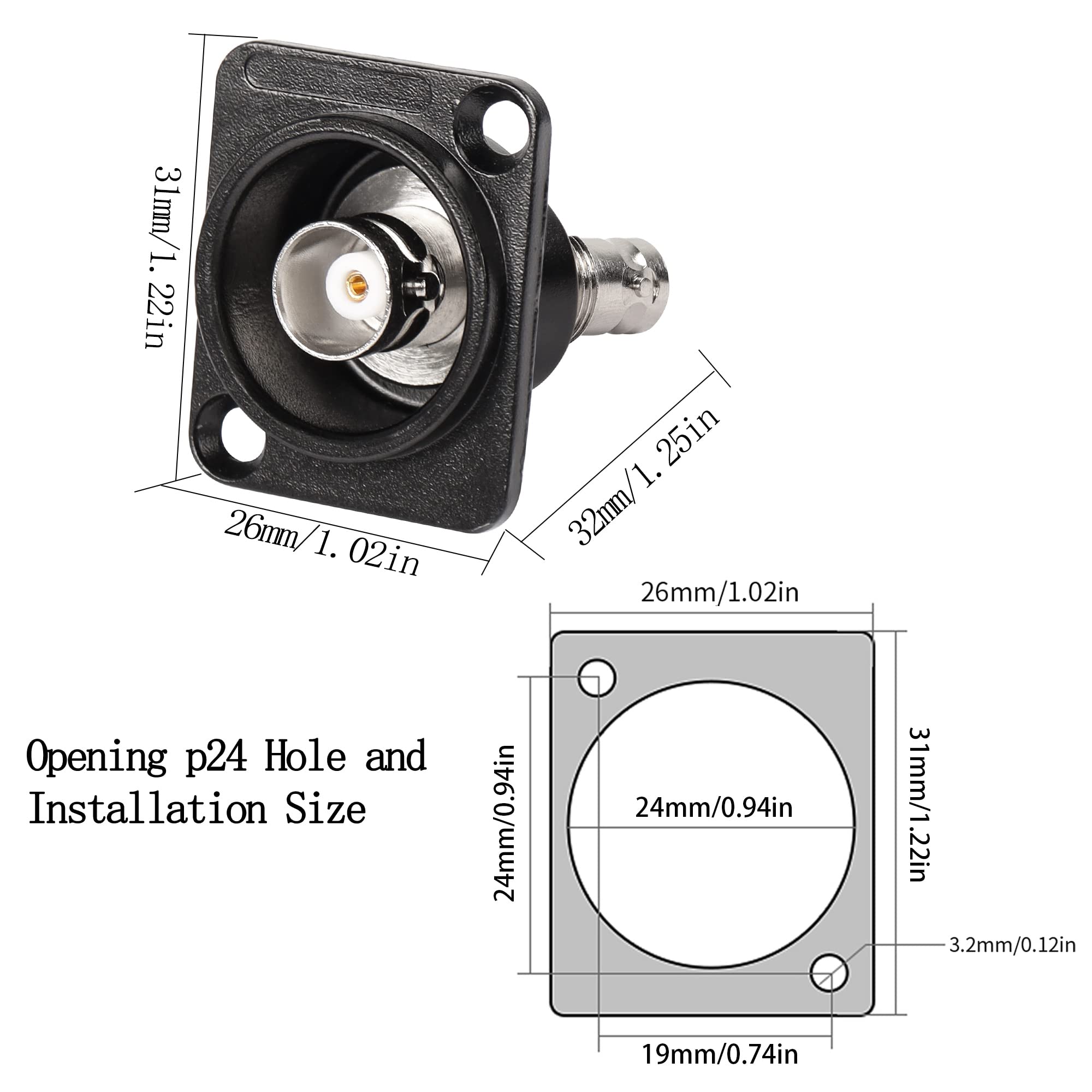

• ☆ BNC female to female panel mount adapter, built based on the industrial standard XLR panel / D-type panel aperture. Suitable for fixing on walls, desktops, equipment panels, racks, etc.
• ☆ BNC jack to jack board connector, impedance: 75 Ω
• ☆ USB B to USB A direct coupler.Zinc alloy die-cast housing that provides rugged chassis protection to ensure durability and meet the special needs of certain harsh conditions.

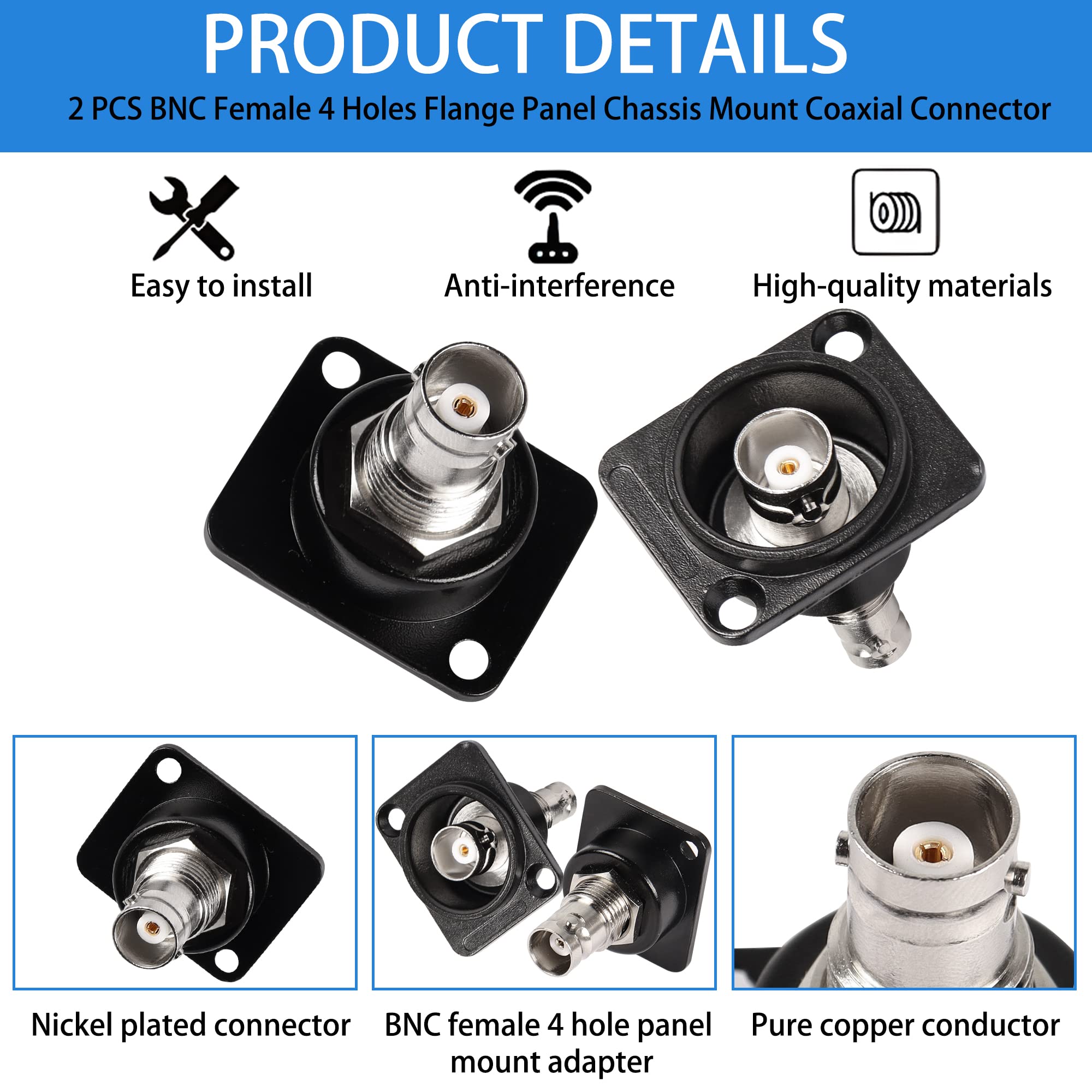

BNC female to female panel mount feed-through connectors.Ideal for developing custom input/output configurations for communication systems, RF electronic systems, and connecting BNC coaxial cables for secure, stable signal transmission. Based on industrial standard XLR panel / D-type panel aperture build. Suitable for fixing on walls, desktops, equipment panels, racks, etc. Used in surveillance projects, audio-visual imaging and laboratories to connect wireless communication systems, TV, test equipment, coaxial cables, LMR, wireless LAN devices, other RF electronic devices. Interface type: RF coaxial BNC female Impedance: 75 ohms (Ω) Contact resistance: <3mΩ Dielectric strength: 1.5 kVdc Frequency range: 1 MHz-100 MHz Rated current per contact: 1.5A Rated voltage: 50V Contacts: brass Insulator: PBTP 15 % GR Housing: Zinc alloy Package: 1*BNC female to female panel connector, 2*M3*10 screws.
