AC 80-260V 100A Electric Monitoring Test Module Multi-Function Power, Energy, Voltage and Current Tester Voltmeter Ammeter Board

• It displays through PC or other terminals, and you can download the software for PC. For other terminals, it need to be programmed by yourself
• There is a button on module for energy reset, simply press and hold the button for 5 seconds and release, then press the button again to finish energy reset
• This is a electric monitoring test module which can be used to test power, energy, voltage and current
• The test module is design to test high power equipment and you can observe the accumulative process intuitively for the low-power(within 100W)load test

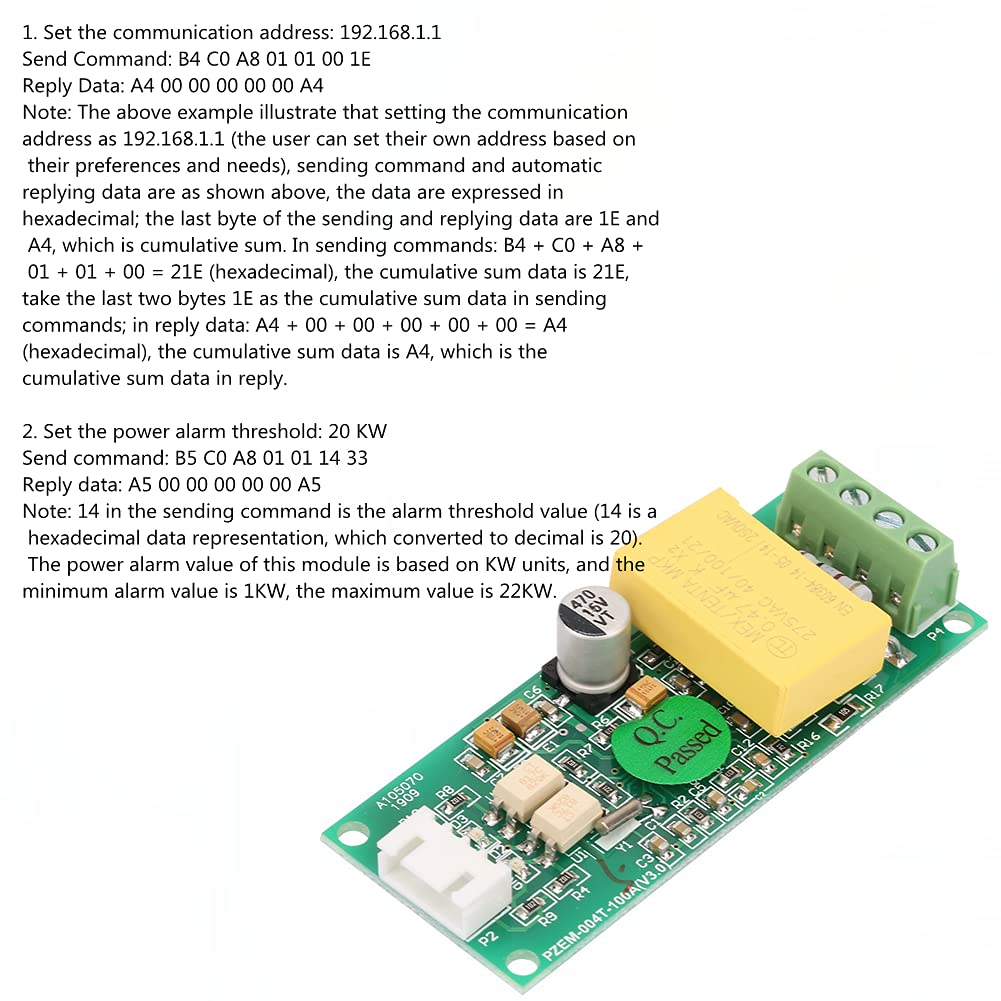

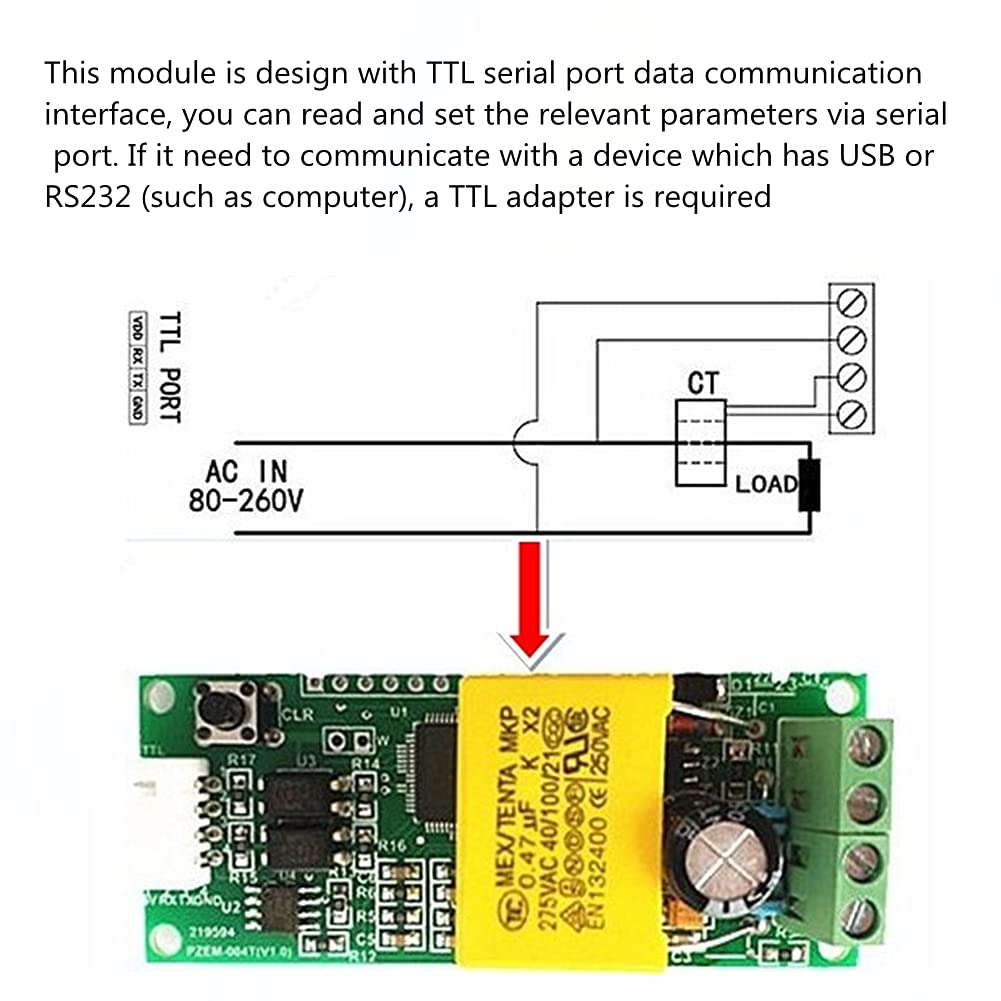

• The connection of this module is divided into 2 parts: voltage, current input connection and serial port communication, and you can use different TTL adapters to make it communicate with various terminals

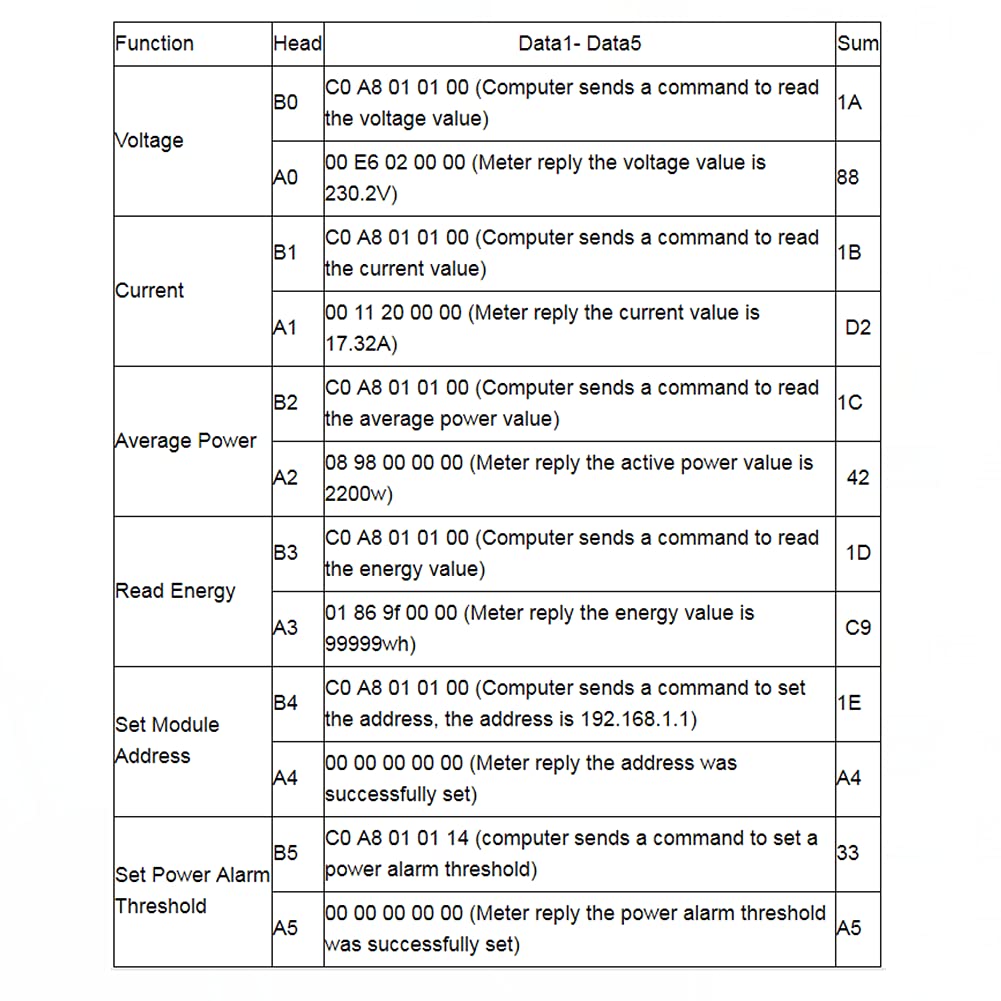

products description: This is a electric monitoring test module which can be used to test power, energy, voltage and current then displayed on a PC or other terminals. It can store data when power off, and store the accumulated energy data before power off. Designed with one key reset button, you can reset energy data by simply pressing one button. The TTL serial port can communicate, read and set parameters with a variety of terminals through a USB adapter. Feature: This is a electric monitoring test module which can be used to test power, energy, voltage and current. The connection of this module is divided into 2 parts: voltage, current input connection and serial port communication, and you can use different TTL adapters to make it communicate with various terminals. The test module is design to test high power equipment and you can observe the accumulative process intuitively for the low-power(within 100W)load test. There is a button on module for energy reset, simply press and hold the button for 5 seconds and release, then press the button again to finish energy reset. It displays through PC or other terminals, and you can download the software for PC. For other terminals, it need to be programmed by yourself. Spezifikations: Working Voltage: 80~260VAC Test Voltage: 80~260VAC Rated Power: 100A/22000W Working Frequency: 45-65Hz Measurement Accuracy: 1.0 Board Size: 7.3 x 3 x 2.3
