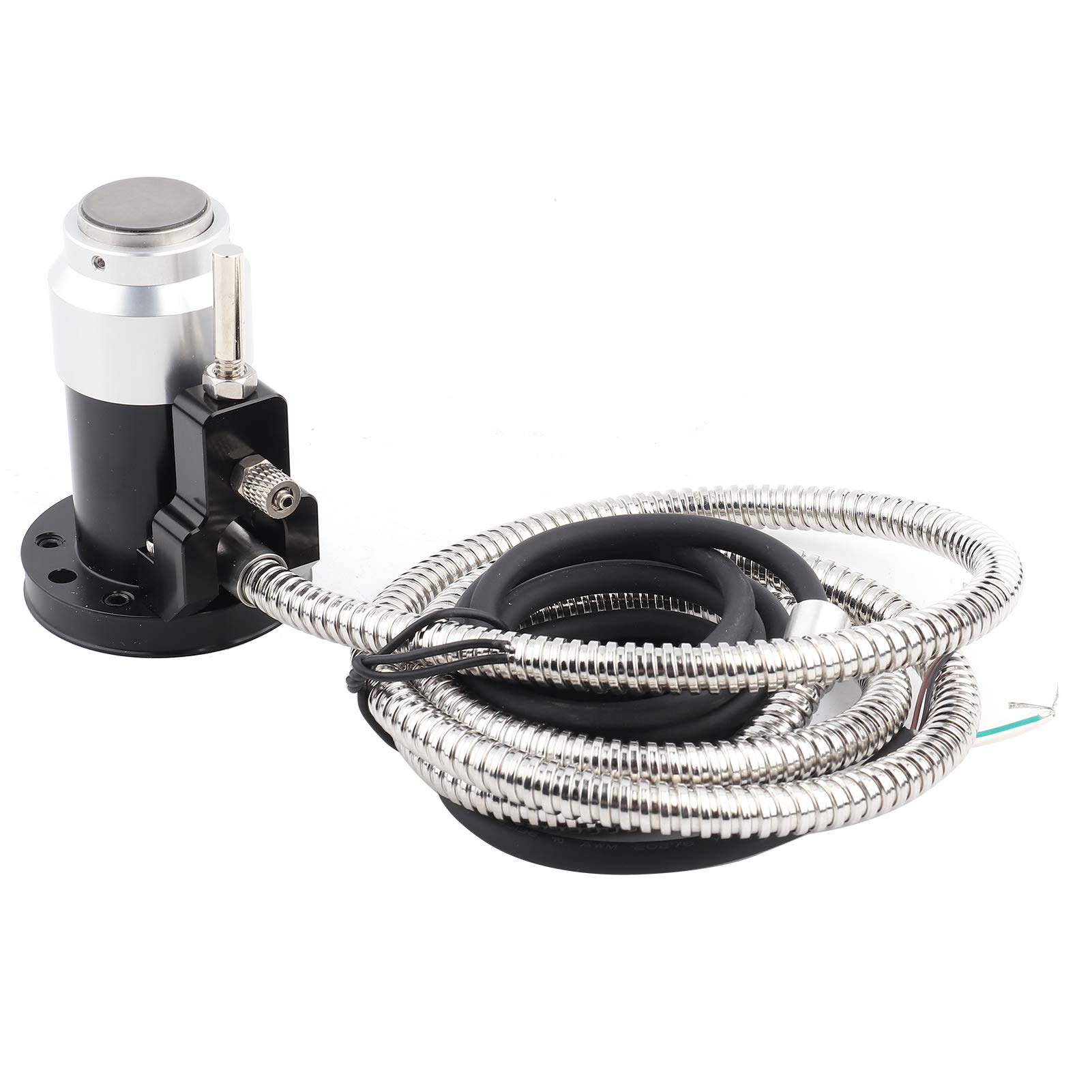

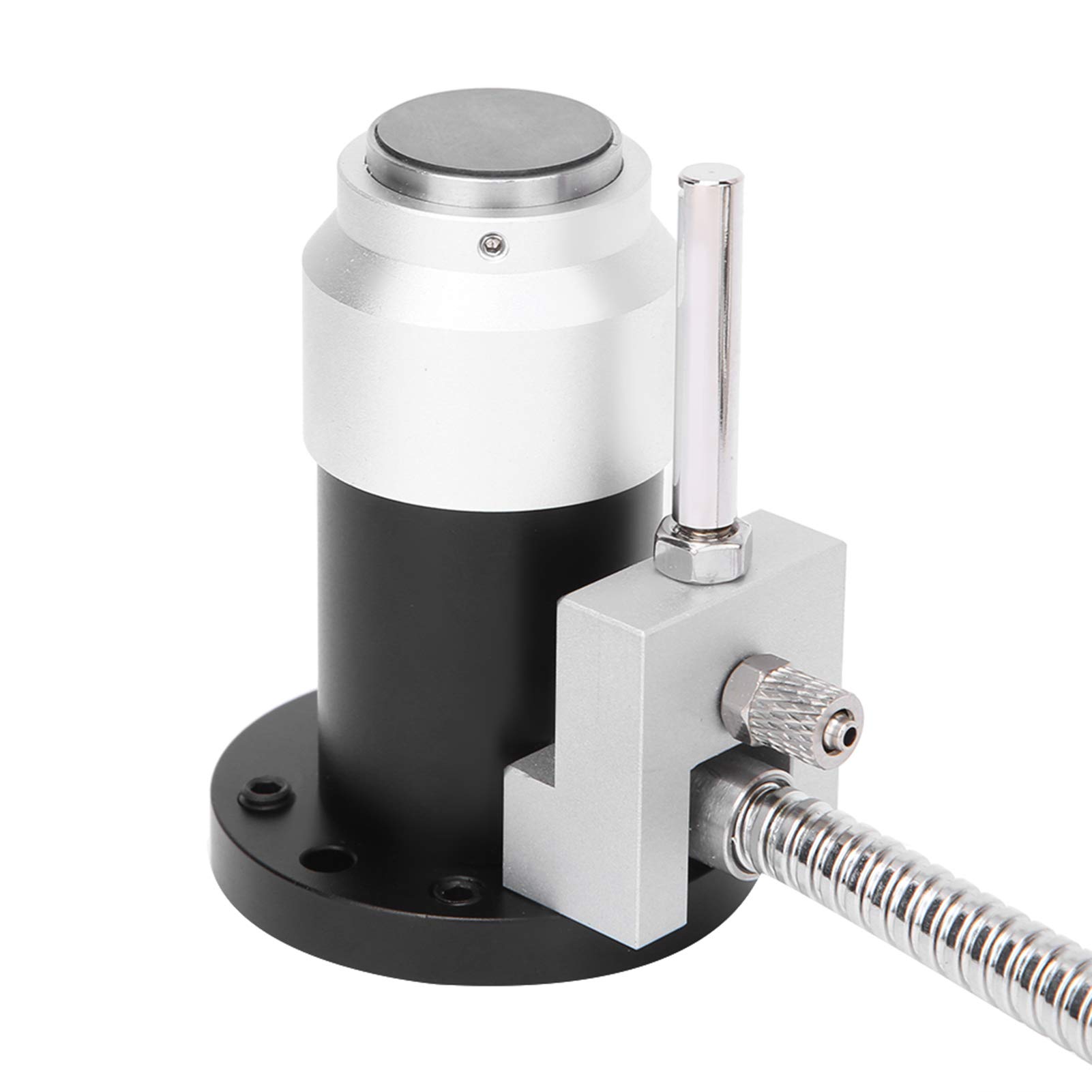

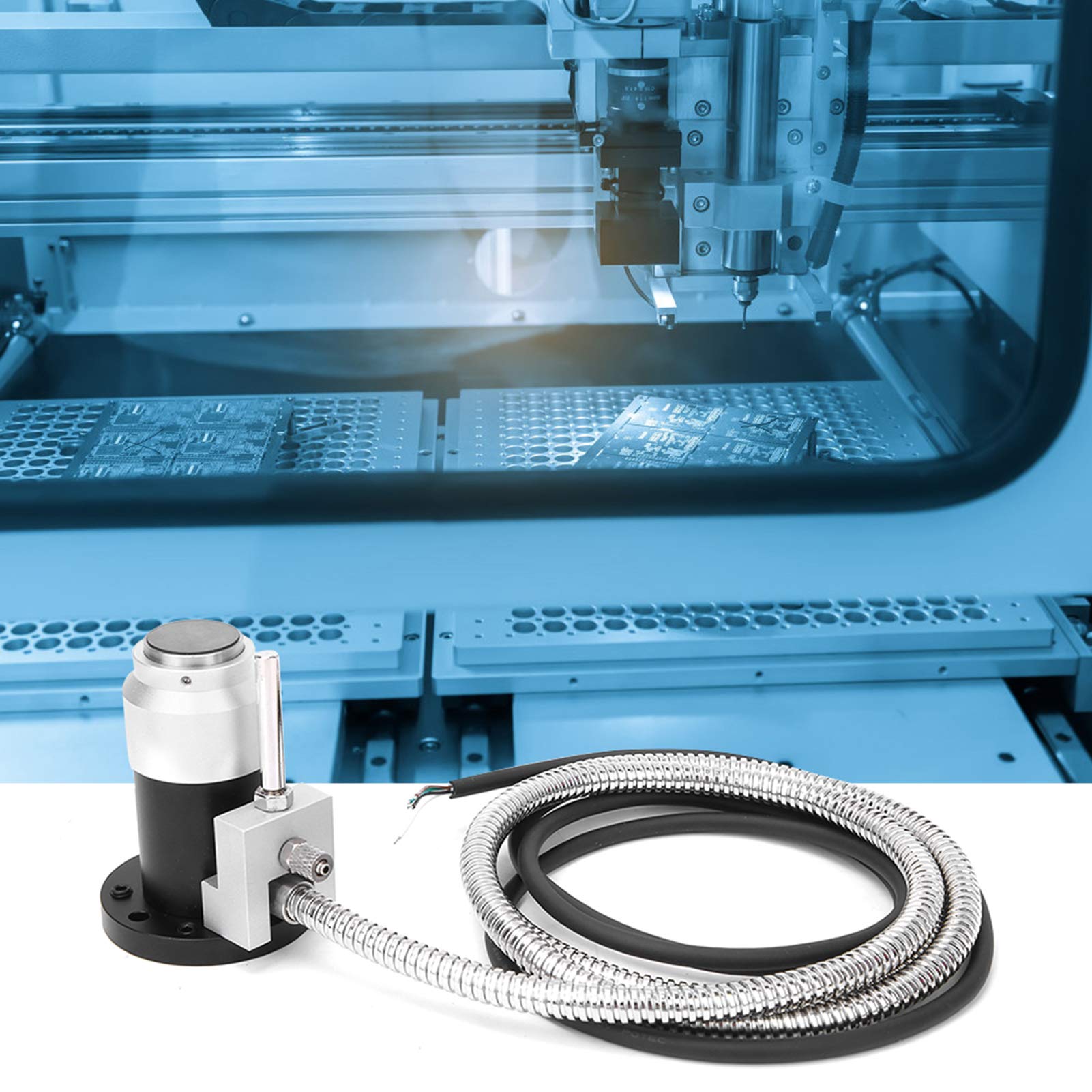

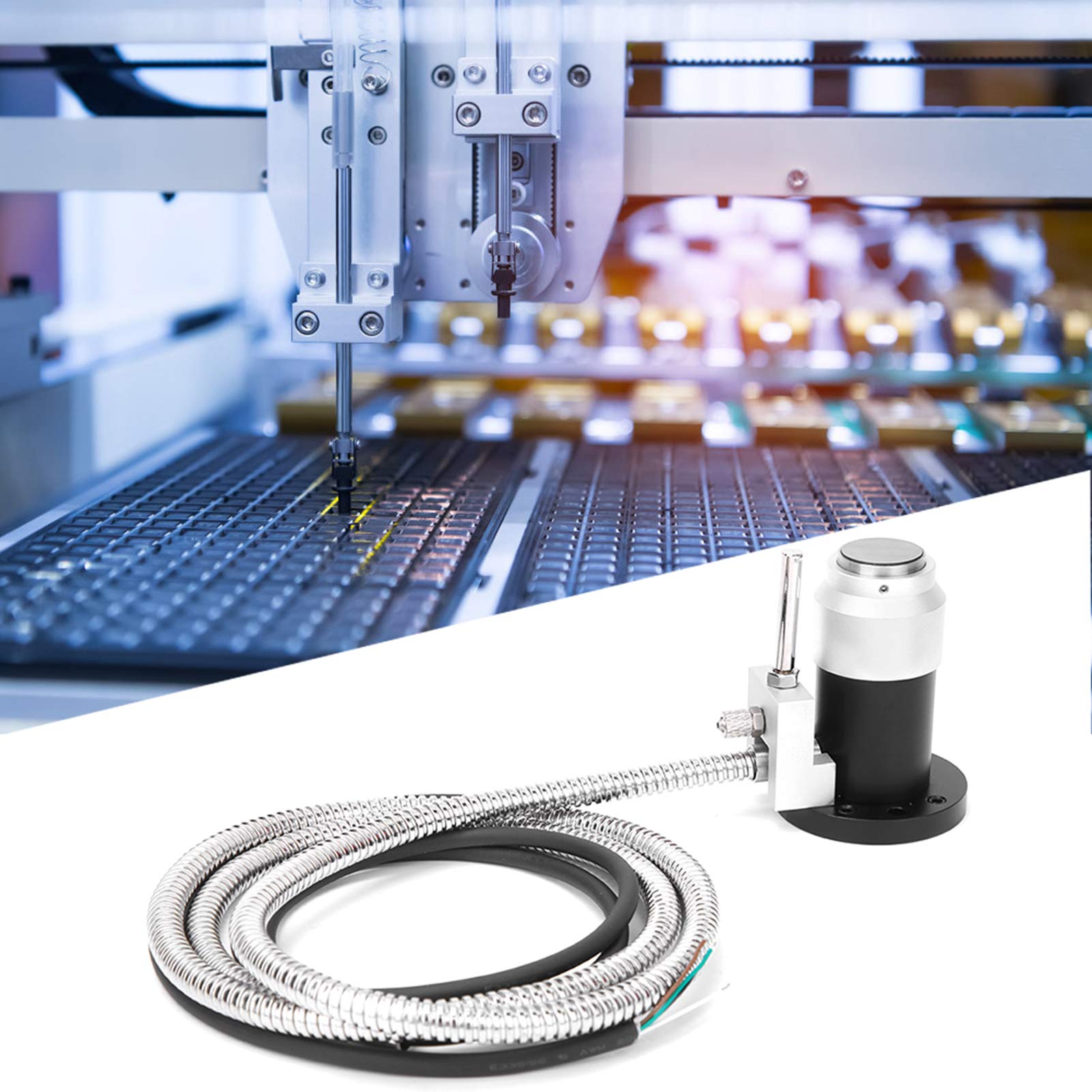

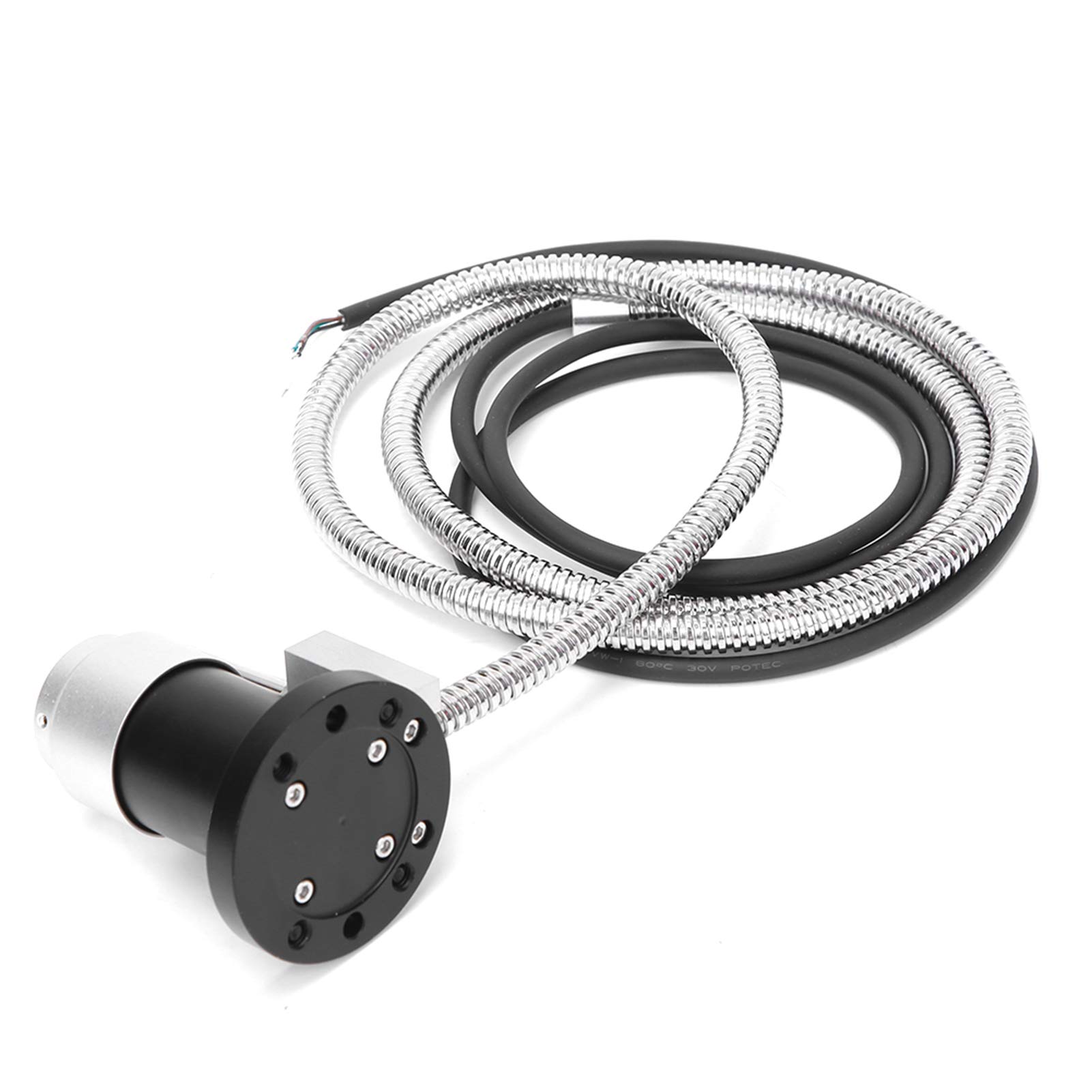

Pre Setter Tool Setter, IP67 5mm 0.001mm Accuracy Automatic Tool Setting Gauge, Normally Closed CNC Automatic Tool Sensor Gauge Changer, Automatic Tool Setting Gauge, for CNC Router Engraver Machine

• STURDY MATERIALS: Normally closed CNC tool setting touch sensors are made from materials that ensure product stability and longevity, making them ideal for precision machining applications.
• HIGH PRECISION: CNC tool touch sensor, the sharp angle of the tool directly touches the tip of the tool related to the machining dimensions, measures its position and dimensions and outputs a signal with high precision.

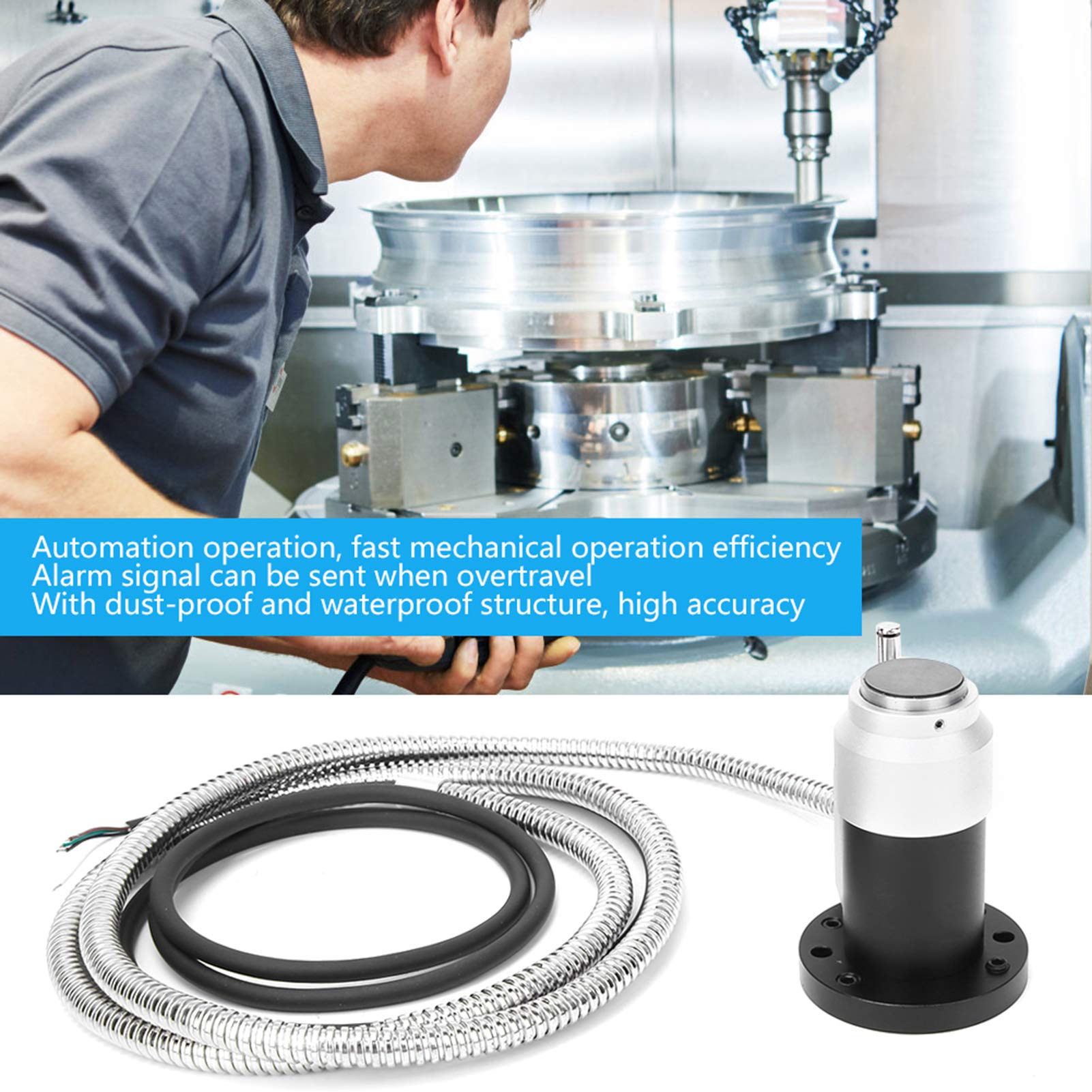

• AUTOMATIC OPERATION: The Automatic Tool Setter is automated for efficient mechanical operation, ensuring fast mechanical operation and the ability to sound an alarm in the event of an overtravel.
• RESISTANT TO DUST AND WATER: The automatic tool setting gauge is resistant to coolant and flying chips, providing excellent durability in conditions where coolant and chips are flying.
• OUTSTANDING PERFORMANCE: The automatic tool setting sensor does not require a built-in amplifier, is not subject to deviation due to fluctuations in the temperature of the workpiece on which the tool is located and the supply voltage, and can be directly input to NC and programs (PLC).

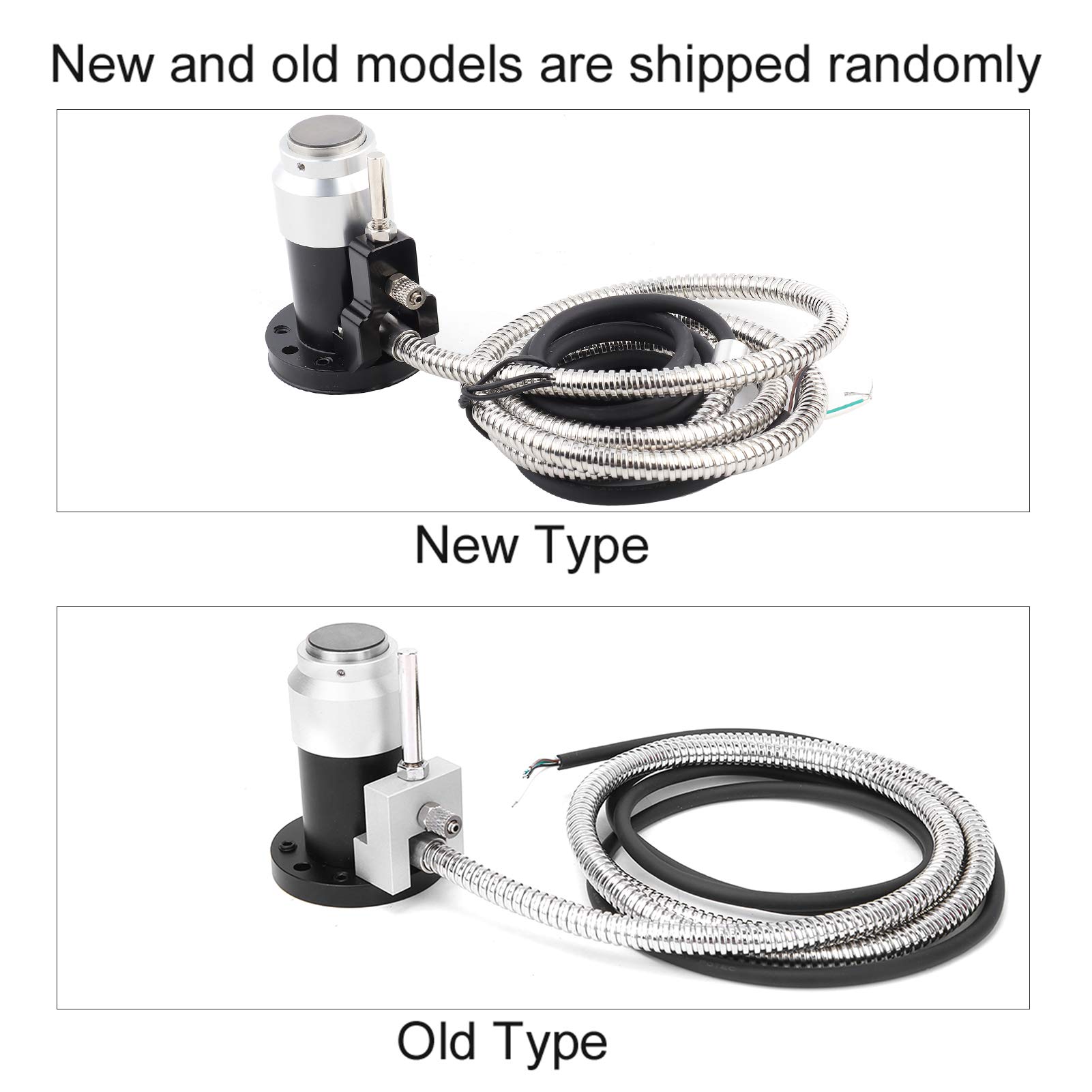

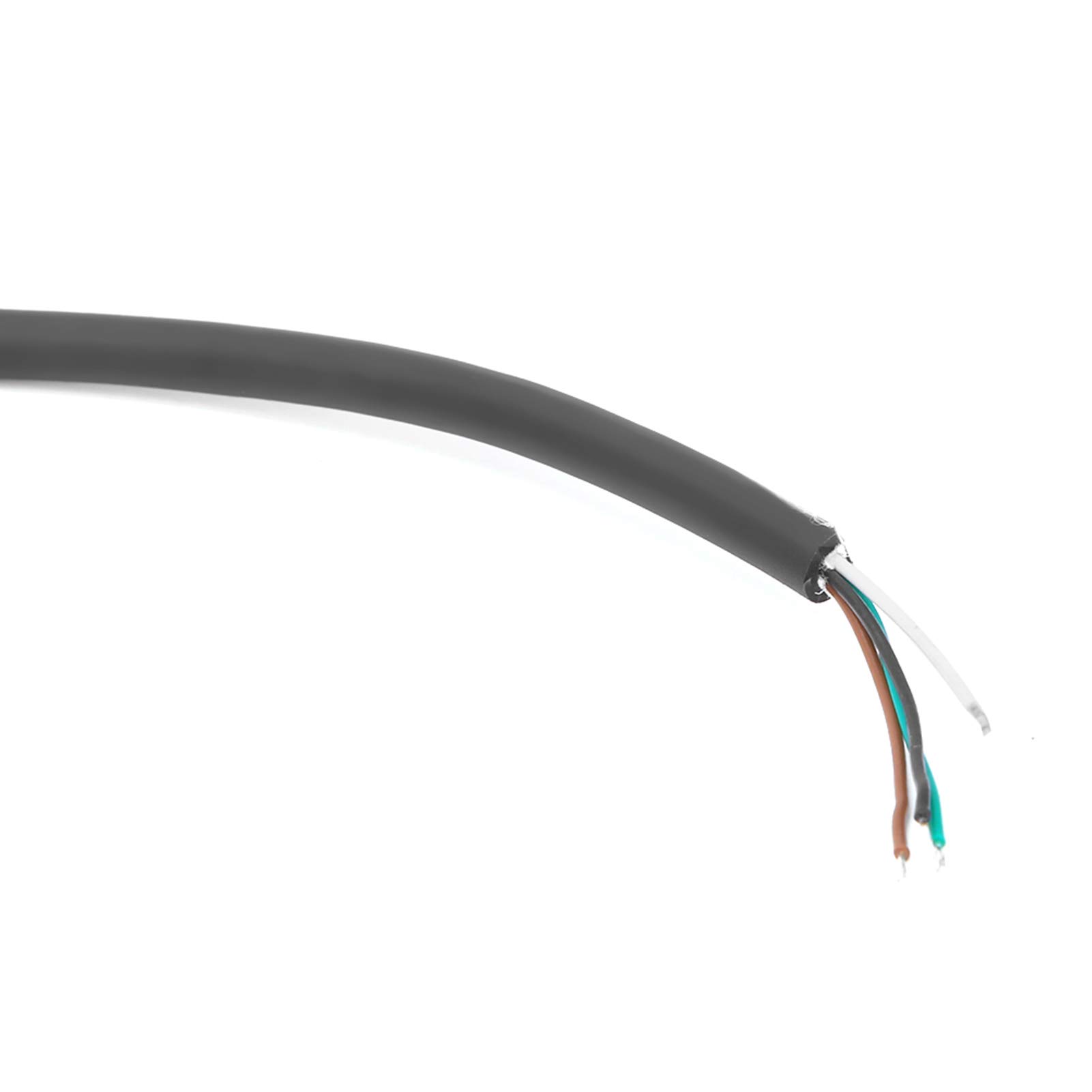

Specification: Item Type: Automatic Tool Setting Gauge Output Mode: B: NC (normally closed) Stroke: 5mm Repeatability: 0.001mm Electric Shock Life: 3 million times Protection Structure: IP67 Contact Force: 1.5N Material of the Contact Area: Hard-bonding Housing Material: Ground 4S Protection Tube: 1 meters minimum bending radius R25 Cable: 2 meters oil resistant 4-core Electrical Aspects: 1. Contact rating DC24V ± 10% 20mA (maximal) 2. When the body of the machine is grounded, use the tool setter to install it on the side of the ground wire. 3. For the tool setting instrument with LED, pay attention to the connection (+) (-) when connecting. Recommended value is 10mA, resistance load. 4. For the output structure when the interface unit is attached, please read the user manual Package List: 1 x Automatic Tool Setting Gauge Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
