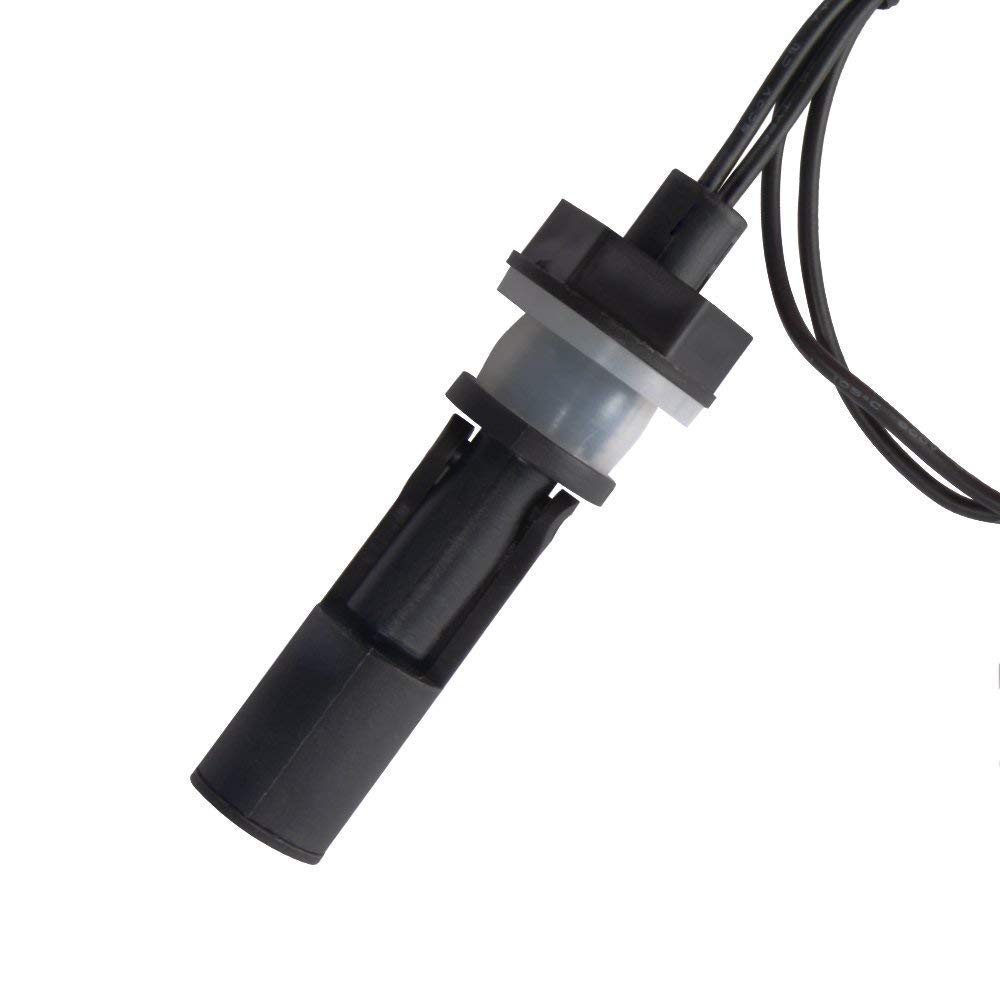

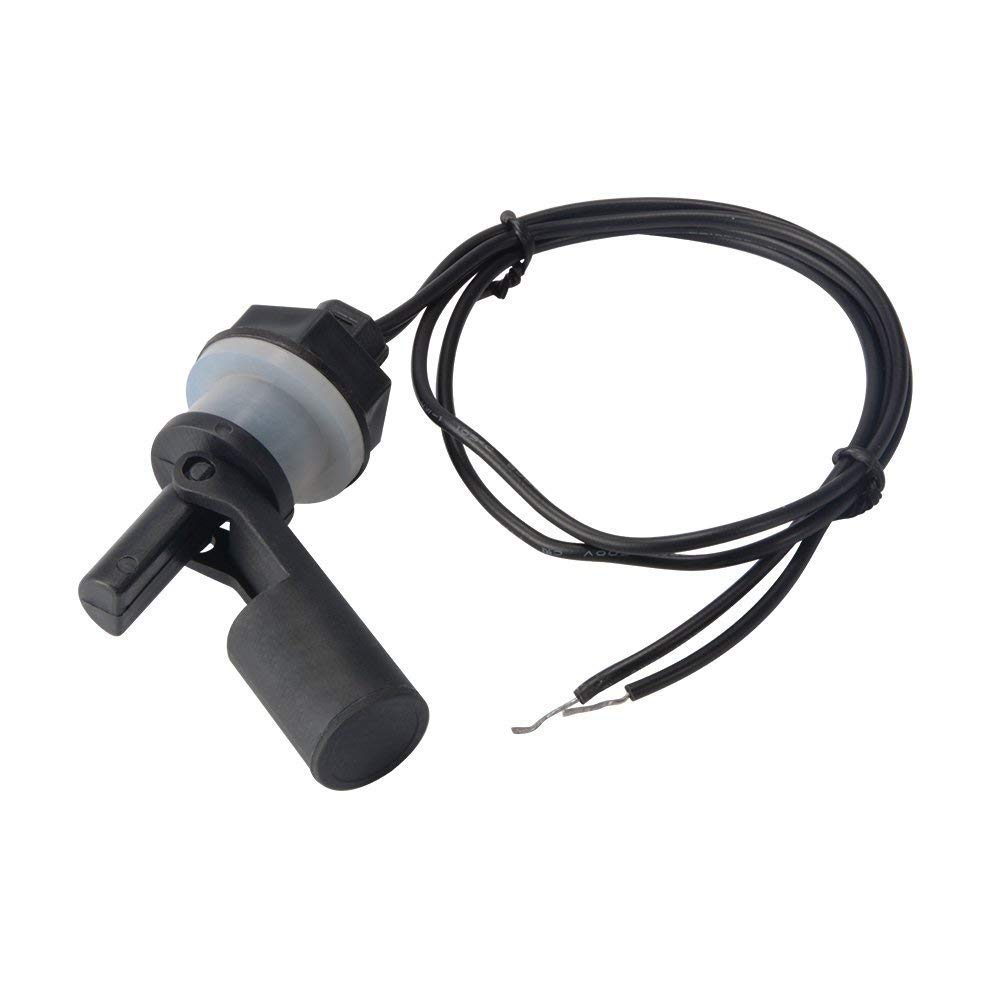

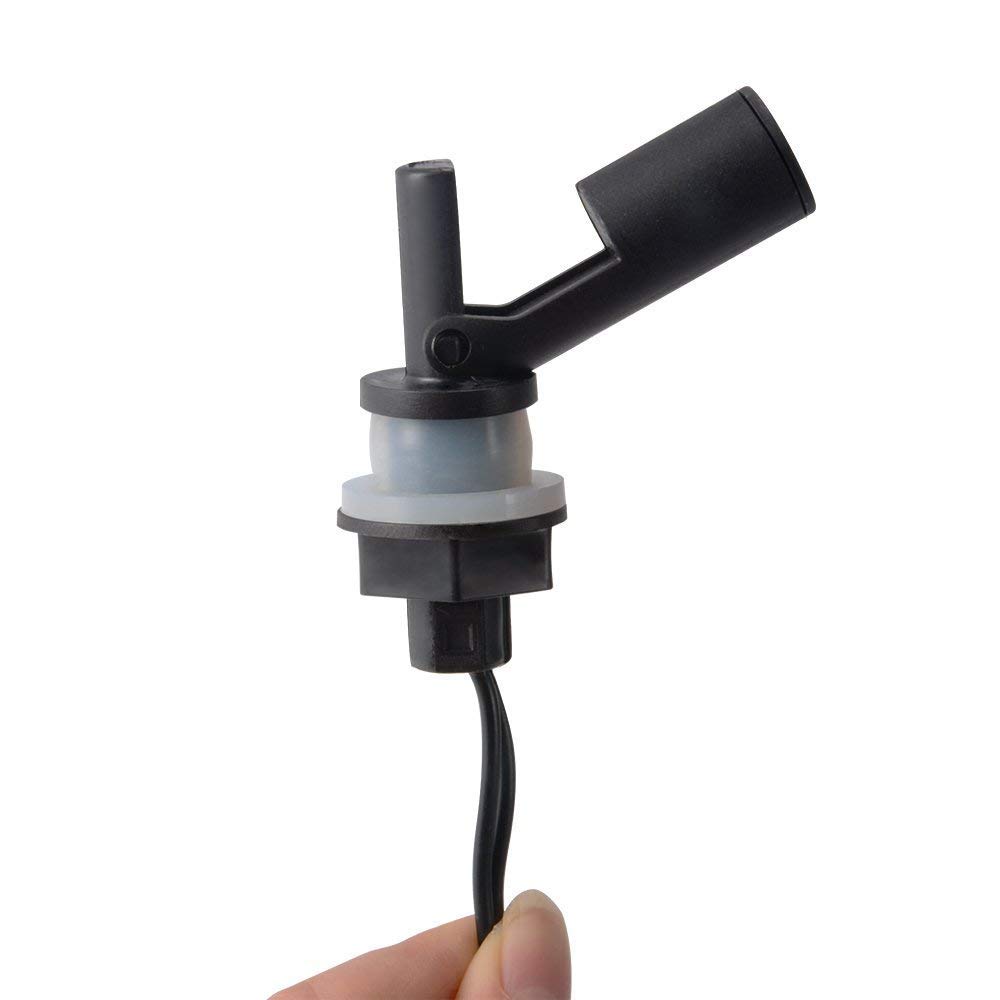

PP Low Pressure Side Mount Horizontal Water Level Sensor Liquid Level Sensing Float Switch Wire Cable 3Pcs

• Material: PP. Line length: 400mm.
• Maximum temperature resistance: 80 (°C).Working pressure: 1.6 (Mpa).
• Working voltage: 0-110 (V). Working current: 1.5 (A). Working temperature: -30-60 (°C).
• Used to sense the level of liquid within a tank, it may actuate a pump, an indicator, an alarm, or other device.
• It can be used in water dispensers, water heaters, solar energy, air conditioners, humidifiers, bathroom equipment, sales machines, fuel tanks, water towers, liquid level control of chemical liquids, kitchen equipment, water heaters and other water heating equipment anti-dry water level sensors.

Features: 1. Multi-point control is available, and the control switch can be customized with the liquid level position. 2. The reed switch does not need to be powered separately. 3. Single support can be used for multi-point control, which is more than the unit price of other liquid level switches. 4. High reliability, low wiring cost and easy installation. 5. The junction box has complete specifications, such as aluminum alloy, plastic, stainless steel and other materials. 6. The finished material is made of stainless steel SUS304/316, which can be used in high temperature and high pressure places, and PP, PVC, PVDF plastic materials, which can be used in strong acid and alkali places. 7. Junction box protection grade IP-65 or above. 8. This product can be applied to liquids with different densities, different acids and bases, different pressures and temperatures. Specifications: Working voltage: 0-110 (V) Working current: 1.5 (A) Material: PP Working temperature: -30-60 (°C) Maximum temperature resistance: 80 (°C) Working pressure: 1.6 (Mpa) Maximum withstand voltage: 1.6 (Mpa) Line length: 400mm Technical Parameters: Low pressure: 1. Contact capacity: 10W/SPST 2. Switching current: 0.5A 3. Switching voltage: 100VDC 4. Contact resistance:<100mΩ 5. Electrical life: 1 million times 6. Working temperature: -10 ° C ~ 60 ° C High pressure: 1. Contact capacity: 50W/SPST 2. Switching current: 1.5A 3. Switching voltage: 220VAC 4. Contact resistance:<100mΩ 5. Electrical life: 1 million times 6. Working temperature: -10 ° C ~ 60 ° C Working 3 × Water Level Switch
