Poppstar DIN rail power supply P-30-5- 5V 15W (Input 100-240 V AC 50/60 Hz, Output 5 V DC 3 A 15 W)

• Use e.g. in switch cabinet, control of building services: bell transformer, door intercom, access system, automation/communication technology

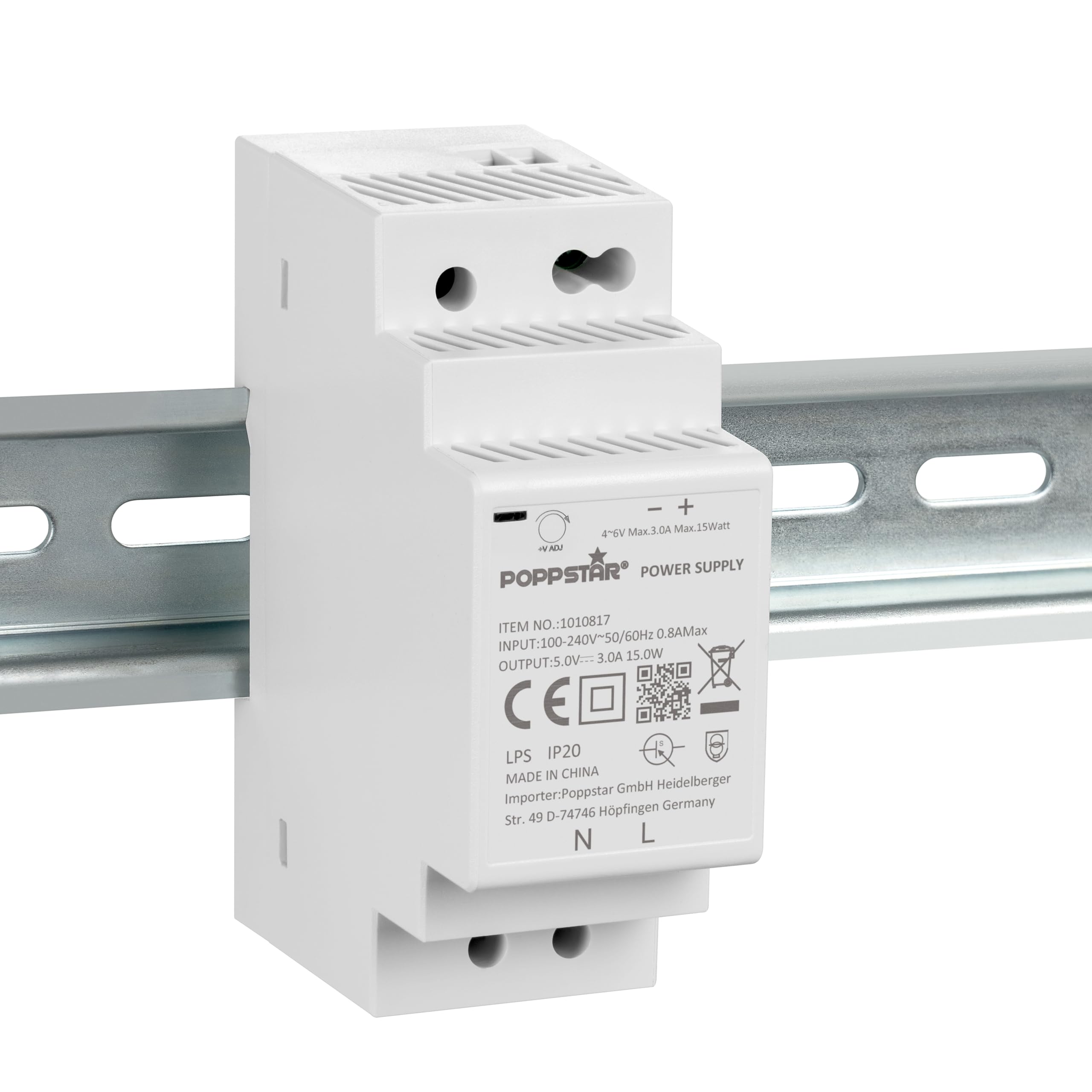

• Switching power supply unit top-hat rail 5V DC: fastening using click system, compatible with standard top-hat rail TS 35/7.5 and TS 35/15
• Output voltage 4...6VDC, transformer with DC OK indicator light, overload protection (hiccup mode), overvoltage protection, short-circuit fuse
• DIN rail power supply 5V DC with optimum operating temperature -10 to +40 °C; storage temperature -40 to +85 °C; storage humidity 10-95%

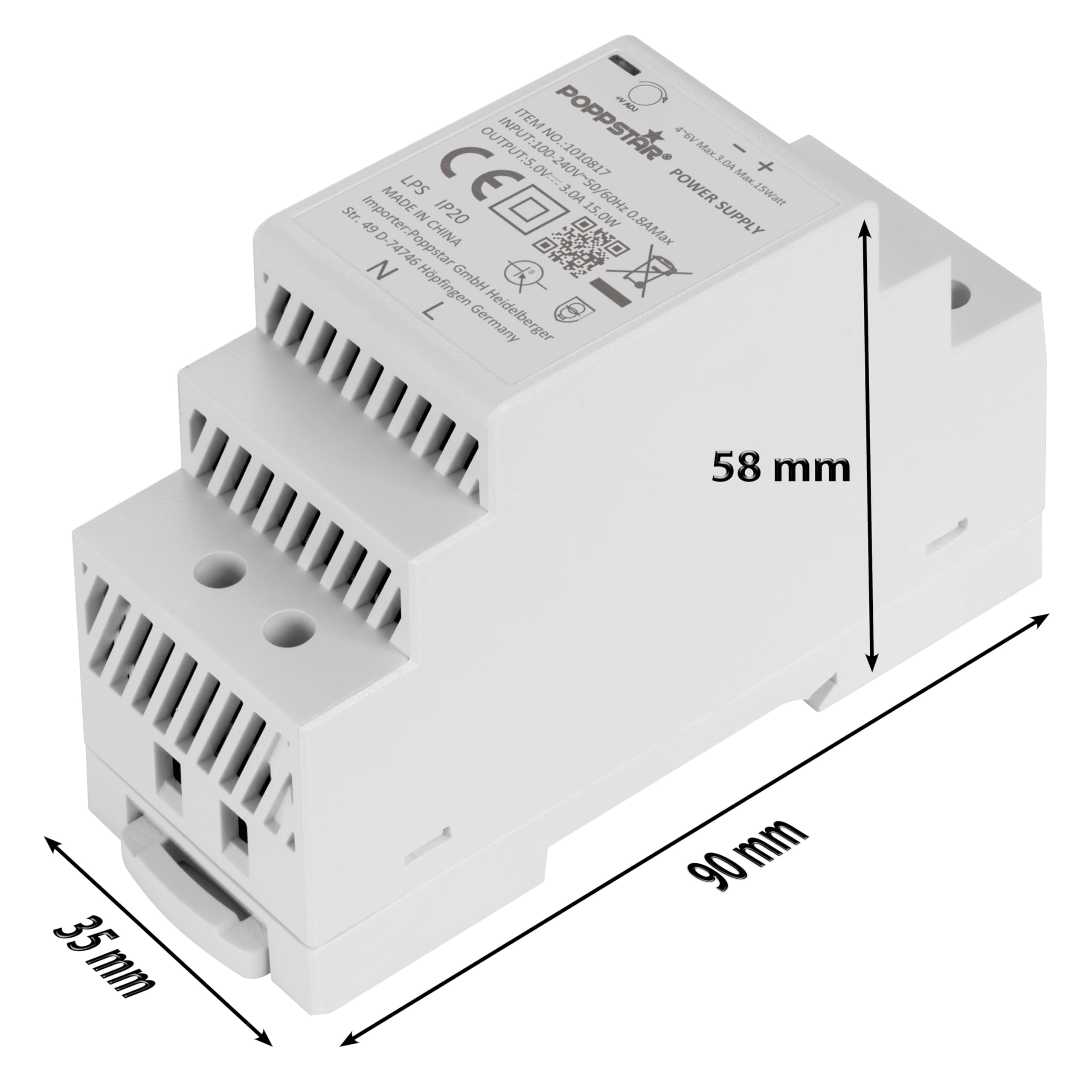

• Delivery: Din-Rail top-hat rail power supply unit with DC OK indicator light (35 x 90 x 58 mm, output: 5V 3 A; power: 15 watts)

Poppstar DIN Rail 5V power supply Our DIN Rail power supply offers flexibility in many application fields such as distribution boxes, control cabinets, logistics and industrial automation. It is very easy to install on the standard TS-35 DIN Rail, impresses with its simple mounting and is safe t use thanks to short-circuit, overload and overcurrent protection. Additionally, the DIN Rail power supply has an indicator light that serves as a control signal. It lights up whenever the power supply and the DC output are active (DC OK signal). An interruption of the power supply is indicated when the light flickers or turns off. Note: Have this DIN Rail transformer installed by an expert. Product features High efficienty Low ripple, low noise Indicator light (DC OK LED) Adjustable output voltage Overload protection by proven hiccup mode Short circuit protection Overvoltage protection Overcurrent protection IP code: IP 20 Appliance/protection class: II Light, compact plastic housing Easy to mount on the rail Screw terminals are protected against accidental contact Compatible with DIN rail TS 35/7.5 and TS 35/15 Specifications Input voltage 100 - 240 V AC, 50/60 Hz, 0.8A max. Output voltage 5V DC 3 A 15 W (adjustable voltage: 4 - 6V) Operating temperature: -10 °C to 40 °C Storage temperature: -40 °C to 85 °C Relative humidity (while operating): 20-90% non-condensing Relative humidity (while storing): 10-95% non-condensing Insulation resistance: 0.1 Ohm (at test voltage: 500 V DC / 25 °C / 70% relative humidity) Efficiency: 90% Dimensions (length x width x depth): 90 mm x 35 mm x 58 mm
