Waveshare PoE Ethernet/USB HUB Box for Raspberry Pi Zero Series 3X USB 2.0 Ports 802.3af-Compliant Compatible with Zero Series Boards

• Designed for Raspberry Pi Zero, compatible with Zero series boards

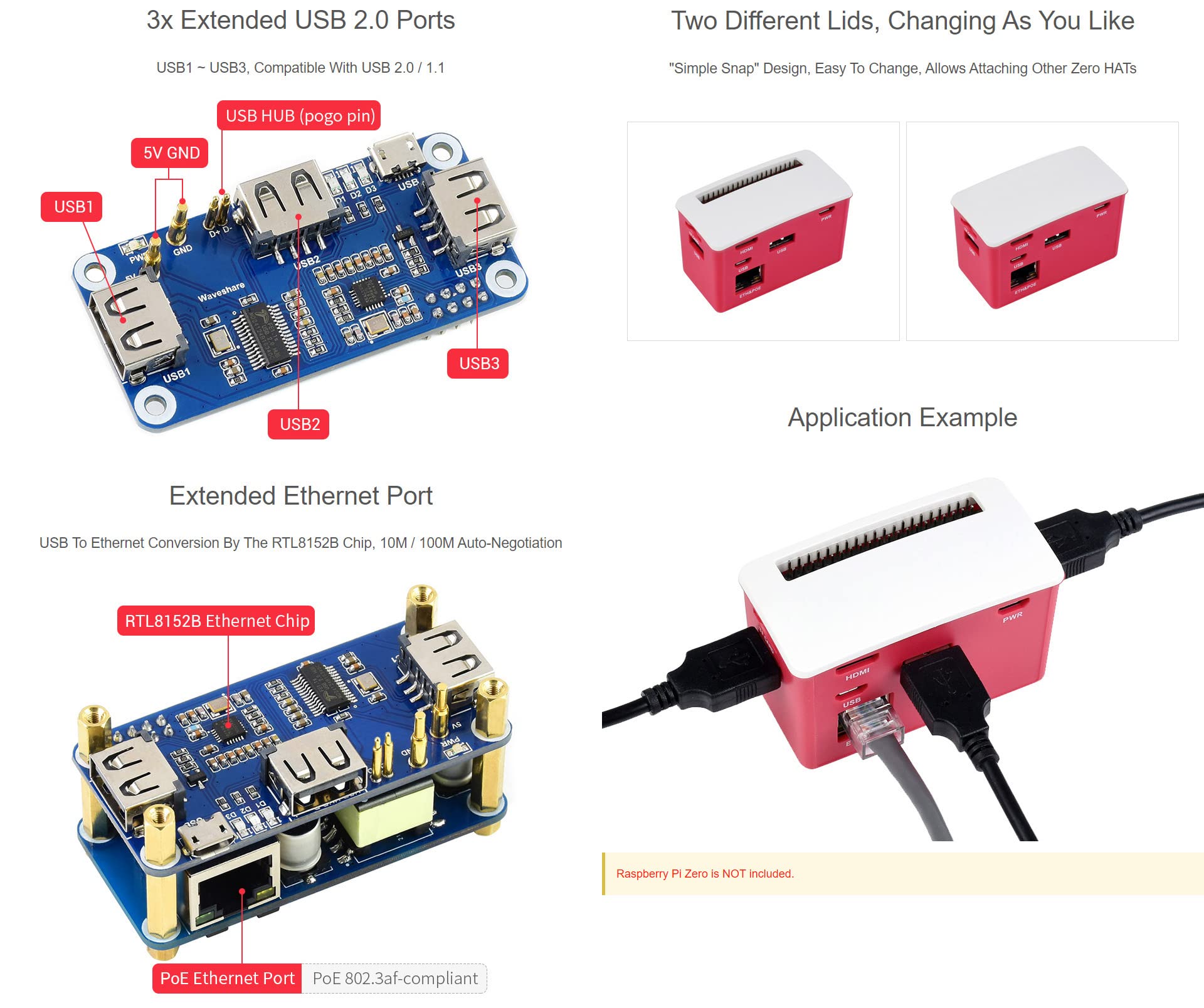

• Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port
• PoE (Power over Ethernet) feature, 802.3af-compliant. Fully isolated SMPS (Switch Mode Power Supply)
• 3x extended USB ports, compatible with USB 2.0 / 1.1. Angle rounded design, smooth hand feeling, "simple snap" case lid
• Quality ABS material, dull polish surface, anti-fingerprint. Comes with two different lids, changing as you like

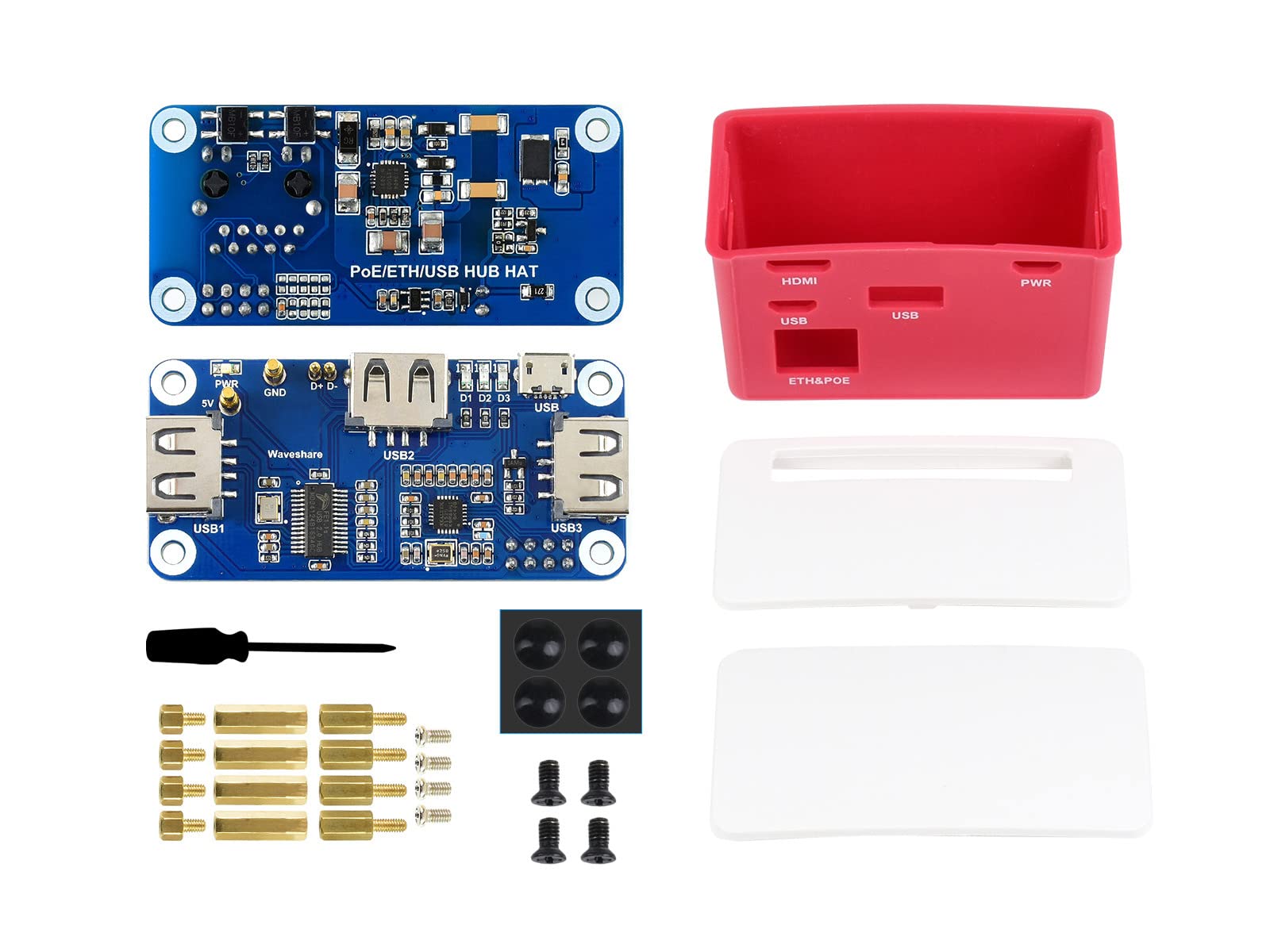

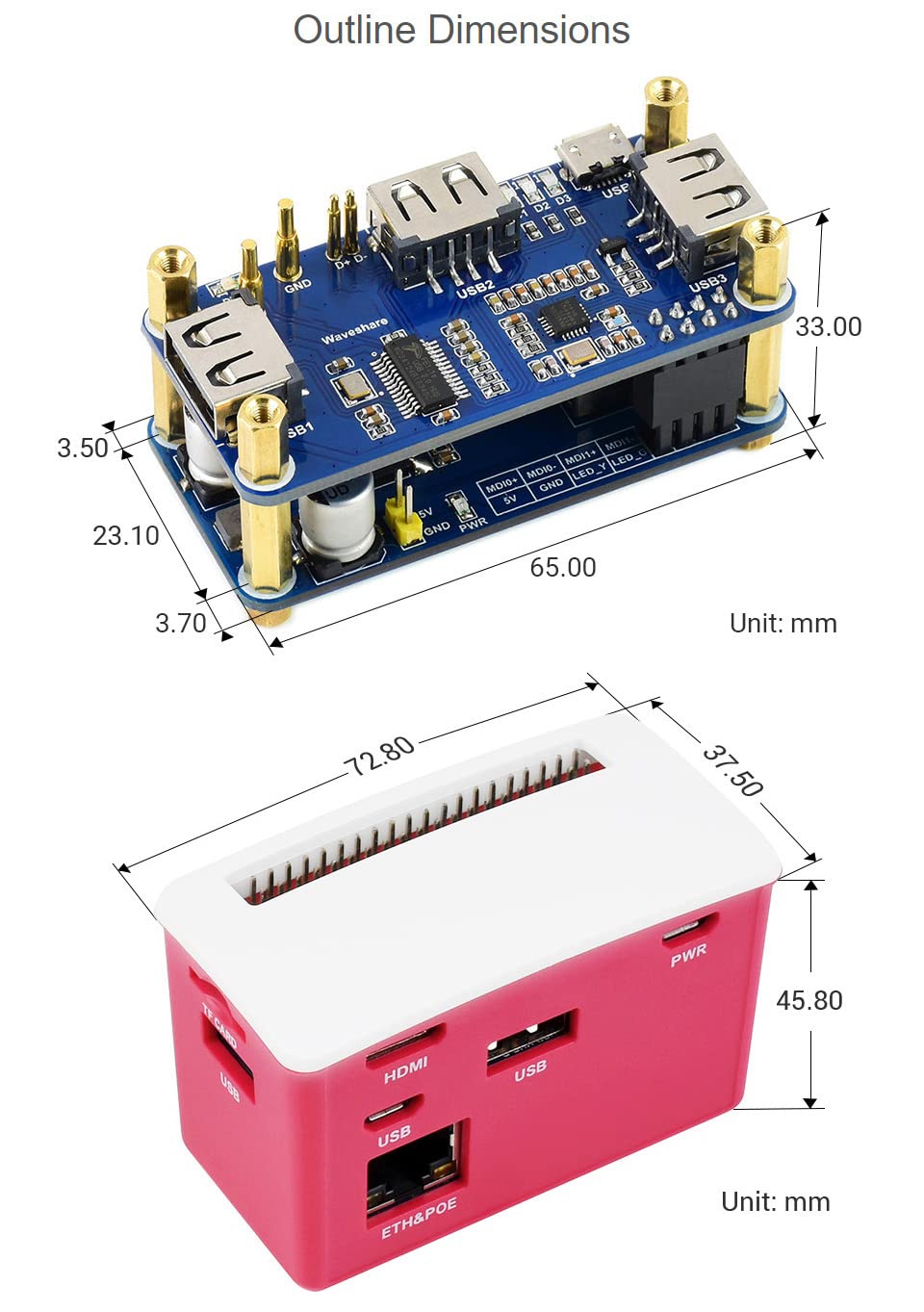

The PoE-ETH-USB-HUB-BOX is a HUB kit with PoE/ETH/USB HUB HAT inside. It is tailored for Raspberry Pi Zero series, small in size, each cut-out of the case is exactly aligned with the connector. The case adopts classic Raspberry Pi red/white color combination, with quality dull polish surface, effectively keeping the Zero away from dust. By using this small HUB BOX and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi Zero in only one Ethernet cable, along with 3x extended USB ports. Specifications POE POWER INPUT 37V ~ 57V DC in POWER OUTPUT 5V 2.5A DC out NETWORK STANDARD IEEE 802.3af-compliant PoE DIMENSIONS 72.80 × 37.50 × 45.80 mm User Manual waveshare.com/wiki/PoE/ETH/USB_HUB_HAT?amazon
