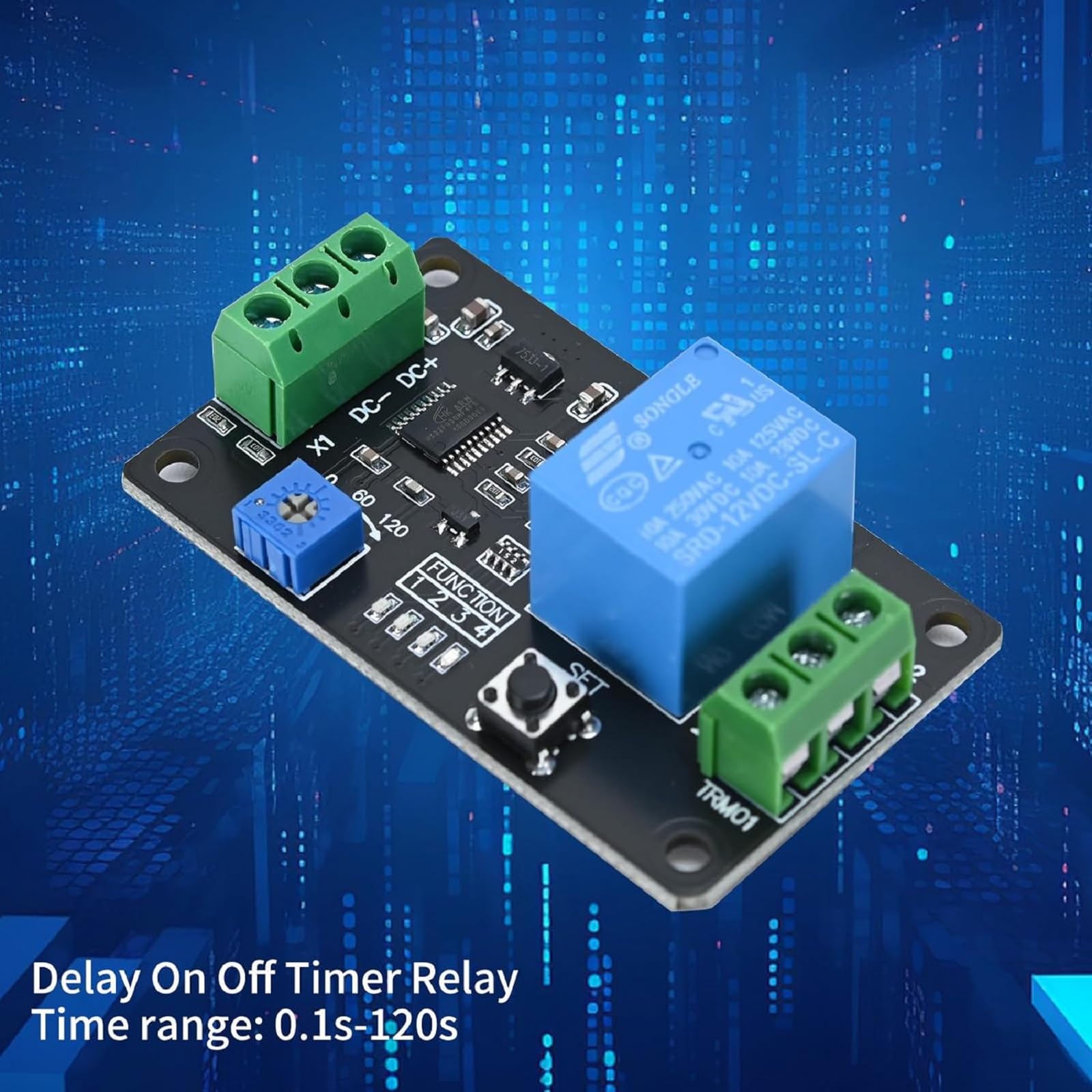

Podazz Delay Timer Relay DC 5V/12V/24V Time Delay Controller Module Compatible with NE555 timer (DC12V)
About this item
- It has delayed pull-in, delayed disconnection, self-locking and trigger delay functions.
- It has a power reverse connection function, and the module will not be damaged if the power is reversed.
- Three working voltage versions of 5V/12V/24V are available for users to choose.
- The timing duration can be set arbitrarily between 0.1 seconds and 120 seconds.
- Parameters can be saved, and the settings will not be lost when the power is off.
Product description

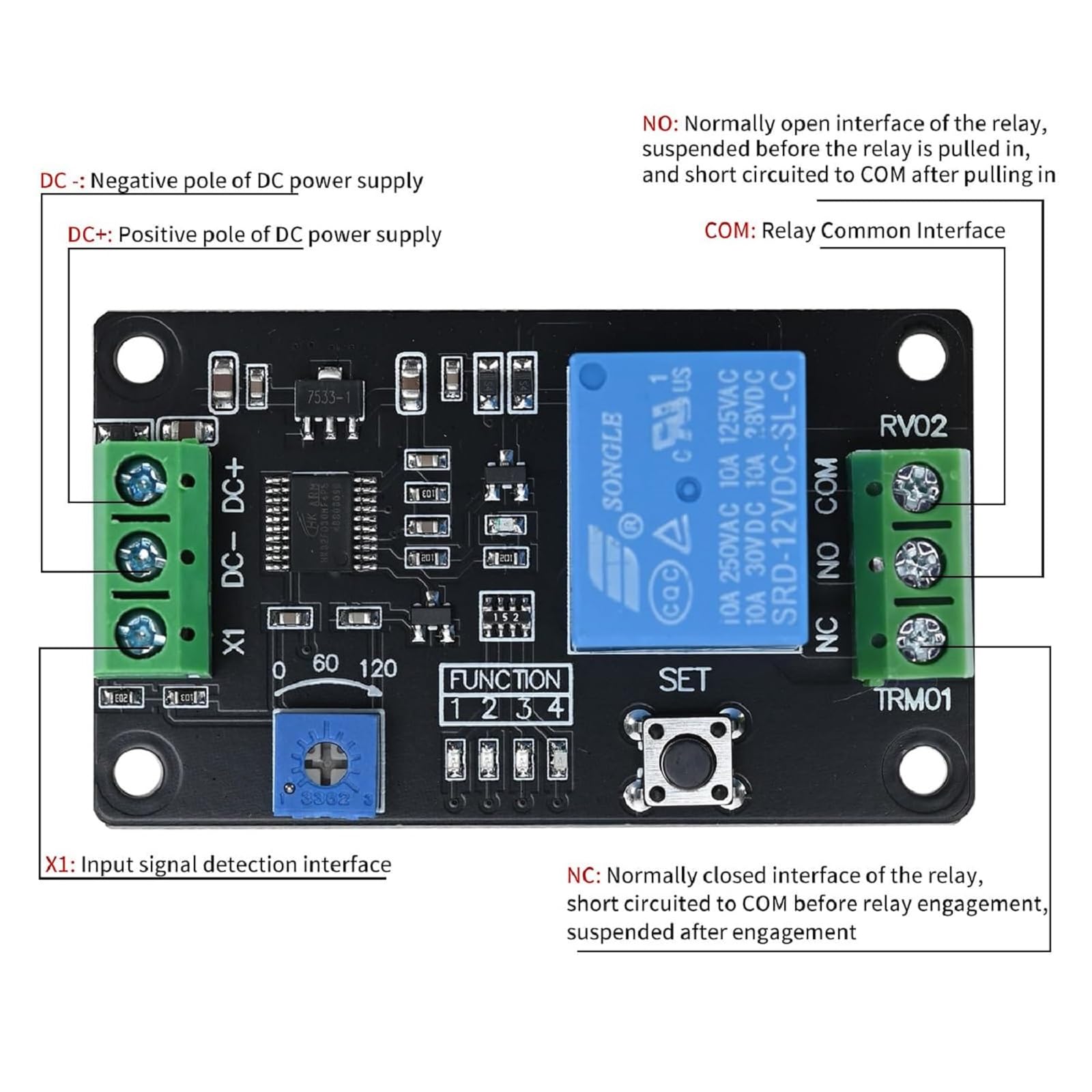

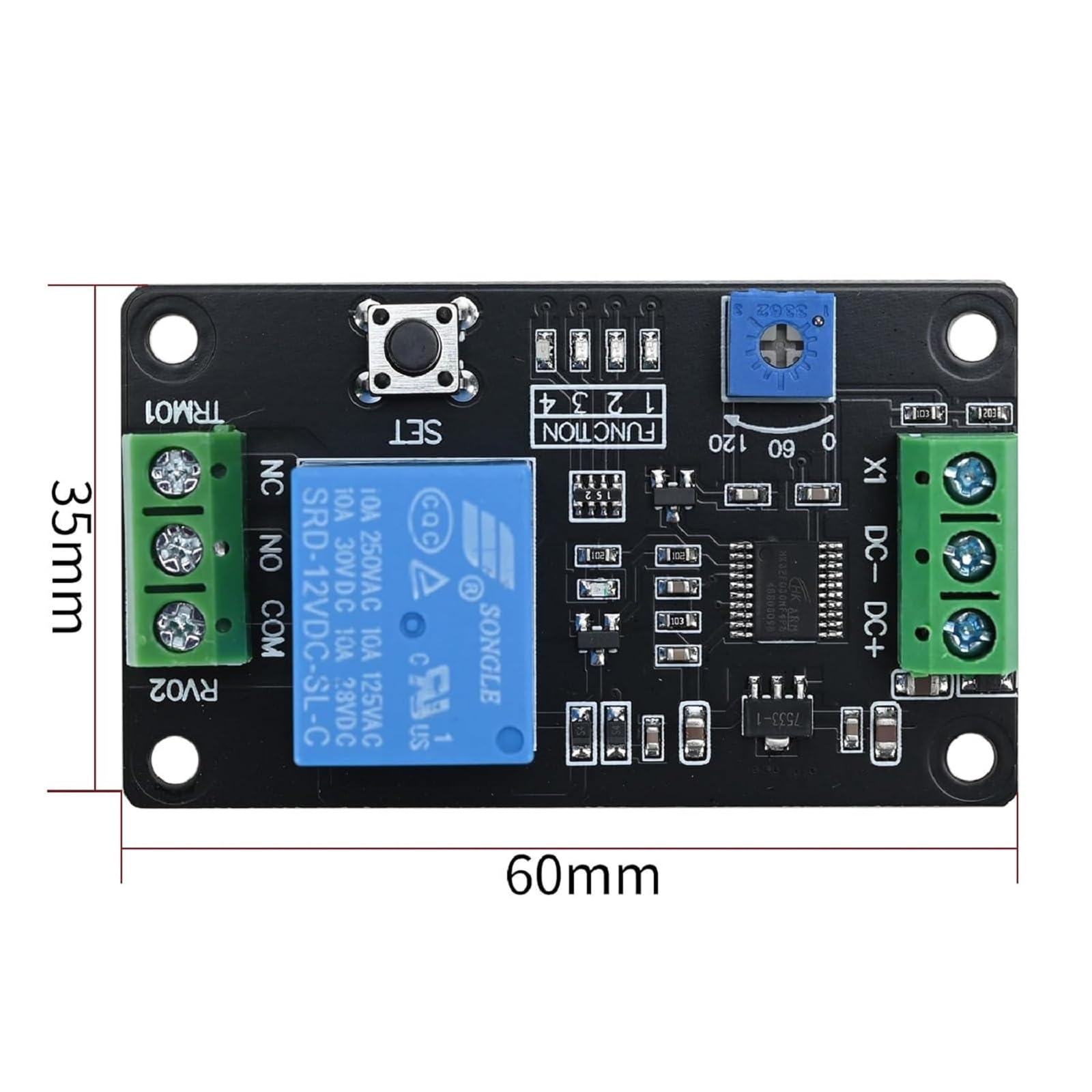

Specification: Working voltage: DC 5V, 12V, 24V (Optional) Working current: 80mA at 5V (1mA when the relay is not operating) 35mA at 12V 1mA when the relay is not operating) 18mA at 24V (1mA when the relay is not operating) Load capacity: -normally open port: DC 0-30V/10A, AC 0-250V/10A -normally closed port: DC 0-28V/10A, AC 0-125V/10A Working temperature: -20~60โ (limit range -30~70โ) Size: 60*35*20mm / 2.36*1.38*0.79in Package weight: Approx. 23g Module interface: Module voltage / signal input has 3 wiring terminals. 1. DC+: DC power supply positive 2. DC-: DC power supply negative 3. X1: input signal detection
Product details
