PiSugar2 Portable 1200 mAh UPS Lithium Battery Power Module for Raspberry Pi-Zero W/WH Model Accessories (Not Include Raspberry Pi)

• Easy to Install: install in 10 secs. No soldering required. Use small test-pad to supply power, does not occupy any GPIO of Raspberry Pi, can be used both with or without GPIO header.
• Perfect Size: the standard dimension of raspberry pi zero. You can easily put your prototypes in our open-source 3D print cases. Easy, and graceful.
• On-board RTC: Provide real-time time for the system, and realize timing startup function
• Customer button: custom any function with the sh command line. short click /double click /long click can be set independently.
• Visual management interface: Check battery status and setting advanced features easily

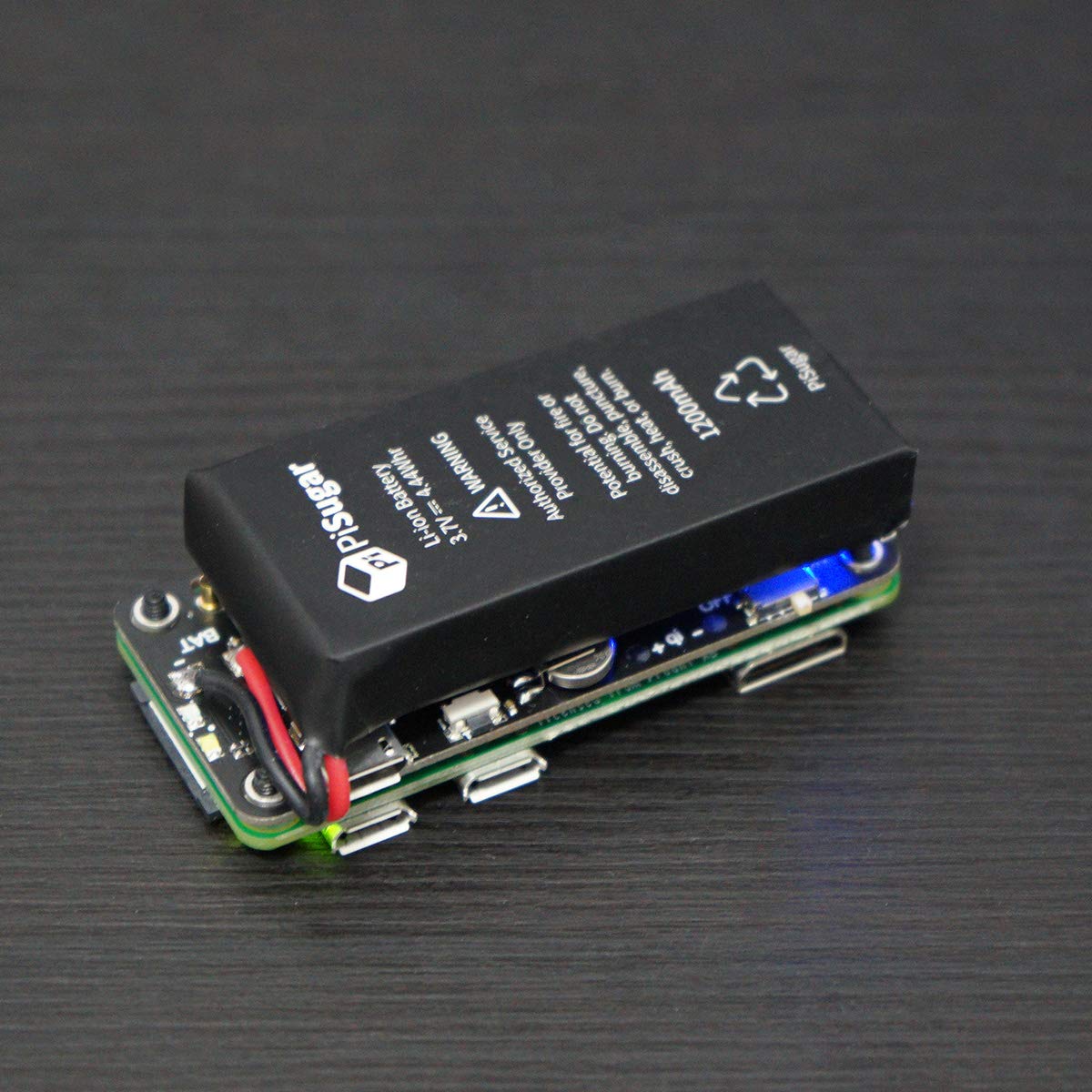

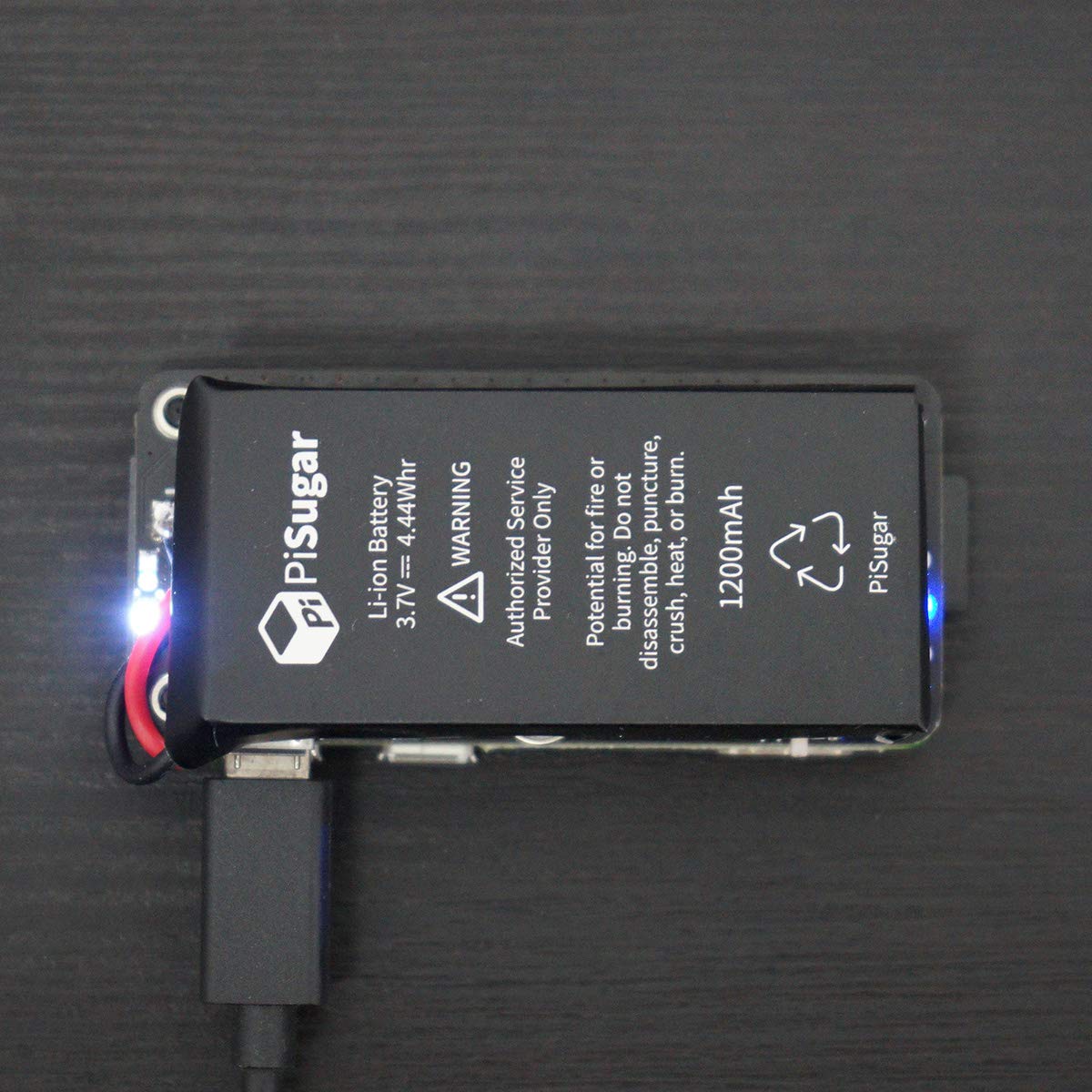

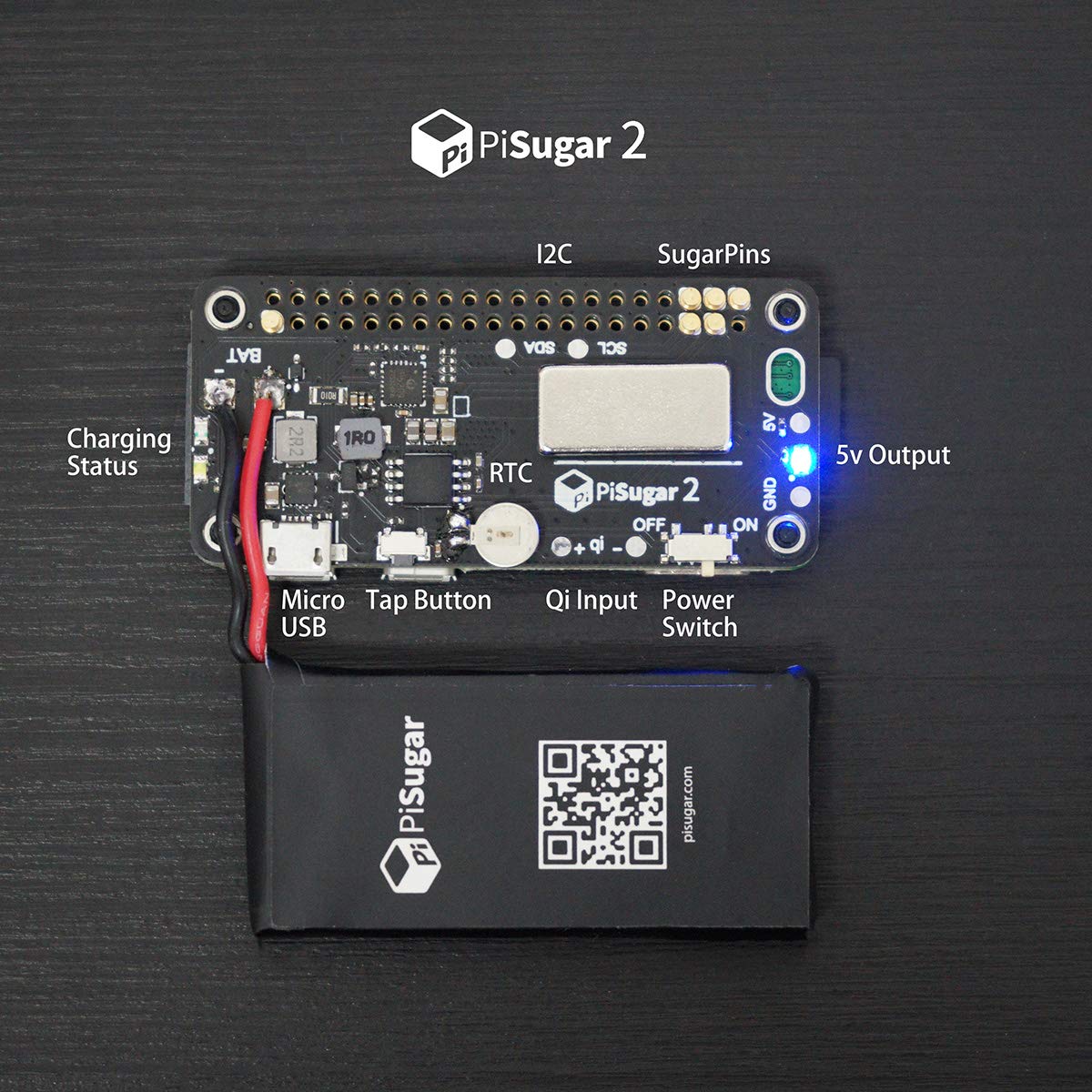

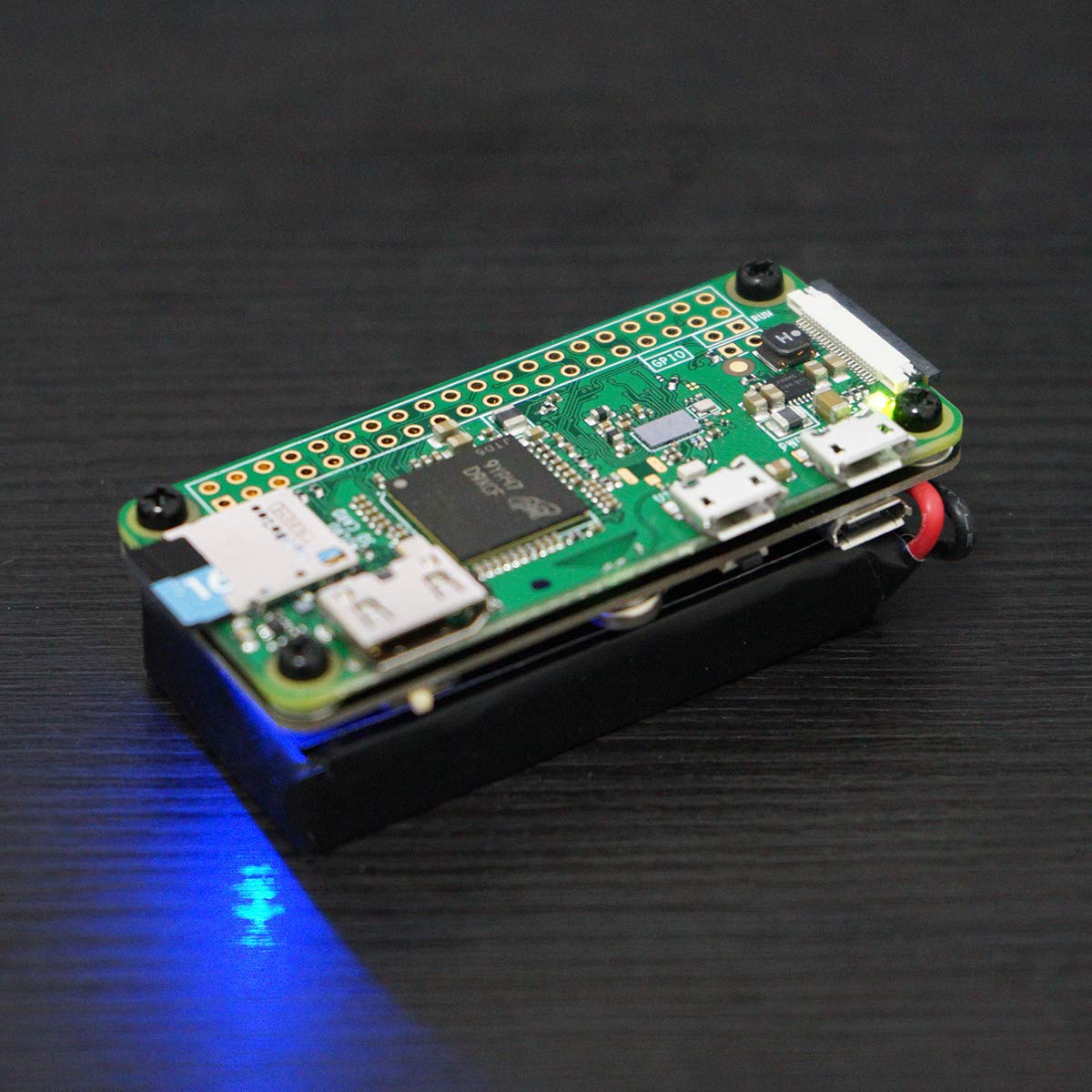

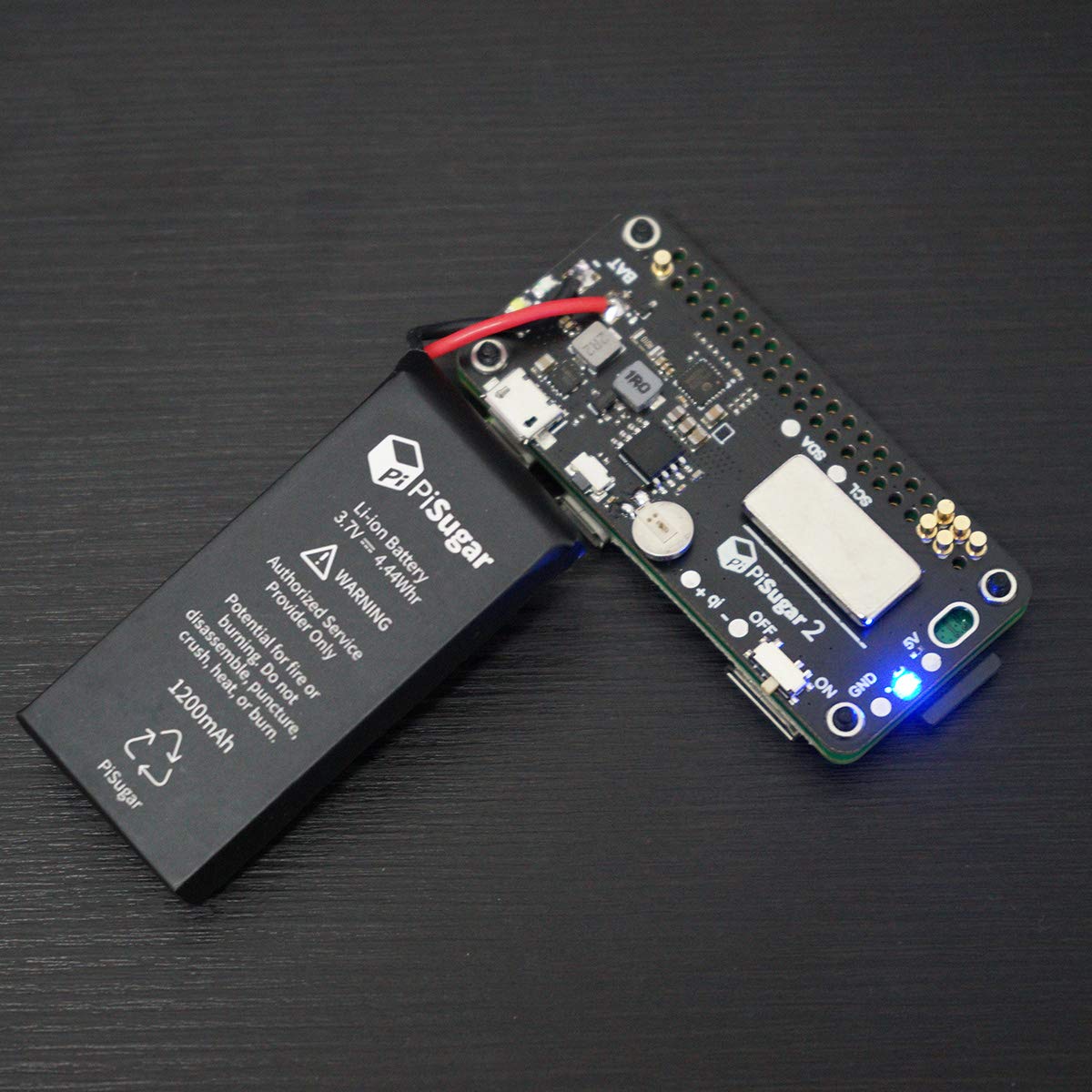

PiSugar2 is a battery module specially designed for the Raspberry Pi zero series. It integrates UPS, RTC, custom buttons and other functions to maximize the portability of the Raspberry Pi zero. PiSugar2 maintains the same size as the previous generation product while continuing our design concept. It uses special SugarPins to connect to the bottom of the Raspberry Pi GPIO to provide data communication while supplying power. In order to achieve a more user-friendly experience, we have created a brand new WebUI interface. You can conveniently control the battery module without coding knowledge. Obtaining power data, charge status, setting a timed boot, button functions, etc. If you are a developer, you can also implement more customized functions through the API we provide. Like PiSugar1, you can still use our open-source shell to turn your hardware work into a complete product. Easy to Install Install in 30 secs. Connect pi0 from the bottom without soldering, does not occupy GPIO headers. UPS Provide uninterrupted power to the pi. Support charging and discharging at the same time. Open-source Cases Easy and graceful. You can easily put your prototypes in 3D printed models. On-board RTC Provide real-time clock for the system and realize timing startup function. Custom Button Custom any function with the shell command line. Single/double/long click can be set independently. WebUI Check battery status and setting advanced features in a friendly UI. Package Include: 1 x Battery Module 4 x Screws
