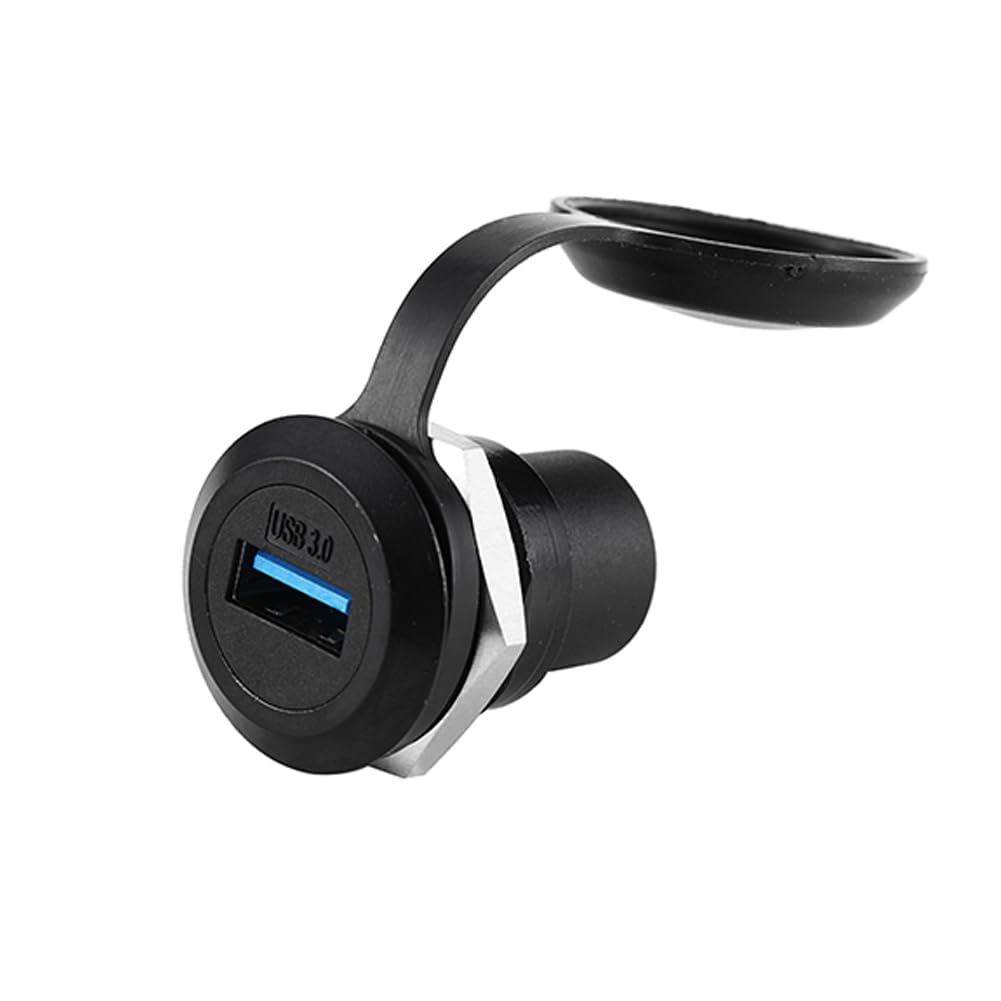

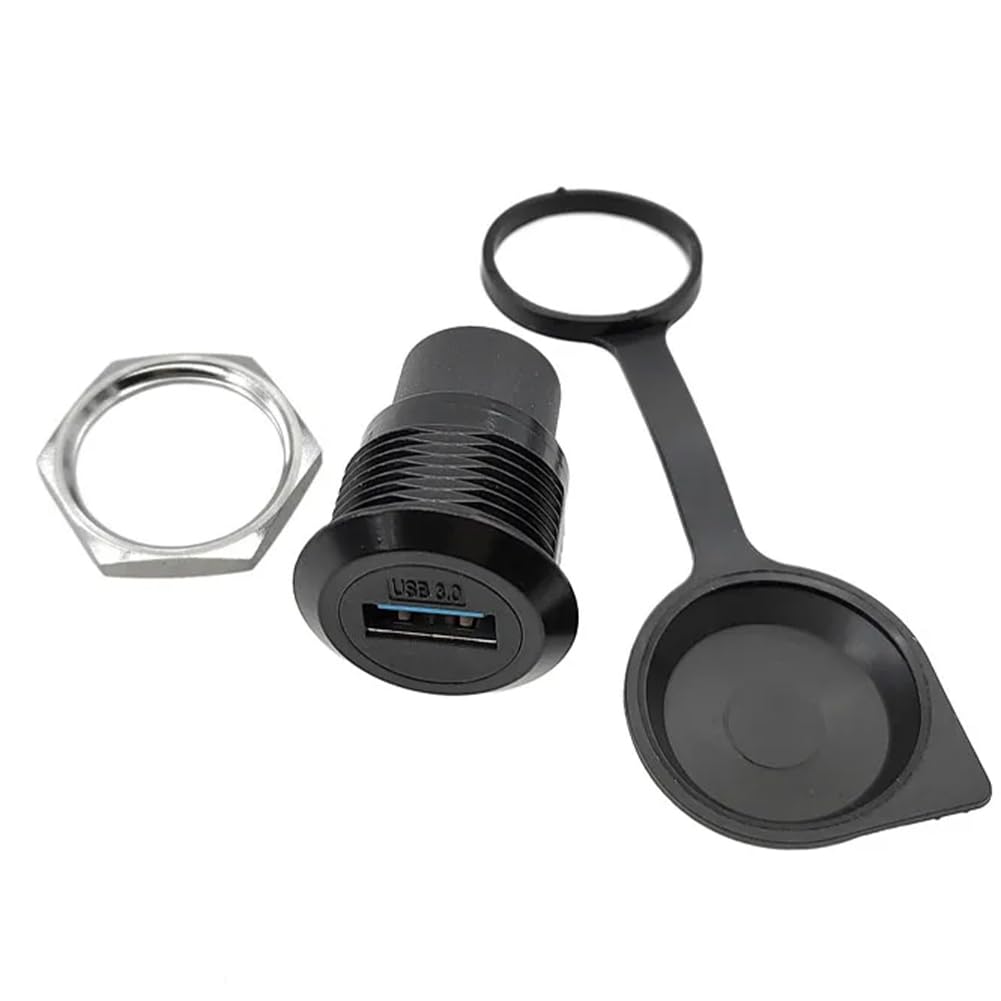

PENGLIN 2PCS USB3.0 Bulkhead Connector, USB Through Panel Adapter, USB3.0 Panel Mount Female to Female Coupler

• The USB3.0 panel mount connector is a device that allows for the extension of a USB cable through a panel or surface by providing a female-to-female USB connector that can be mounted onto the panel or enclosure.
• DURABLE: This USB3.0 connector is made of Zinc diecast (ZnAl4Cu1), flame retardant, UV resistant, and anti-aging.
• Independent USB3.0 socket design, It supports high-speed data transfer rates up to 5 Gbps and is backward compatible with USB 2.0 and 1.1 devices.
• The contact pin is phosphor bronze (CuSn8) plated with 7µm Au, which is more sensitive to contact.
• Standard O-Series USB3.0 Connector for Panel-Mount Installations, and save installation space, USB female to female field installable coupler, no soldering, no installation tools, just plug the standard USB plug directly for quick installation.

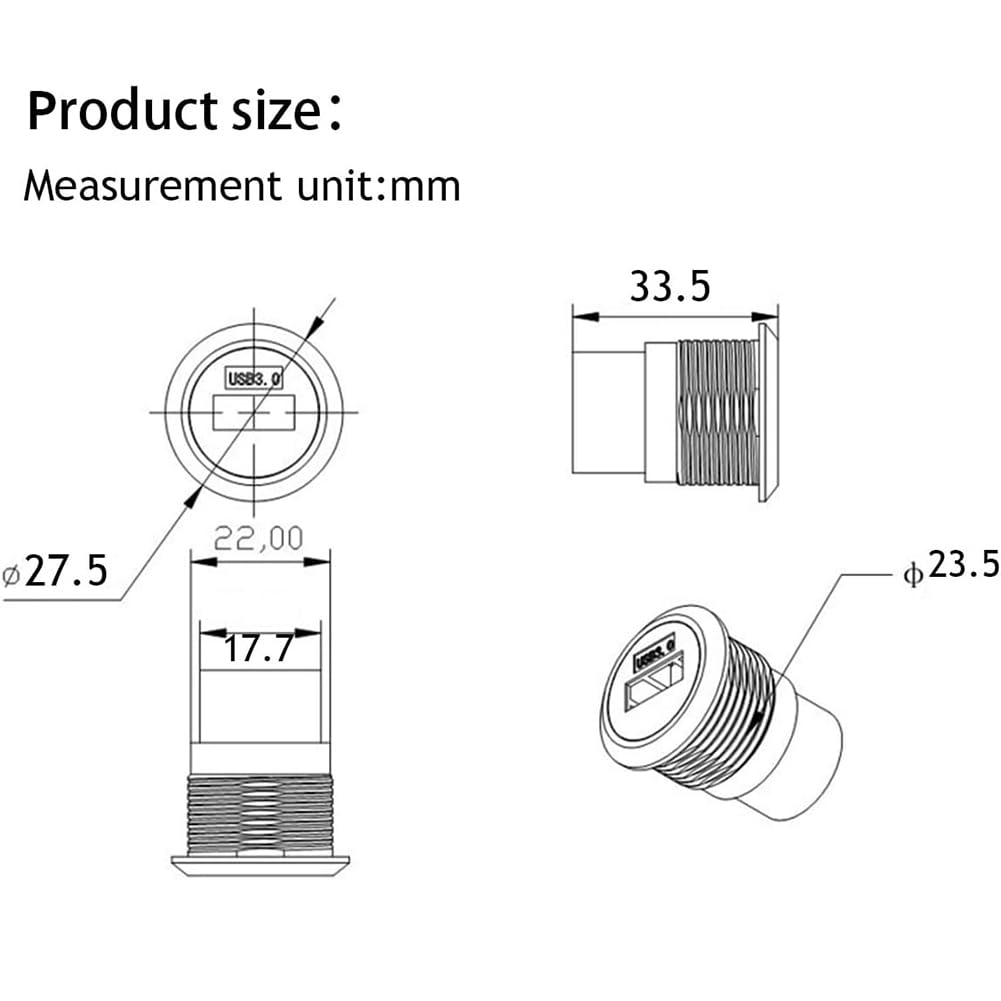

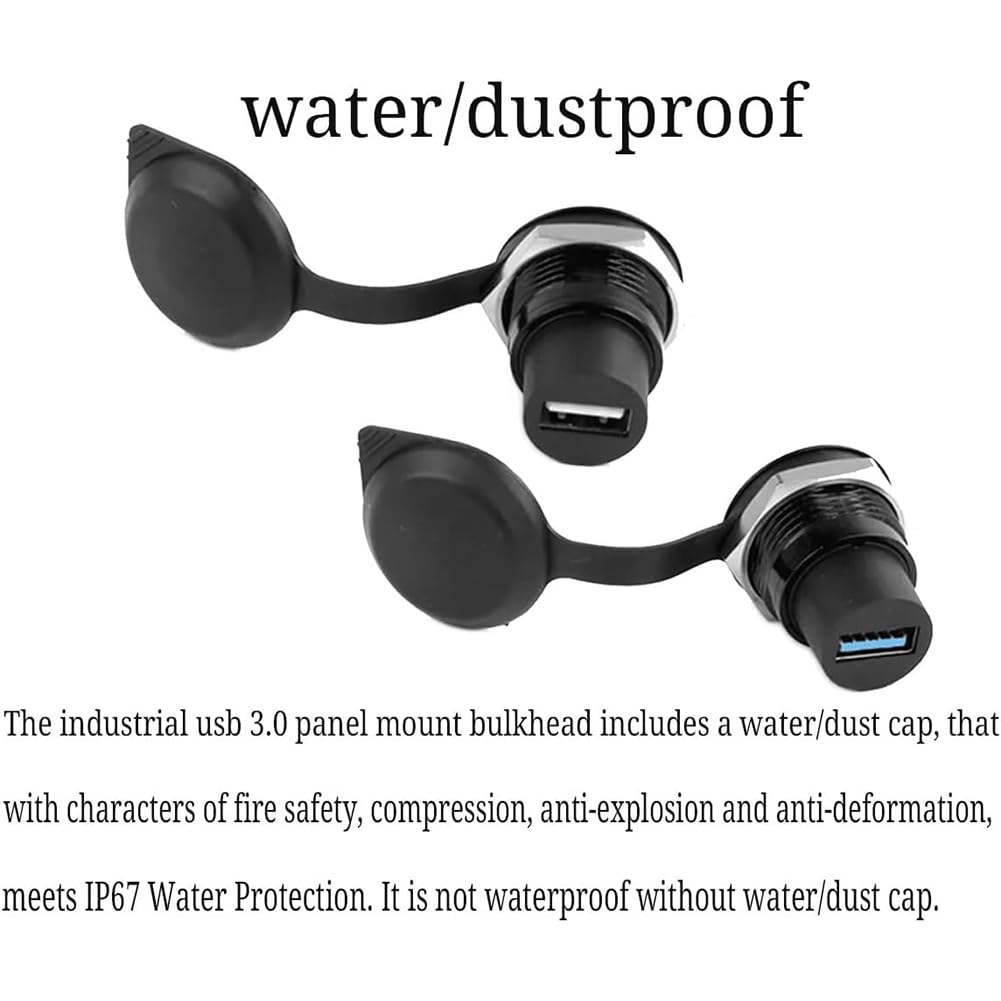

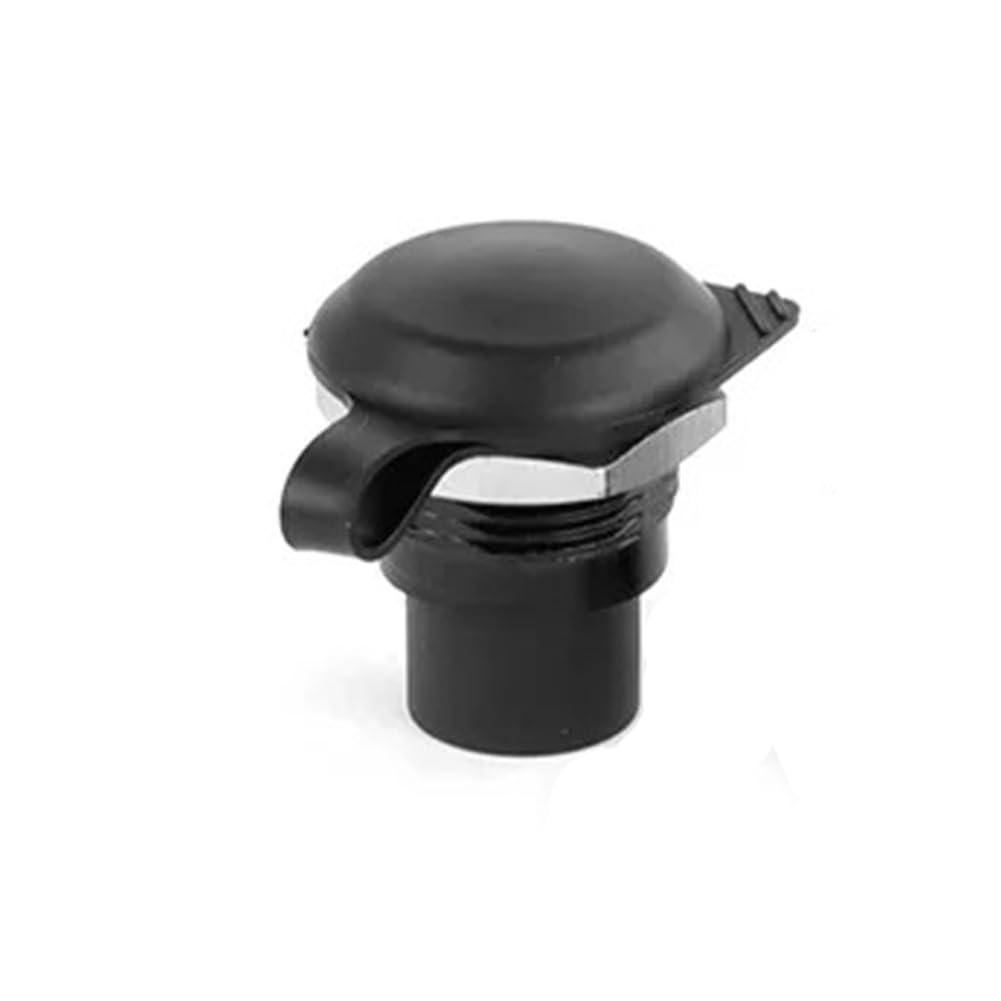

Specifications: Waterproof rating: None (without waterproof cover), IP67 (with waterproof cover) Connection type: USB3.0 Transmission speed: up to 5.0Gbps Electrical parameters: Rated current: 0.5A Rated voltage: 50V Insulation resistance: ＞500MΩ Dielectric strength: DC1000V Contact resistance: ＜10mΩ Material: Shell: Zinc diecast (ZnAl4Cu1) Shell plating: nickel plating/black electrophoretic paint Contact material: Bronze (CuSn8) Contact pin gold plating: 7µm Au over Ni plating Insulator material: PBTP 15% GR Waterproof rubber ring: silicone Environmental conditions: Working temperature: -40～120Celsius Storage temperature: -25～85Celsius Atmospheric pressure: 86～106kPa Relative humidity: ≤90% RH Mechanical parameters: Insertion pressure: less than 10N Withdrawal pressure: less than 10N Service life: more than 1000 times Installation panel thickness: min 2.0mm-max 10mm Base shape: O type Package includes: 2 x Panel Mounting USB3.0 Connector
