PENGLIN 2PCS DB25 Solderless Male RS232 D-SUB Serial Adapters, 16mm thinner 25 Pin Port Terminal Solderfree Breakout Connector Board with Case Accessories

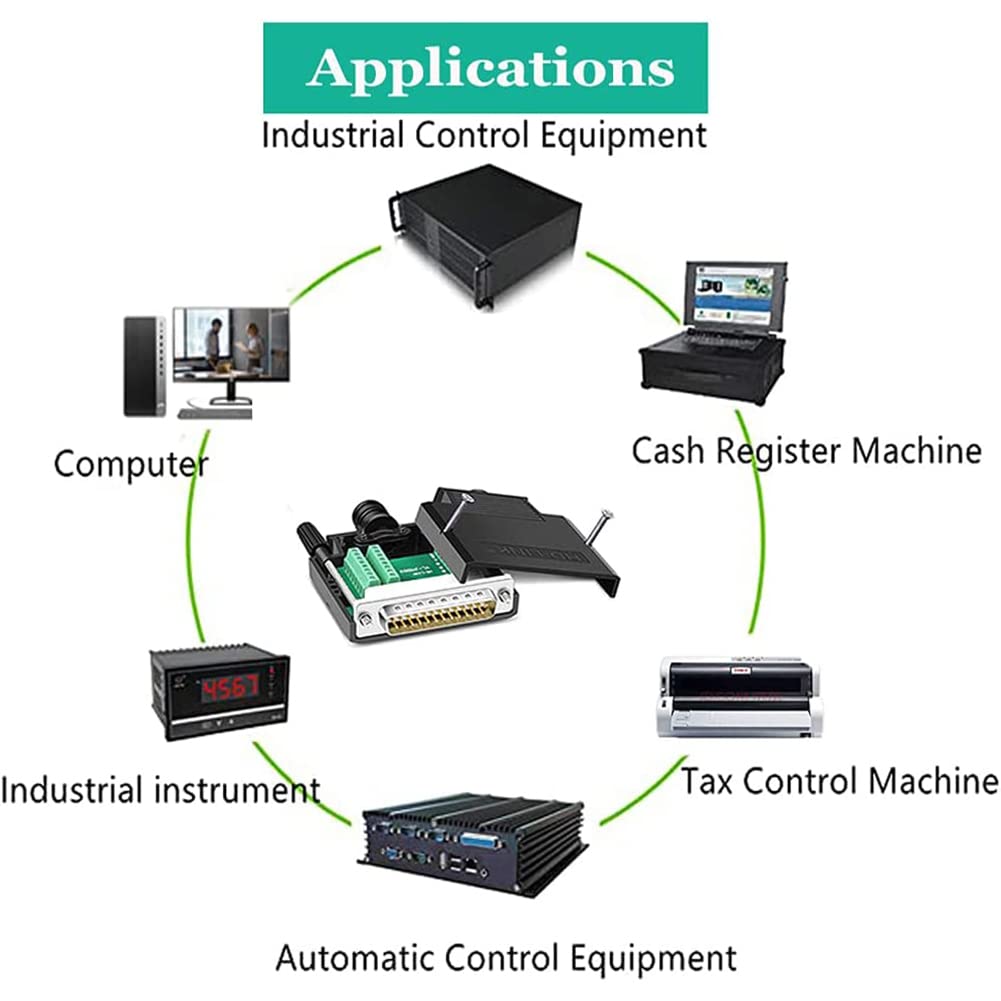

• WIDELY APPLICATIONS: The breakout board can be used for automatic control equipment, industrial control equipment, cash register, tax control machine, computer, etc.

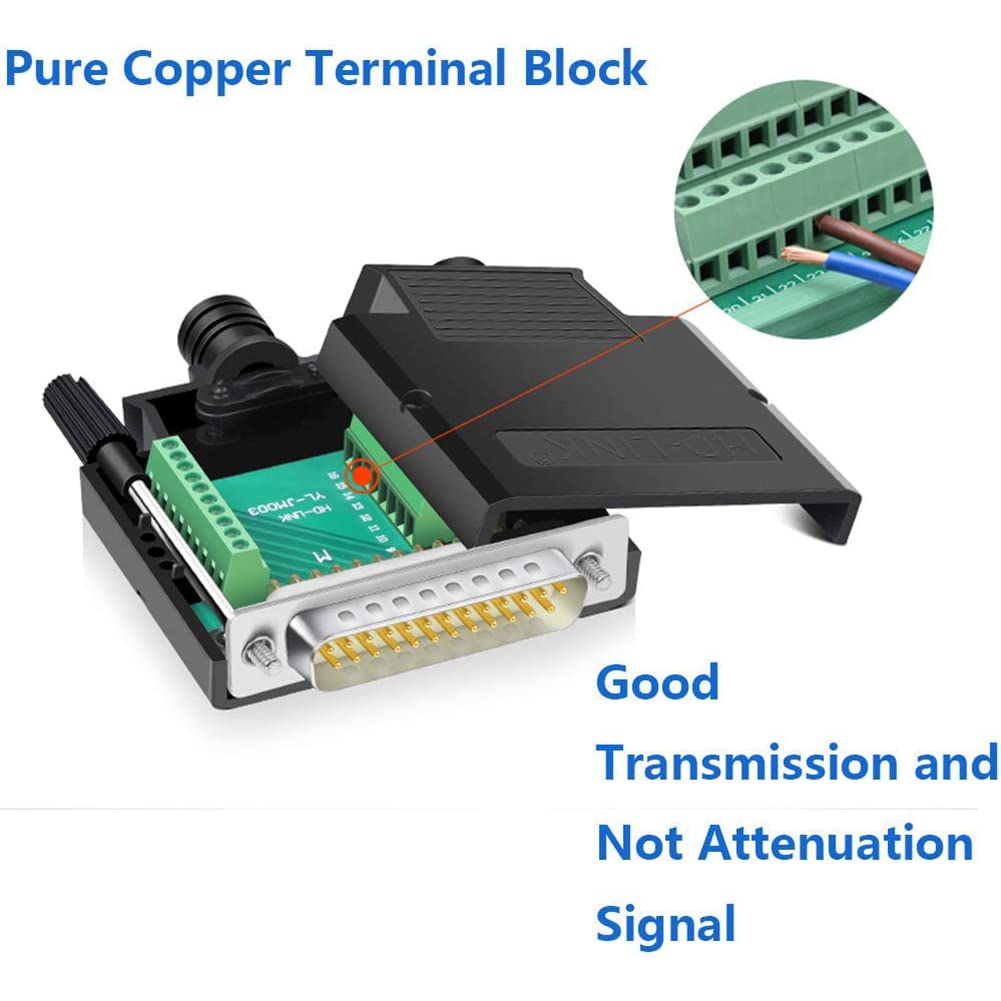

• DURABLE: Copper cored gold-plated joints are used for durability, plugging resistance and good contact. It adopts all-copper environmental protection copper terminal, which has good transmission and allows current of 10A.

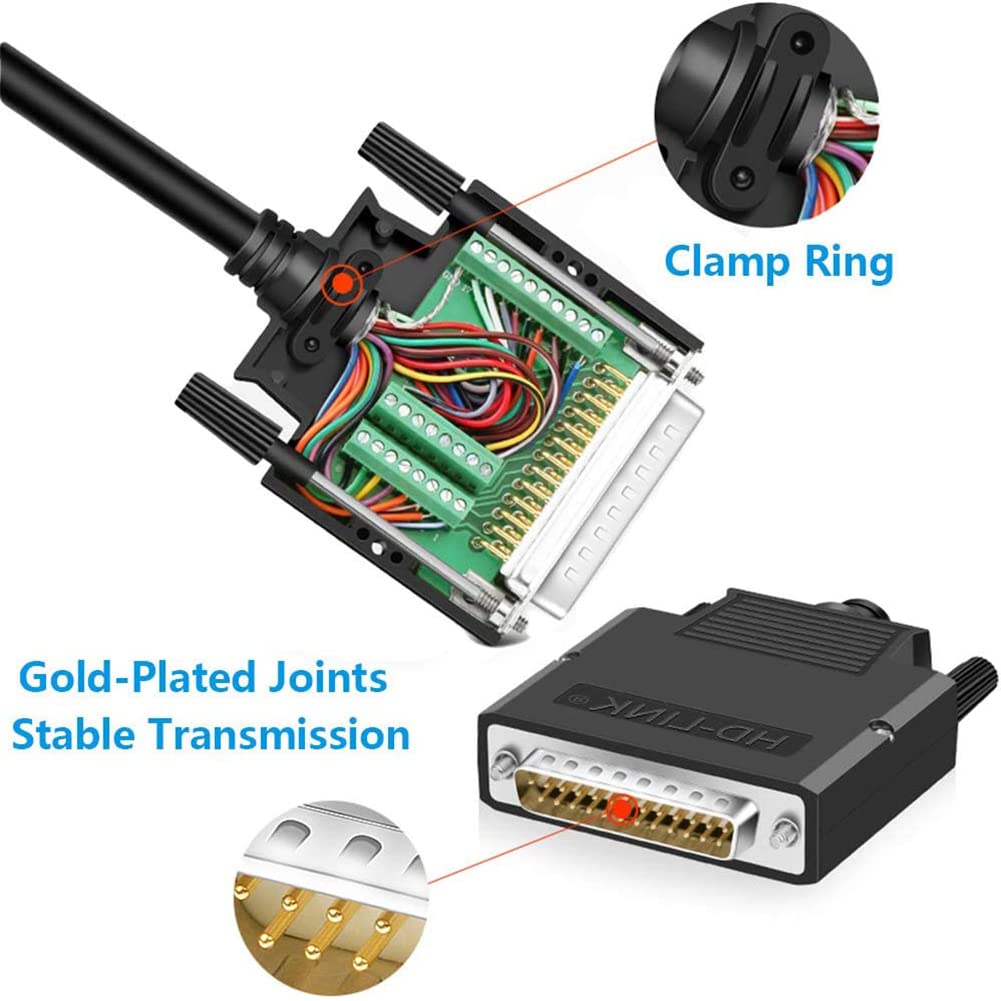

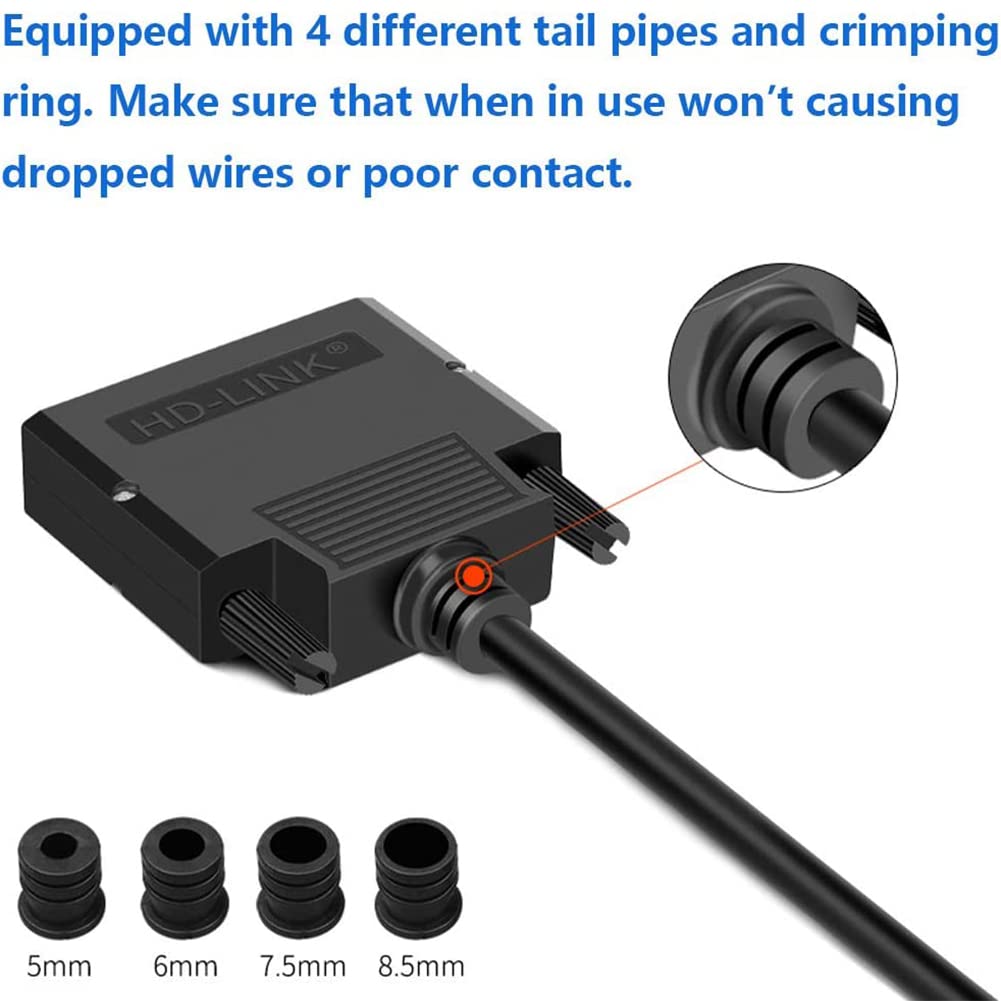

• RELIABLE: Each product is equipped with a crimping ring, 5mm, 6mm, 7.5mm, 8.5mm 4 different sizes of tail pipe. Make sure that the cable is pulled in use without causing dropped wires or poor contact.
• No Soldering Required. Adopt environmentally friendly insulated terminal block. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.
• THINNER: The thickness is only 16mm, ensuring that the product can be used in a narrow space.

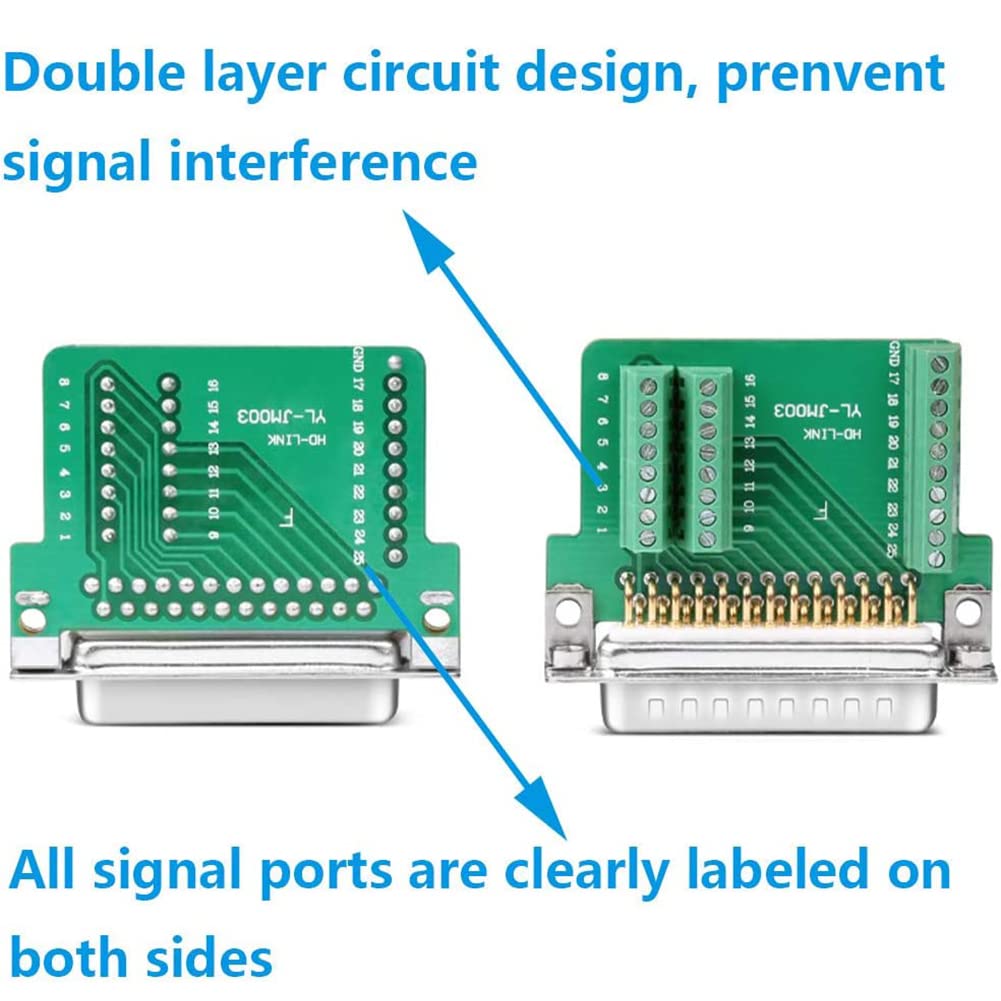

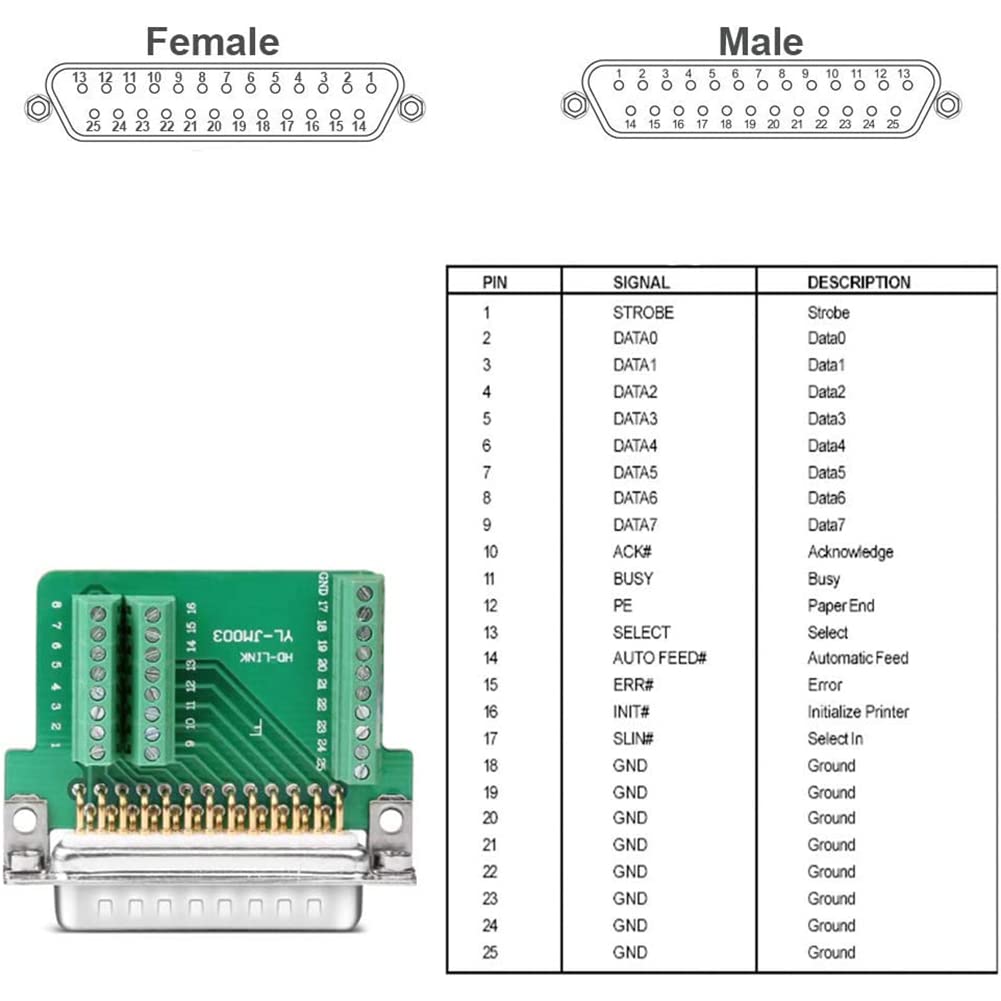

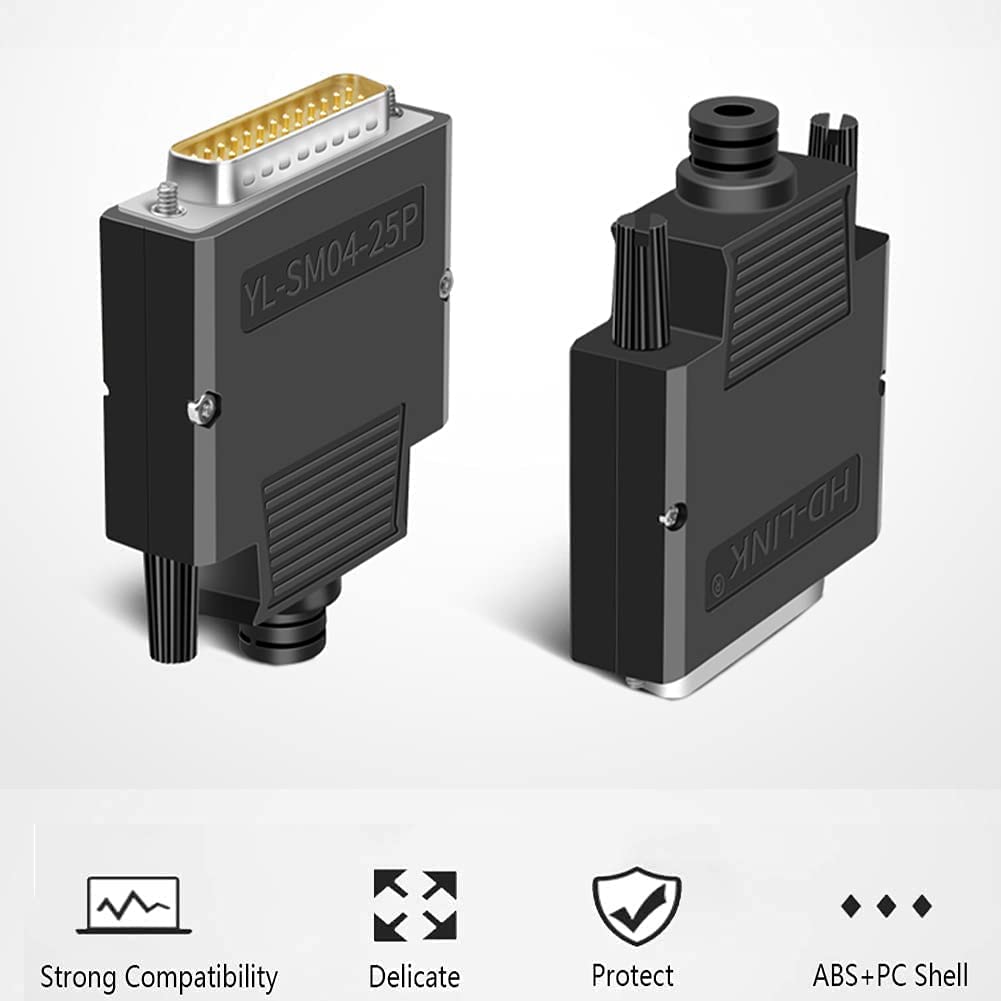

The DB25 Solderless Male Adapter Connector terminals to facilitate commissioning equipment of project. The wire range of the 25 Positions Screw Terminal Block is 26-16AWG. All-copper gold-plated DB25 joints, anti-oxidation, contact better. Terminal pitch is 3.96mm, screw hole diameter is 2mm. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. Technical Specifications: Name: Thinner DB25 solderless module Plug type: Male Connector material: pure copper plated joint Contact Material: Copper Housing material: environmentally friendly PP engineering materials Shell type: folding snap-on Cable Specification: 26-16 AWG Torque: 0.2Nm (1.7Lb-In.) Opening size (cable port): 10.5mm/0.41inch Thickness: 16mm/0.63inch Size: 60 mm×57 mm×16 mm/ 2.36inch×2.25inch×0.63inch Package includes: 2 PACKS DB25 Male Solderless Connectors
