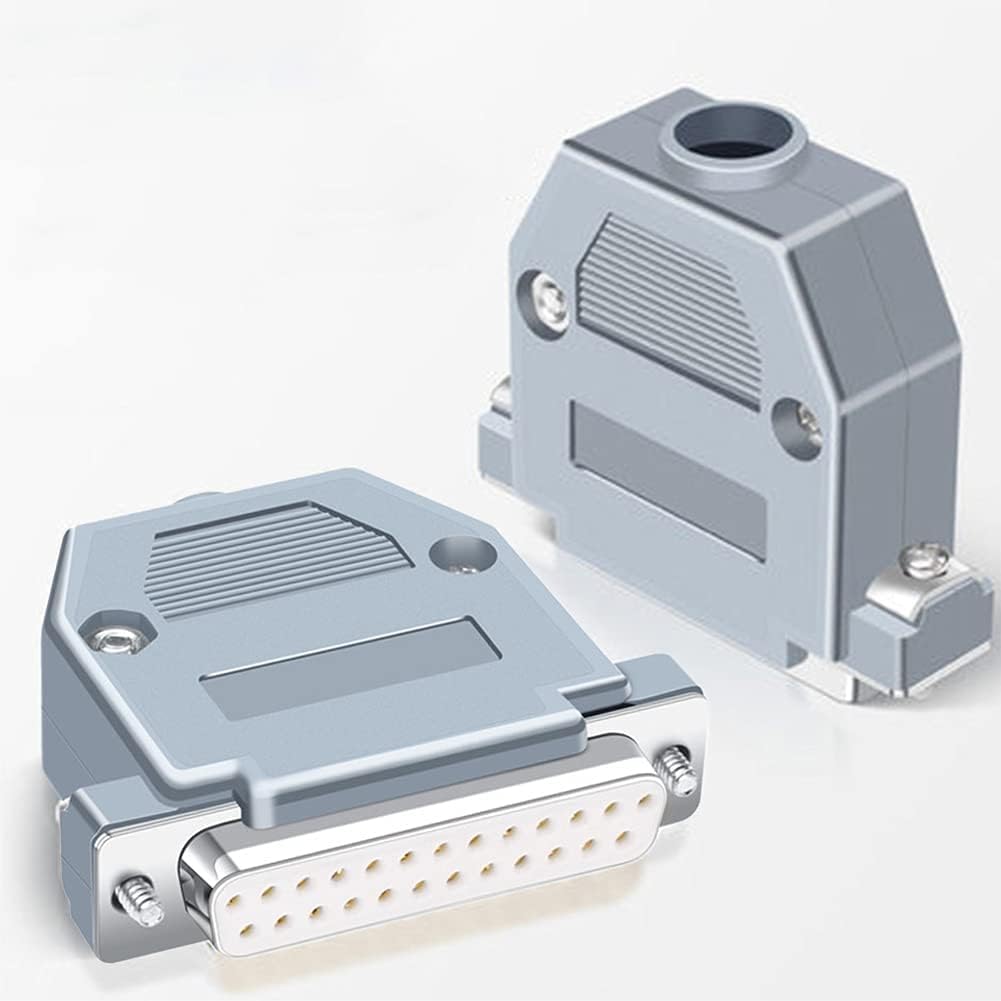

PENGLIN 10PCS DB25 Male Female RS232 D-SUB Serial Solder Adapter Kit, Gold Plated Joints RS232 Serial Solder Type Port 25 Pin D Sub Adapter

• Stability: Plastic house with gold plated joints and strain relief grommet, resistance to plug and stable transmission. White rubber core, high temperature resistant, not easy to melt during welding. Solder connectors more firm and stable, Not easy breaks under tension.
• Maximum wire size is 20 AWG(0.5189mm²),UL94V-0 rated connector insulator. Pin Count: 25
• Flexibility: Compact and light weight allows you to make up your own custom cables with DB25 connectors. Each set of hood and screw were individually bagged.

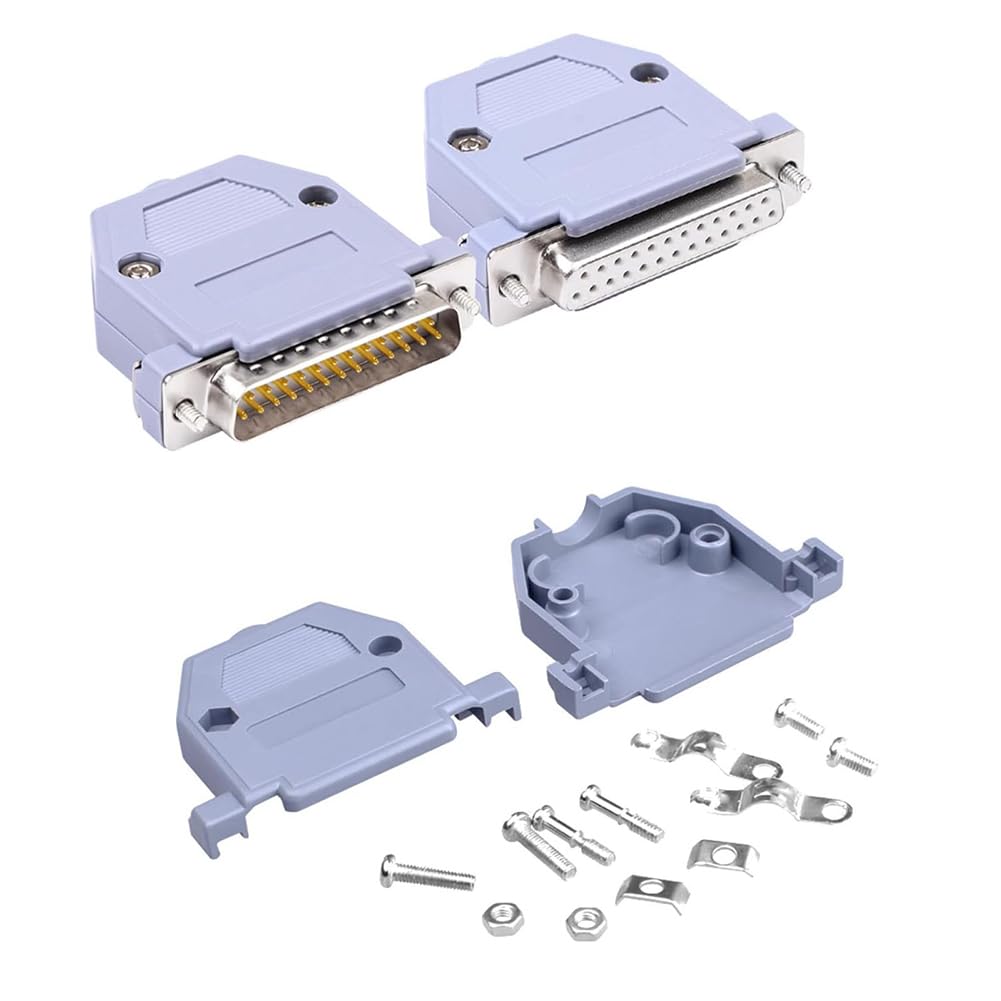

• Package Included: 5 male DB25 solder type serial adapters and 5 female DB25 solder type serial adapters
• Widely Application: DB25 Connector can be used for connecting the computers to various serial port equipment such as automatic control equipment, industrial control equipment, cash register, tax control machine, computer,MODEM, set-top box, and other equipment for communication.

Specifications： Insulator:PBT Contact Material: Gold plated joints Housing Material: Gray plastic Type: Welding type Pin: 25 pin Rated Voltage:24V Rated Current:2A Contact Resistance: 30mΩ Insulation Resistance:100MΩ; Min. AT 500V DC Withstand Voltage:1000V AC for 1 minute Min. Operating Temperature:-67℉~221℉/-55℃~105℃ Package Included： 5 X Male DB25 Solder Type Serial Adapter 5 X Female DB25 Solder Type Serial Adapter 10 Sets Gray Plastic Hoods
