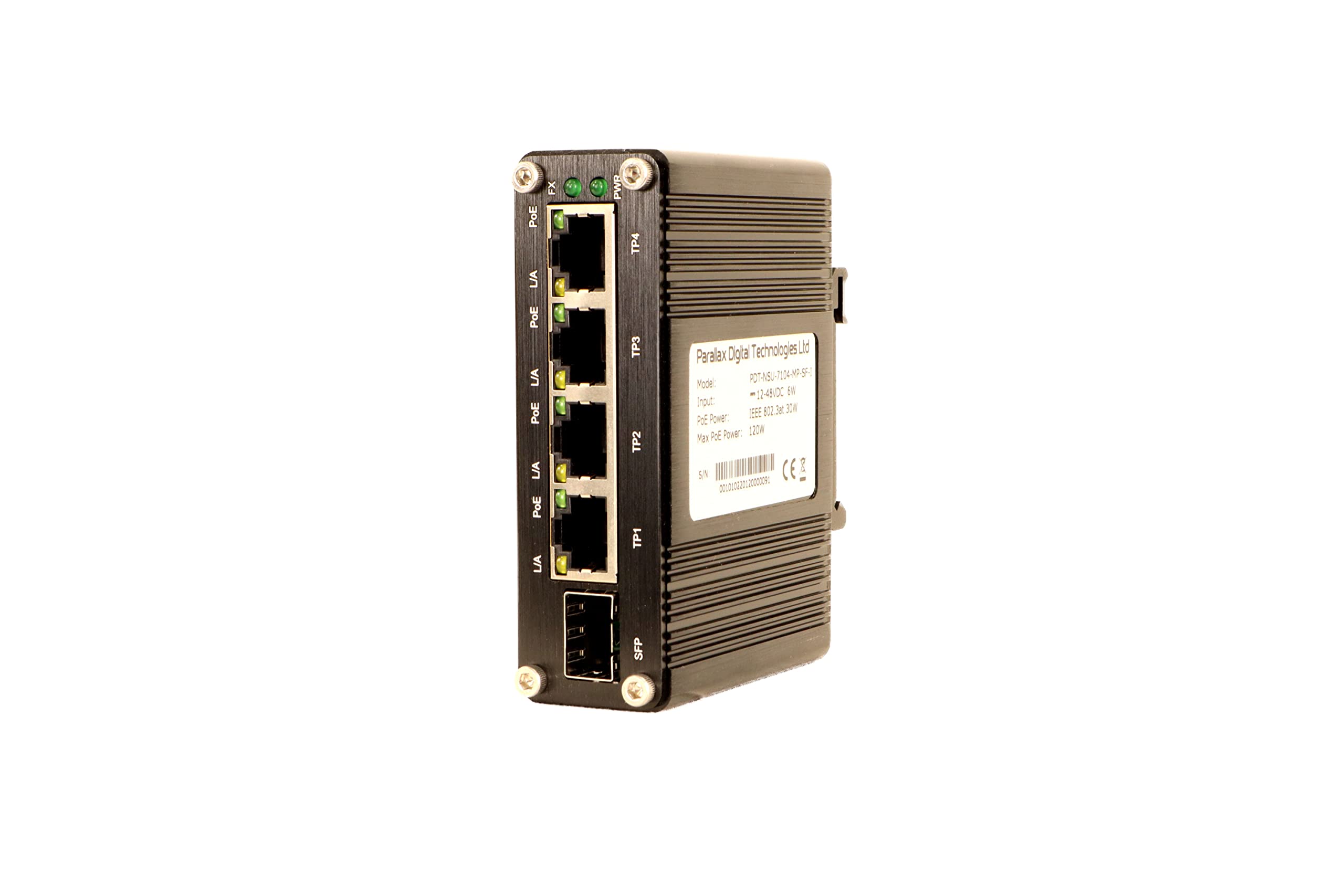

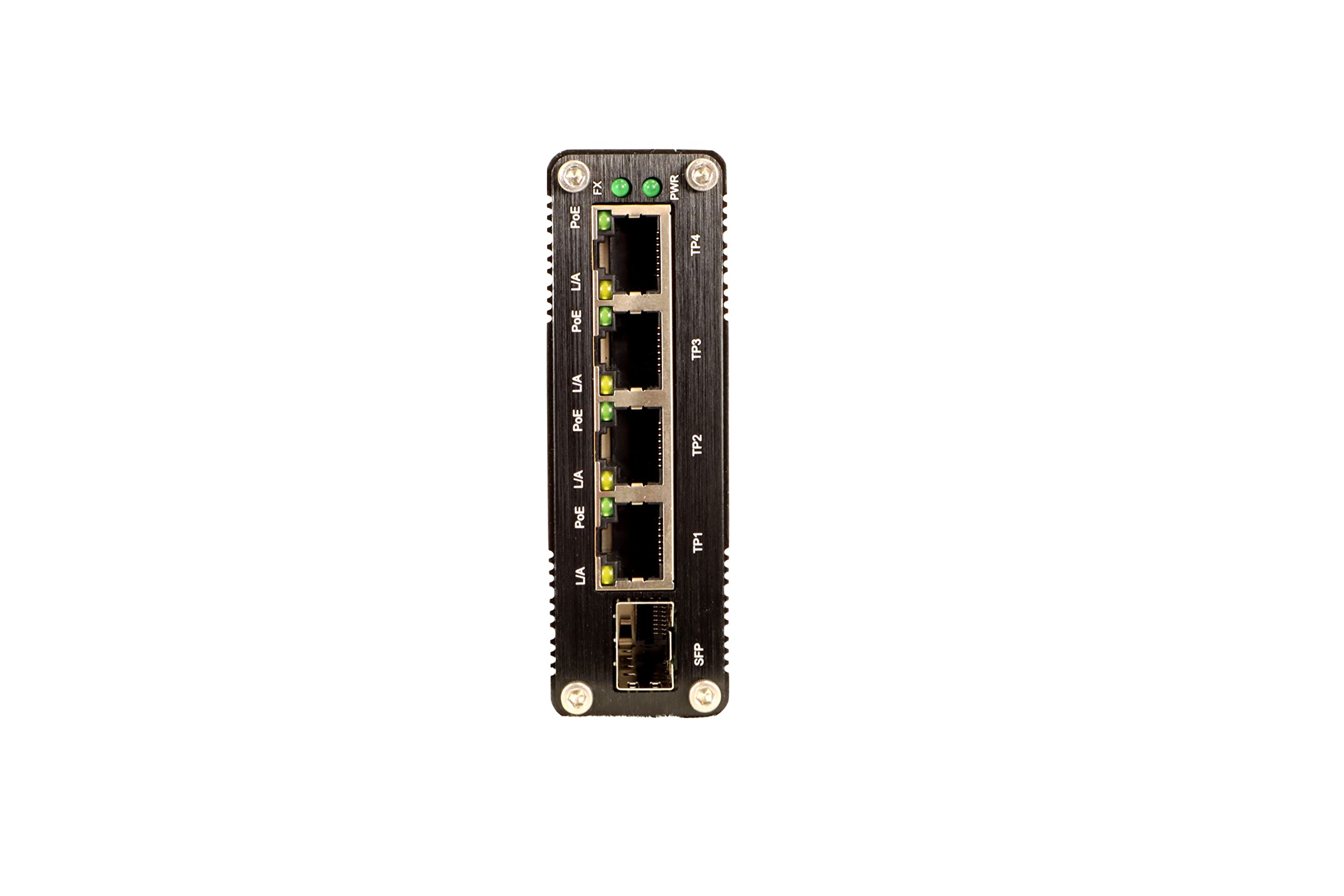

PDT-NSU-7104-MP-SF-I - 5 Port Industrial PoE Switch - DIN Rail - +12-+48VDC with Voltage Boost

• 4 x 10/100/1000 BASE-T RJ45 Ports with auto-MDI/MDI-X and IEEE 802.3at PoE+ compatibility
• 1 x 100/1000 BASE-X SFP Slot with auto-detection
• 12-48VDC Power Input with Voltage Booster for PoE Ports
• Supports 802.3x Flow Control
• Compliant with IEEE 802.3az Energy Efficient Ethernet
• Up to 120W PoE Budget (48VDC), 90W PoE Budget (24VDC), and 60W PoE Budget (12VDC)
• DIN Rail and Wall-Mount Installation
• IP40 Aluminium Enclosure
• -40°C to +80°C Operating Temperature Range

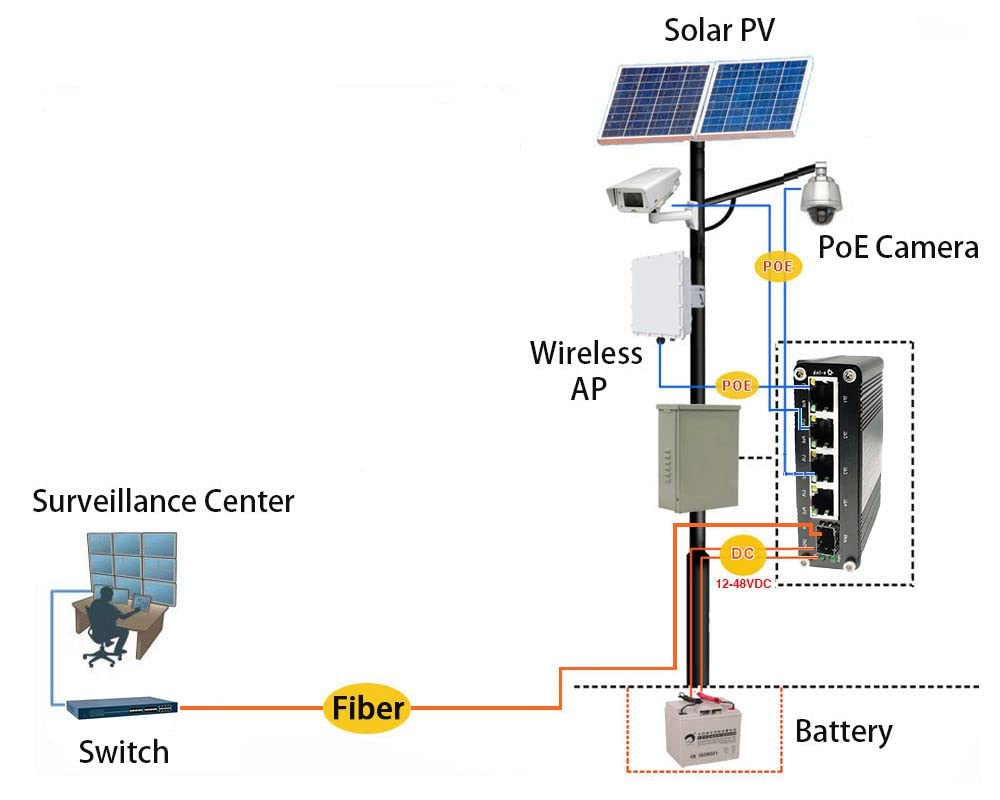

The PDT-NSU-7104-MP-SF-I is an Ultra-Small Form Factor Industrial PoE Switch, supporting 4 x 10/100/1000 BASE-T PoE+ RJ45 Ports, and 1 x 100/1000 BASE-X auto-detecting SFP Port. The unit is designed for harsh industrial conditions and environments and has a wide operating input voltage range of 12-48VDC, allowing it to be used in solar or other battery powered applications. An internal voltage booster ensure that 48VDC is supplied to the 4 x 802.3at compliant PoE Ports. The unit is housed in a rugged aluminium case, and the device has a wide operating temperature range, to allow it to be used in a wide variety of applications. This unit is part of the Micro-NET range of Ultra Small Form Factor Network devices from Parallax Digital Technologies Features 4 x 10/100/1000 BASE-T RJ45 Ports with auto-MDI/MDI-X and IEEE 802.3at PoE+ compatibility 1 x 100/1000 BASE-X SFP Slot with auto-detection 12-48VDC Power Input with Voltage Booster for PoE Ports Supports 802.3x Flow Control DIN Rail and Wall-Mount Installation Up to 120W PoE Budget (48VDC), 90W PoE Budget (24VDC), and 60W PoE Budget (12VDC) IP40 Aluminium Enclosure -40°C to +80°C Operating Temperature Range Applications: Solar Powered PoE Devices CCTV Installations Lighting Systems Access Control Remote Monitoring Stations Distributed IoTx Gateways
