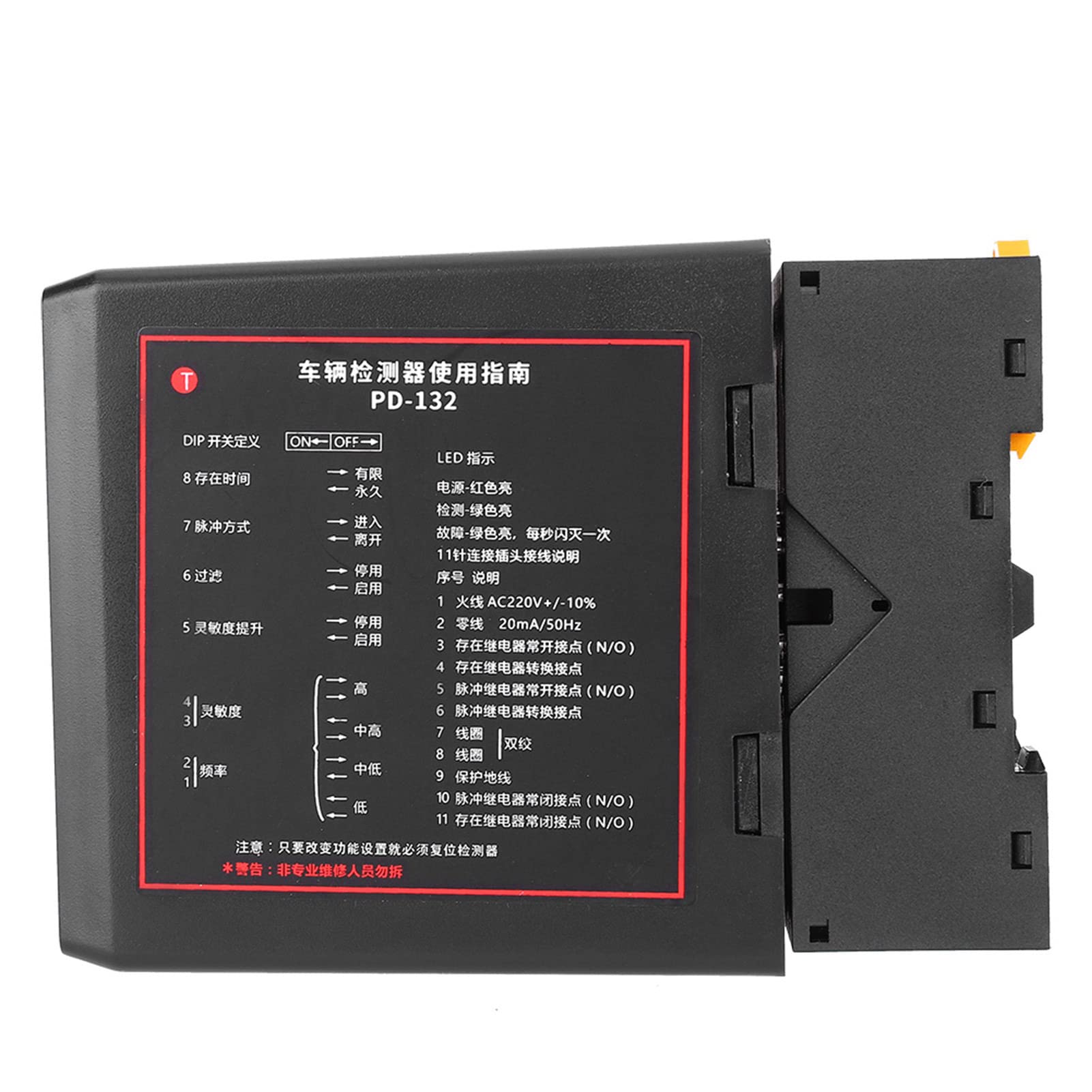

PD132 Vehicle Loop Detector, Gate Loop Detector Induction Loop Ground PD132 Single Channel Inductive Loop Exit Safety Sensor, for Car Parking Lot Vehicle Access

• 【Efficient Vehicle Detection】 The Loop Detector is a device used to detect the presence and passage of vehicles with precision and accuracy. Enhance your traffic control system with this efficient vehicle detection solution
• 【Enhanced Sensitivity and Configuration】 Adjust the undetected level to maximum sensitivity to prevent the loss of detection for high-bed vehicles. from switch-selectable sensitivity and frequency settings, offering versatility and preventing interference between loops. 4 sensitivity settings, 4 frequency settings, flexibly configurable
• 【Manual Reset and Tuning】The reset switch allows for manual resetting during commissioning and testing, enabling the detector to retune the sensing loop for optimal performance. Easily configure the detector for accurate and responsive vehicle detection
• 【Customizable Pulse Relay Settings】Tailor the pulse relay activation time to either 1 second or 0.5 seconds based on your specific needs. Select whether the relay energizes upon vehicle detection or when the vehicle exits the loop, providing flexible options
• 【Delay and Permanent Presence Options】 Utilize the delay option to prevent false detection of small or fast-moving objects, ensuring accurate vehicle detection. The permanent presence feature maintains vehicle detection even during extended parking periods, enhancing the efficiency and reliability of your loop detector system.

Specifications: Supply voltage220VAC Power4.5VA Output relays240V/5A Operating temperature-20~65°C Storage temperature-40~85°C Frequency range20 kHz to 170 kHz Temperature compensation50°C/ h Reaction time10ms Signal holding timeUnlimited/limited SensitivityHigher:0.02% high:0.05%low:0.1% lower:0.5% Loop inductanceTotal loop plus connection wiring: 50μH to 1000μH. Ideal is 100μH to 300μH Loop connection wiring200 meters long. The total resistance is less than 80hm, twisted at least 20 times per meter Relative humidity Weight283g Package included: 1 x Vehicle Loop Detector 1 x Manual Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
