PATIKIL A4 Size PCB Circuit Board Thermal Transfer Paper, 100 Pack Circuit Board Heat Transfer Sheet for Electronic Projects

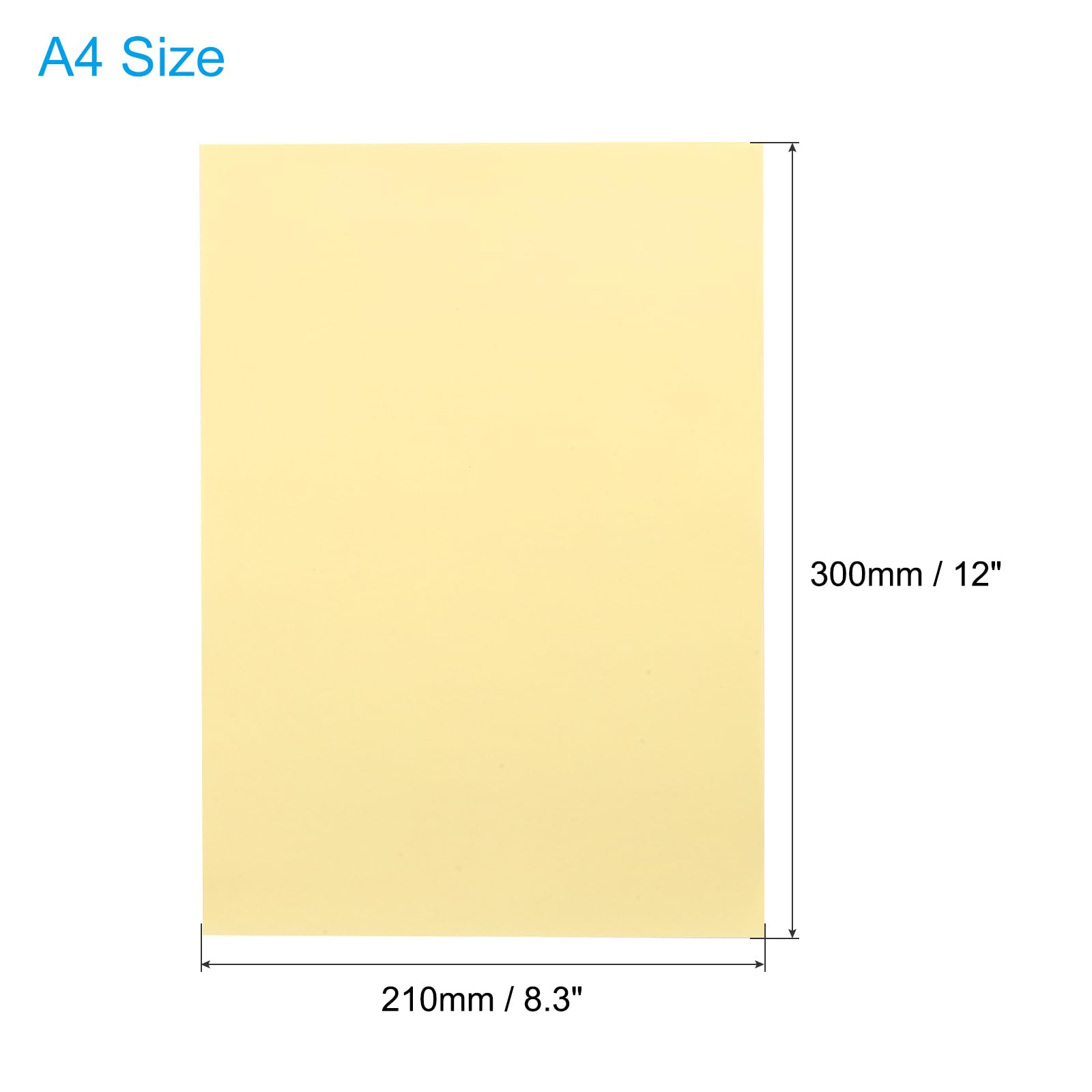

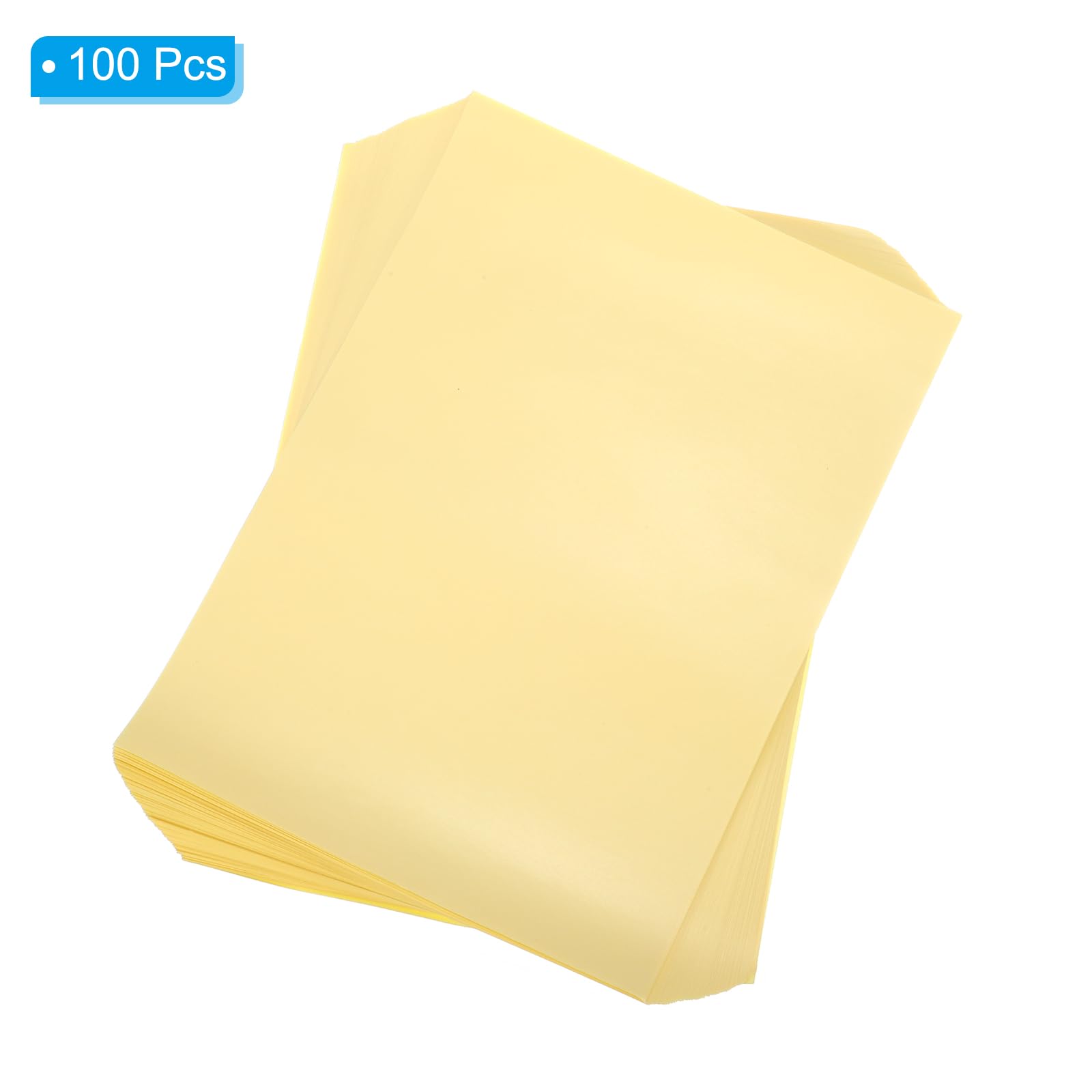

• Color: Yellow; Size: 300mmx210mm / 12"x8.3" (L*W); Packing List: 100pcs x PCB Circuit Board Thermal Transfer Paper
• Advantages: Our PCB circuit board thermal transfer paper offers several advantages for electronic enthusiasts. It enables the creation of circuit boards with precision and accuracy. The cost-effective nature of the paper allows for DIY circuit board production. With fast transfer speeds, users can quickly create single-sided or double-sided boards.
• Instruction: Simply print your circuit design onto the smooth side of the paper using a laser printer. Then, place the printed side of the paper onto the copper board and apply heat using a heat press or iron set to a temperature between 150-180 degrees Celsius. After transferring the design, remove the transfer paper and proceed with etching the board using an Iron(III) chloride solution. Finally, clean the board with gasoline or rinse off the carbon powder using water and sandpaper.
• Application: Our PCB circuit board thermal transfer paper is an essential material for electronic enthusiasts involved in DIY circuit board production. It is suitable for hobbyists and professionals aiming to create high-precision circuit boards for various electronic projects.
• NOTE: When using our PCB circuit board thermal transfer paper, ensure that you have a clean and smooth copper surface on the board for optimal transfer results. Adjust the heat press or iron temperature according to the recommended range to avoid damaging the paper or the board. Follow proper safety precautions when handling chemicals during the etching process. Additionally, be cautious when cleaning the board to prevent any damage to the transferred circuit design.

Our PCB circuit board thermal transfer paper is an essential material for electronic enthusiasts involved in DIY circuit board production. It is suitable for hobbyists and professionals aiming to create high-precision circuit boards for various electronic projects. Specification Color: Yellow Size: 300mmx210mm / 12"x8.3" (L*W) Packing List: 100pcs x PCB Circuit Board Thermal Transfer Paper Advantages Our PCB circuit board thermal transfer paper offers several advantages for electronic enthusiasts. It enables the creation of circuit boards with precision and accuracy. The cost-effective nature of the paper allows for DIY circuit board production. With fast transfer speeds, users can quickly create single-sided or double-sided boards. Instruction To use our PCB circuit board thermal transfer paper, simply print your circuit design onto the smooth side of the paper using a laser printer. Then, place the printed side of the paper onto the copper board and apply heat using a heat press or iron set to a temperature between 150-180 degrees Celsius. After transferring the design, remove the transfer paper and proceed with etching the board using an Iron(III) chloride solution. Finally, clean the board with gasoline or rinse off the carbon powder using water and sandpaper. NOTE: When using our PCB circuit board thermal transfer paper, ensure that you have a clean and smooth copper surface on the board for optimal transfer results. Adjust the heat press or iron temperature according to the recommended range to avoid damaging the paper or the board. Follow proper safety precautions when handling chemicals during the etching process. Additionally, be cautious when cleaning the board to prevent any damage to the transferred circuit design.
