Part King Universal Tilt & Swivel Arm TV Wall Mount Bracket 32" 42" 43" 49" 50" 55" LED LCD Moving Left Right 200x200 300x300 400x200 400x400 VESA

• Part King TV / Monitor Bracket

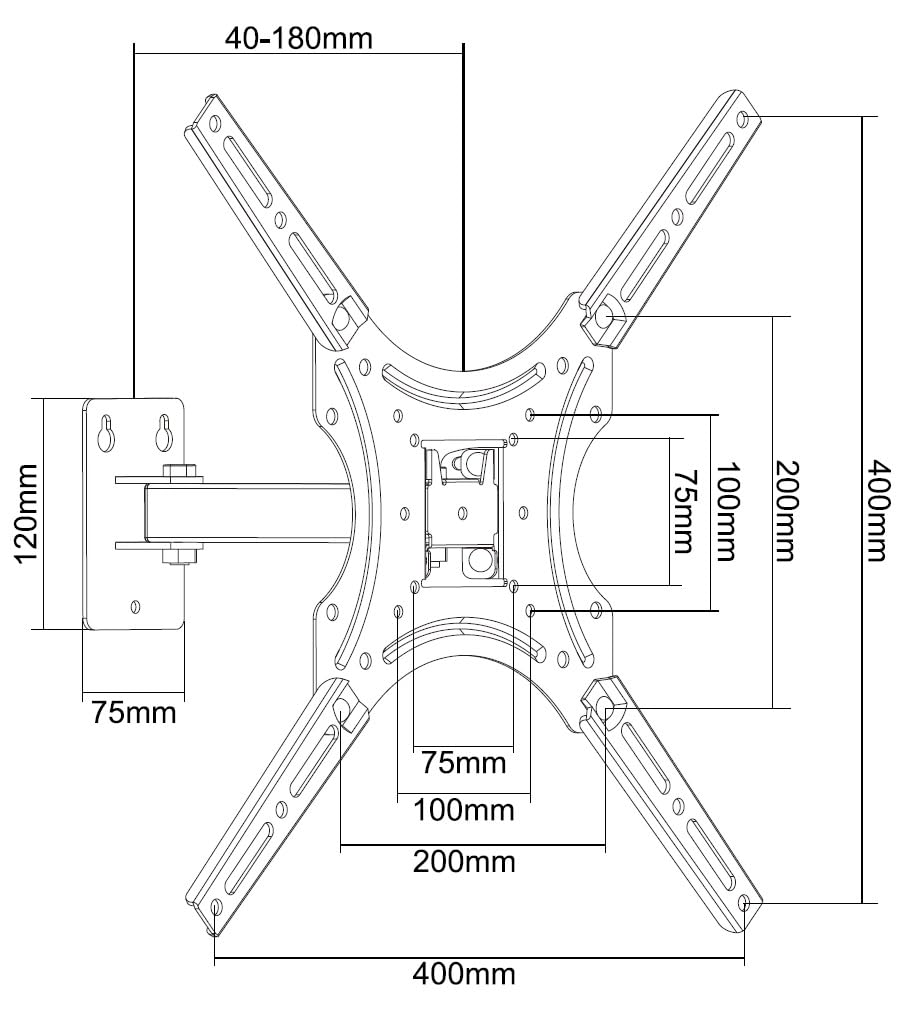

• Fits most 23" to 55" TVs & Monitors with the following VESA patterns: 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x300mm*, 400x200mm*, 400x400mm*, *Using the adaptor arms included.
• To measure your VESA size simply measure the distance between the mounting holes on the back of your TV. First horizontal, second vertical. They must match the above sizes for this TV mount to fit your TV. If your TV VESA size is larger than 400mm you require a larger bracket.
• The maximum weight is 35kg
• Distance from wall 40mm to 180mm (when arm fully extended)
• Tilt range 0 ~ -15 Degrees
• Swivel range 180 Degrees (90 left ~ 90 Right)
• Supplied with a fixing kit suitable for most installations. Fixing Kit Includes: M4x12 (Quantity 4), M5x12 (Quantity 4), M6x16 (Quantity 4), M8x16 (Quantity 4), D5 Washers (Quantity 4), D8 Washers (Quantity 4), Small Spacers (Quantity 4), Wall Plug (Quantity 3), Wall Screw (Quantity 3), M6x8 (Quantity 4) (For use with adaptor arms), M6 Nut (Quantity 4) (For use with adaptor arms)

Part King TV / Monitor Bracket Fits most 23" to 55" TVs & Monitors with the following VESA patterns: 75 x 75 mm 100 x 100 mm 200 x 100 mm 200 x 200 mm 300 x 300 mm * 400 x 200 mm * 400 x 400 mm * *Using the adaptor arms included. To measure your VESA size simply measure the distance between the mounting holes on the back of your TV. First horizontal, second vertical. They must match the above sizes for this TV mount to fit your TV. If your TV VESA size is larger than 400mm you require a larger bracket. The maximum weight is 35kg Distance from wall 40mm to 180mm (when arm fully extended) Tilt range 0 ~ -15 Degrees Swivel range 180 Degrees (90 left ~ 90 Right) Supplied with a fixing kit suitable for most installations. Fixing Kit Includes: M4x12 (Quantity 4) M5x12 (Quantity 4) M6x16 (Quantity 4) M8x16 (Quantity 4) D5 Washers (Quantity 4) D8 Washers (Quantity 4) Small Spacers (Quantity 4) Wall Plug (Quantity 3) Wall Screw (Quantity 3) M6x8 (Quantity 4) (For use with adaptor arms) M6 Nut (Quantity 4) (For use with adaptor arms)
