Part King Fold Up Down Away TV Ceiling Mount Bracket 27" 32" 33" 37" 39" 40" 41" 42" 43" LED TV VESA 75x75 100x100 200x100 200x200 Folding Sloping Ceiling Flip Bracket

• Part King Ceiling TV Mount
• Suitable for most 17" to 47" TV's with the following VESA size: 75x75mm, 100x100mm, 200x100mm, 200x200mm
• To measure your VESA size simply measure the distance between the mounting holes on the back of your TV. First horizontal, second vertical. They must match the above sizes for this TV mount to fit your TV. If your TV VESA size is larger than 200mm you require a larger bracket.
• Style: Folding TV Ceiling Mount

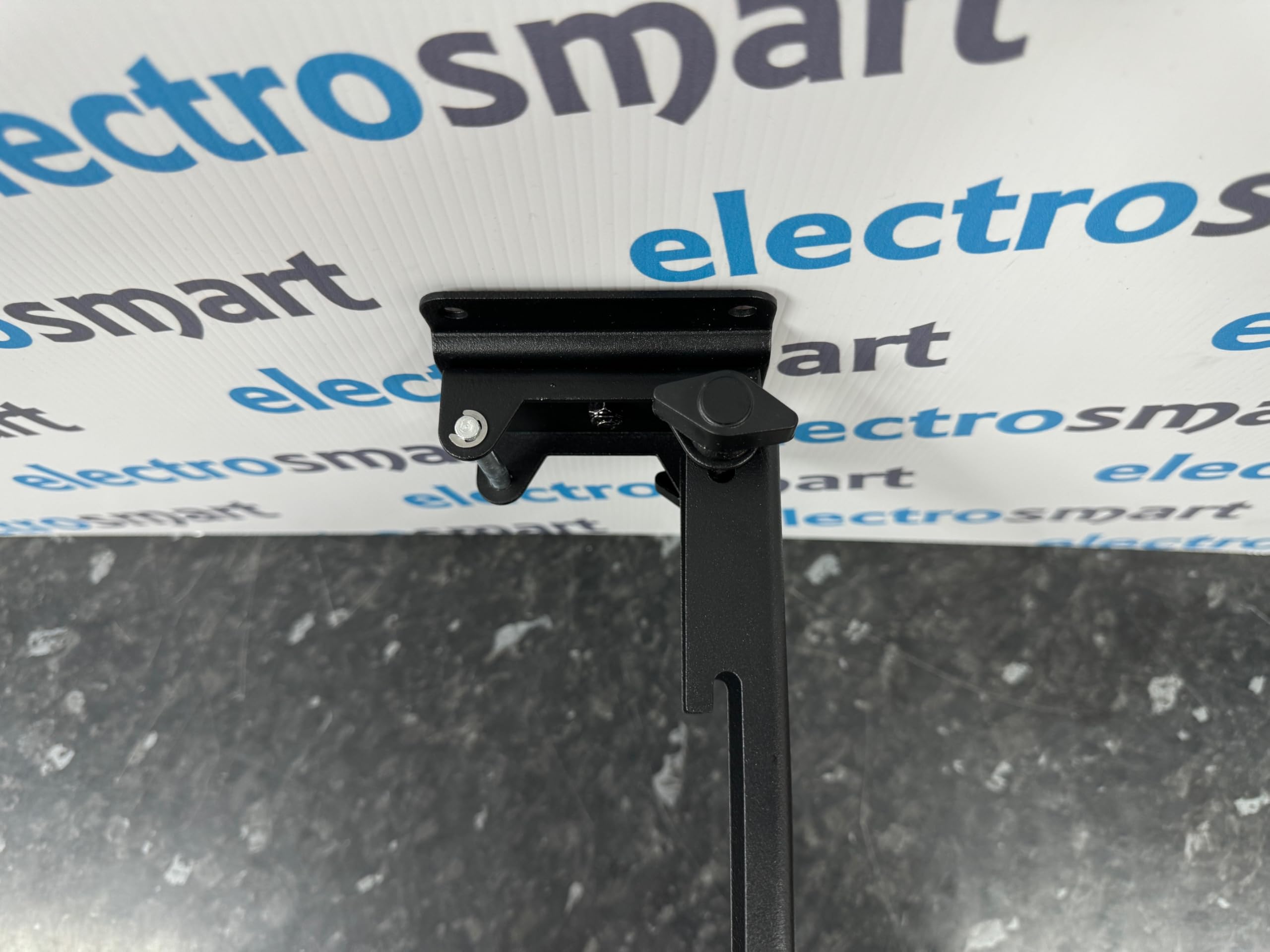

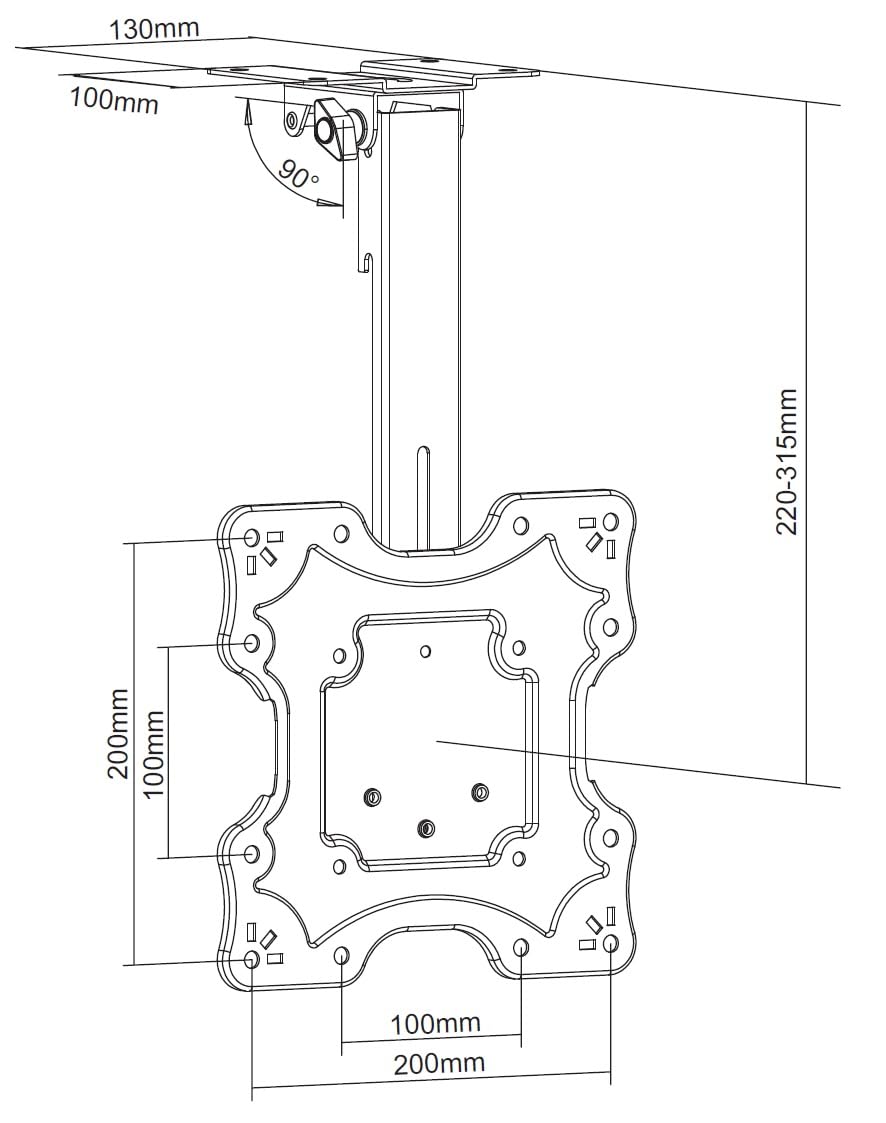

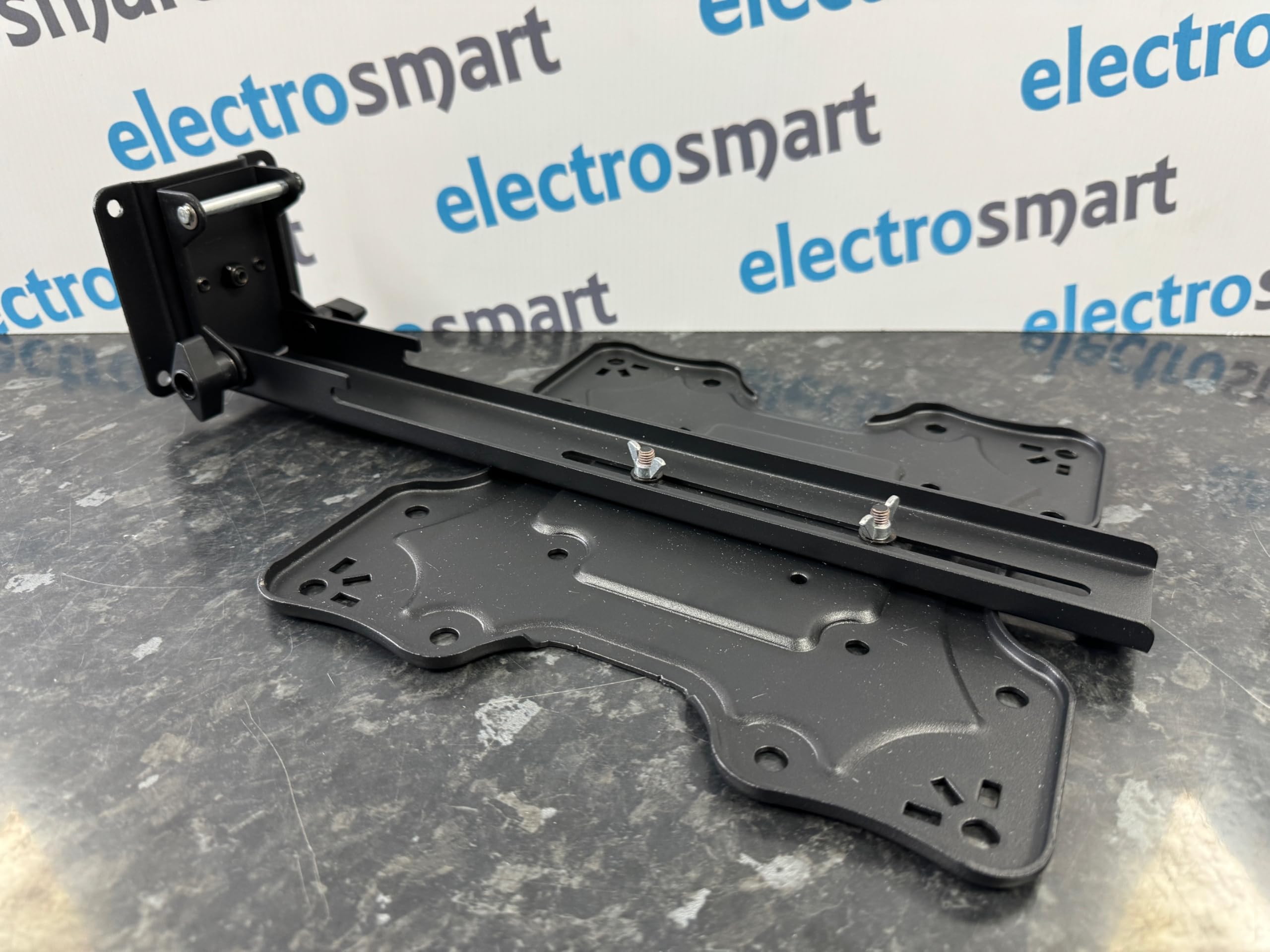

• Distance from ceiling to the centre of the VESA head: 220 - 315mm (adjustable using wing nuts on the back of the bracket, please see additional photos).

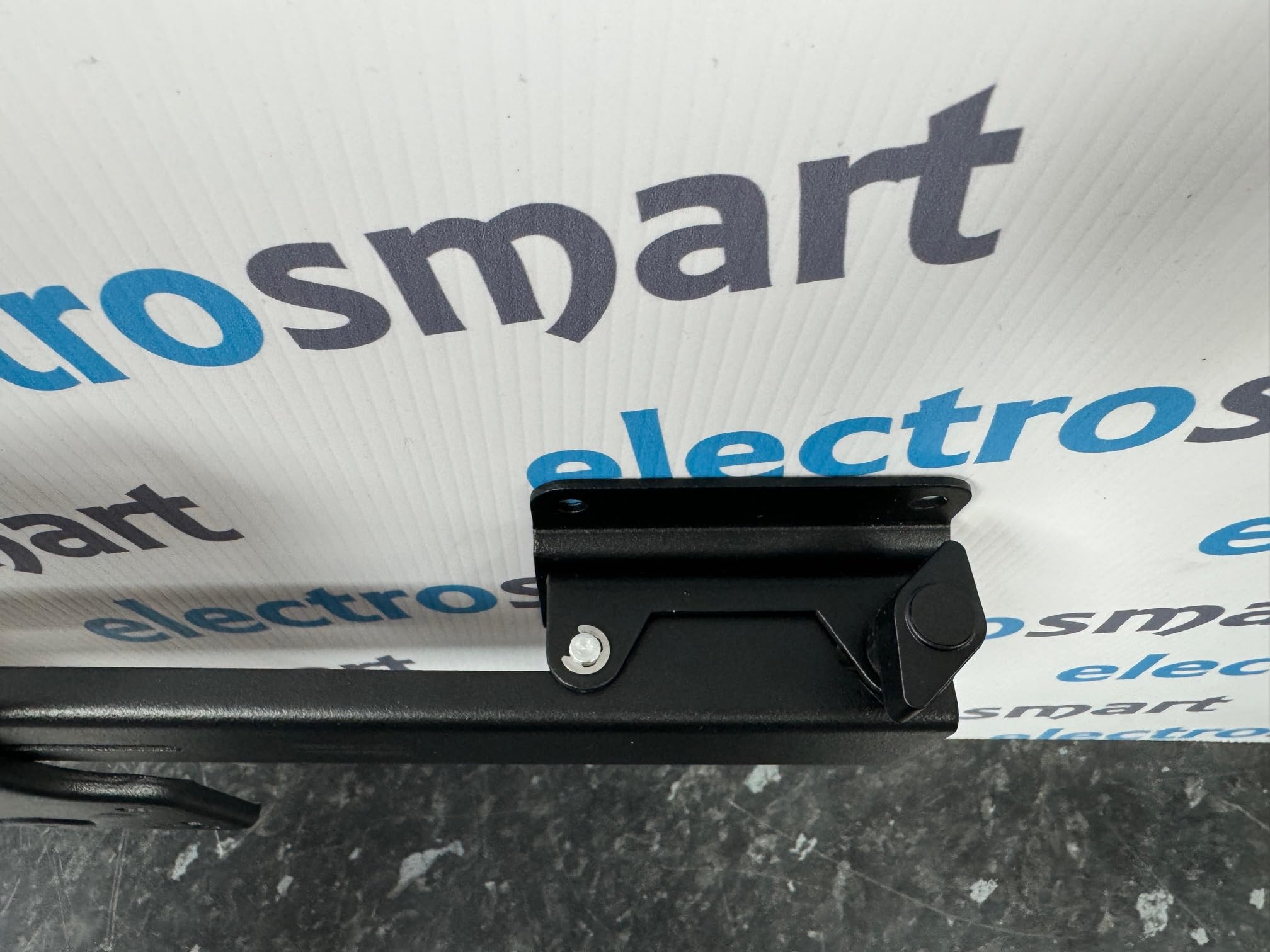

• Adjustable between 0 degrees and 90 degrees, which allows the bracket to be folded up, or down, as required. Slacken / tighten the knobs to adjust tension to set your perfect angle. Ideal for ceiling, including sloping ceilings, and motor homes etc.
• Maximum weight: 20 KG

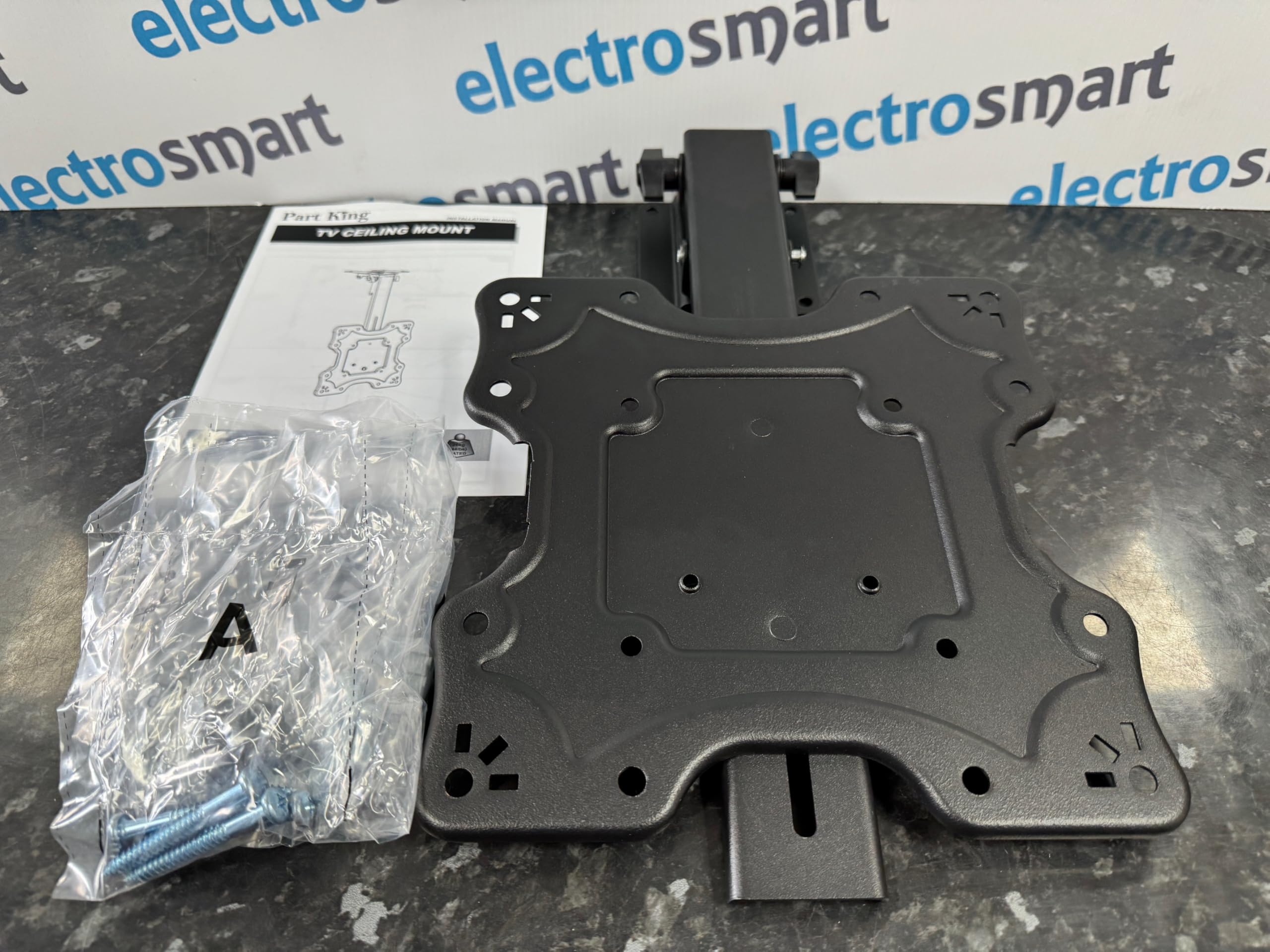

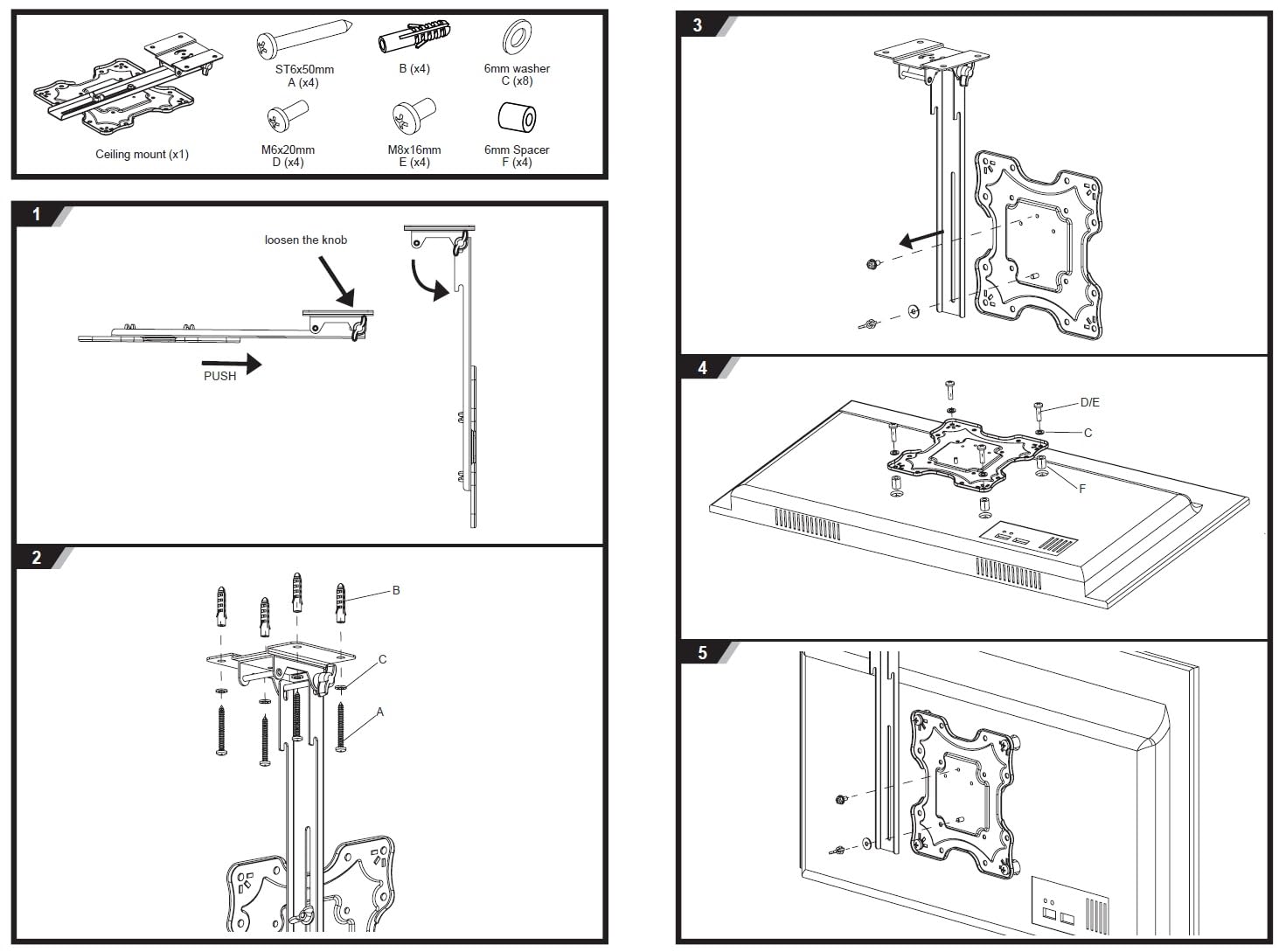

• Includes a fixing kit suitable for most installations: M6x20 (Quantity 4), M8x16 (Quantity 4), 6mm Spacers (Quantity 4), Wall Plugs (Quantity 4), Wall Screws (Quantity 4), 6mm Washers (Quantity 4)

Part King Ceiling TV Mount Suitable for most 17" to 47" TV's with the following VESA size: 75 x 75 mm 100 x 100 mm 200 x 100 mm 200 x 200 mm To measure your VESA size simply measure the distance between the mounting holes on the back of your TV. First horizontal, second vertical. They must match the above sizes for this TV mount to fit your TV. If your TV VESA size is larger than 200mm you require a larger bracket. Style: Folding TV Ceiling Mount Distance from ceiling to the centre of the VESA head: 220 - 315mm (adjustable using wing nuts on the back of the bracket, please see additional photos). Adjustable between 0 degrees and 90 degrees, which allows the bracket to be folded up, or down, as required. Slacken / tighten the knobs to adjust tension to set your perfect angle. Ideal for ceiling, including sloping ceilings, and motor homes etc. Maximum weight: 20 KG Includes a fixing kit suitable for most installations: M6x20 (Quantity 4) M8x16 (Quantity 4) 6mm Spacers (Quantity 4) Wall Plugs (Quantity 4) Wall Screws (Quantity 4) 6mm Washers (Quantity 4)
