Palmer BRIDGE 4P 4-channel passive DI box, 19” rack-mountable

• Balancing and impedance matching of audio signals from guitars, basses, keyboards and synthesizers
• Elimination of hum caused by earth loops thanks to galvanic isolation of the transformer
• 4 independent DI boxes in a solid 19’ enclosure (1U)
• Absolutely reliable operation, no power supply required

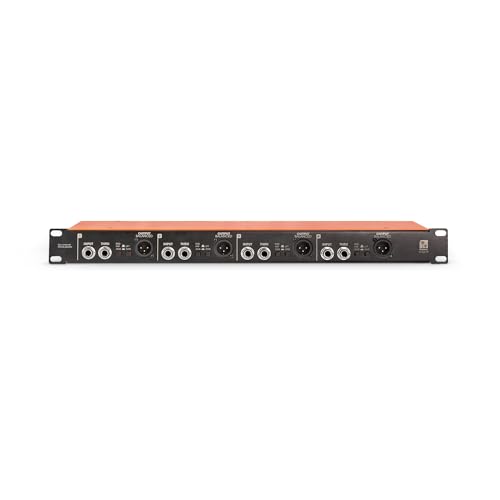

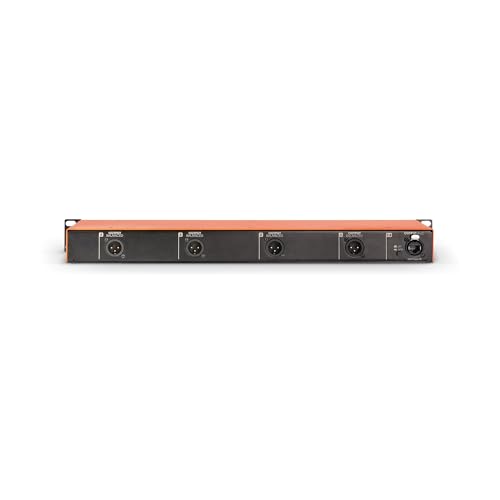

Description Are you looking to transport the pure signal of a guitar, bass or keyboard without background noise or deterioration, even over long cable runs? If so, you need a DI box - and a high-quality one at that - to ensure that the quality of your sound isn't compromised. The Palmer BRIDGE 4P is a 4-channel passive DI box in 19’ rack format, equipped with top-of-the-range audio transformers that accept high signal levels without distortion or loss of sound quality on your instrument. Each channel is equipped with a 6.35 mm jack input, a THRU return (for routing input signals to an amplifier, for example) and two transformer-balanced XLR outputs: one at the front and one at the rear. With a transformation ratio of 10:1, the transformers provide optimum impedance and level matching, allowing signals from a guitar, bass, keyboard or synthesiser to be connected to a balanced microphone input. At the same time, galvanic isolation prevents hum and buzz caused by ground loops, so the signal remains pure, clear and with a very low noise floor, free from interference. Thanks to a switchable 30 dB pre-attenuation, the BRIDGE 4P accepts extremely high input levels, above line level: it can therefore be inserted, for example, between an amplifier output and the loudspeakers. The Audio-Over-Cat output allows the signals from all 4 channels to be transported via a single Cat cable (Cat5e or higher). This saves equipment, space and time. Thanks to its passive design, BRIDGE 4P requires no power supply, making it extremely reliable. The BRIDGE 4P is an ideal solution for audio technicians, semi-professional and professional musicians and recording studios looking for reliable, durable products.
